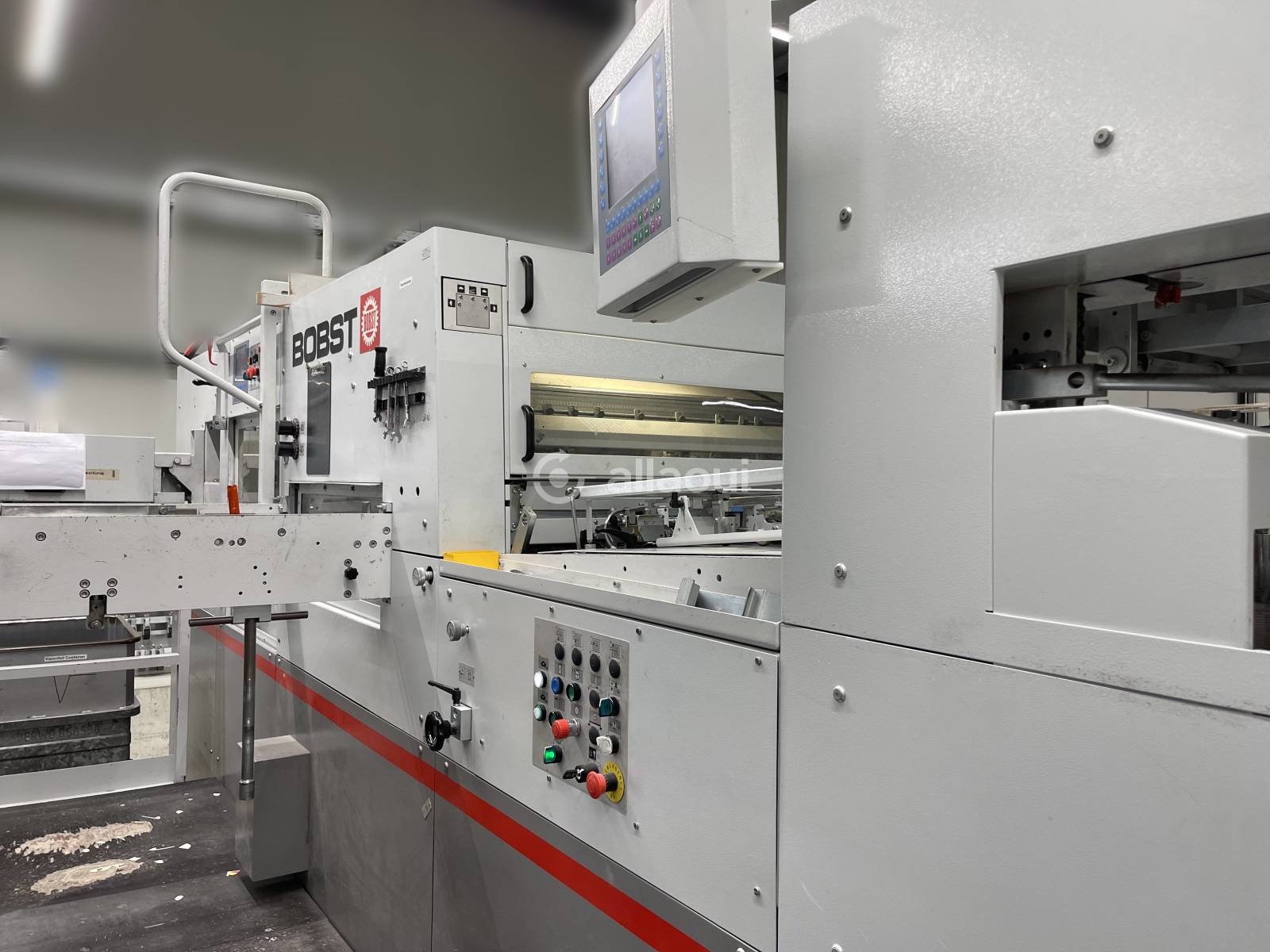

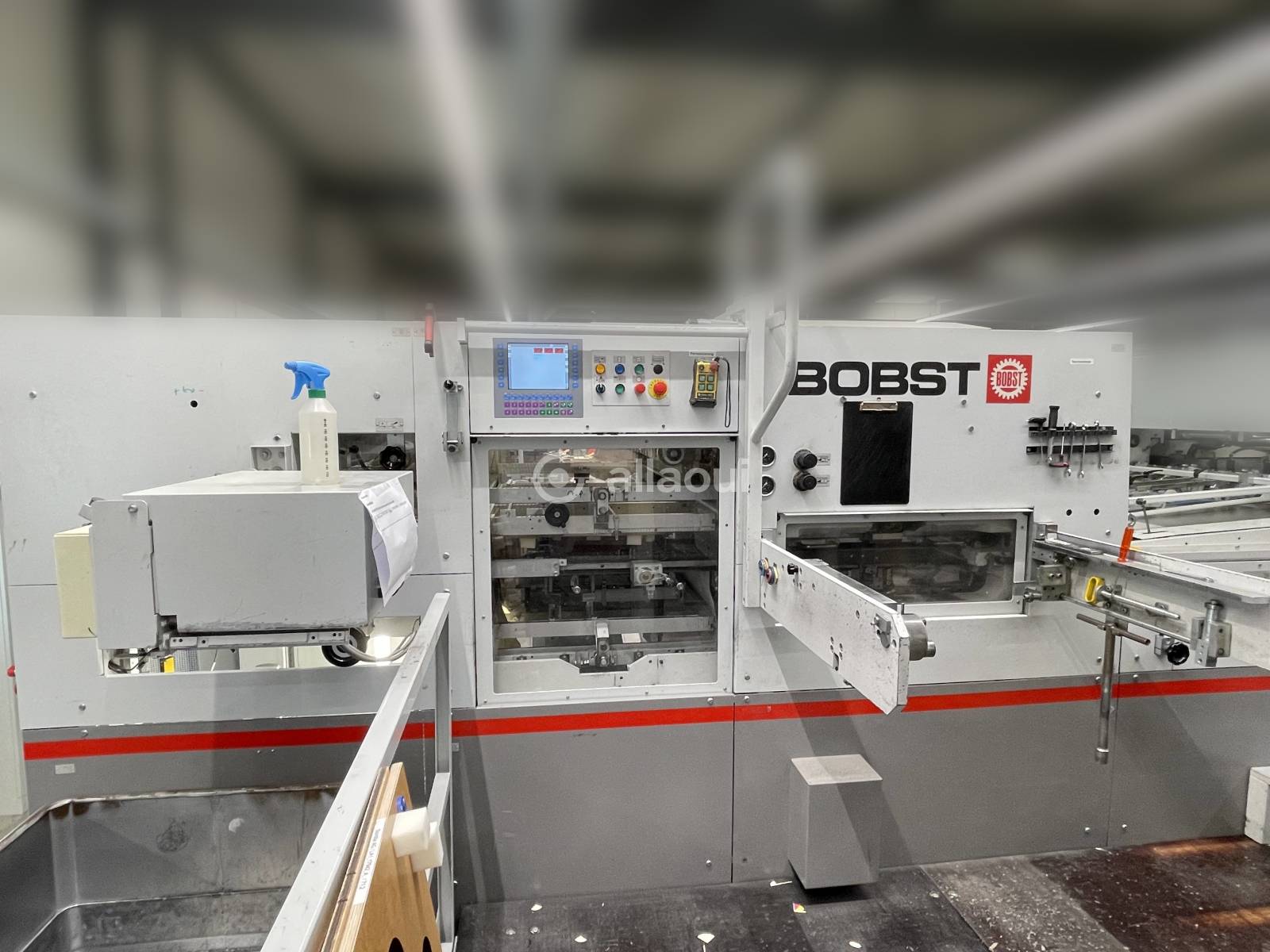

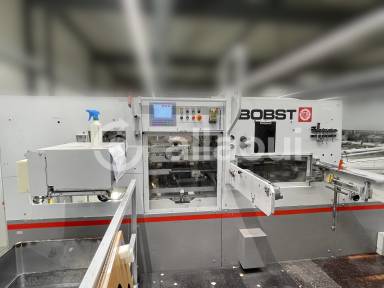

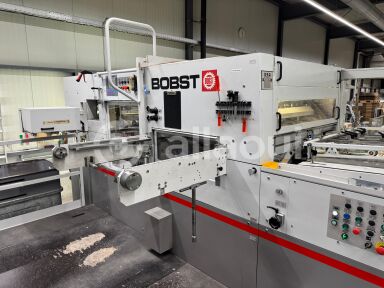

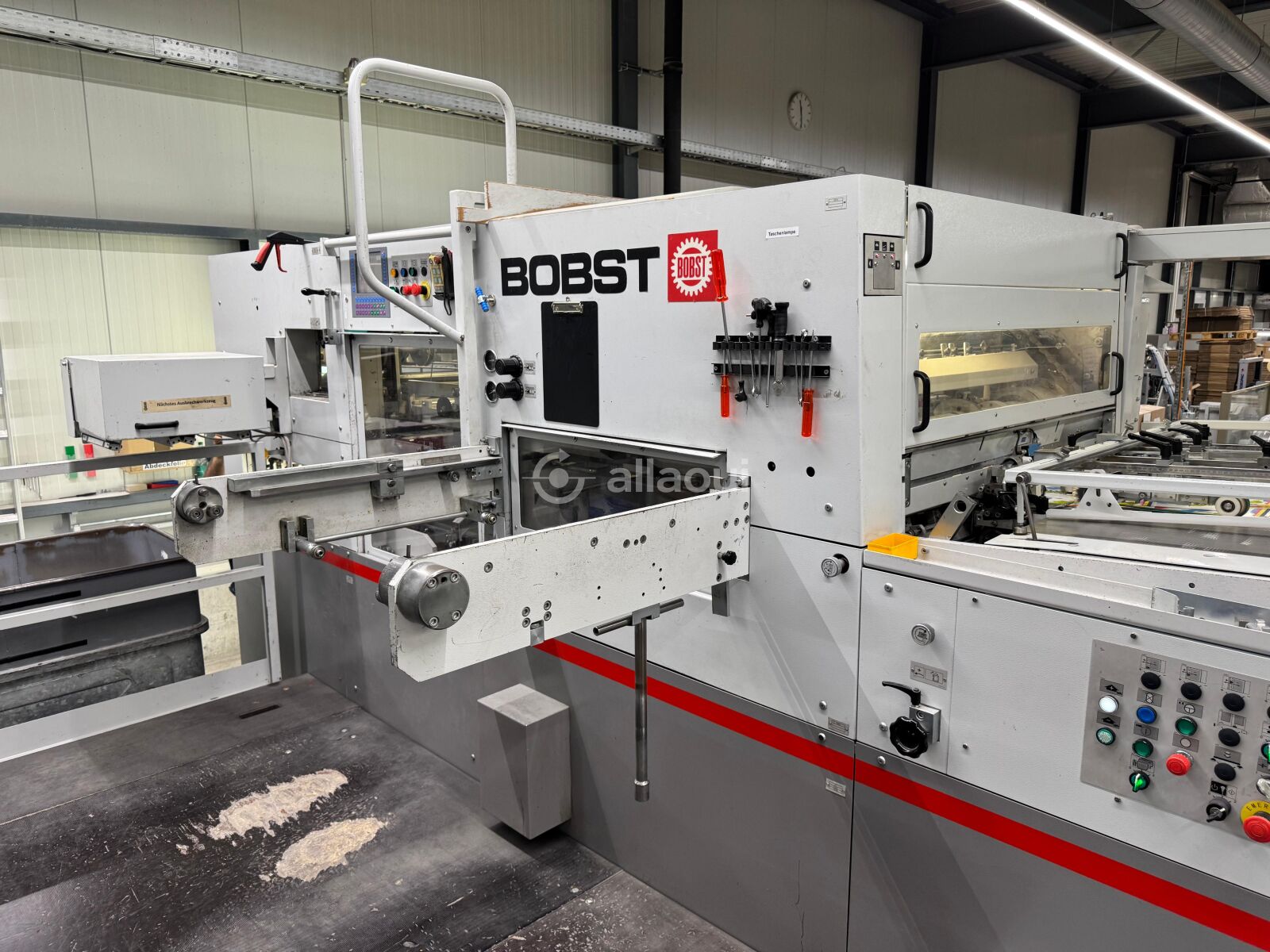

Used Bobst Visionfoil 104

Hotfoil Stamping machine for sale

Reference ET37483
Manufacturer Bobst
Type Visionfoil 104
Year 2012
Runtime 15.000 h
Status in production

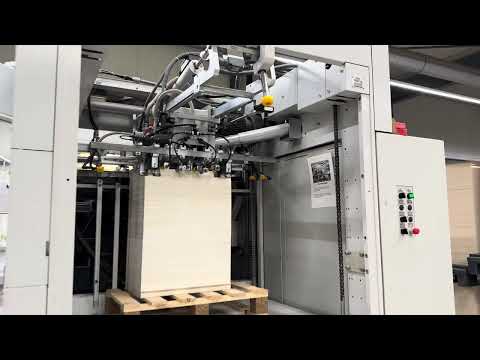

Video
Request More Information

Description

Features & Equipment:
Machine Technology:
- Centerline System for quick job changeover
- Electronic sheet travel control
- Climate-controlled switch cabinet

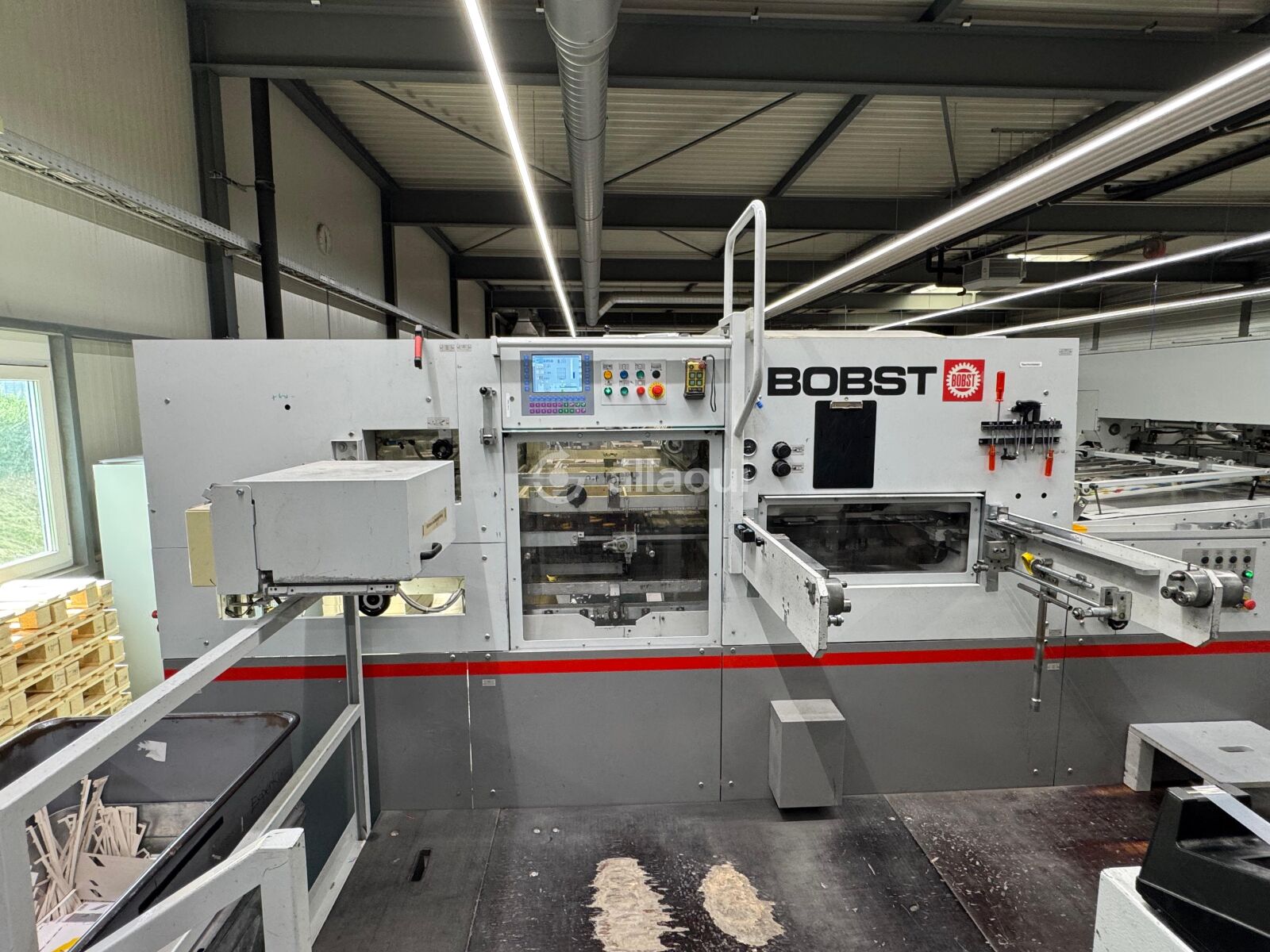

- Bobst-Electronic C.U.B.E. II control system with color display
- Frequency-controlled asynchronous motor

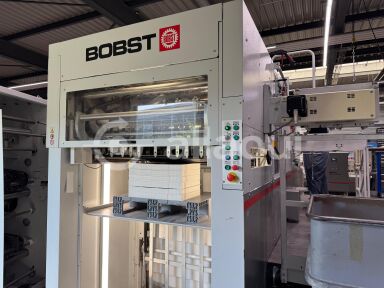

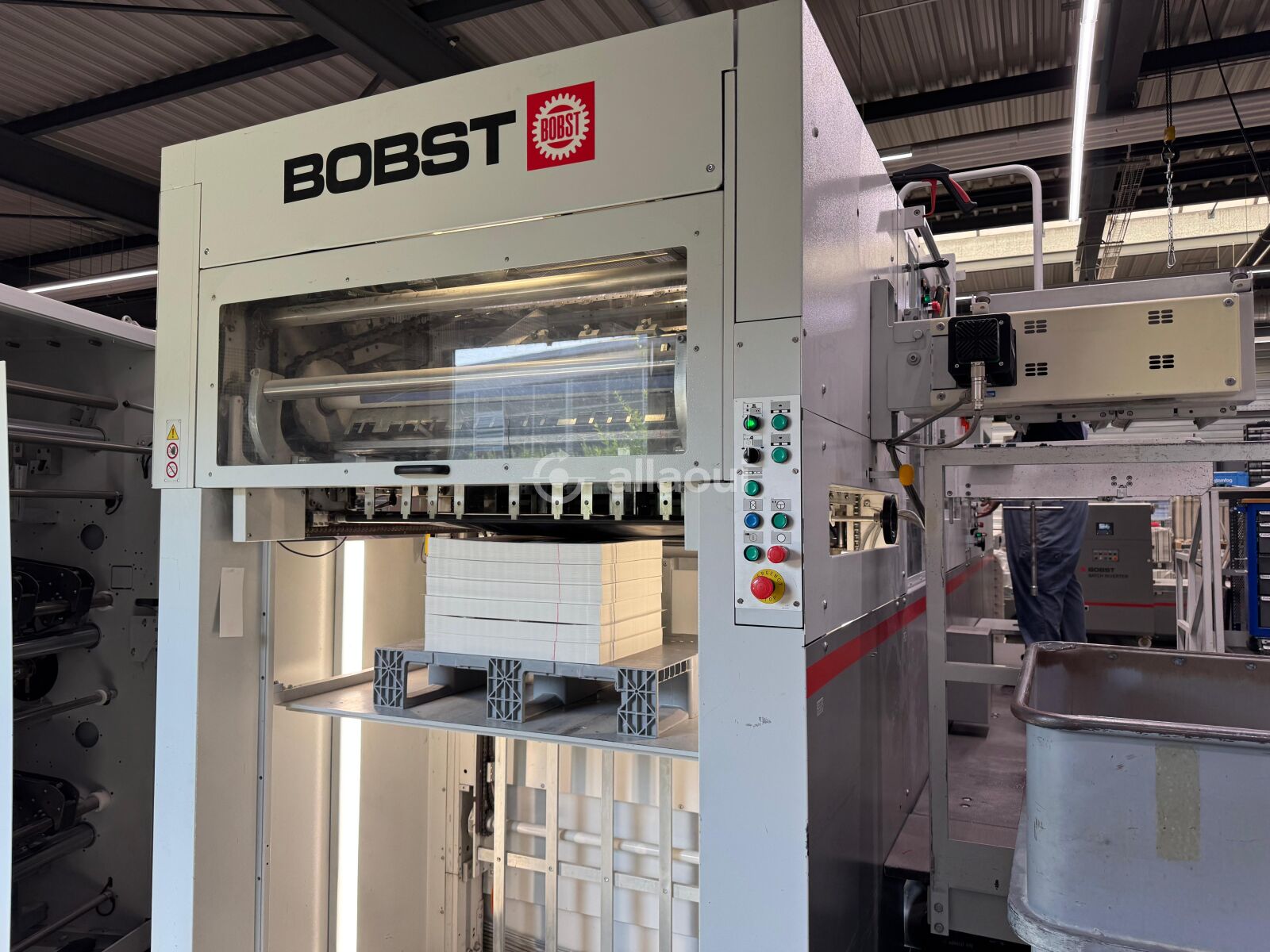

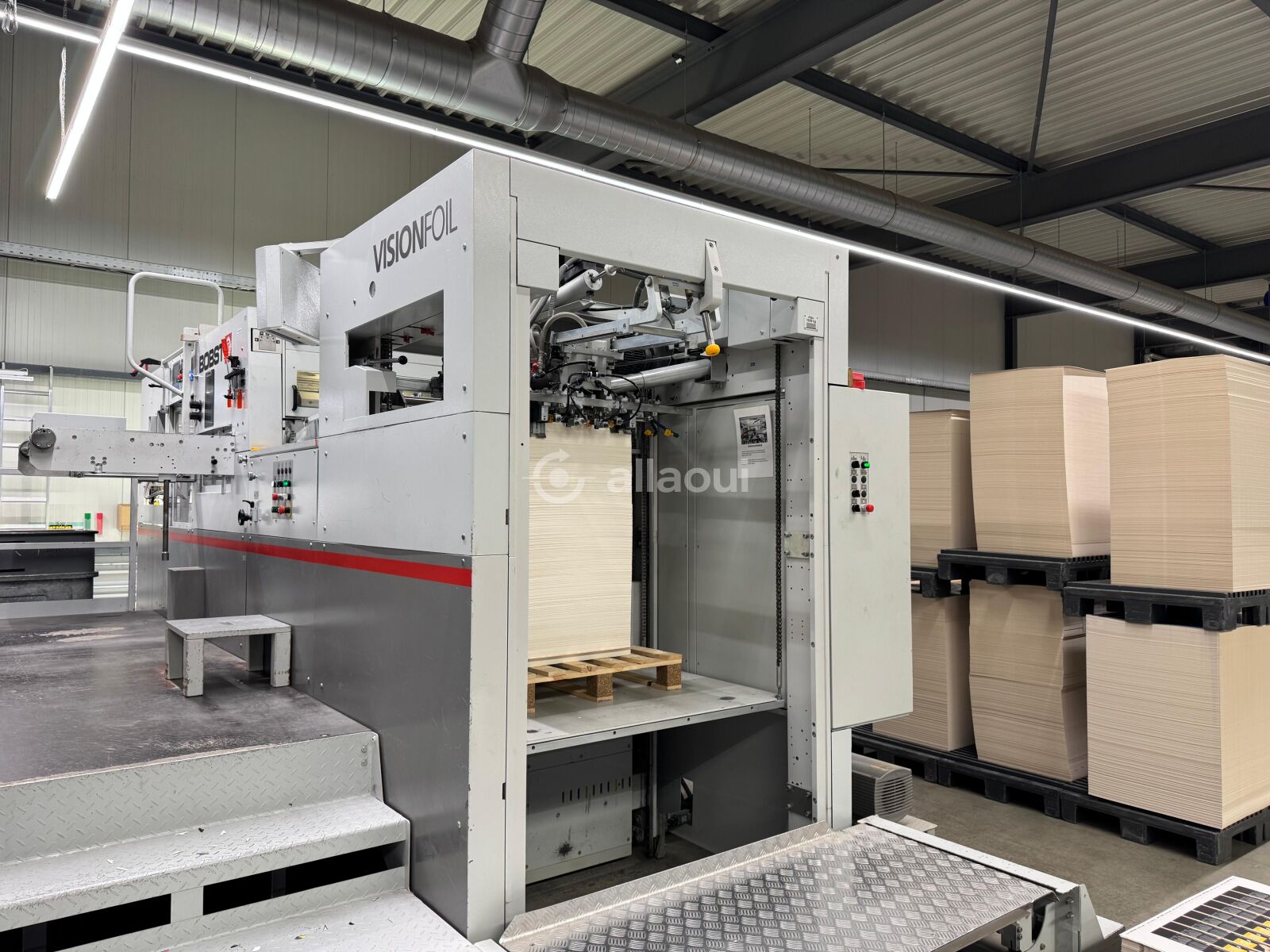

Feeder:
- Pallet carrier plate with handle

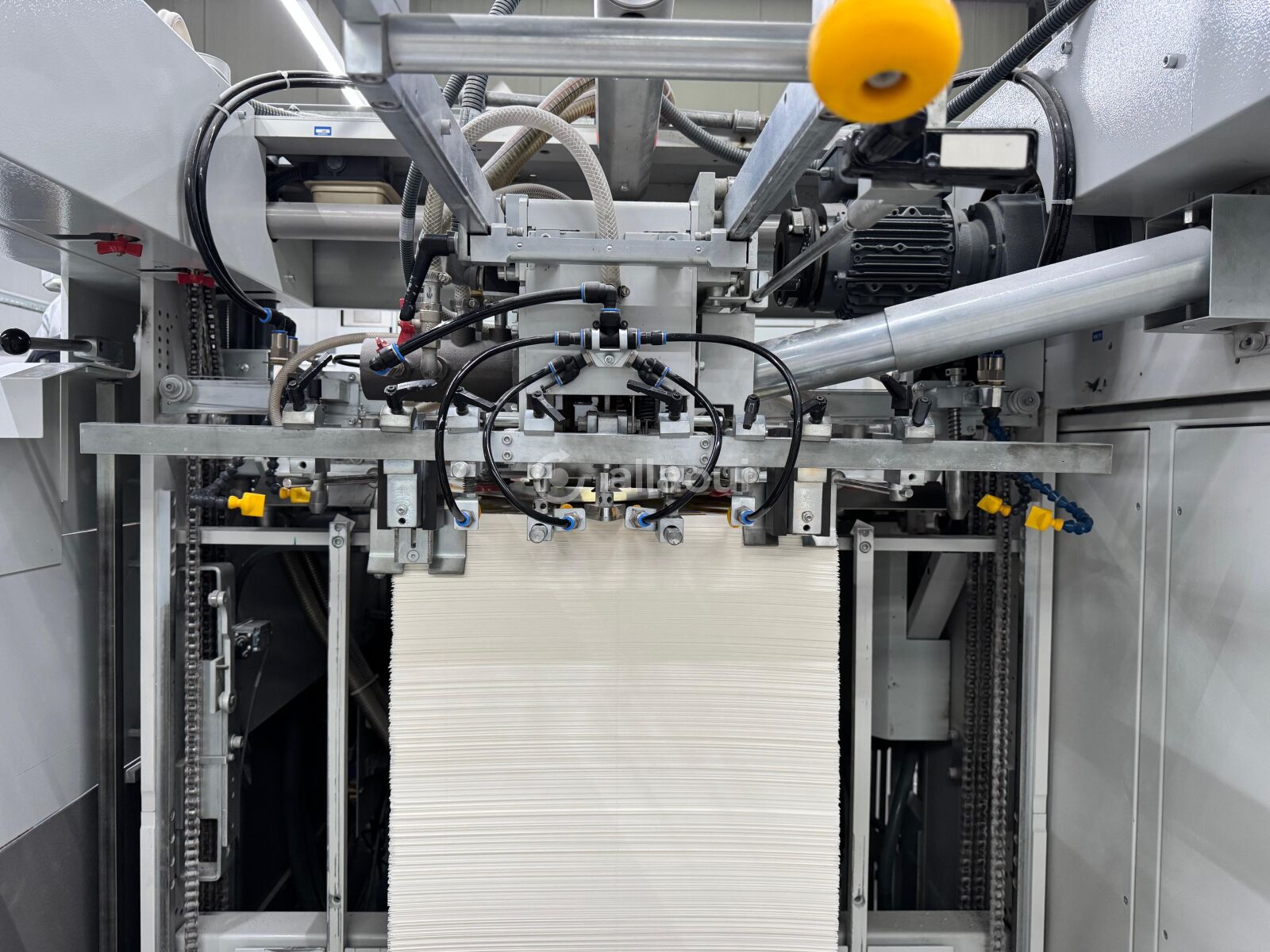

- Synchronization system for sheet positioning
- Suction head and safety system when lowering the pallet carrier plate

Die-cutting Unit:
- Heated upper platen with 12 heating zones
- Automatic pressure force adjustment
- Centering and locking of the die-cutting equipment

Foil Stamping Unit:
- Unwinding module with 2 feeder shafts (250 mm diameter)
- Automatic belt drive system
- Independent BM switch cabinet for hot foil stamping
- Wireless remote control


Additional Options:
- Quick-change chase for die-cutting
- Extended podium with walkway
- Bernoulli sheet braking system for low grammage
- Off-press setup table for tools
- MSS console (Machine Supervision System) with panel PC

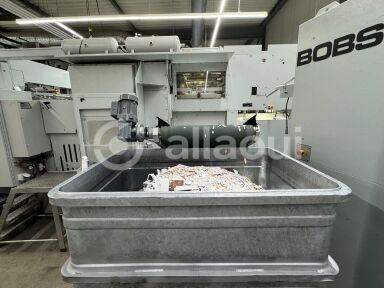

- Interface for waste processing system
- Raised Machine 400 mm
- Touchless double sheet control
- Automatic non-stop in delivery
- Unwinding Module with 3 feed rollers
- addtional Cube Display

Equipment

  • Control panel: C.U.B.E. II (Control unit Bobst Electronic)
  • Raised machine
  • Locking frame adapter
  • Sheet Brake Device: Bernoulli at the crucible entrance
  • MSS Console (Machine Supervision System)

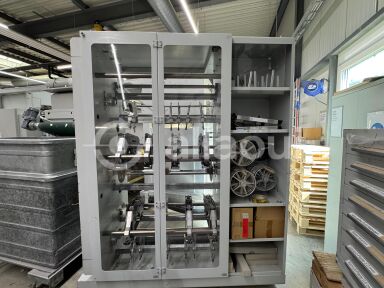

  • Set-up Table
  • Device for processing paper at high speed
  • Die cutter
  • Hotfoil Stamping

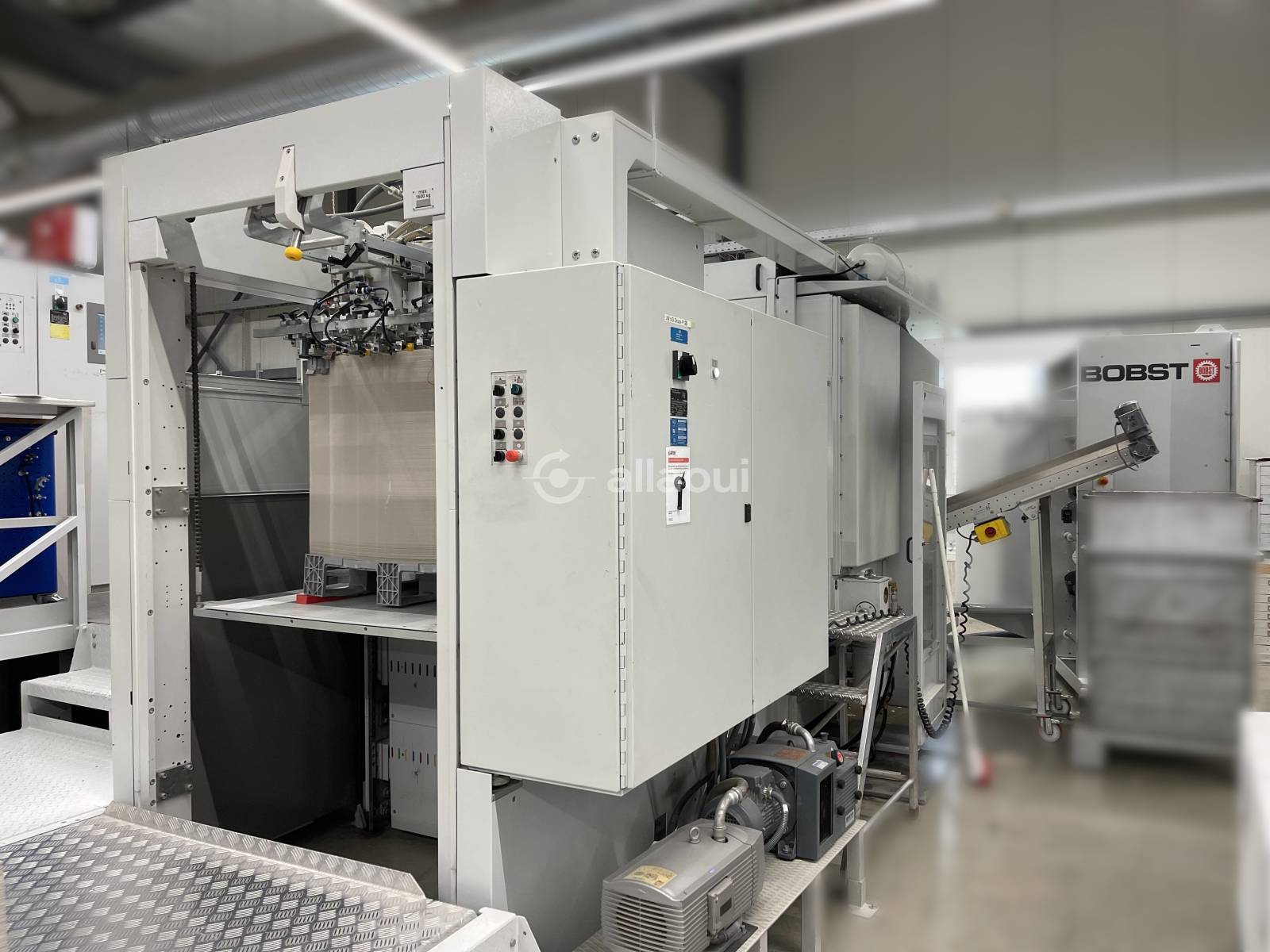

Feeder

  • Motorized vertical tracking of suction head

Feeding table

  • Double sheet control

Foil Unit

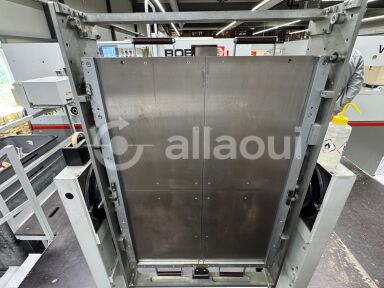

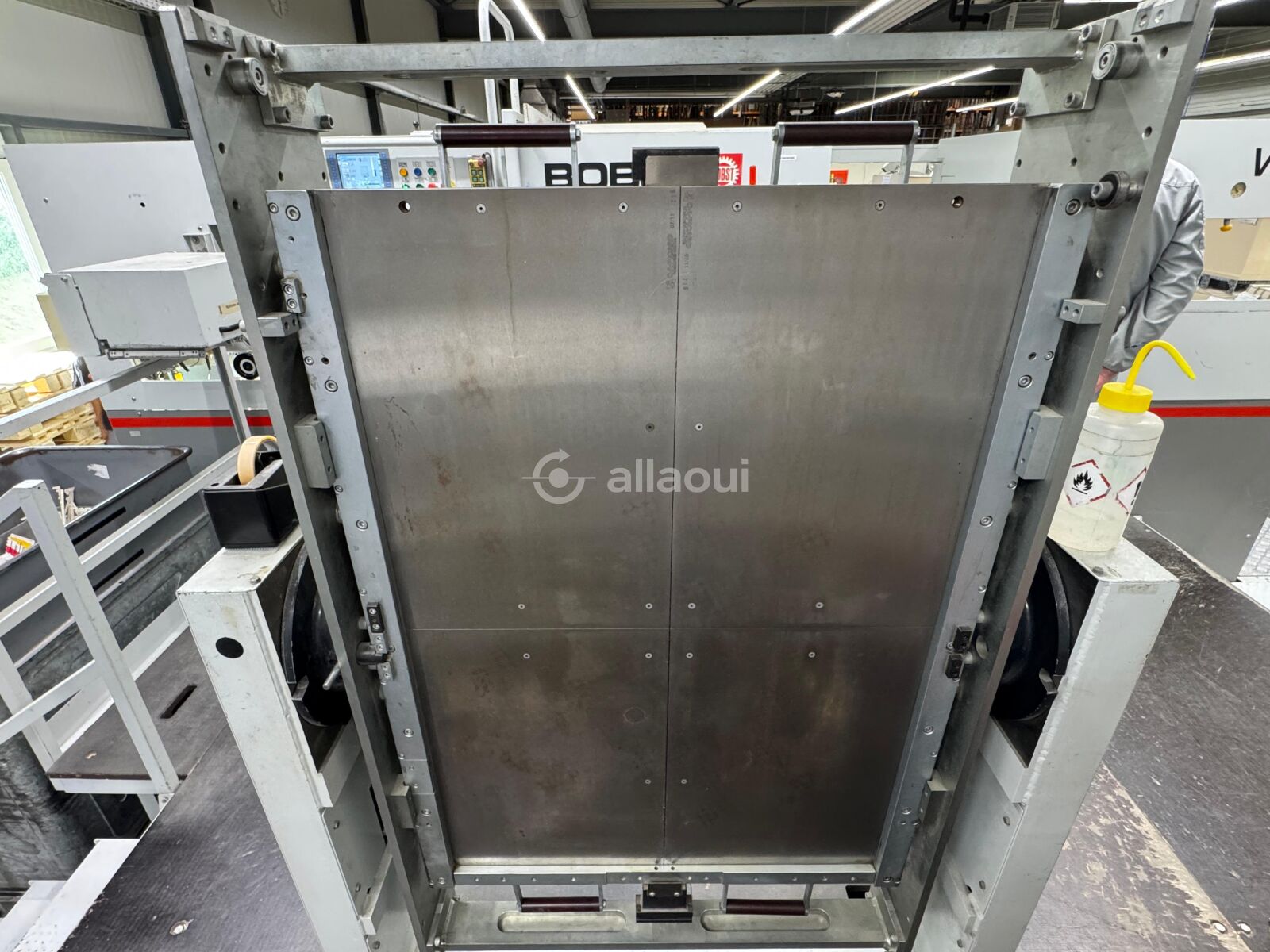

  • Honeycomb Chase
  • Band rip control for 8 bands
  • Press roller for tensioning shaft
  • Press roller for feed roller
  • Punching Equipment
  • Waste Stripping Station

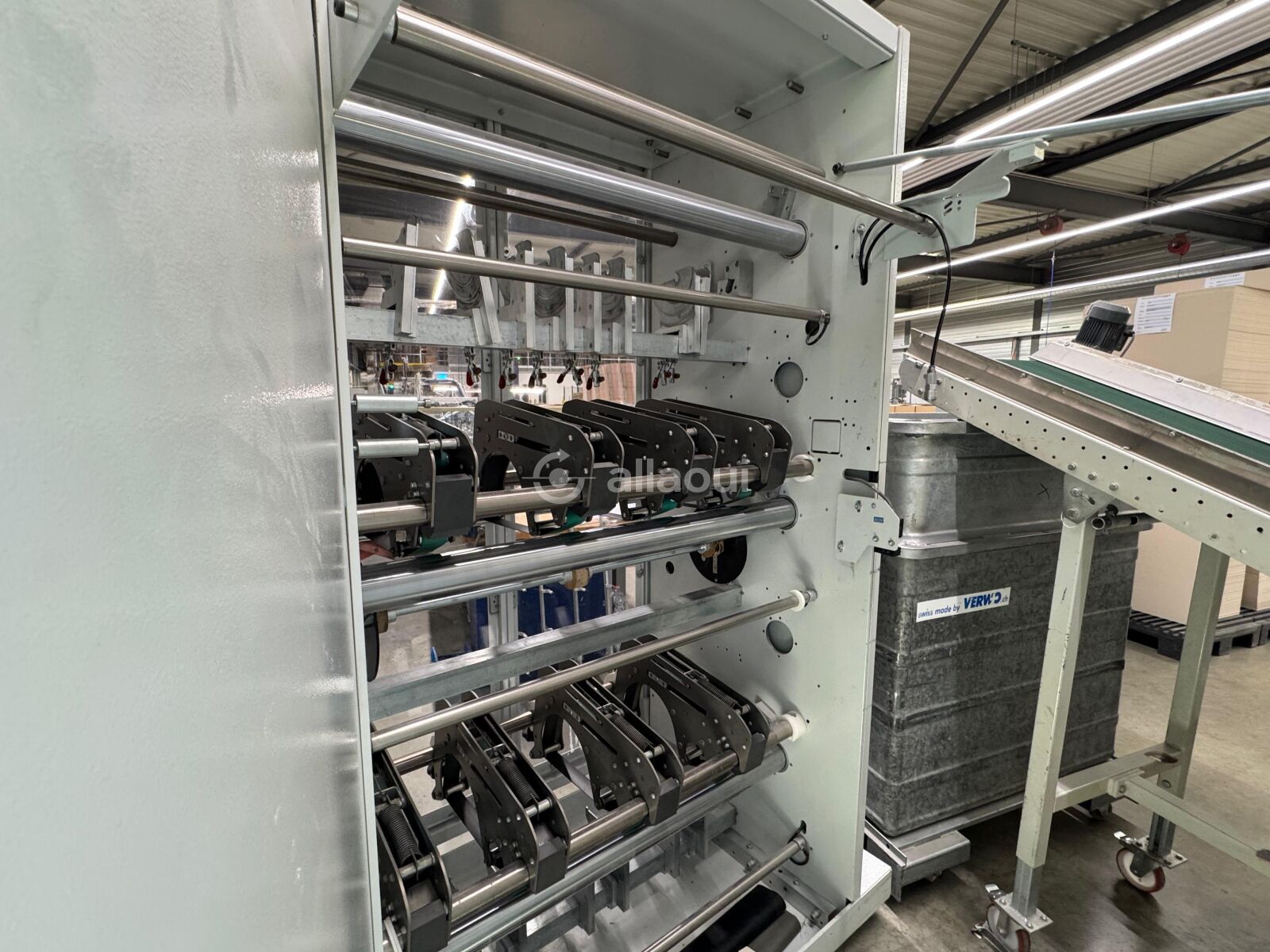

  • Unwinder module with 3 feed rollers

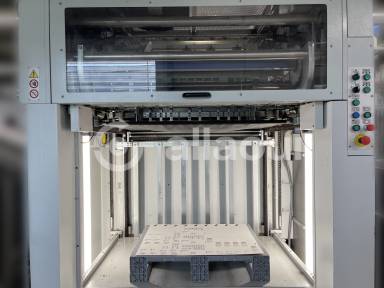

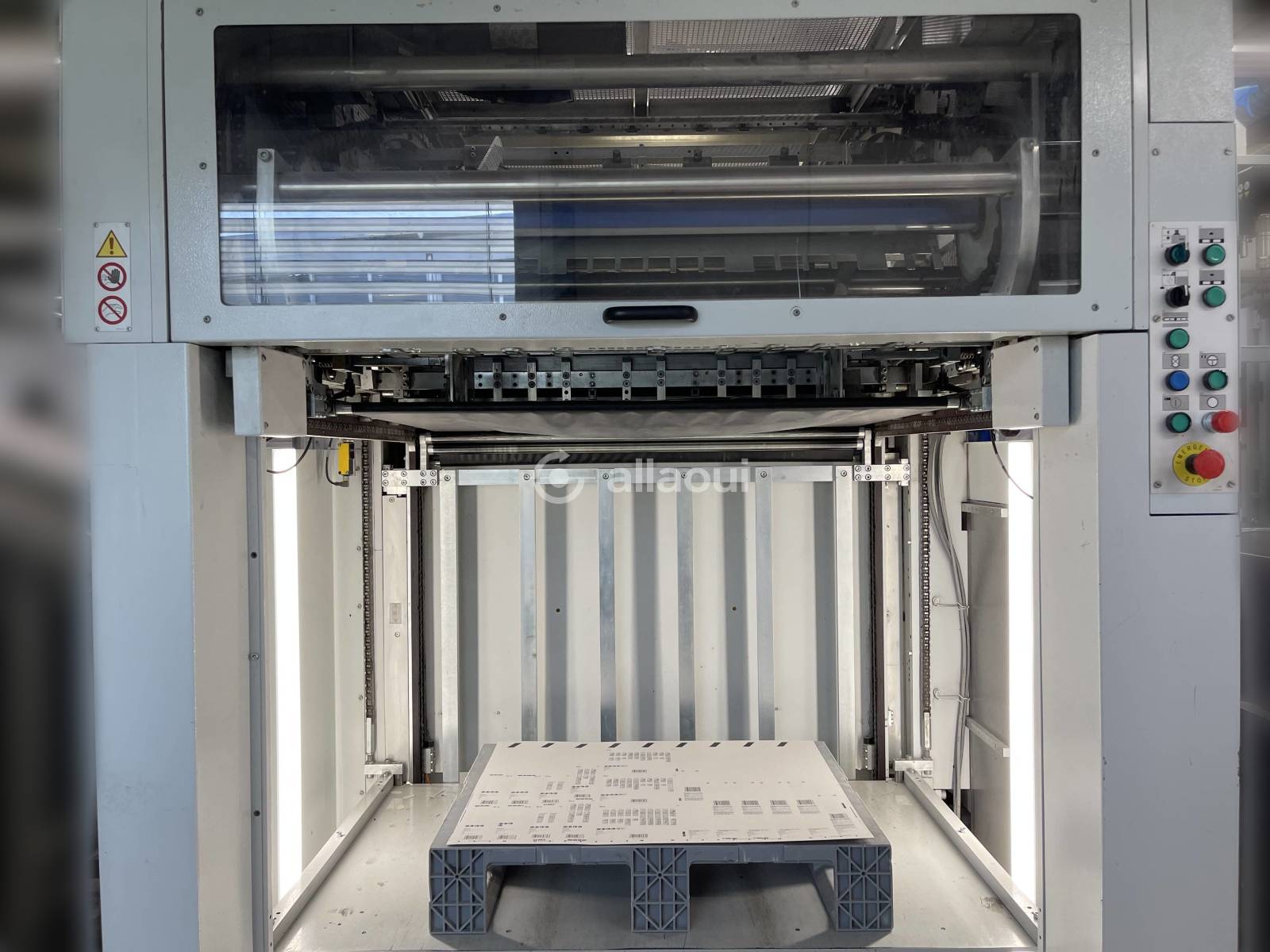

Delivery

  • Manual non-stop rake

Technical Details

  • Mechanical Speed: 7,500 Cycles/h
  • Push force: 260 t
  • Max sheet size: 1040 x 740 mm
  • Min sheet size: 400 x 350 mm
  • Max Embossing Size: 1010 x 702 mm
  • Processable materials: Paper (80 g/m2), Cardboard (2000 g/m2), corrugated board (4 mm)
  • Gripper Edge: 9 -17 mm
  • Max. Punching Format: 1020 x 720 mm without Gripper Edge or 1020 x 705 mm with Gripper Edge
  • Pallet sizes: 1200 x 800 mm
  • Max. Pile height at the feeder: 1400 mm
  • Programmable heating zones: 12
  • Diameter of the rollers: 250 mm
  • Width of the Foil Strips: 25 - 1020 mm

Current data

  • Factory line pressure: 6 bar
  Share   Email

Similar Machines

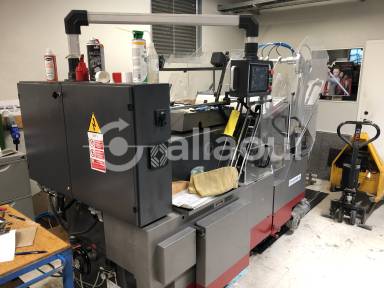

Saroglia FUB/D 56X74 used
