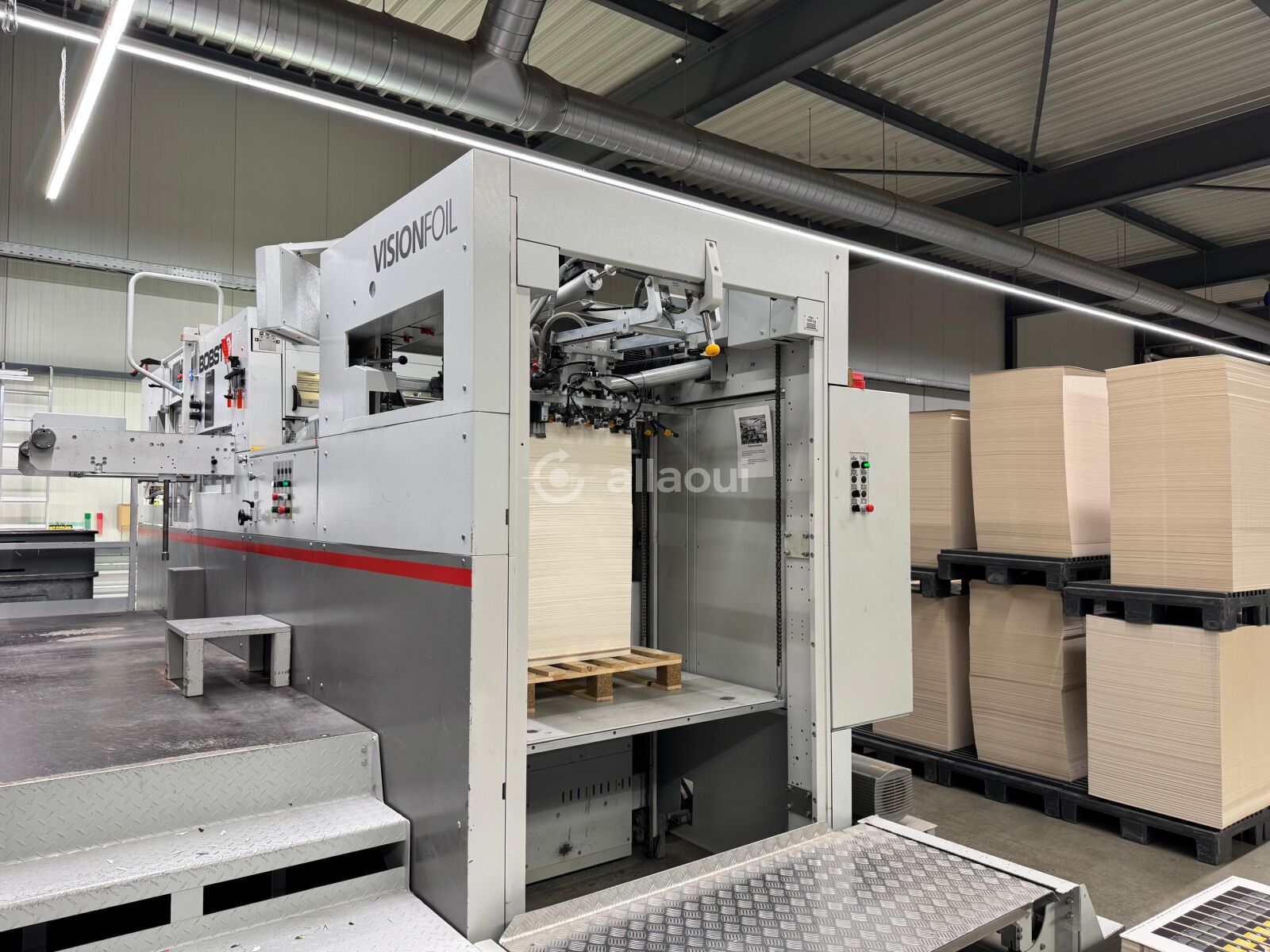

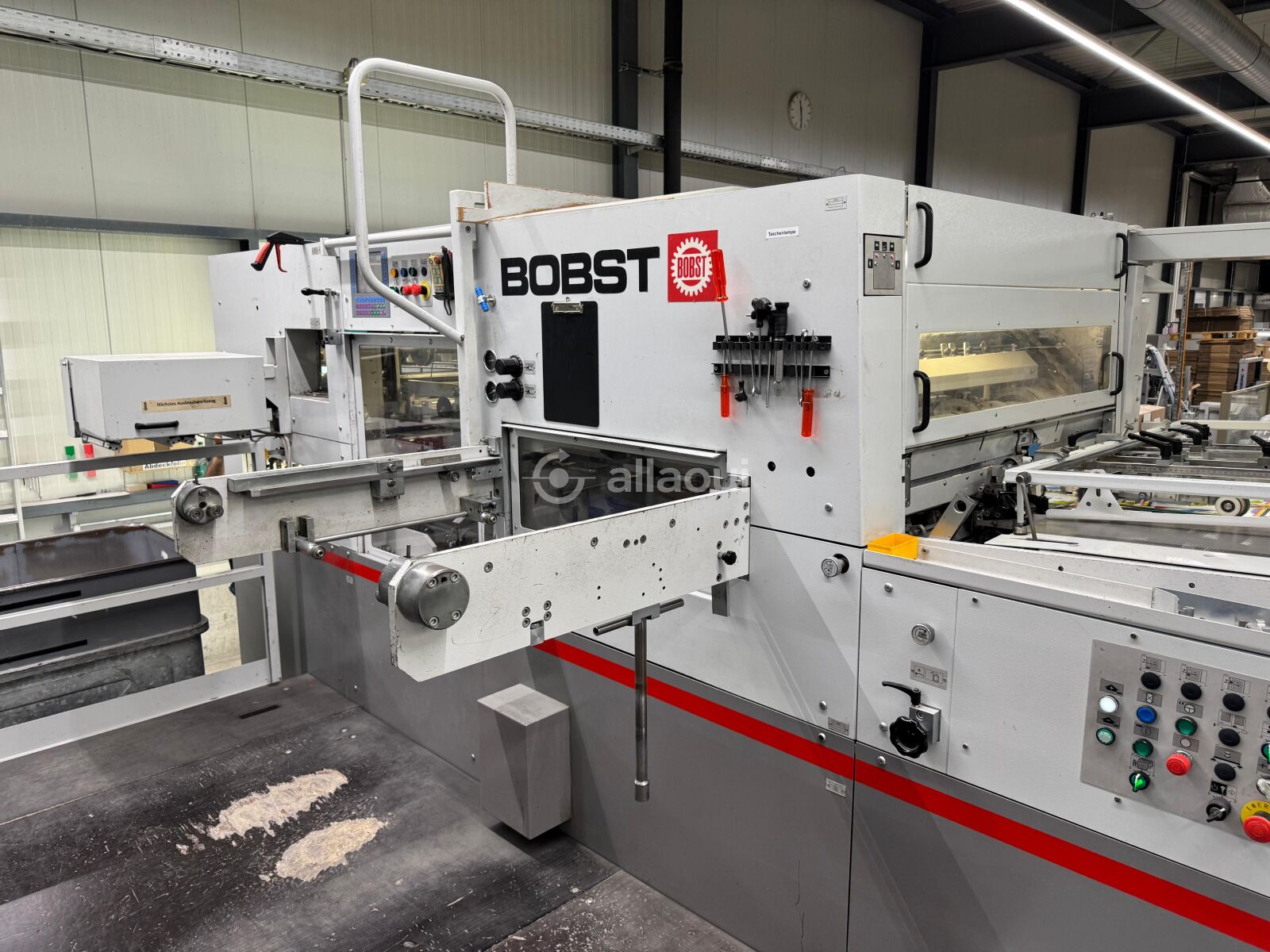

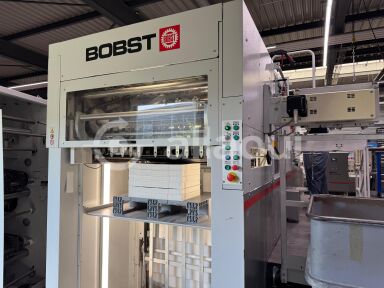

Gebrauchte Bobst Visionfoil 104

Gebrauchtmaschine: Heißfolienprägung

Referenz ET37483
Hersteller Bobst
Typ Visionfoil 104
Baujahr 2012
Laufzeit 15.000 h
Status in Produktion
Video
Angebot anfordern

Beschreibung

Features & Equipment:
Machine Technology:
- Centerline System for quick job changeover
- Electronic sheet travel control
- Climate-controlled switch cabinet
- Bobst-Electronic C.U.B.E. II control system with color display
- Frequency-controlled asynchronous motor

Feeder:
- Pallet carrier plate with handle
- Synchronization system for sheet positioning
- Suction head and safety system when lowering the pallet carrier plate

Die-cutting Unit:
- Heated upper platen with 12 heating zones
- Automatic pressure force adjustment
- Centering and locking of the die-cutting equipment

Foil Stamping Unit:
- Unwinding module with 2 feeder shafts (250 mm diameter)
- Automatic belt drive system
- Independent BM switch cabinet for hot foil stamping
- Wireless remote control


Additional Options:
- Quick-change chase for die-cutting
- Extended podium with walkway
- Bernoulli sheet braking system for low grammage

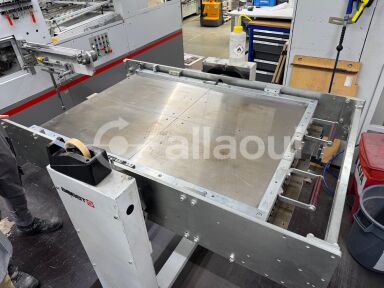

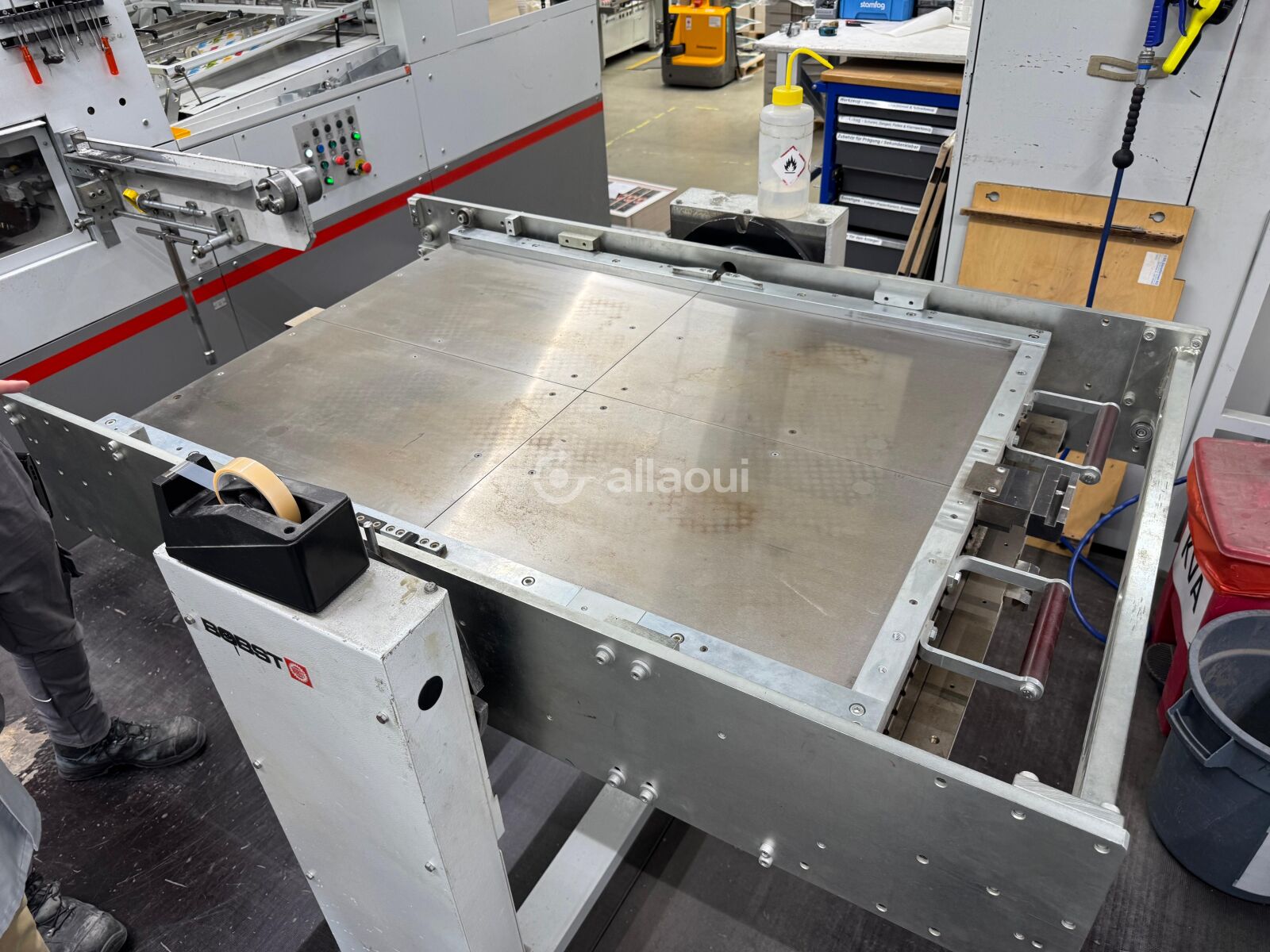

- Off-press setup table for tools
- MSS console (Machine Supervision System) with panel PC

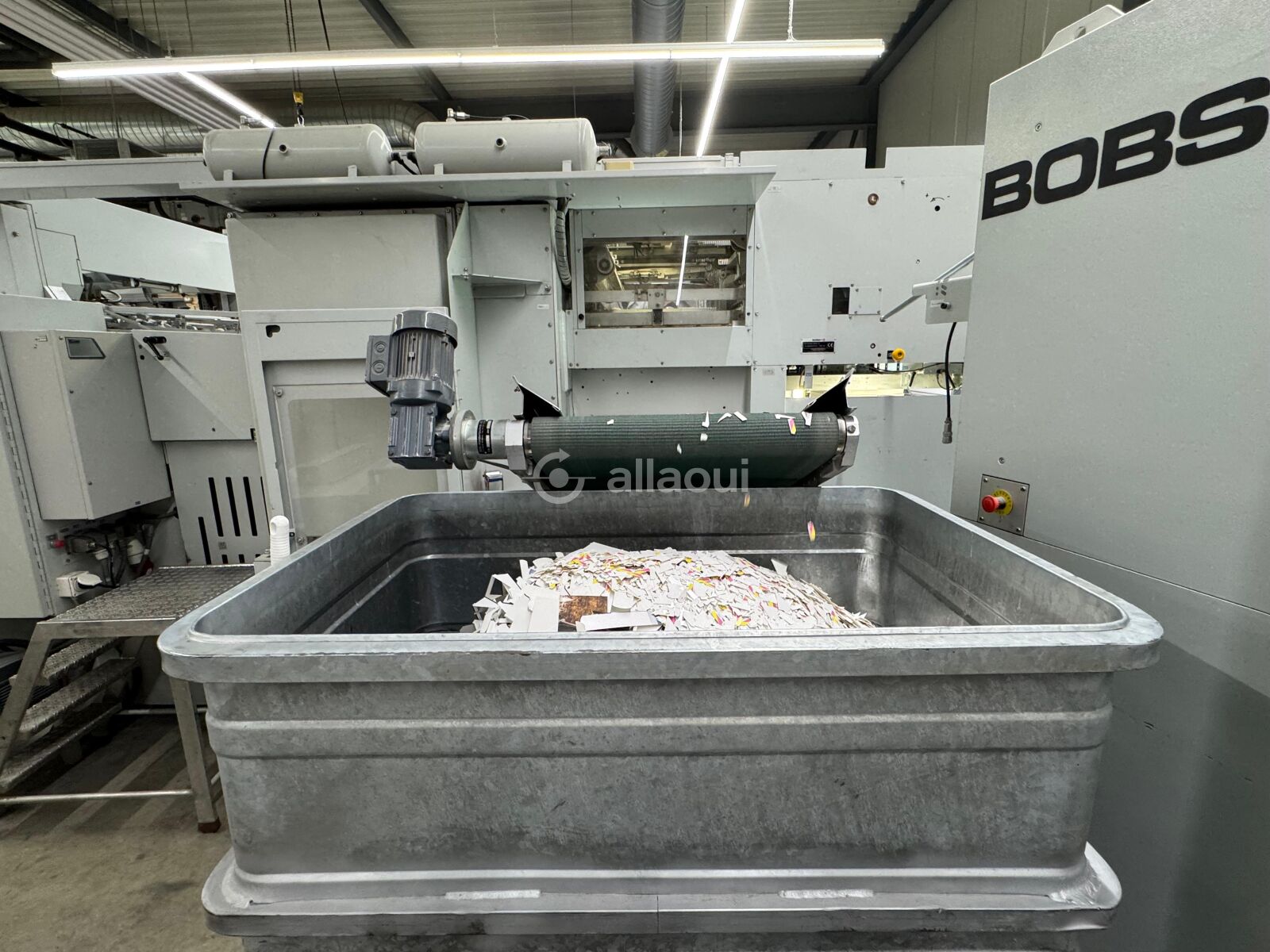

- Interface for waste processing system
- Raised Machine 400 mm
- Touchless double sheet control
- Automatic non-stop in delivery

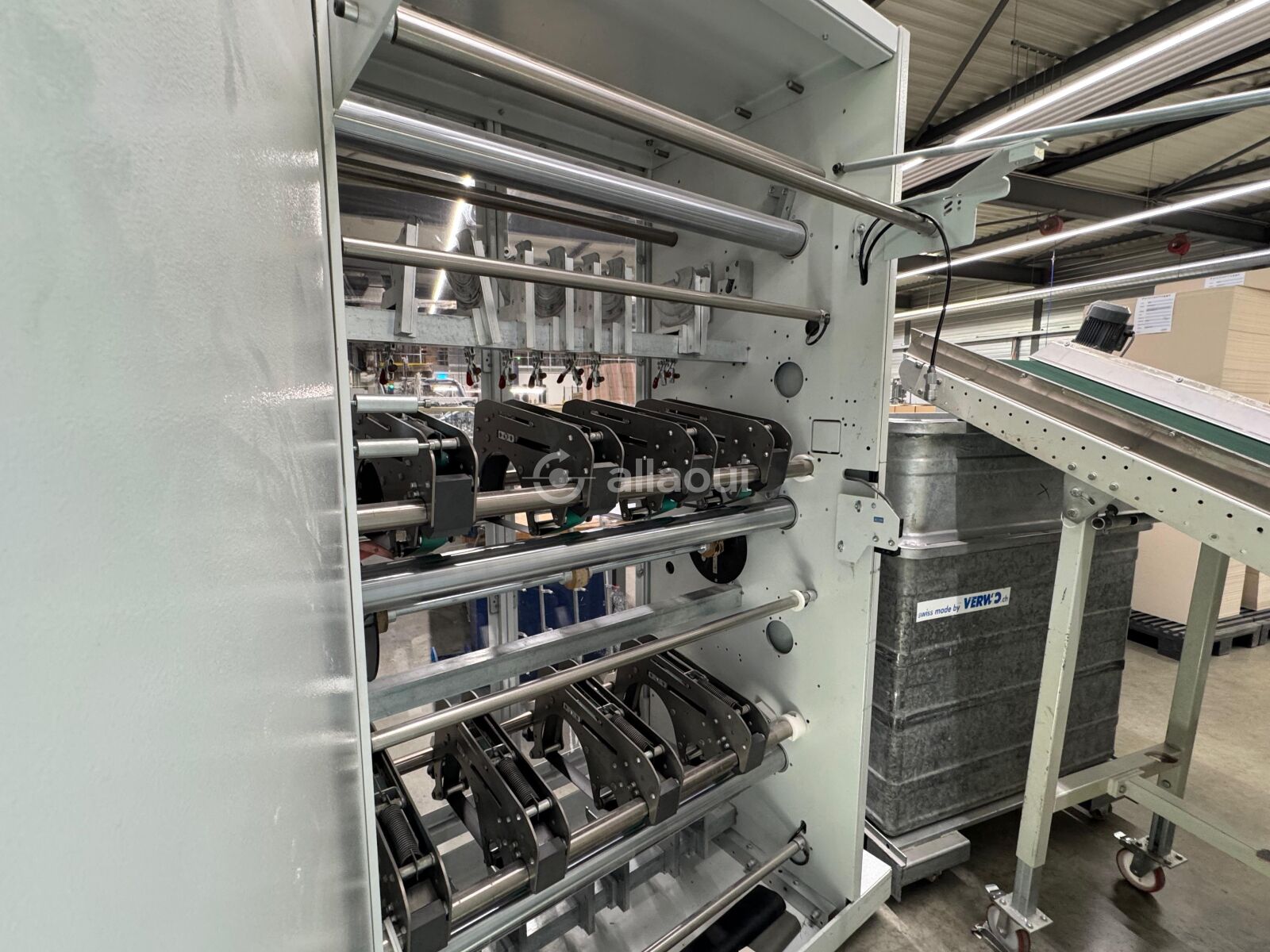

- Unwinding Module with 3 feed rollers
- addtional Cube Display

Ausstattung

  • Kontrollpanel: C.U.B.E. II (Control unit Bobst Electronic)
  • Maschinenhöherstellung
  • Schließrahmenwechsler
  • Bogenbremsvorrichtung: Bernoulli am Tiegeleingang
  • MSS Konsole (Machine Supervision System)
  • Einrichtetisch
  • Vorrichtung zum Verarbeiten von Papier bei hoher Geschwindigkeit
  • Inline Stanze
  • Heißfolienprägung

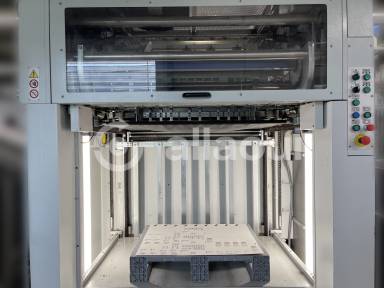

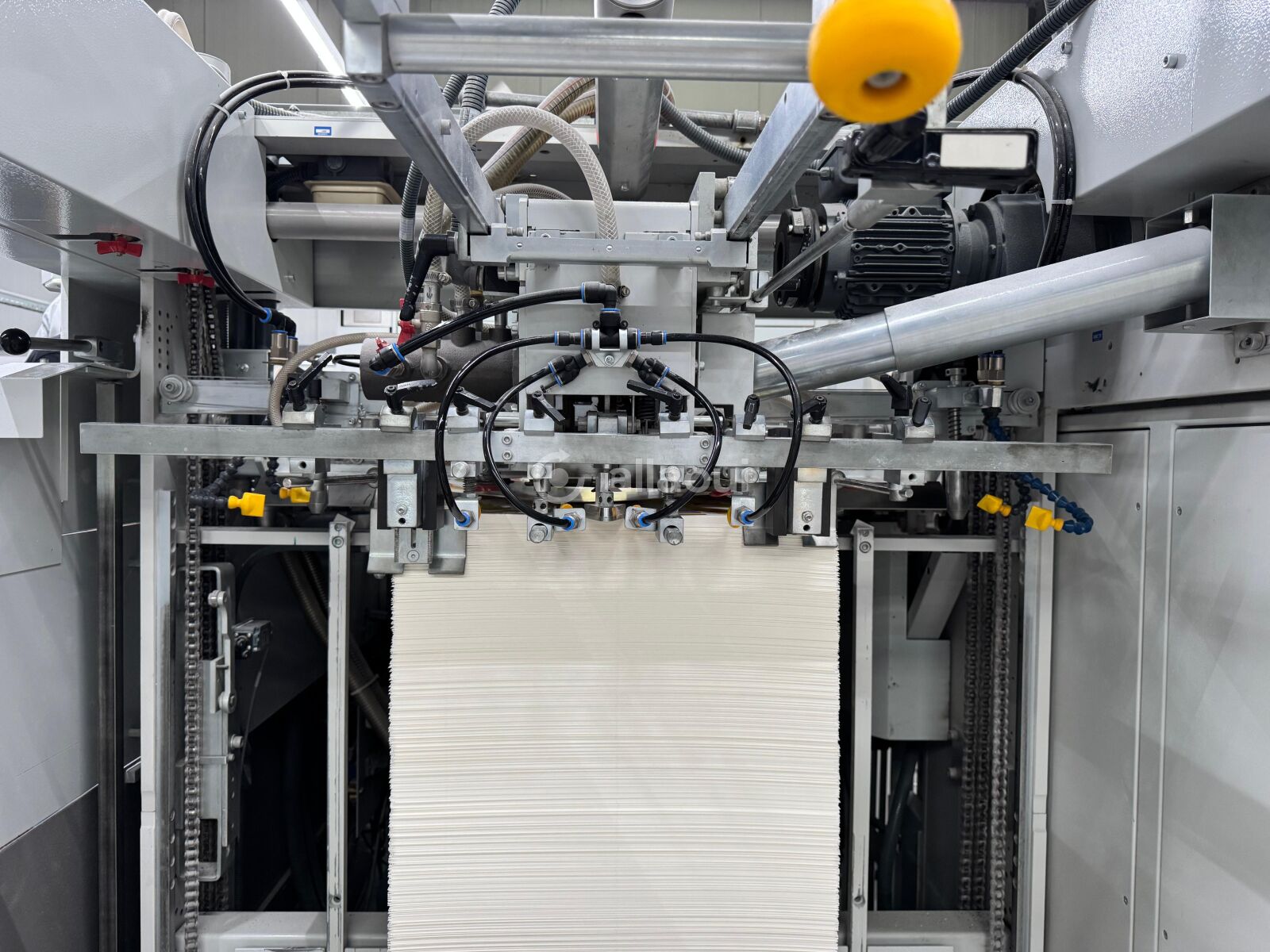

Anleger

  • Motorisierte vertikale Nachführung des Saugkopfes

Anlegetisch

  • Doppelbogenkontrolle

Folienstation

  • Wabenwerkzeugrahmen
  • Bandrisskontrolle für 8 Bänder
  • Pressrolle für Spannwelle
  • Pressrolle für Vorschubrolle
  • Stanzausrüstung
  • Abfallausbrechstation
  • Abwicklermodul mit 3 Vorschubrollen

Auslage

  • Manueller Non-Stop-Rechen

Technische Daten

  • Mechanische Geschwindigkeit: 7500 Takte/h
  • Druckkraft: 260 t
  • Bogenformat max.: 1040 x 740 mm
  • Bogenformat min.: 400 x 350 mm
  • Max Embossing Size: 1010 x 702 mm
  • Verarbeitbare Materialien: Papier (80 g/m2), Karton (2000 g/m2) und Wellpappe (4 mm)
  • Greiferrand: 9 -17 mm
  • Max. Stanzformat: 1020 x 720 mm ohne Greiferrand or 1020 x 705 mm mit Greiferrand
  • Palettenabmessung: 1200 x 800 mm
  • Max. Stapelhöhe am Anleger: 1400 mm
  • Programmierbare Heizzonen: 12
  • Durchmesser der Rollen: 250 mm
  • Breite der Folienbänder: 25 - 1020 mm

Stromangaben

  • Betriebsdruck: 6 bar
