conveyor module

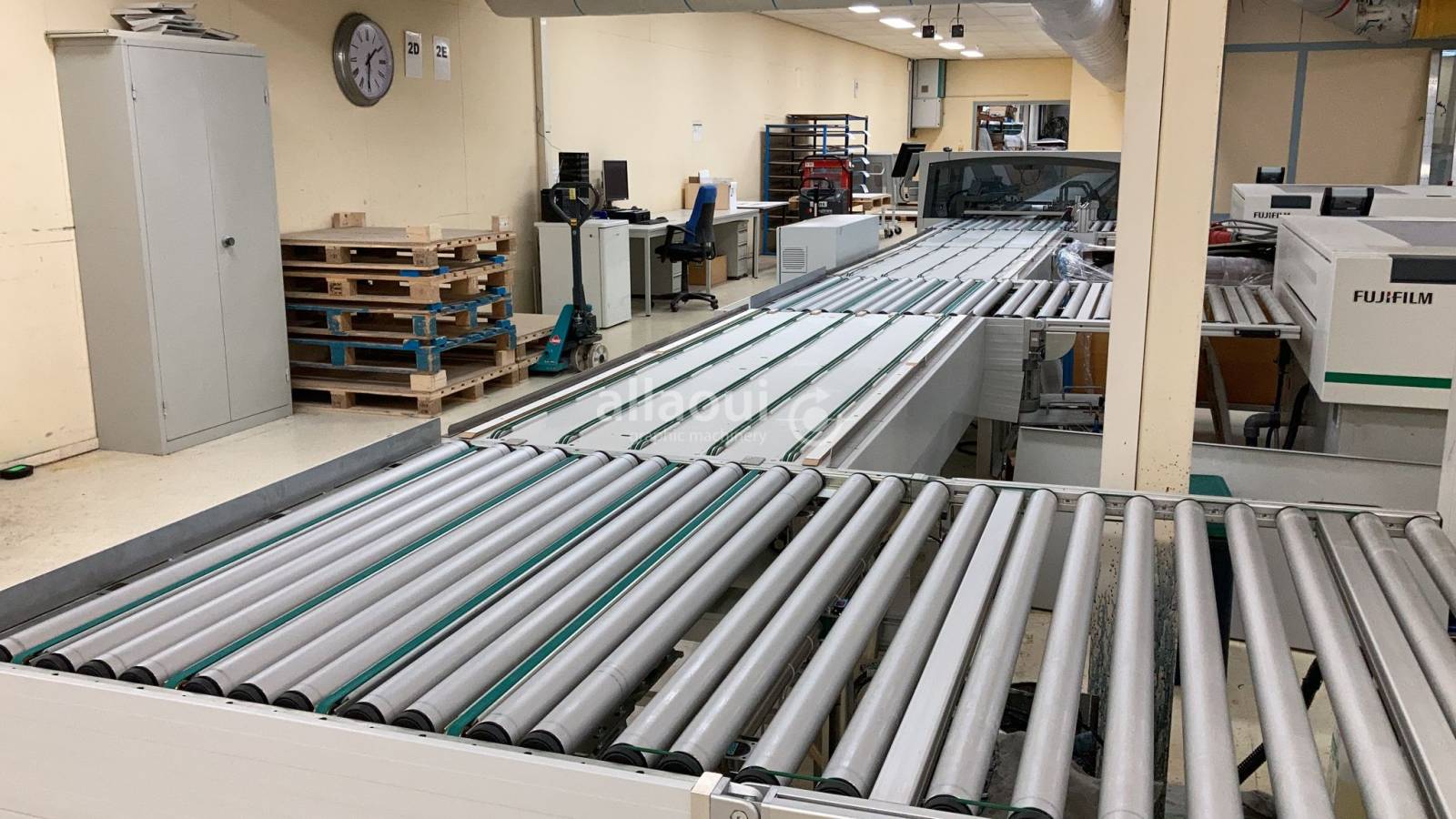

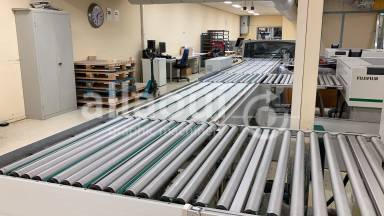

• Roller Conveyor NB1200 x 1142 (Units): 3
• Roller Conveyor NB1200 x 858 with folding element (Units): 3
• Belt Conveyor NB900 x 2100 (Units): 1
• Belt Conveyor NB900 x 2885 with folding element (Units): 1
• Transport Control Unit PLC with electrical cabinet
• Start Sensor
• Format Sensor
• Barcode System with LED illumination

Bending Machine

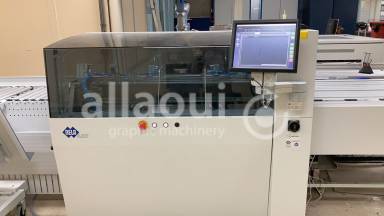

• Fully automatic Bending machine with 210 pph plate througput
• AOF Bender device configured for Heidelberg XL 106: 1055 x 511 x 0,3 mm
• AOF Bender device configured for Heidelberg XL 75: 0745 x 605 x 0,3 mm
• Trailing Edge (90° bending angle)
• SPS Control Unit
• PC System with TFT Monitor

Empilhador

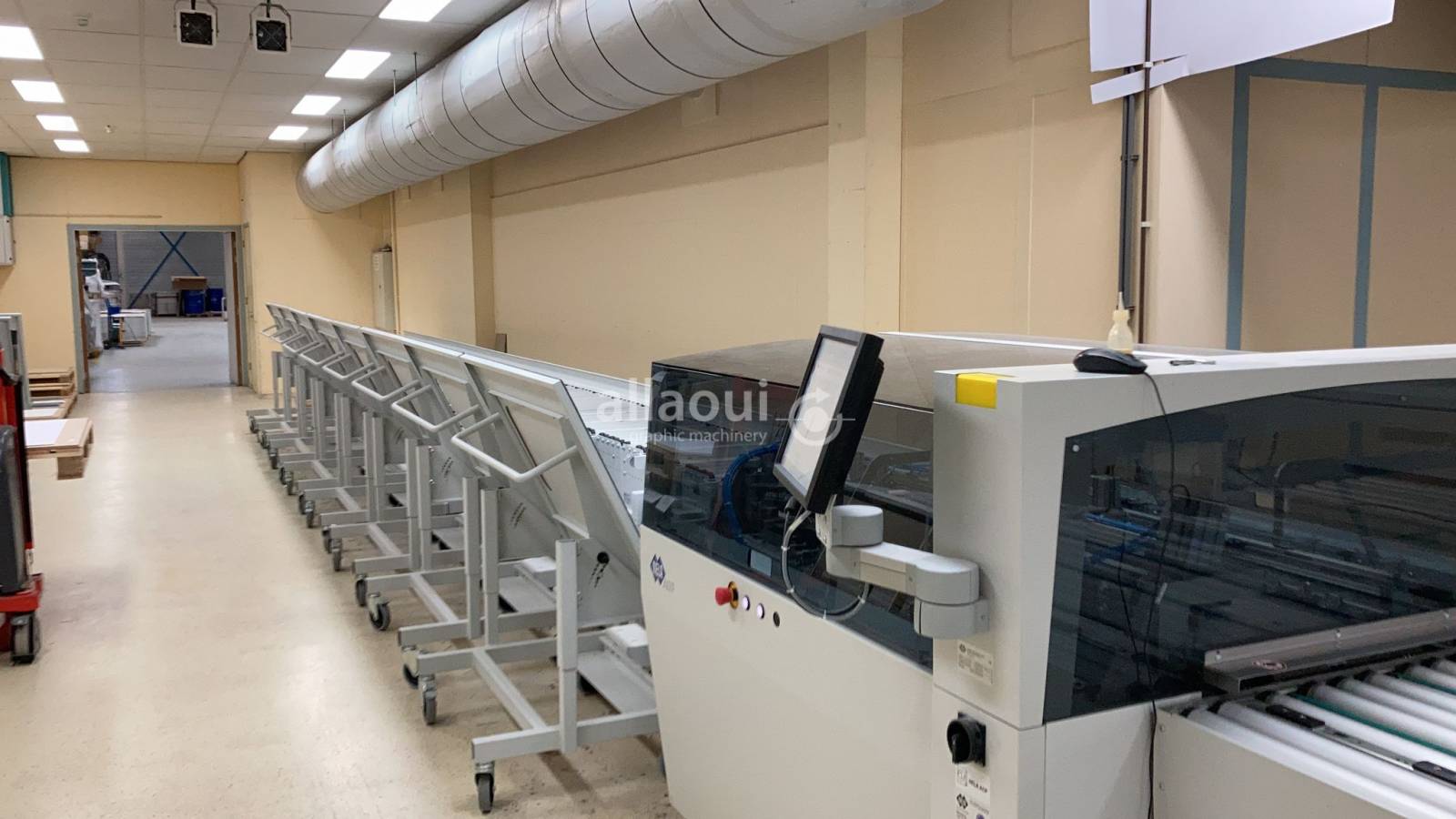

• C-PX Conveying & Stacking System

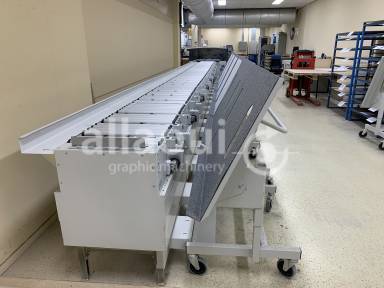

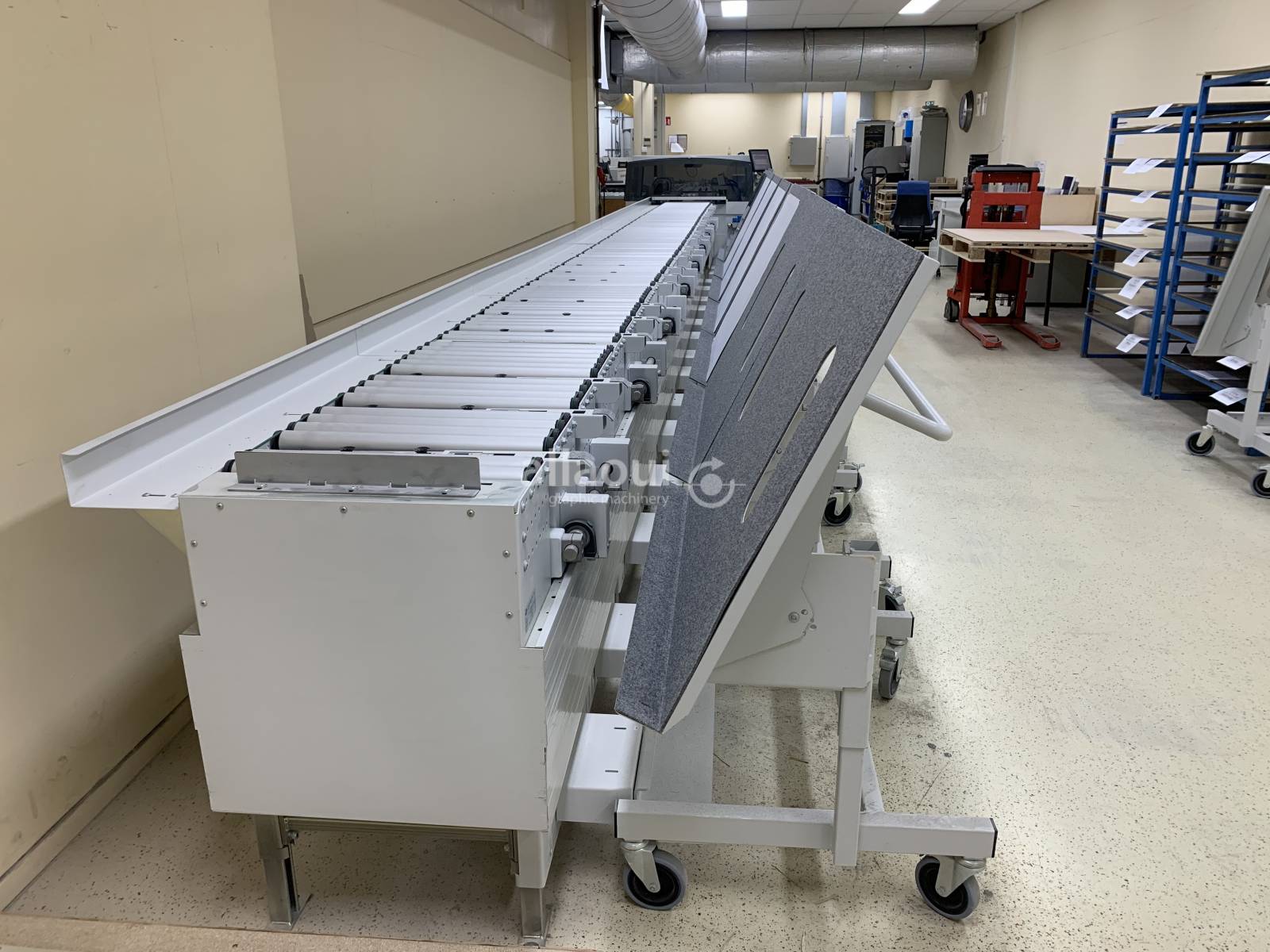

• Stacker roller conveyor NB 600 x 1250 (Units): 8
• PlateTrolley 1200 (Units): 12
• PSC Plate Sorter Commercial Software
• Cascade Stacking for NELA Multiple Stacking Stations
• JobTicket for NELA Multiple Stacking Stations
