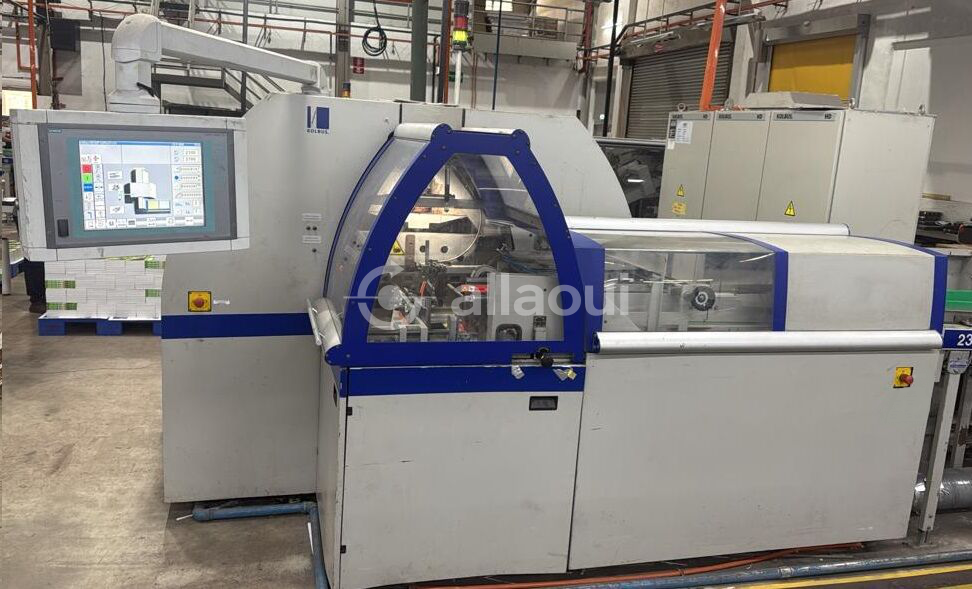

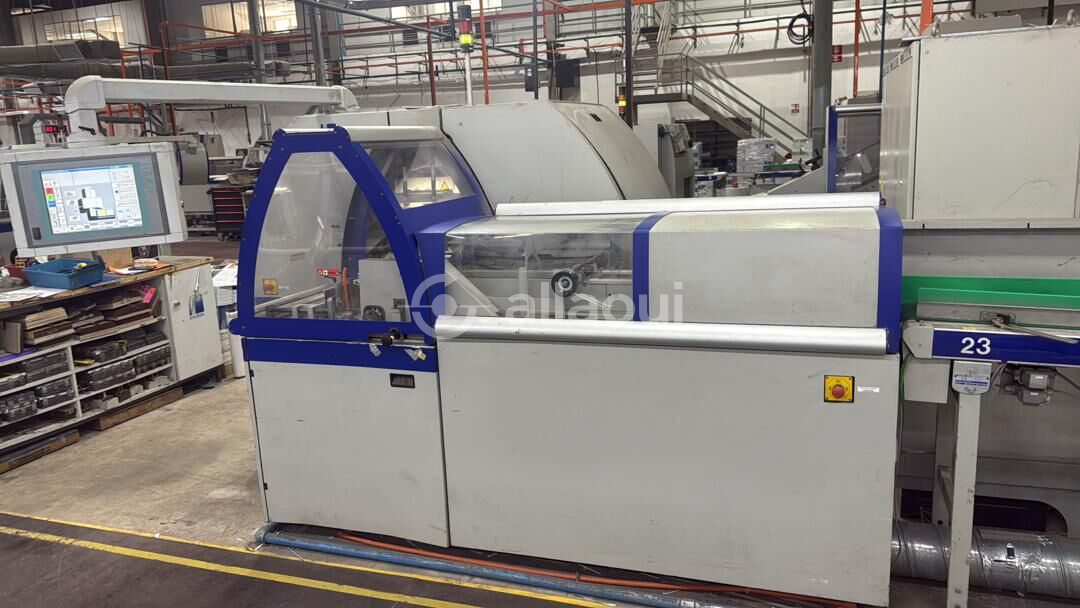

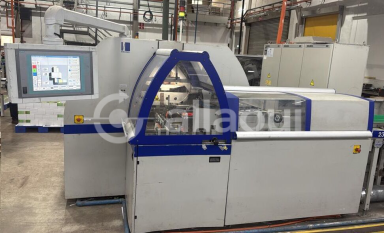

Used Kolbus HD 143.P

Máquina usada de Guilhotina trilateral para venda.

Referência AB59279
Fabricante Kolbus
Tipo HD 143.P
Ano 2013
Impressões 68 MM
Estado em produção
Vídeo
Obter cotação

Equipment

  • Infeed from the: right with intermittent roll for integrated counting stacking
  • Messerwechsel Einrichtung
  • Co-Pilot
  • Manuals
  • Cut Counter
  • Touchscreen
  • Automatic central lubrication system
  • Line control
  • Servo-controlled drive technology based on Siemens SIMOTION D

Technical Details

  • Size uncutted max: 450 x 320 x 80 mm
  • Size cutted min: 100 x 100 x 2 mm
  • Size cutted max: 420 x 305 x 80 mm
  • Mechanical speed max: 2,700 single products/h / up to 4,200 cuts/h
  • Pressing force: max. 20 KN
  • Pile height max: stack height: max. 80 mm

Current data

  • Compressed air requirement: 40 Nm³/h at 6 bar
  • Machine dimensions: 3,380 x 2,190 x 2,000 mm
