Machine Control

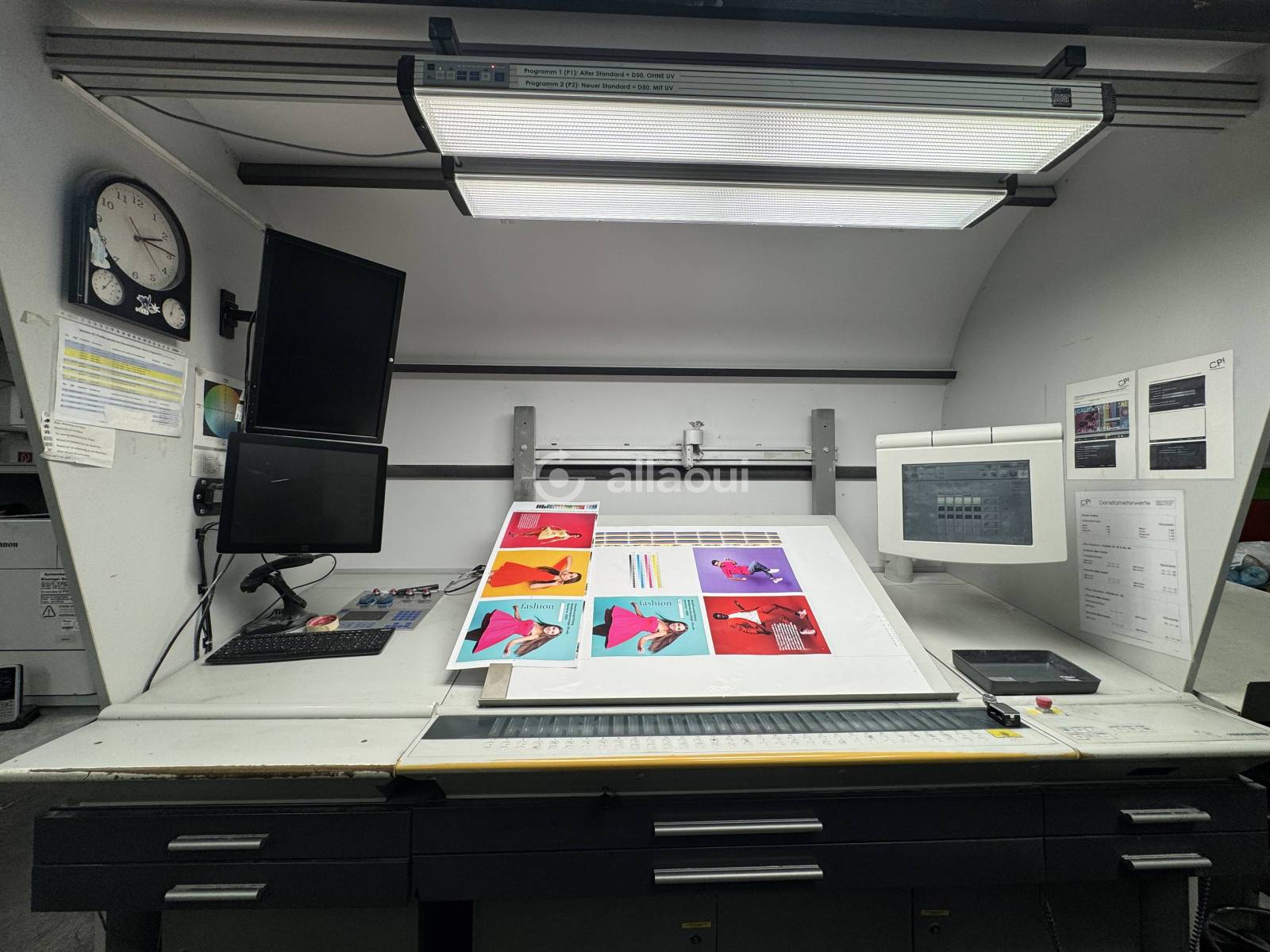

• Control Unit: CP 2000 Center

Alimentadores

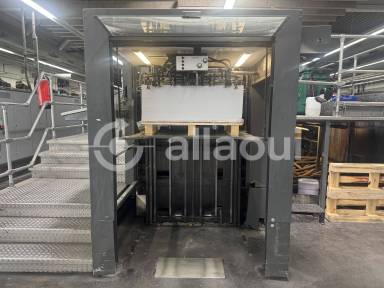

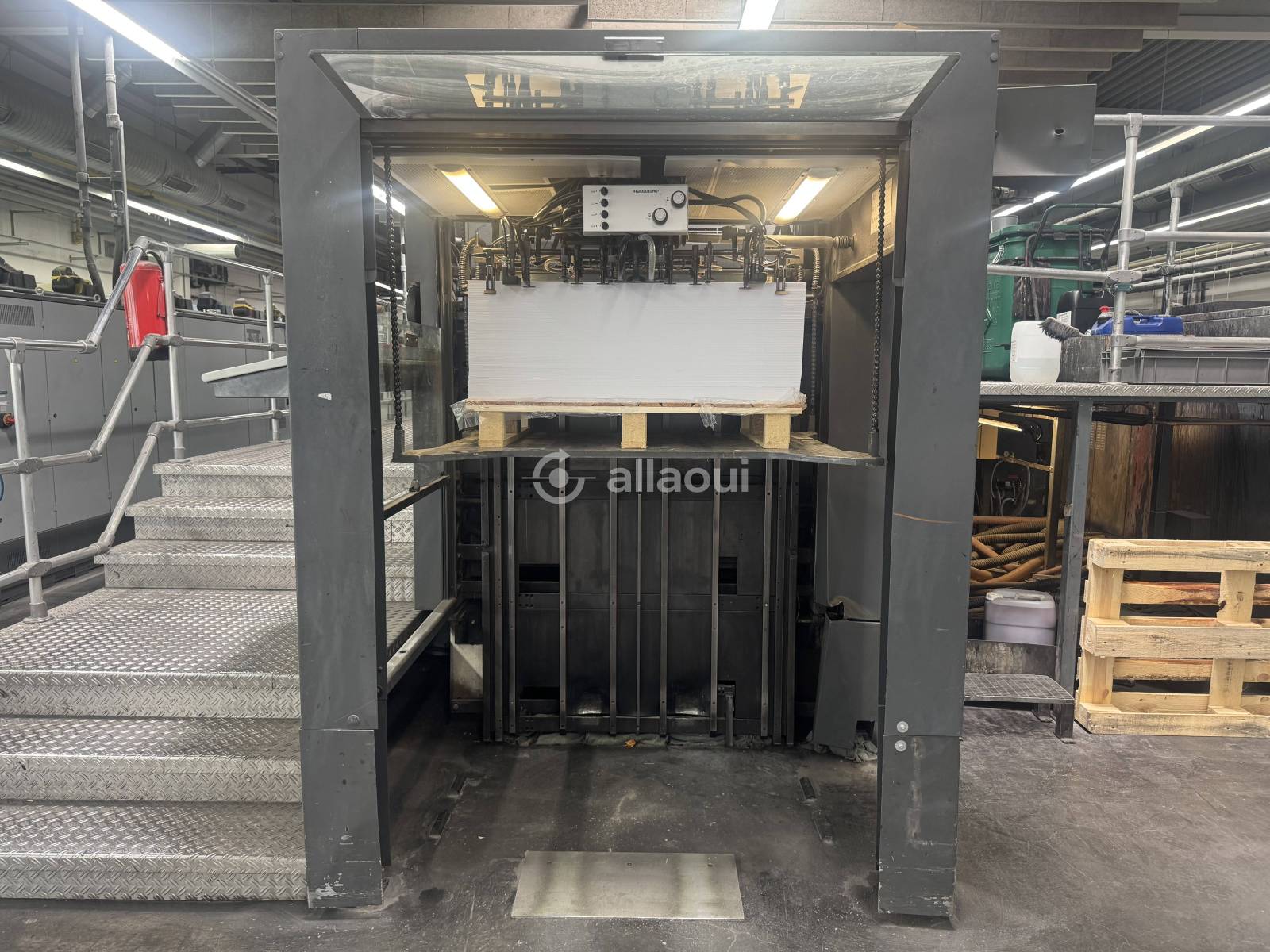

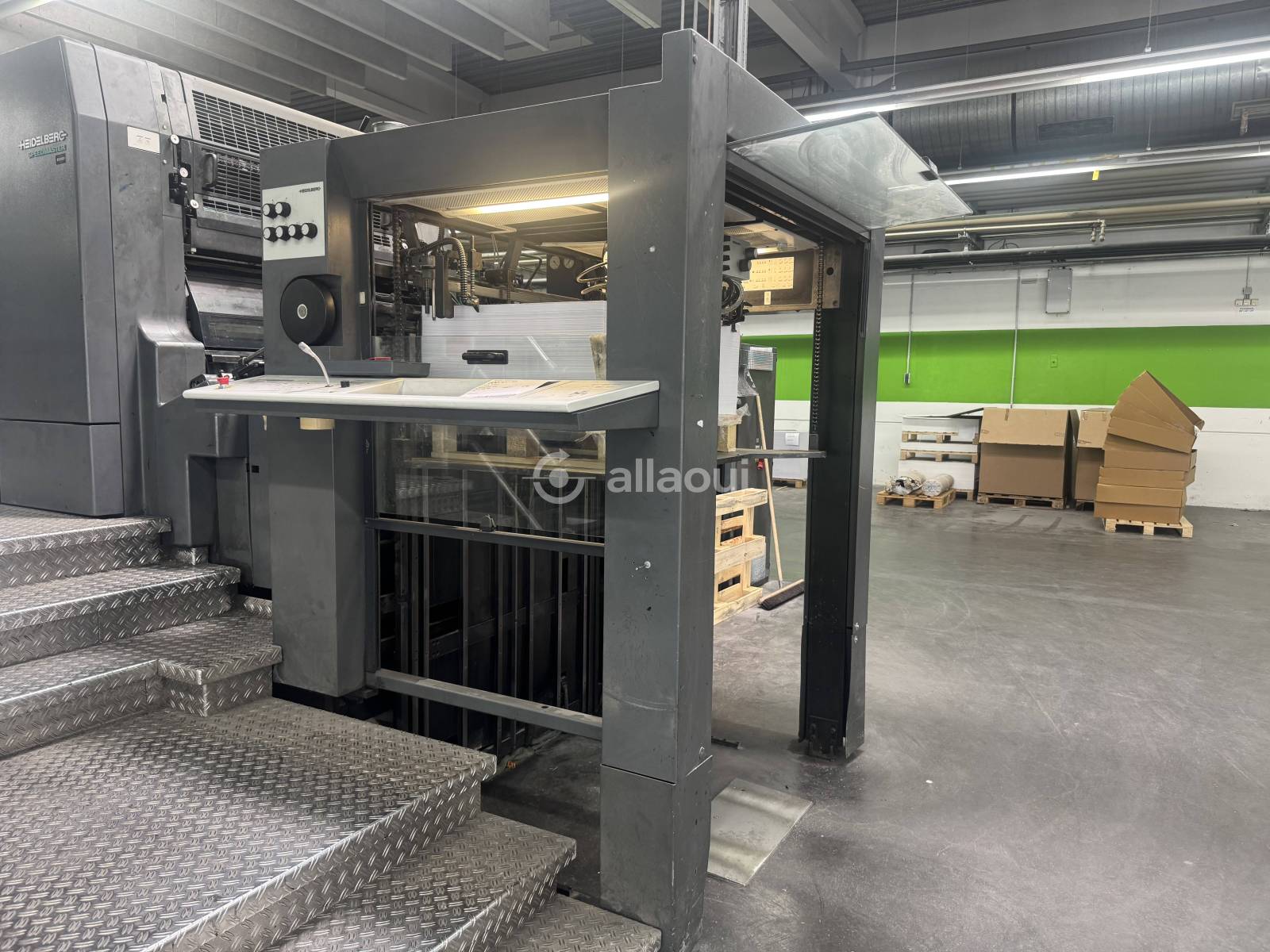

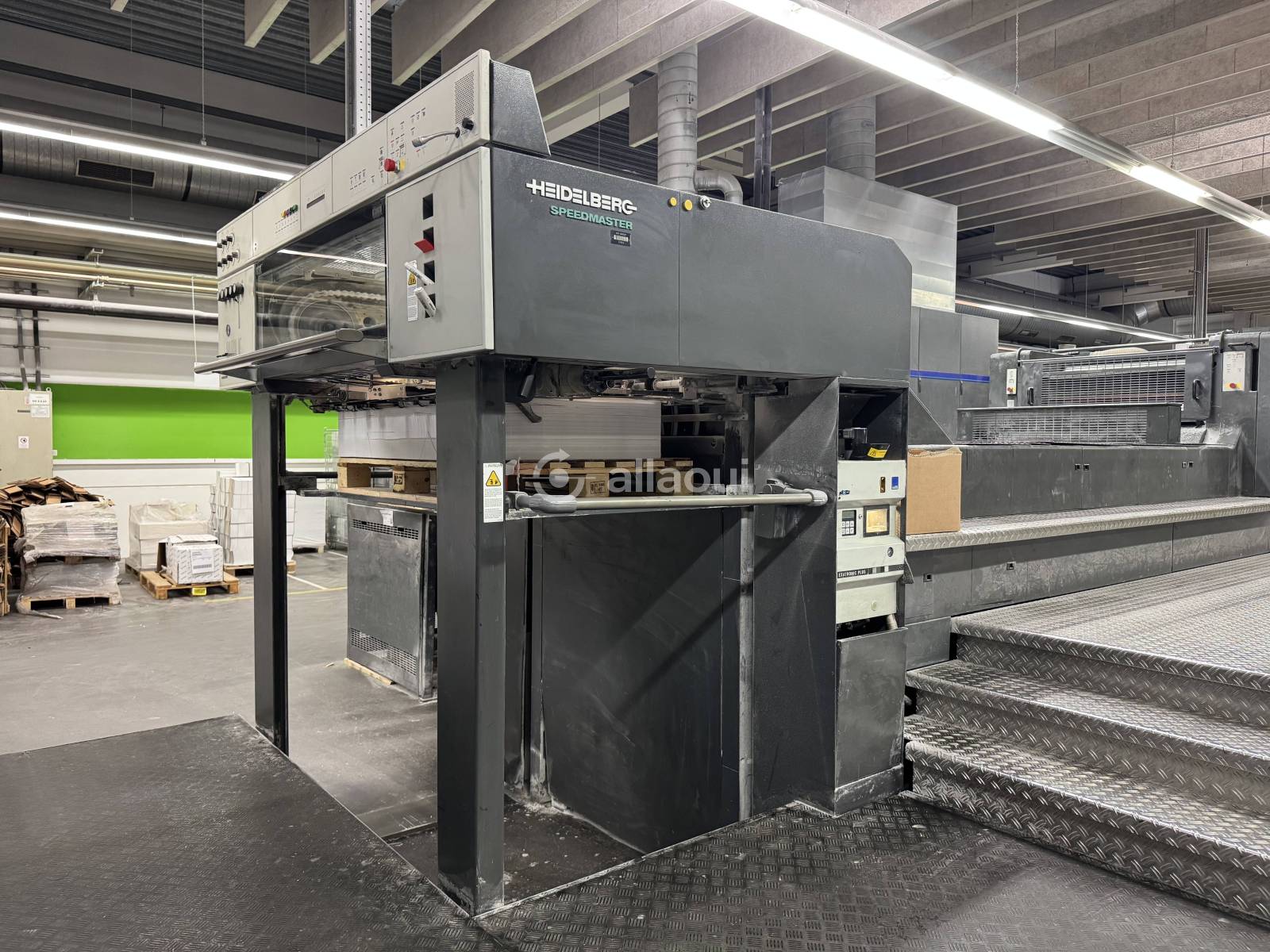

• Feeder type: Preset stream feeder with ramp
• electromechanical double sheet control
• Anti static

Units

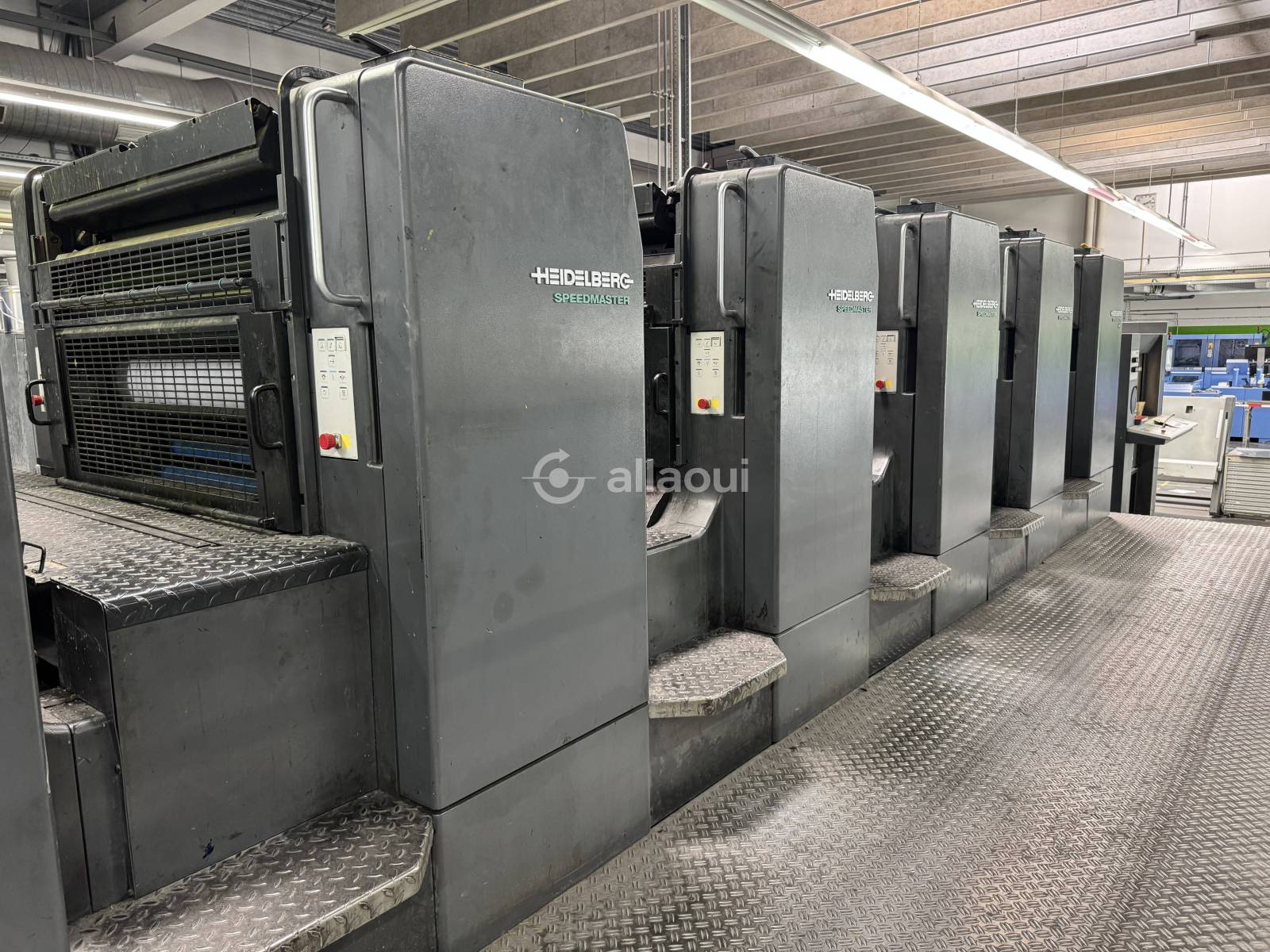

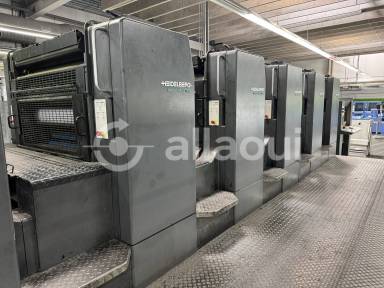

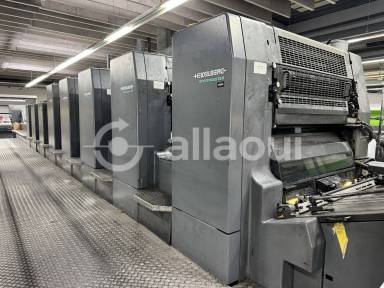

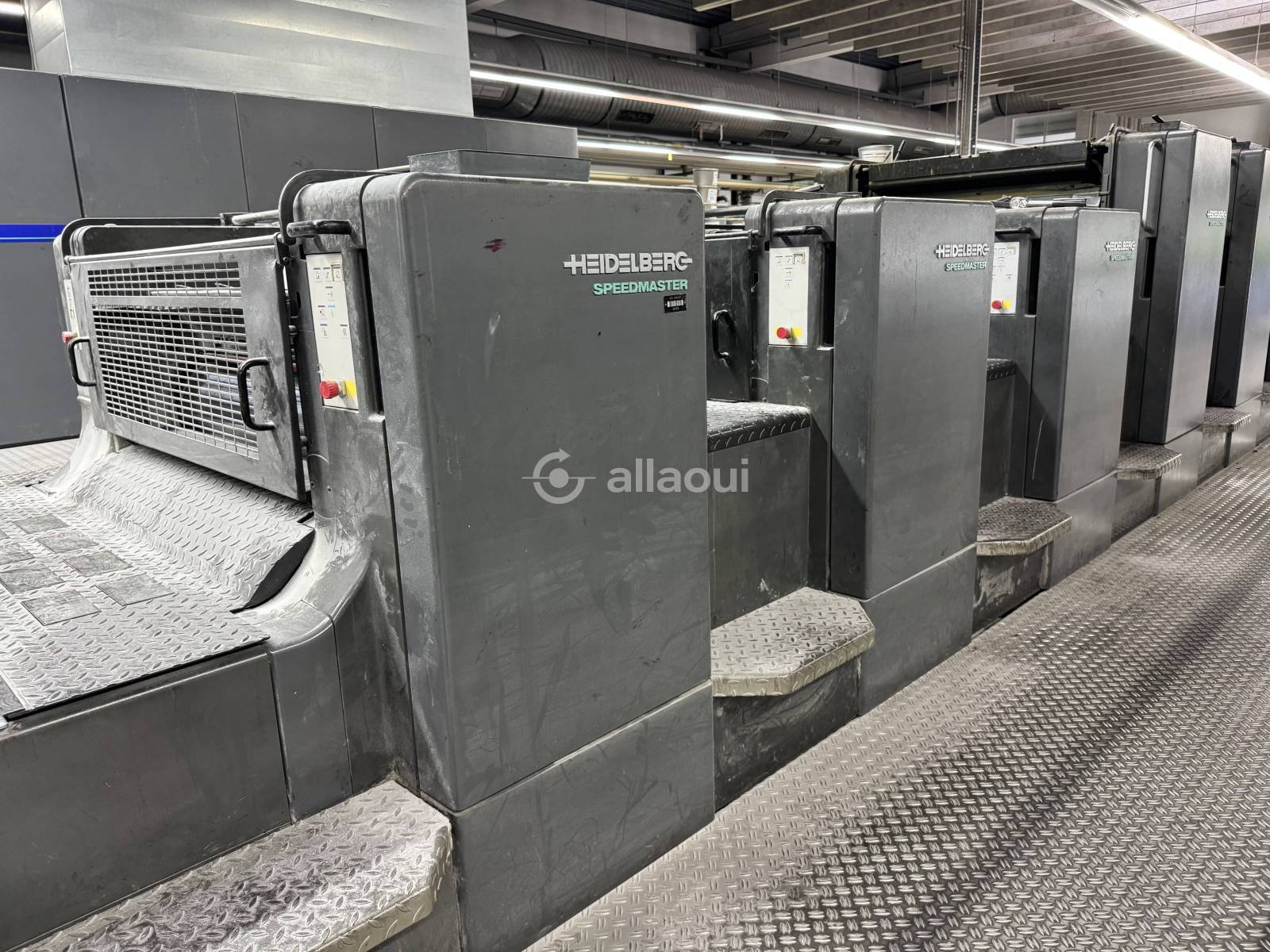

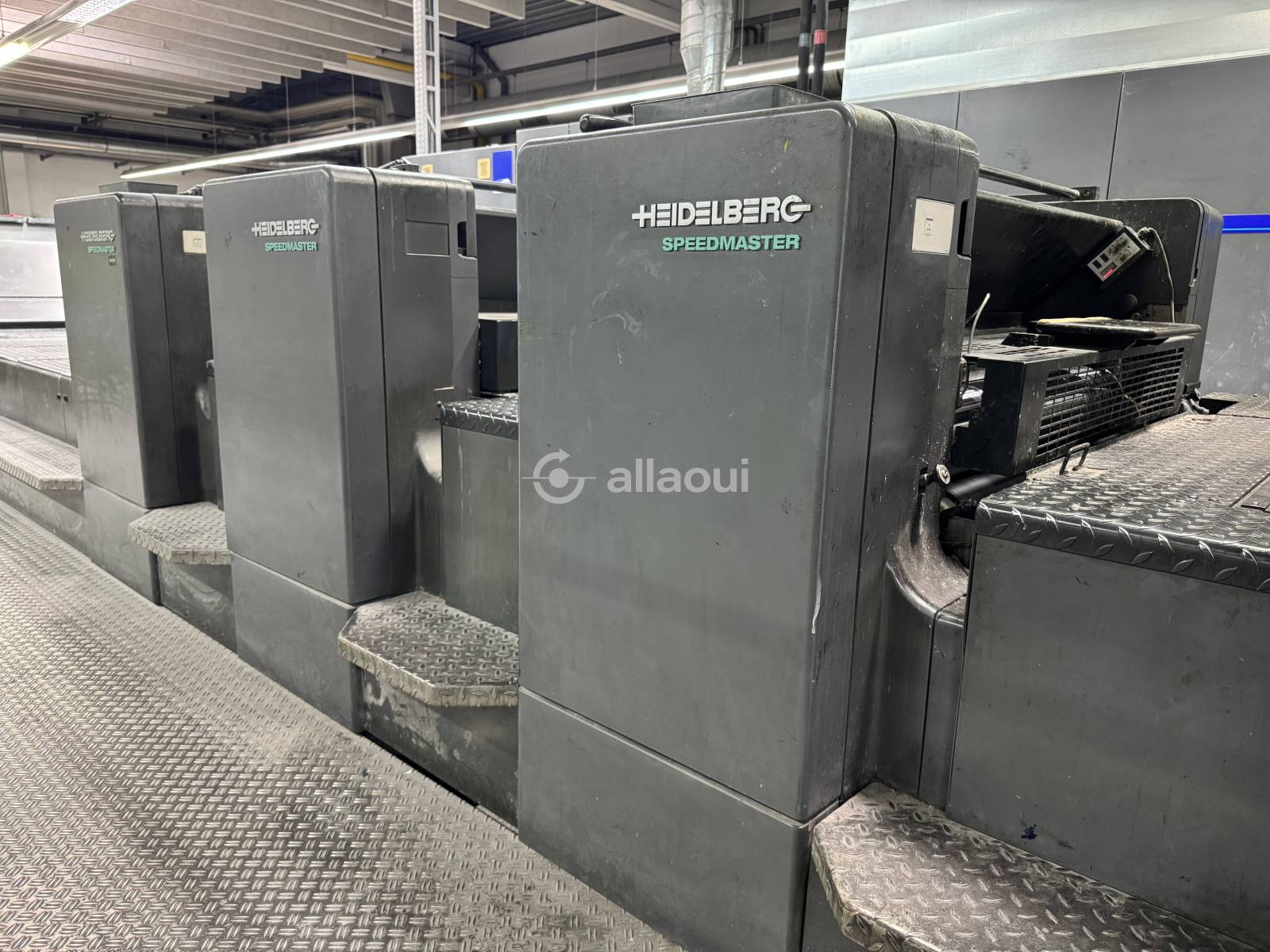

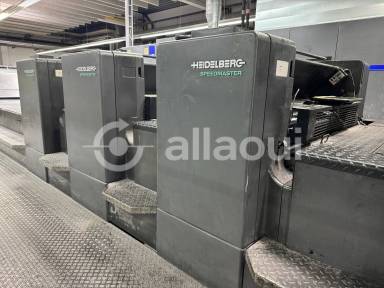

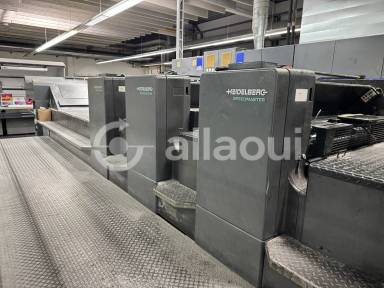

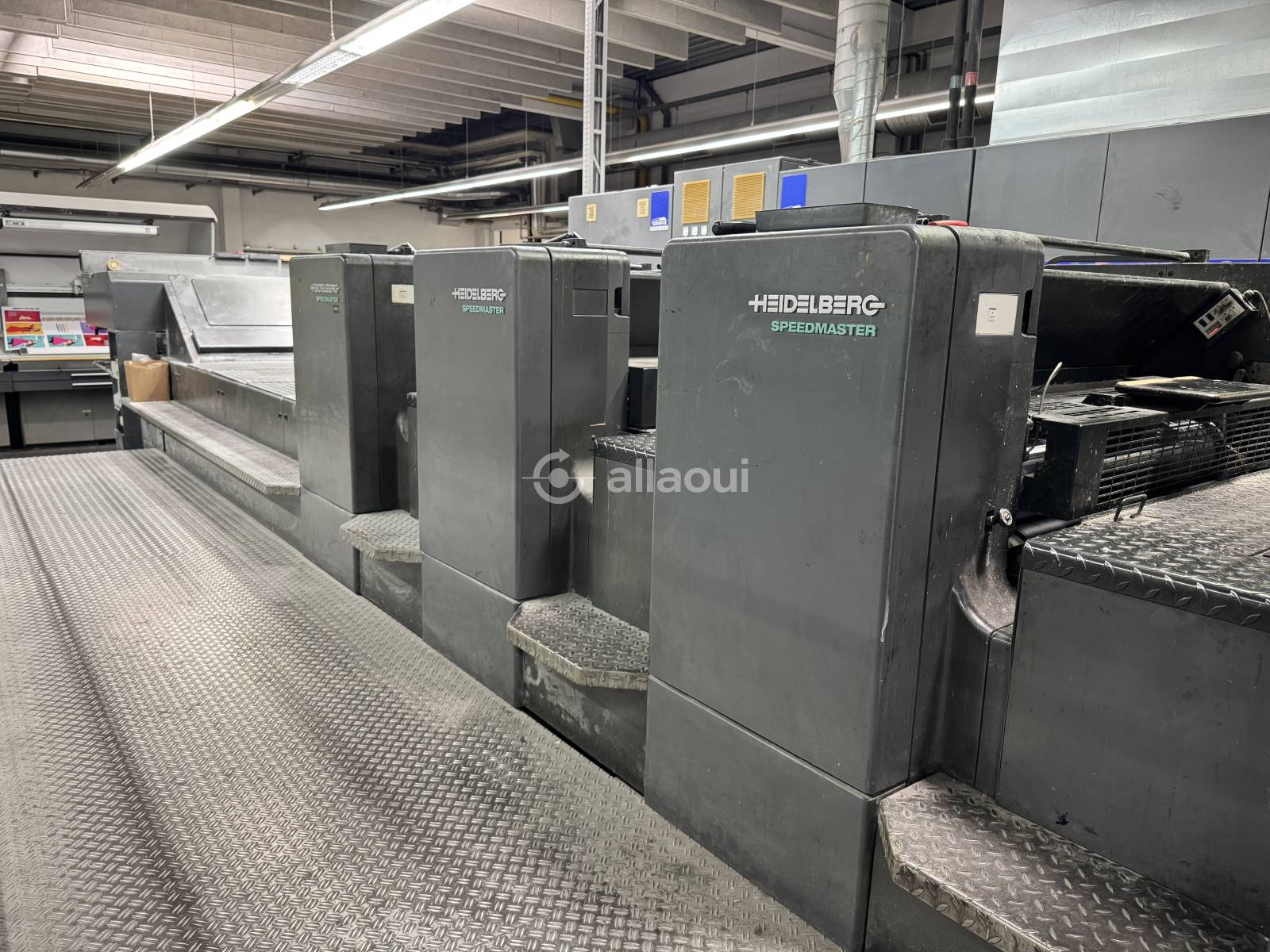

• Number of printing units: 5x
• Number of coating units: 2x
• Coating unit with chamber doctor blade
• Plate changing: Autoplate
• Dampening: Alcolor V with Variosystem
• blanket cylinder chromed
• Washing device: Automatic blanket & impression cylinder wash up
• Ink temperature control

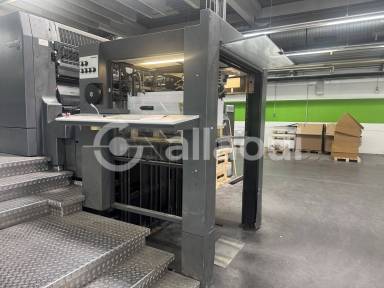

Entrega

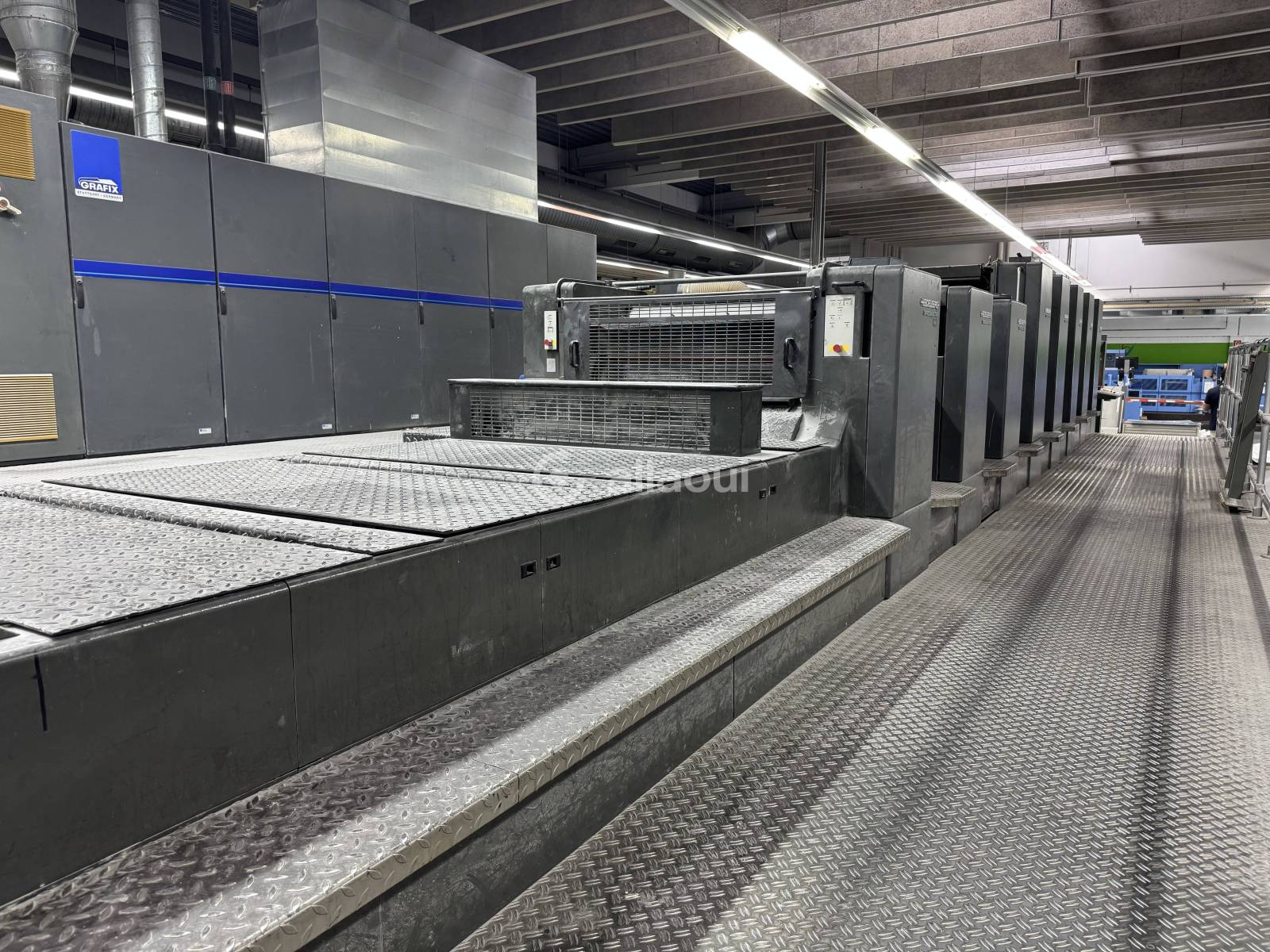

• Delivery type: extended delivery
• Delivery extension: 2,440 mm
• Anti static
• Dryer: 4x dryer inserts for the installation of dryers in various configurations (IR, hot air, cold air, UV)
• IR Dryer
• UV Dryer
• Powder device: Grafix Exatronic Plus

General

• Raised machine: 50 cm

Periphery

• Antistatic: Eltex

• Max sheet size: 720 x 1.020 mm
• Min sheet size: 280 x 420 mm
• Max print size: 710 x 1.020 mm
• Plate size: 790 x 1.030 mm
• Thickness: up to 1,0 mm
• Output: 15.000 sheets per hour

Consumo de energia

• Freqüência: 50 Hz
• Voltagem: 380 V
