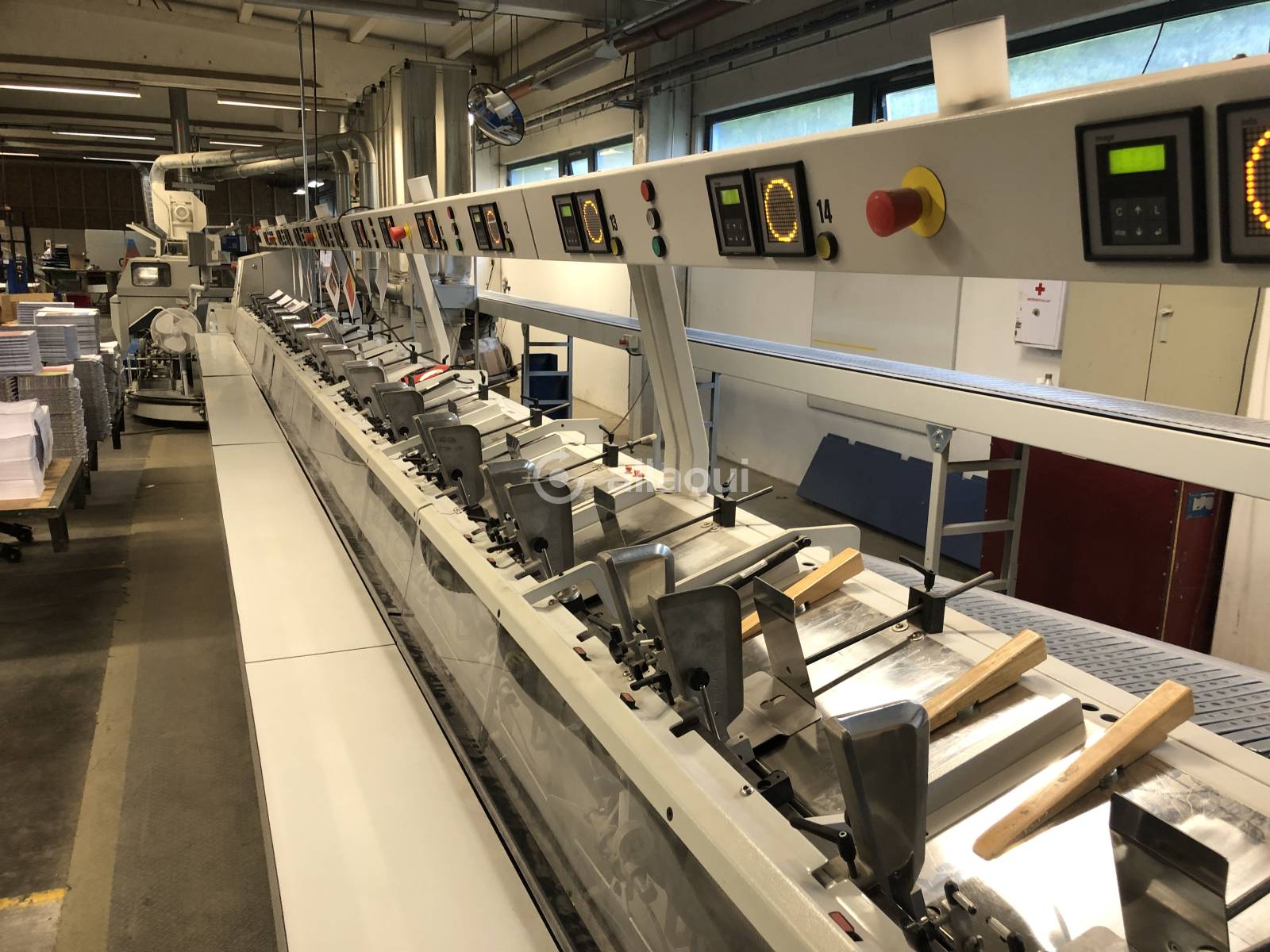

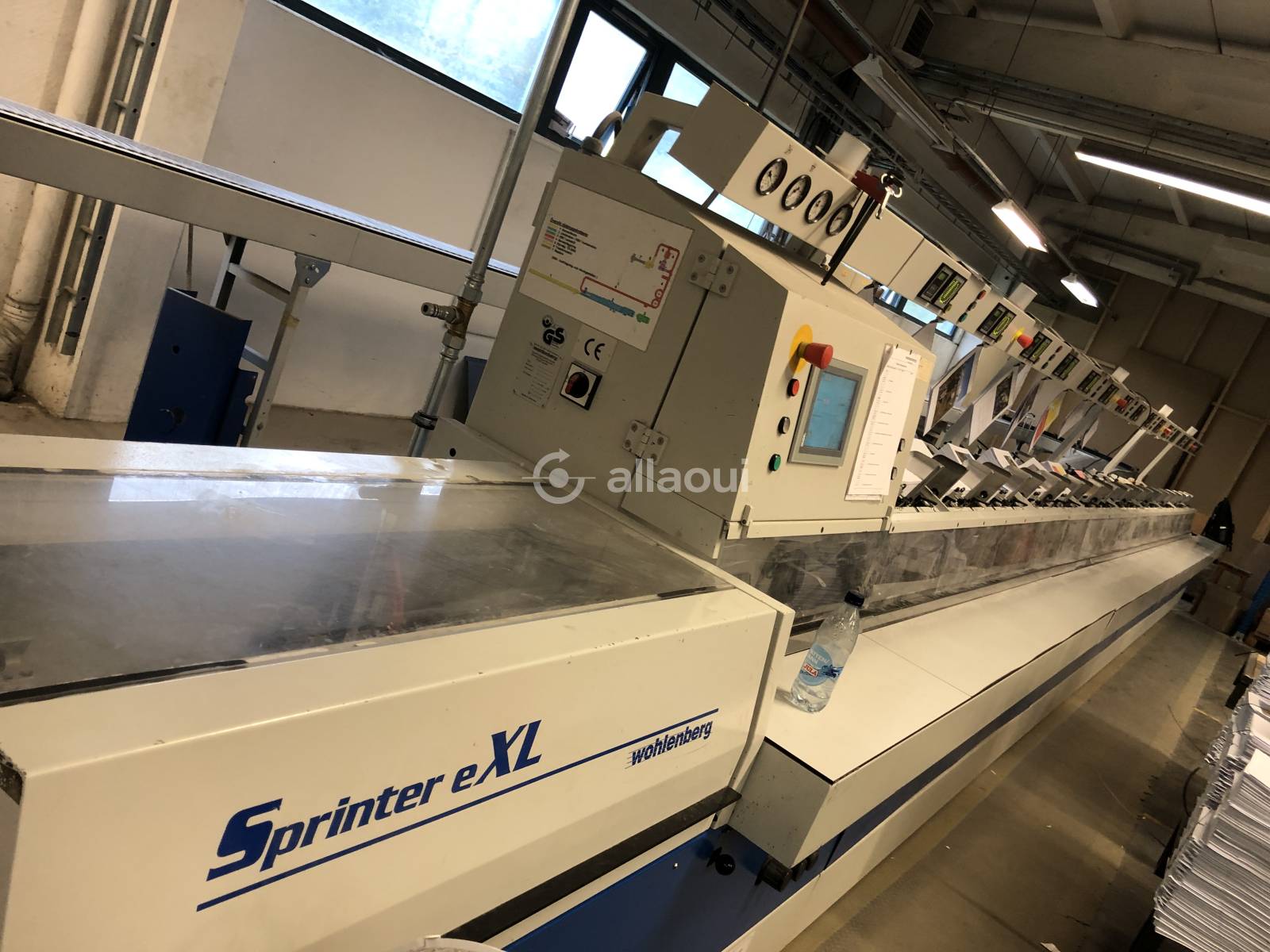

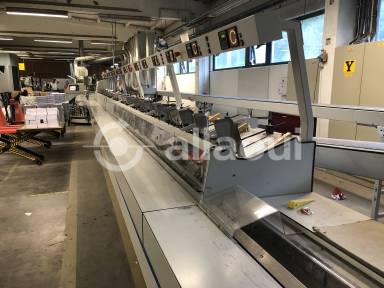

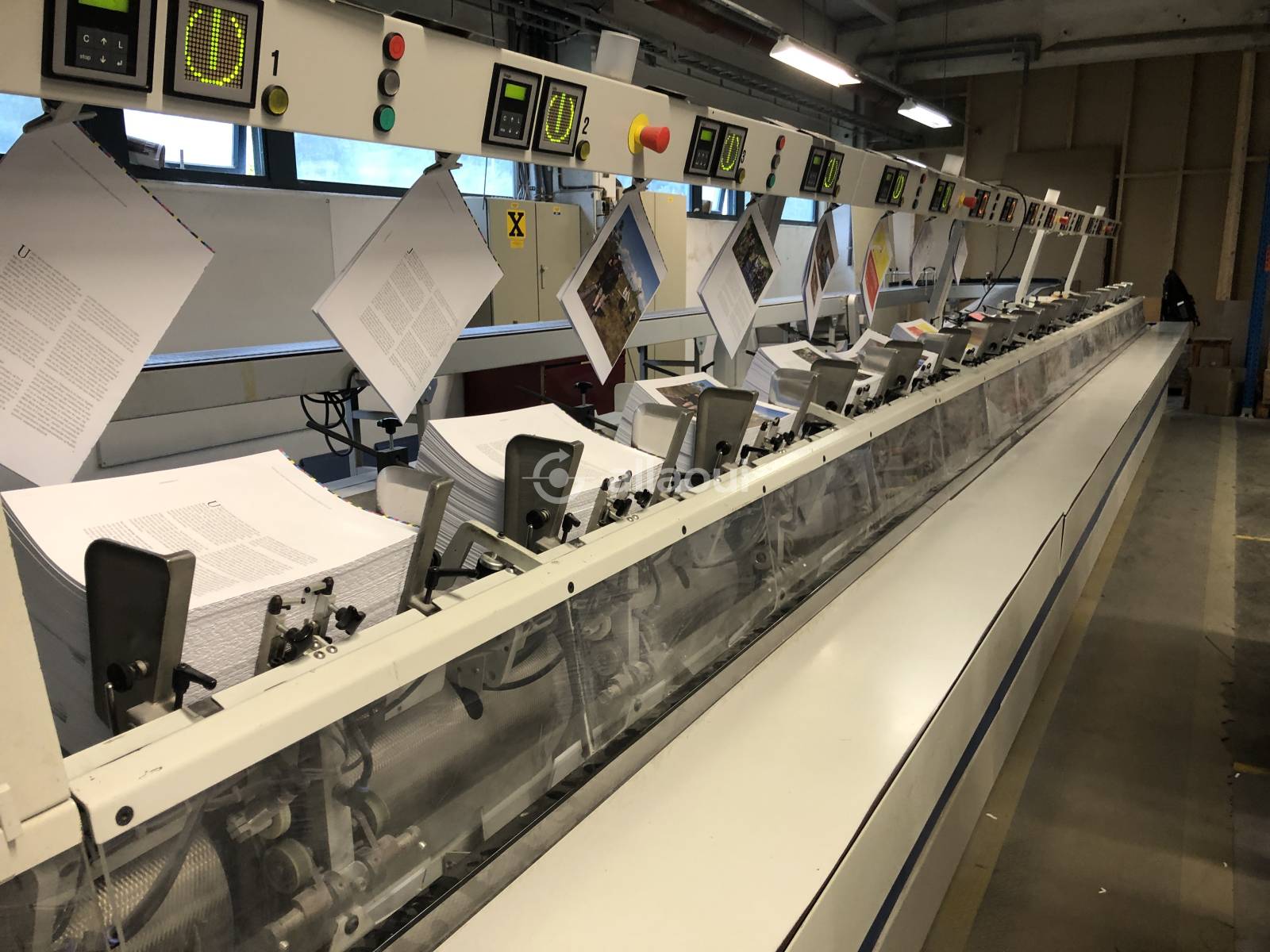

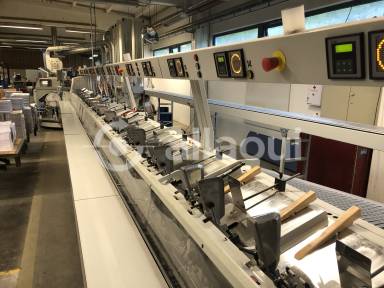

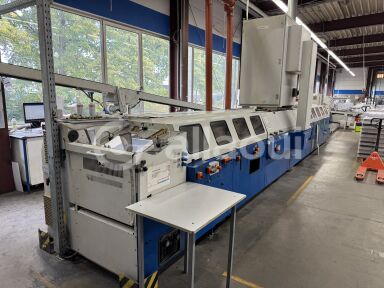

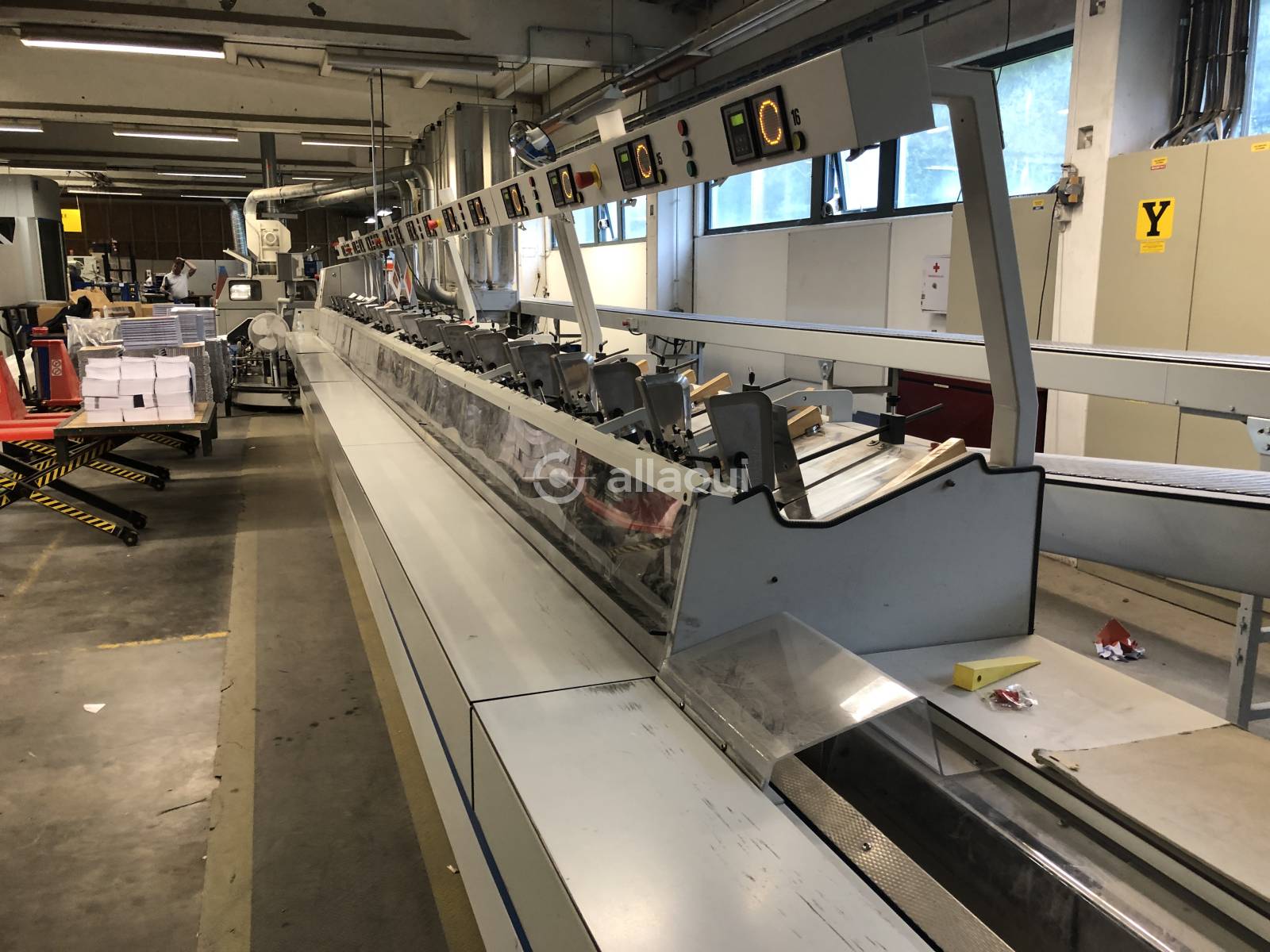

Gathering Machine

• Type: Sprinter eXL
• Gathering stations: 16
• Year: 2008
• Hand feeding station

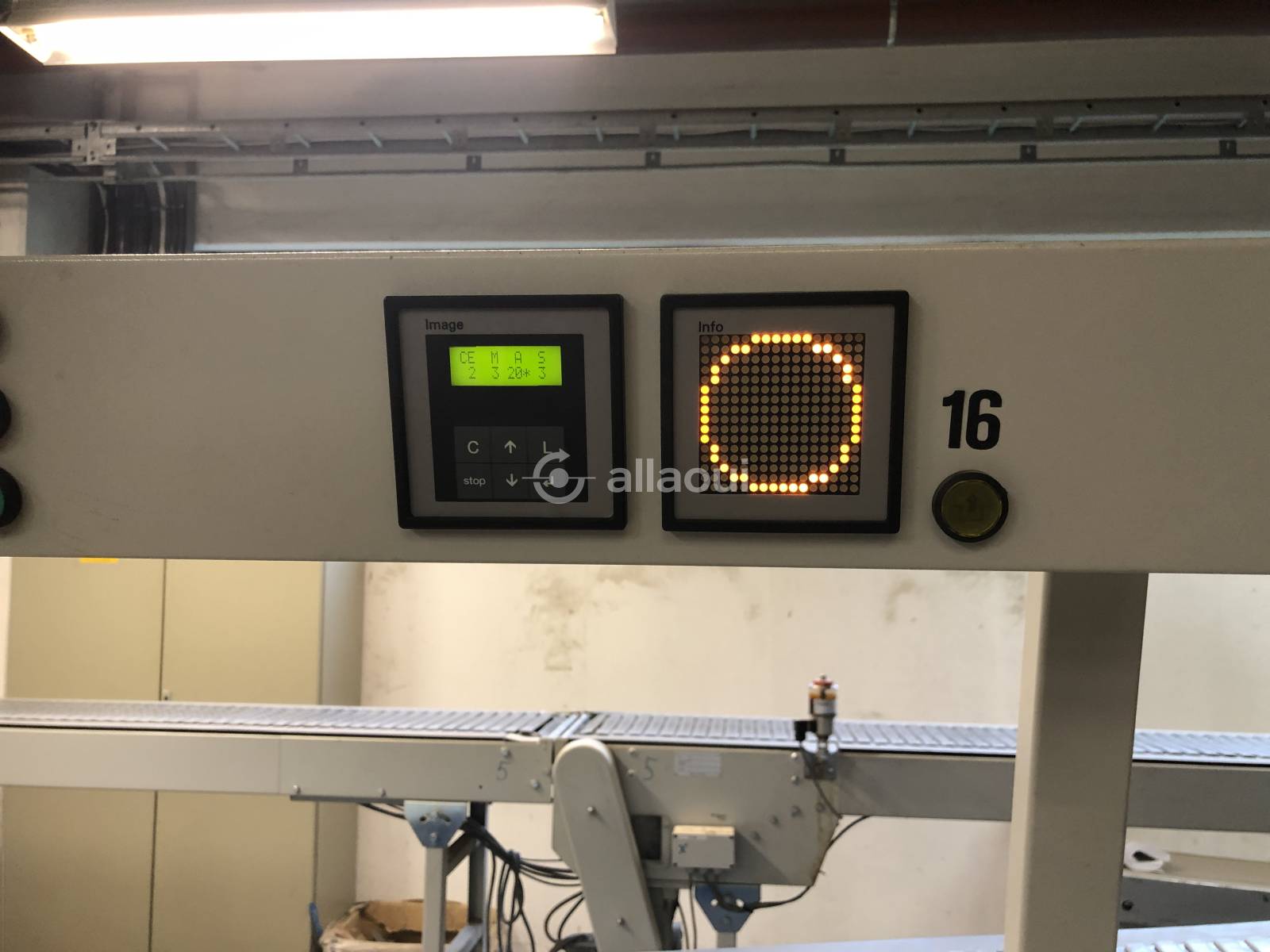

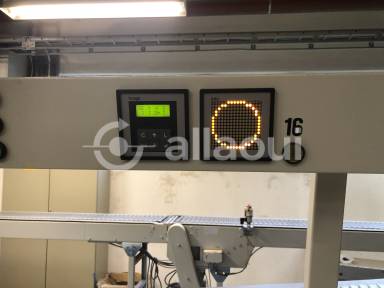

• Sheet recognition system

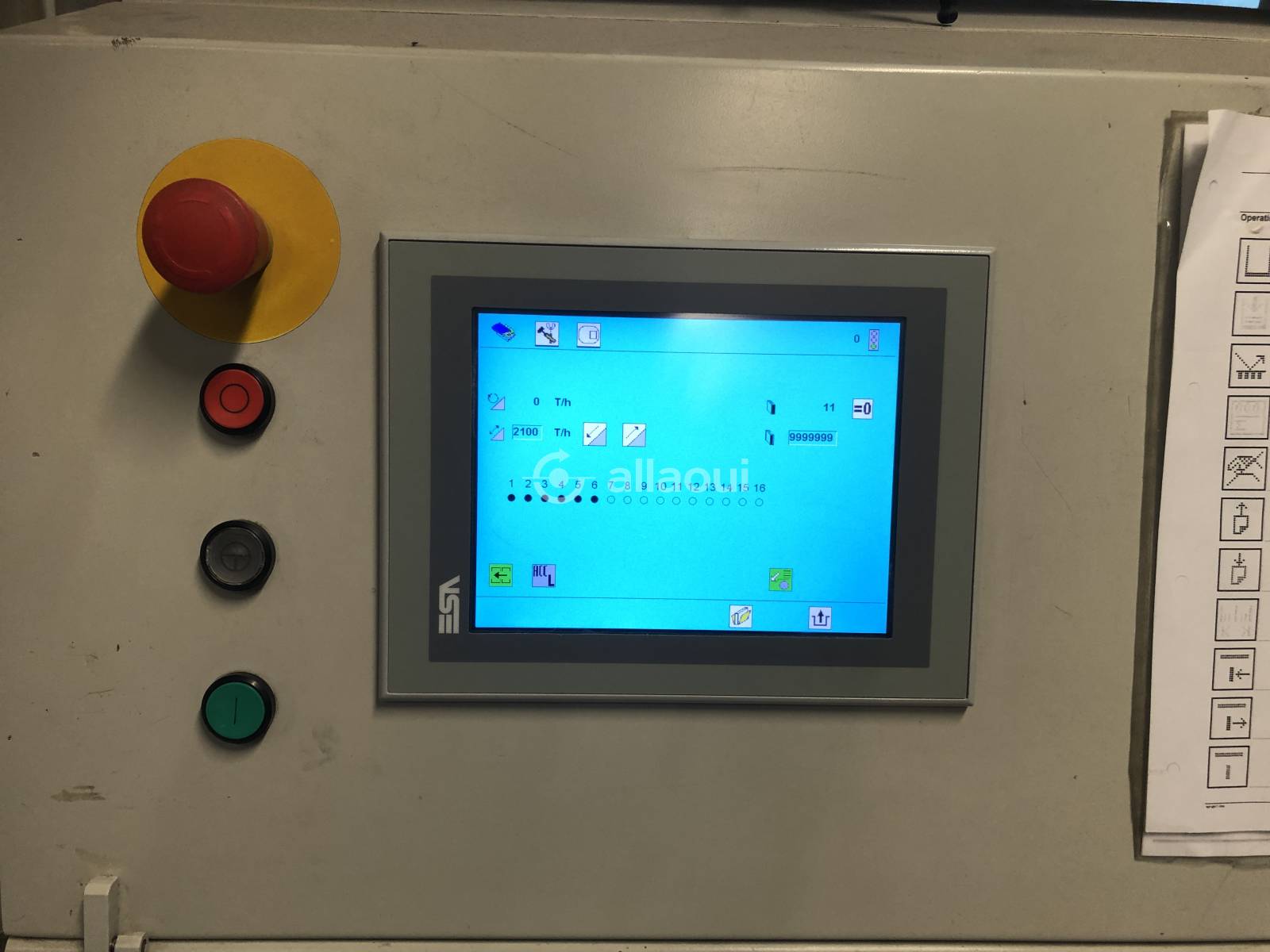

• Touchscreen

Technical Details

• Size max: 320 x 485 mm
• Size min: 75 x 105 mm

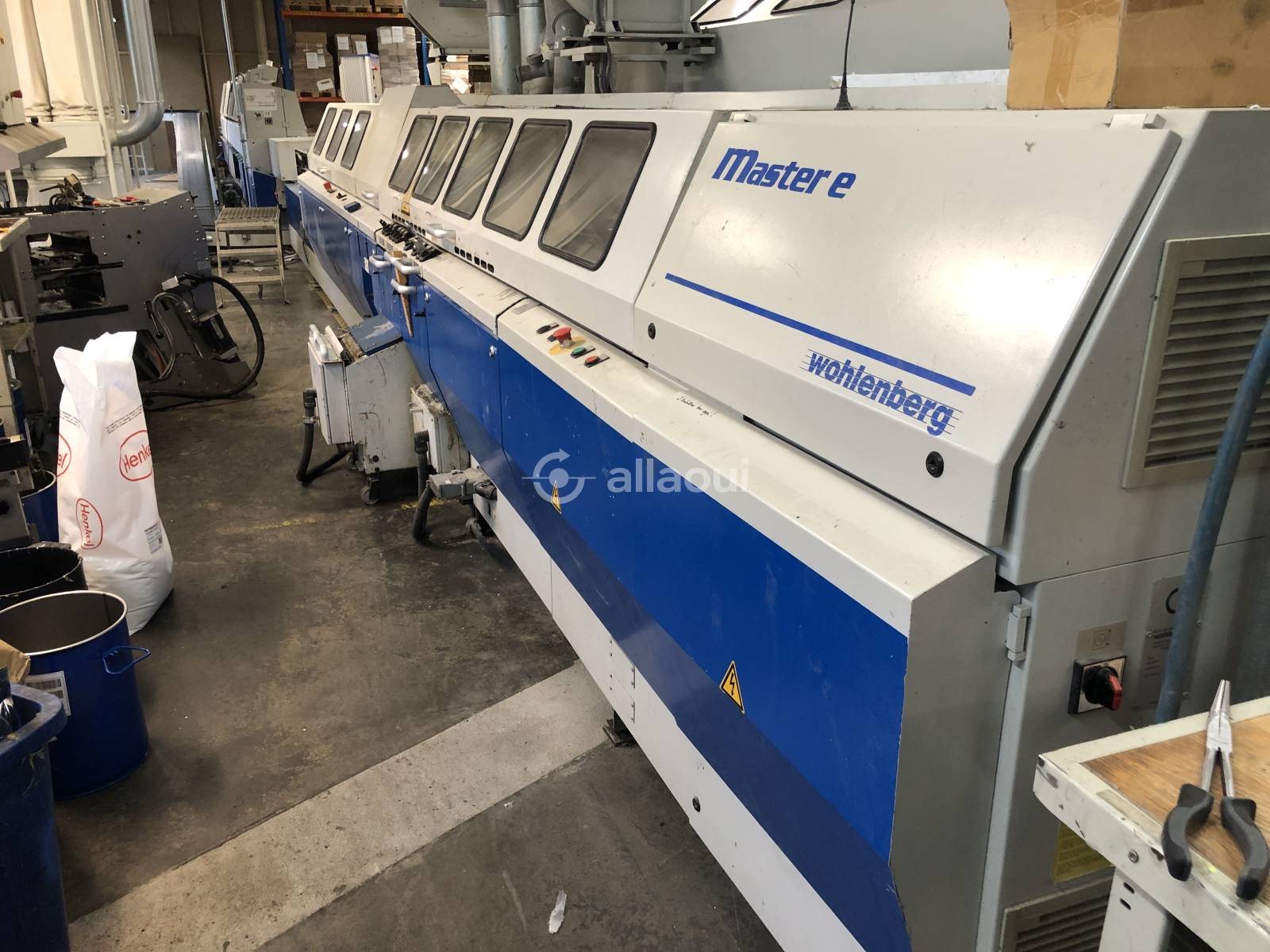

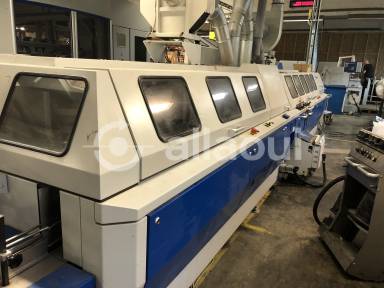

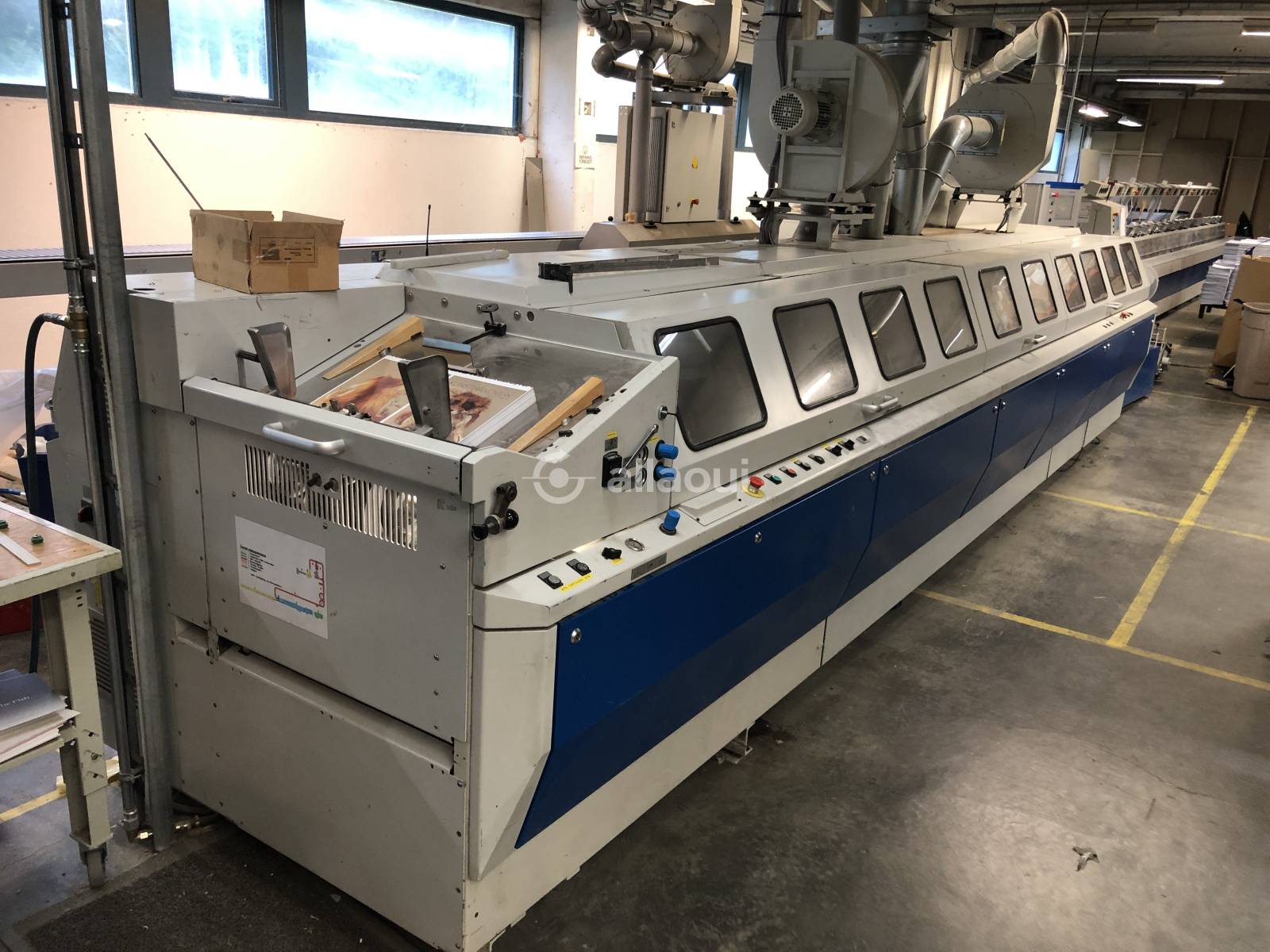

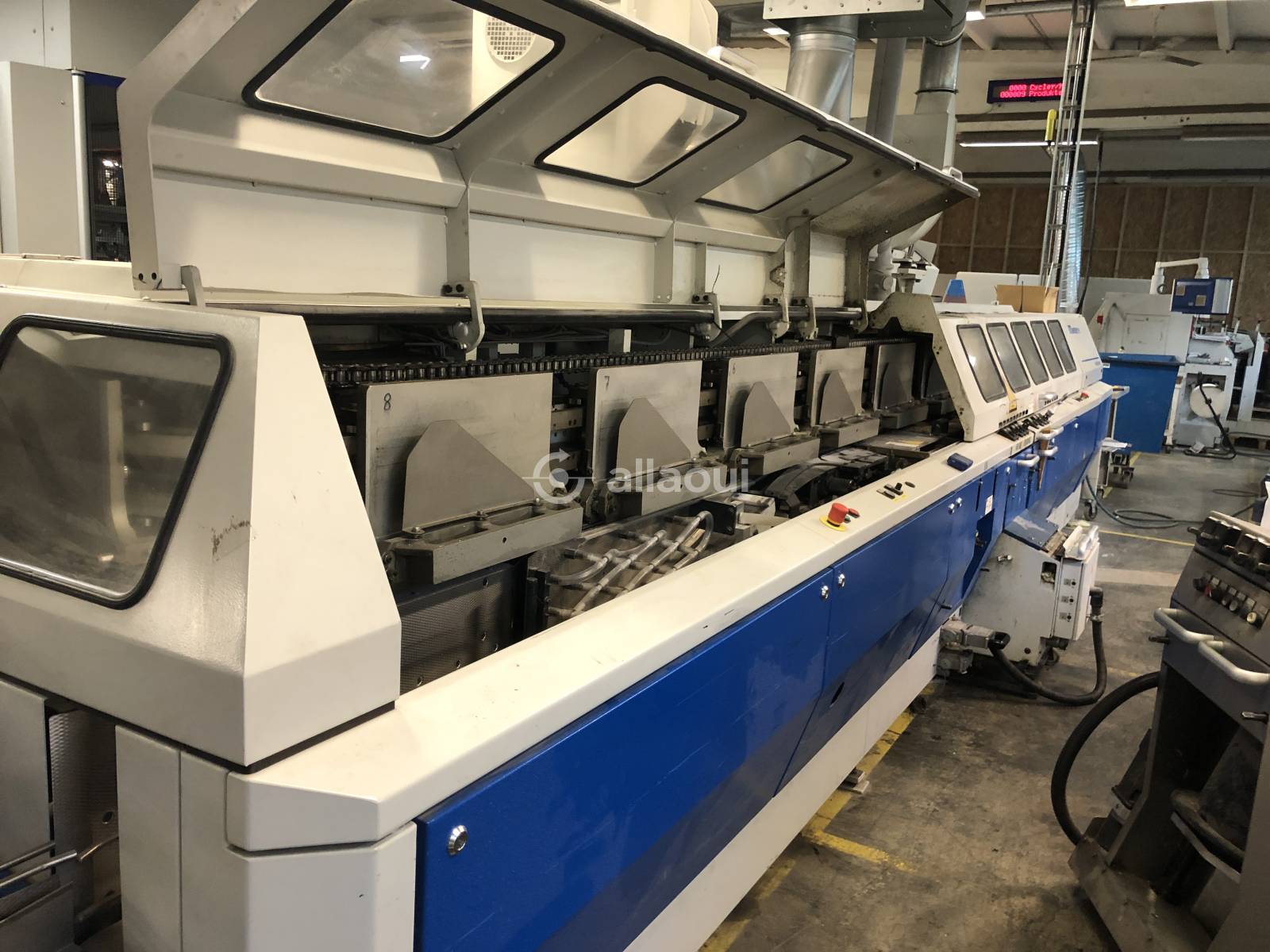

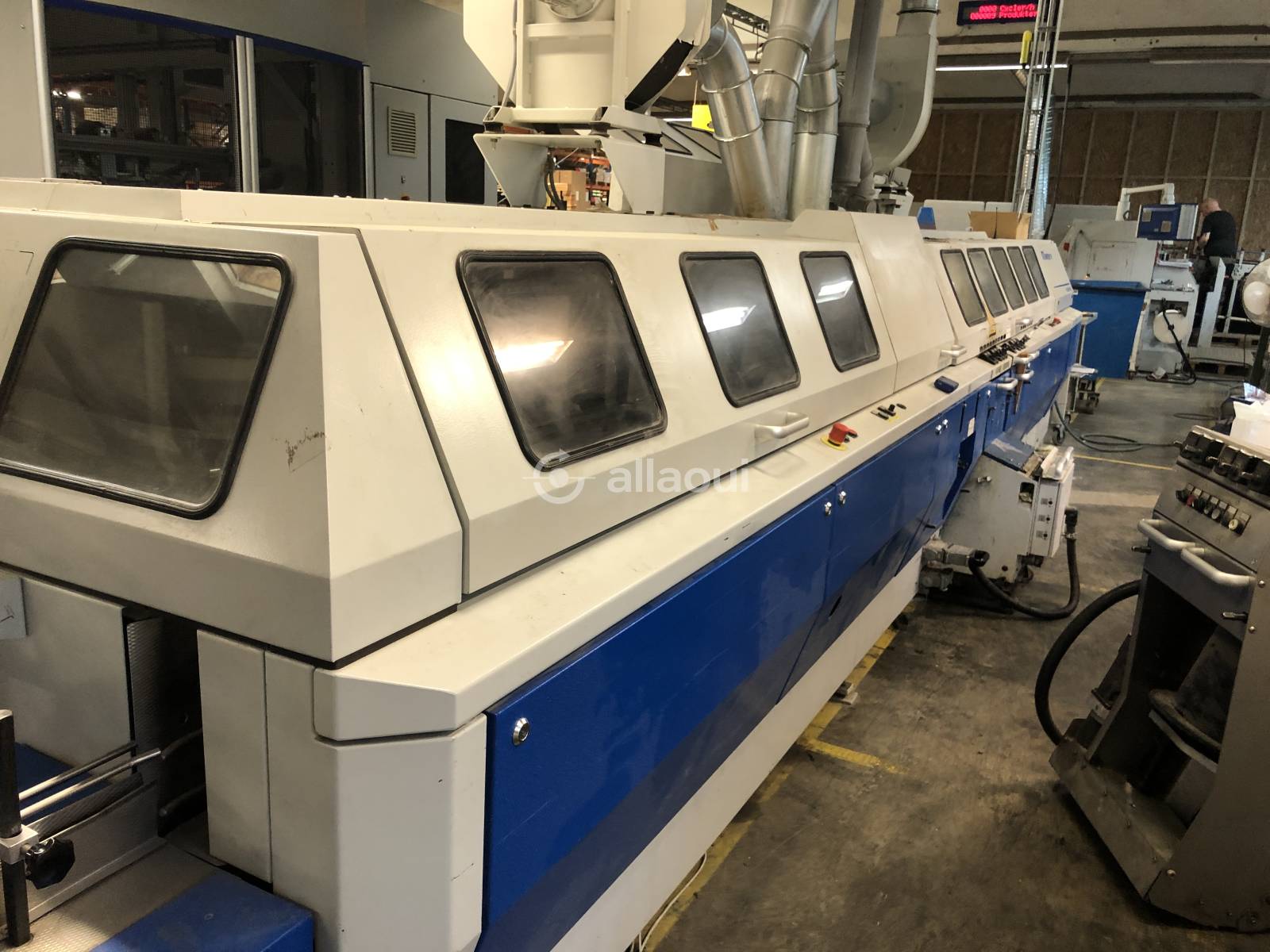

Perfect Binder

• Type: Master E 7000
• Year: 2008

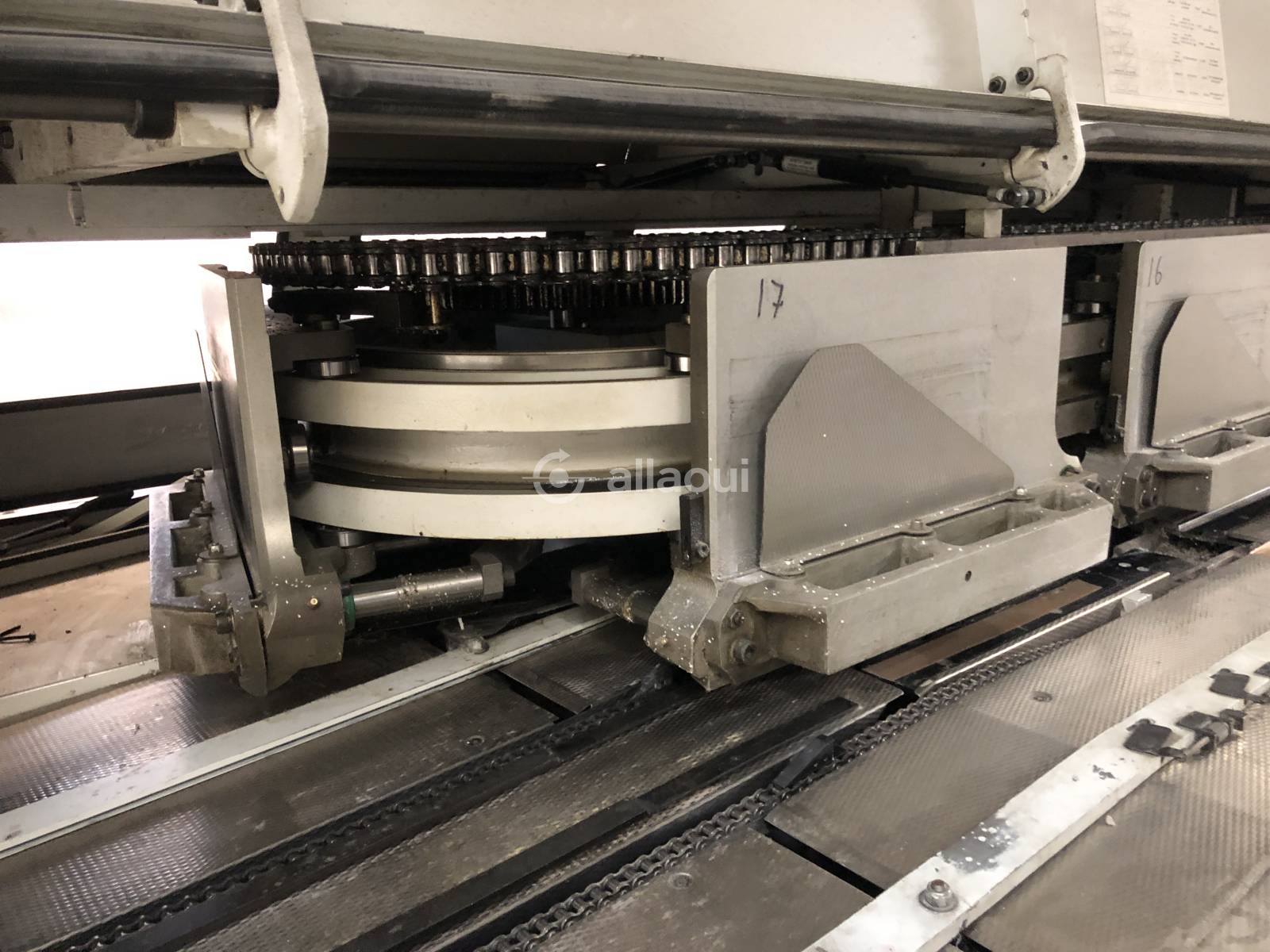

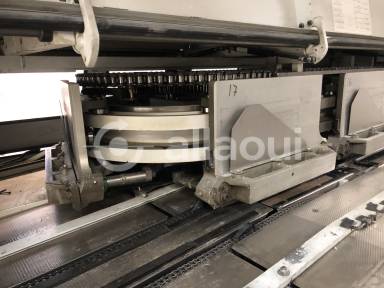

• Number of clamps: 18

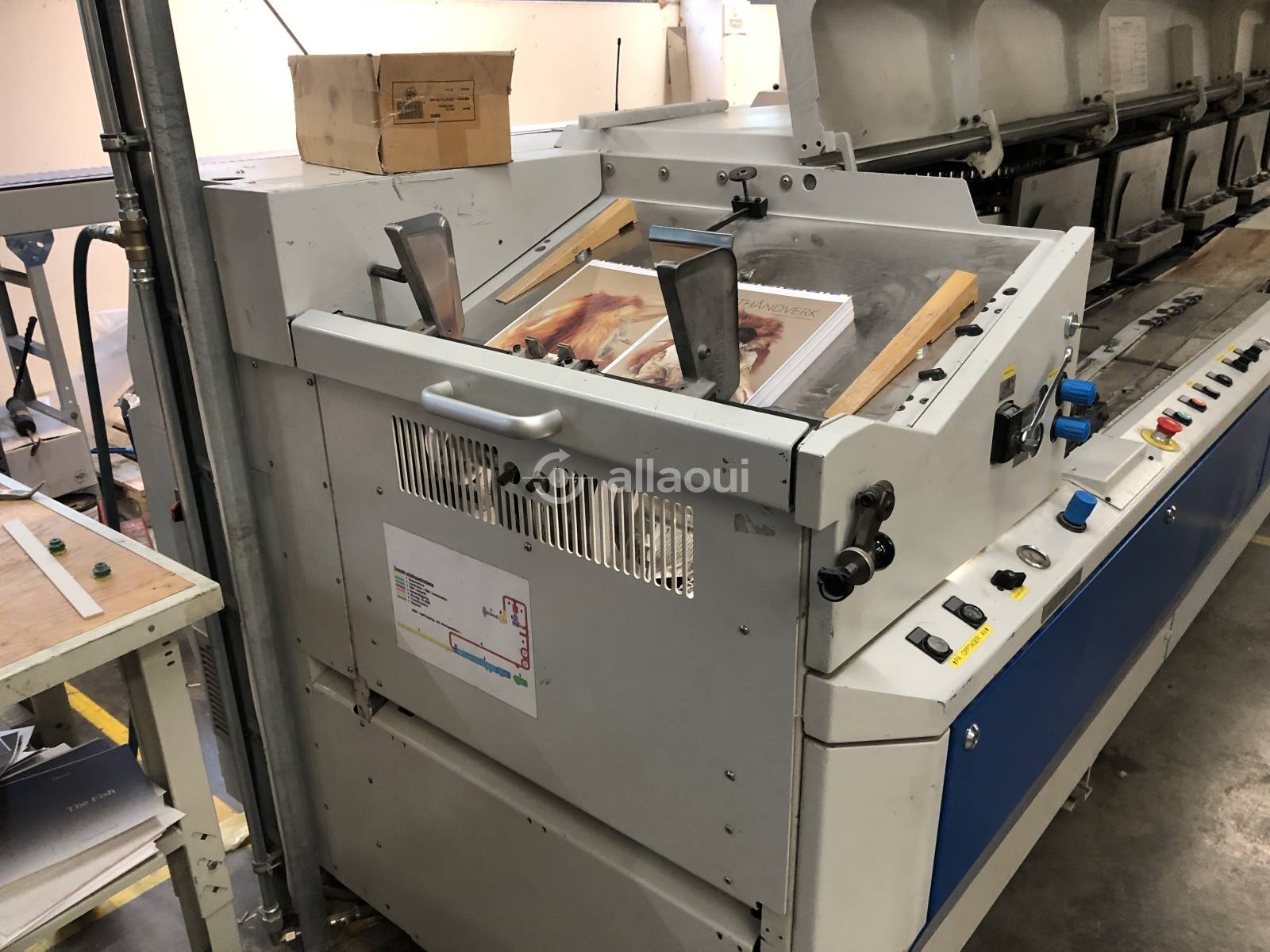

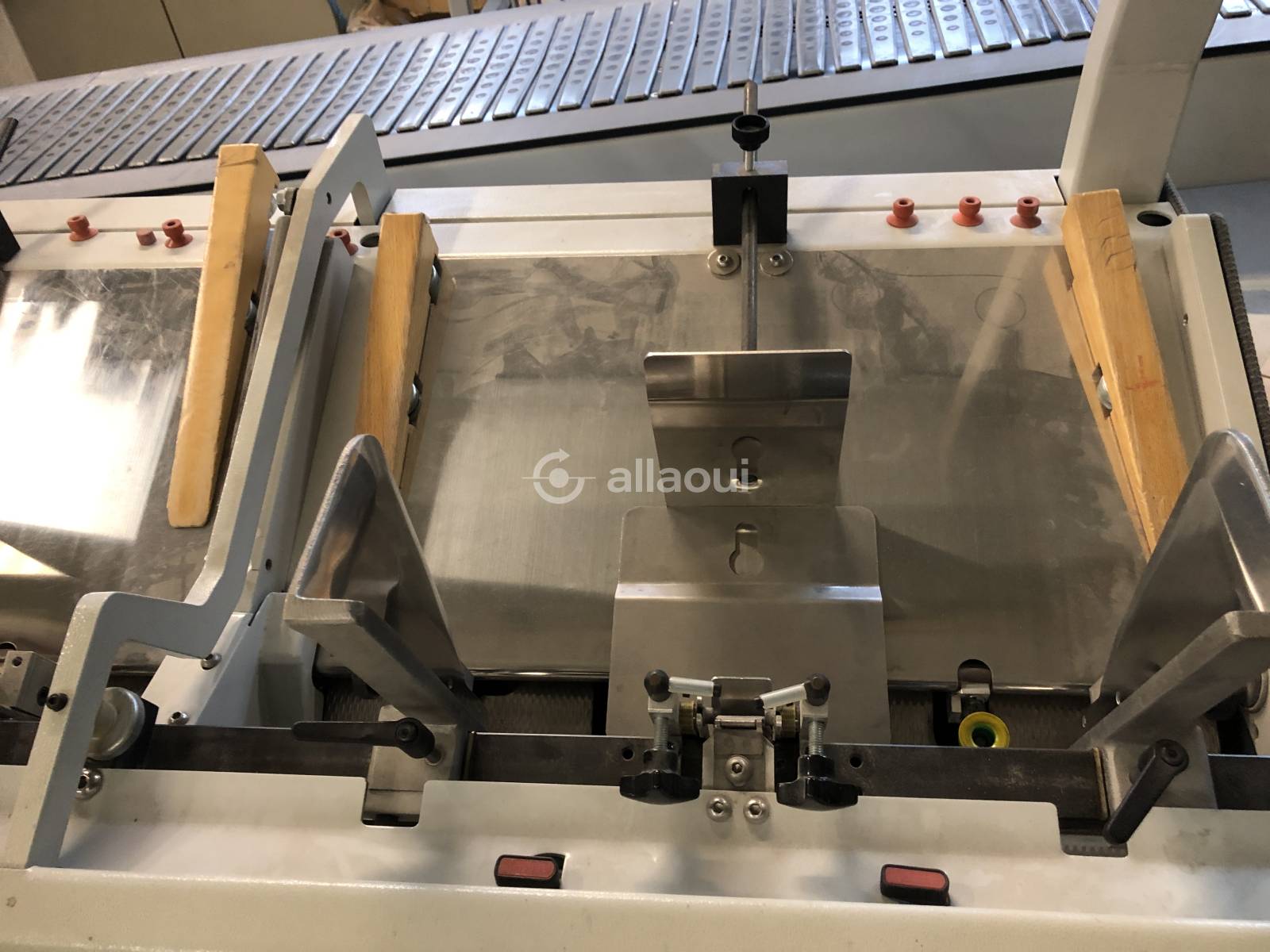

• Cover feeder: Rotary cover feeder
• Nipping and Pressing station
• 2nd Nipping and Pressing station

Spine Gluing

• Base for 1 Spine Gluing Unit
• Hotmelt: Yes
• PUR: Yes, with 20 l integrated barrelmelter on demand

Side Gluing

• Hotmelt: Yes

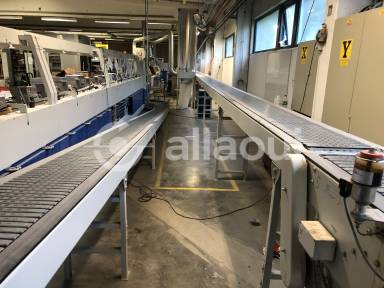

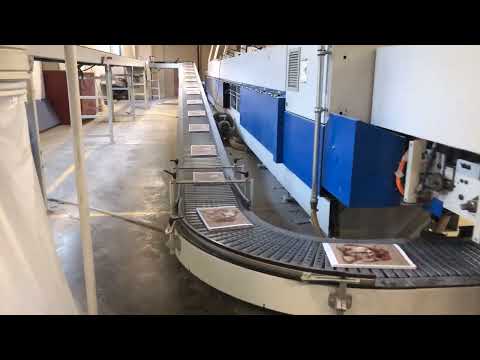

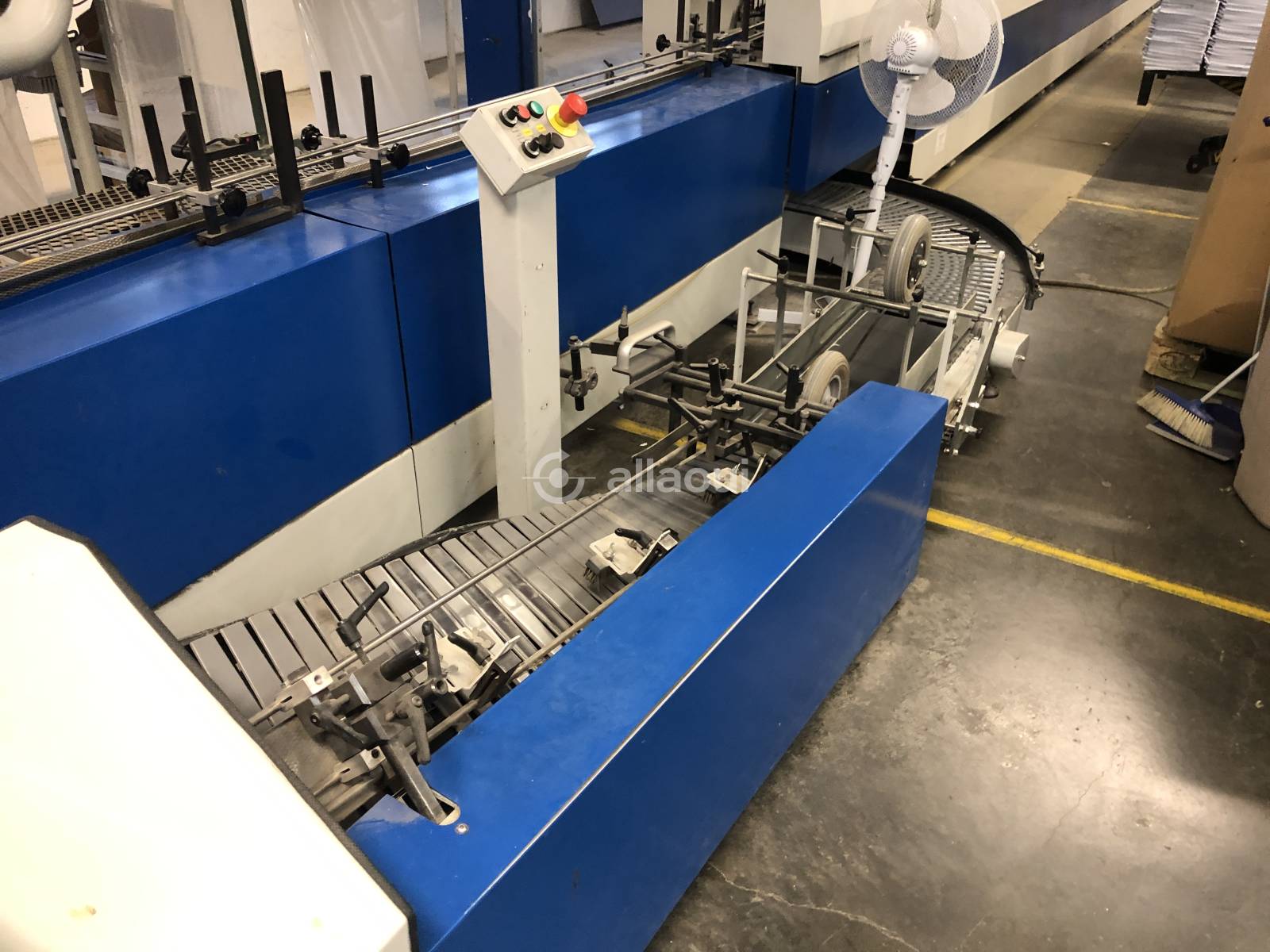

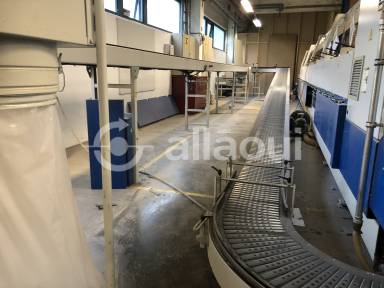

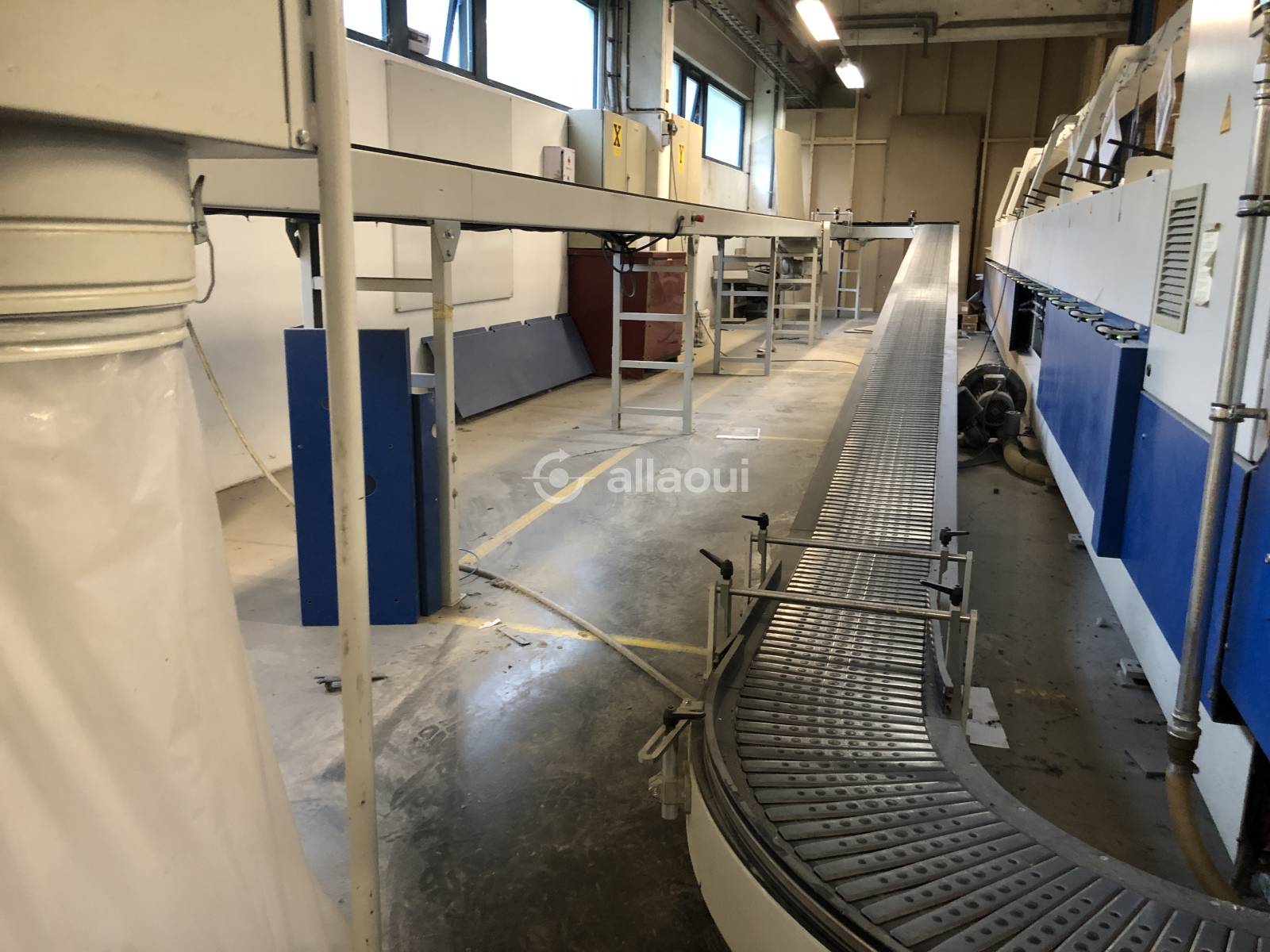

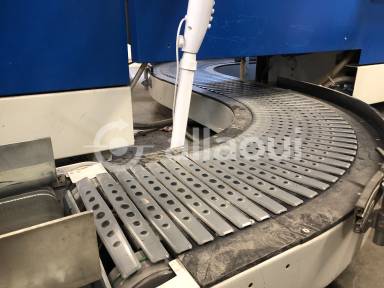

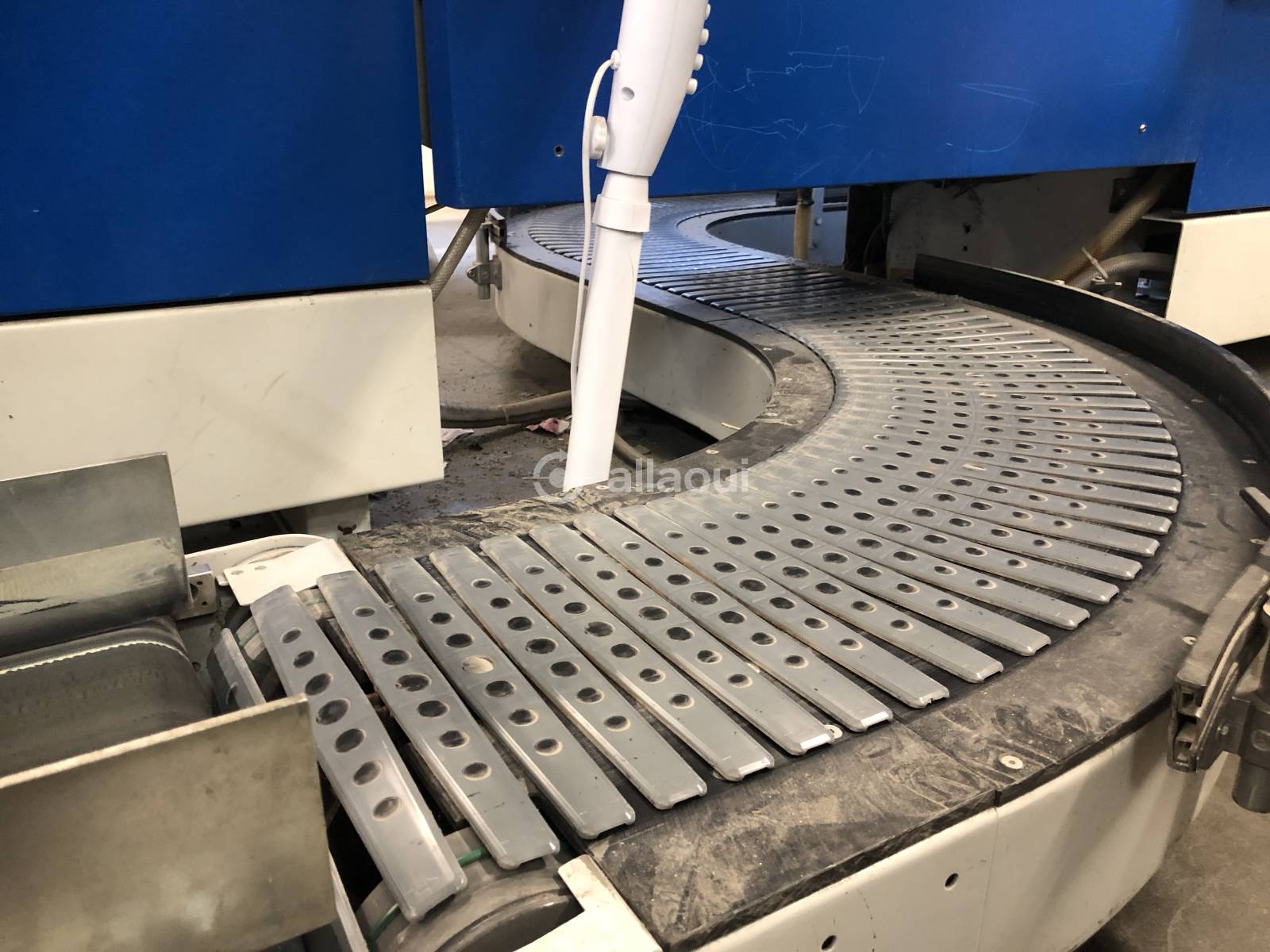

Drying Conveyor

• conveyor belts
• length of the drying conveyor: around 50m

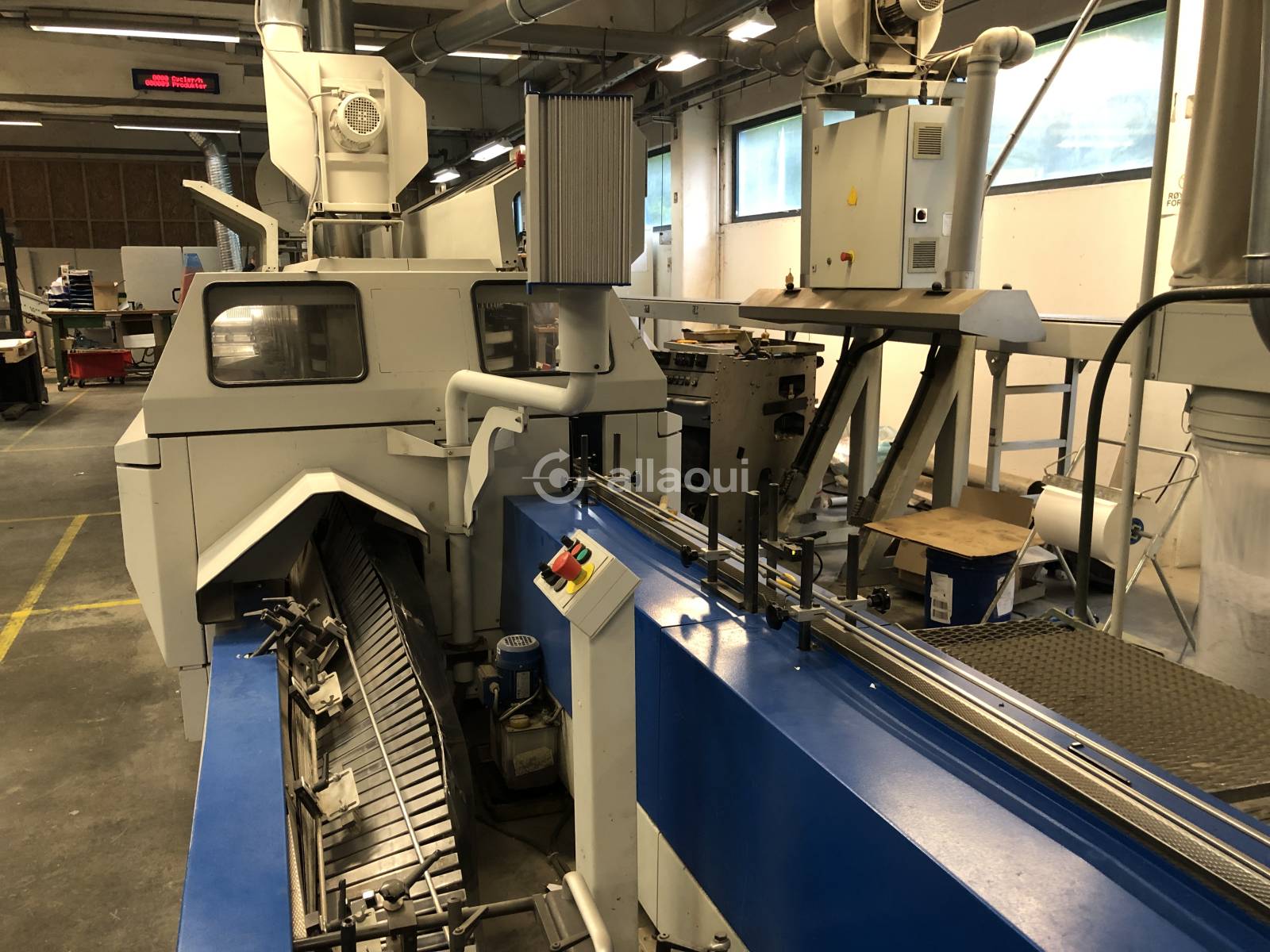

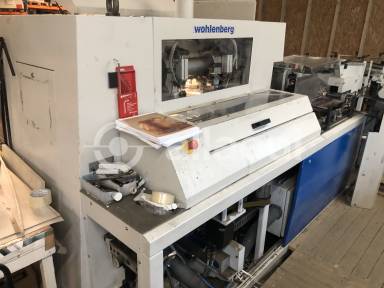

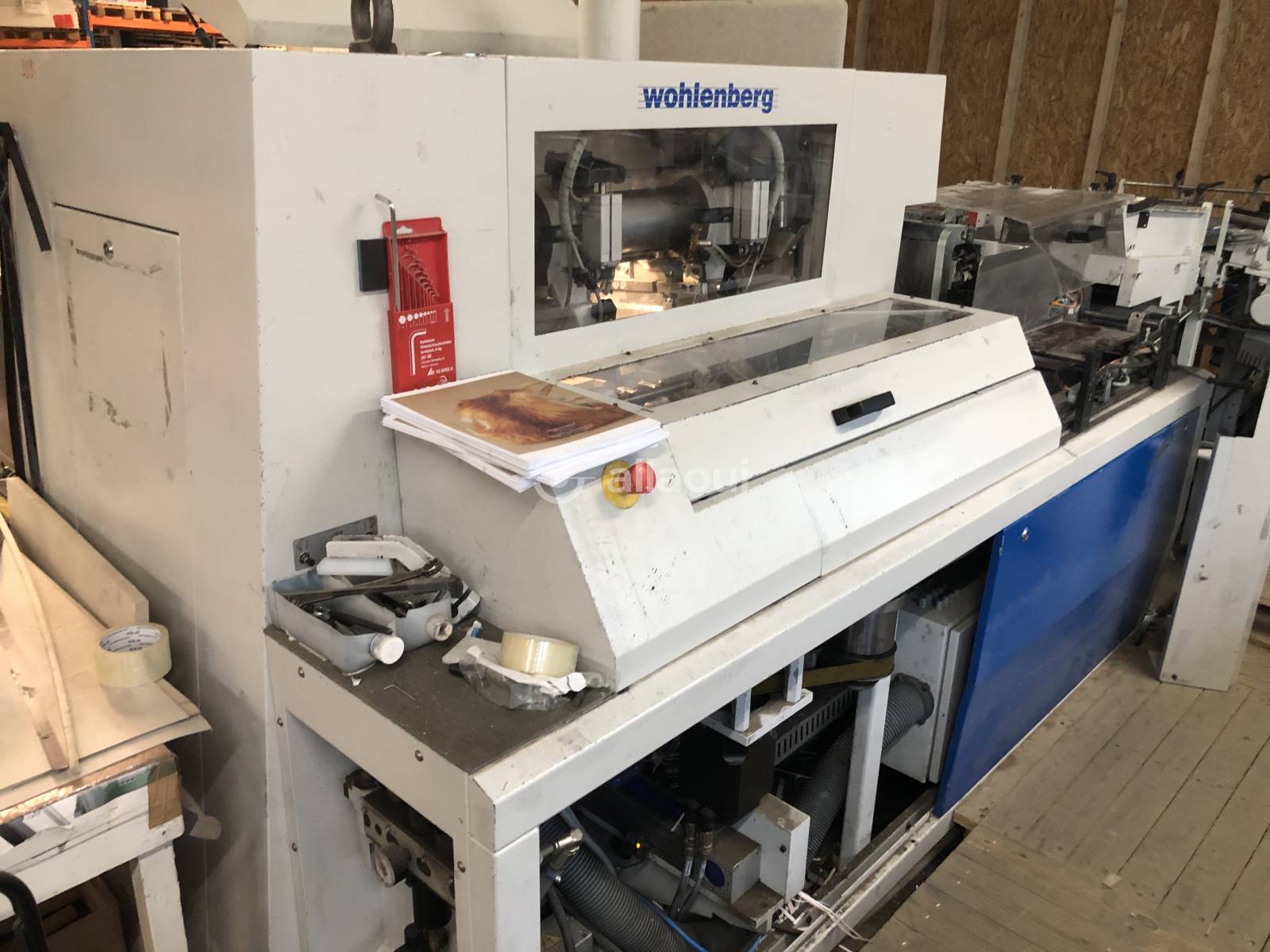

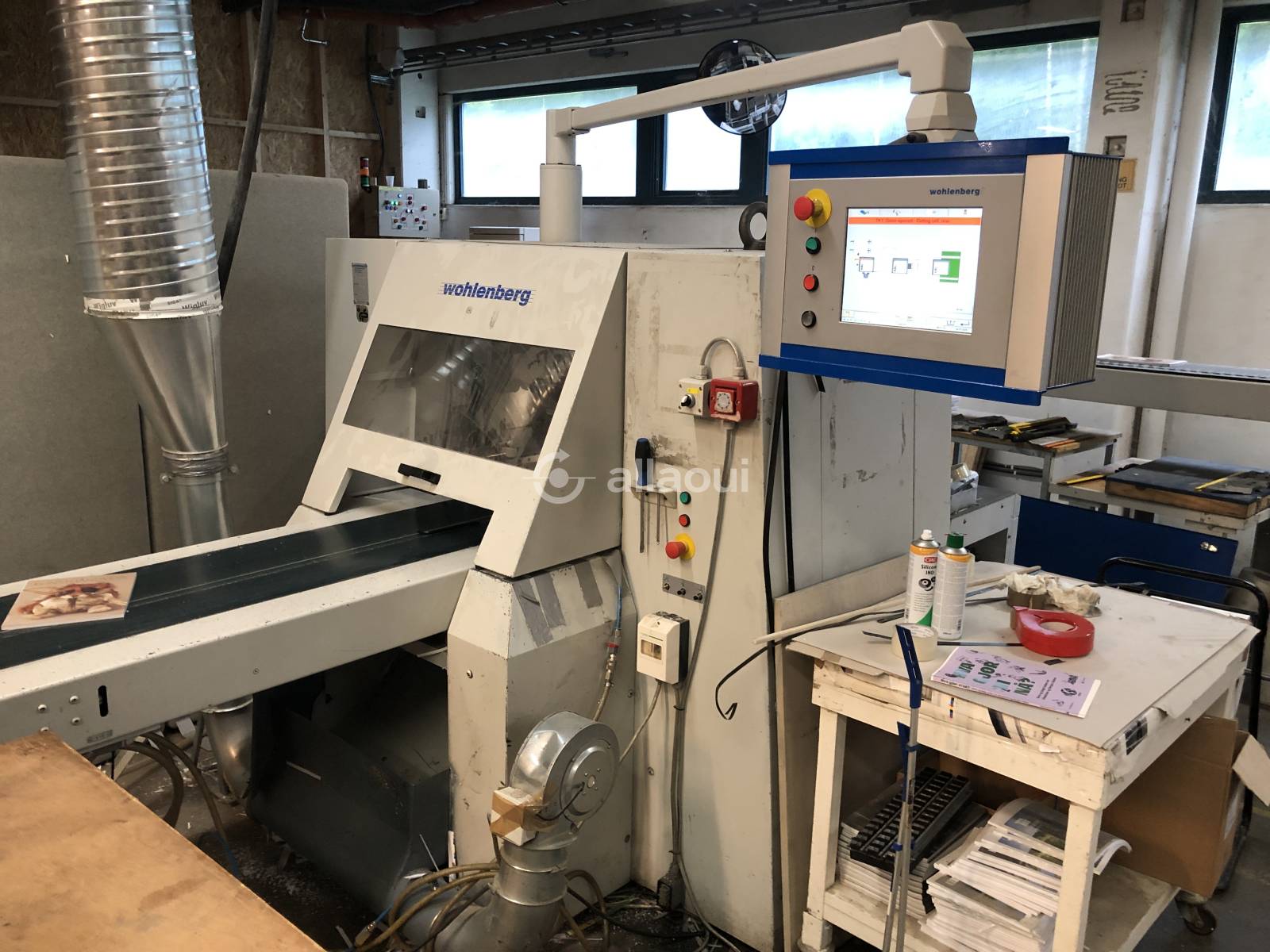

Three knife trimmer

• Type: trim-tec 60i
• Year: 2008

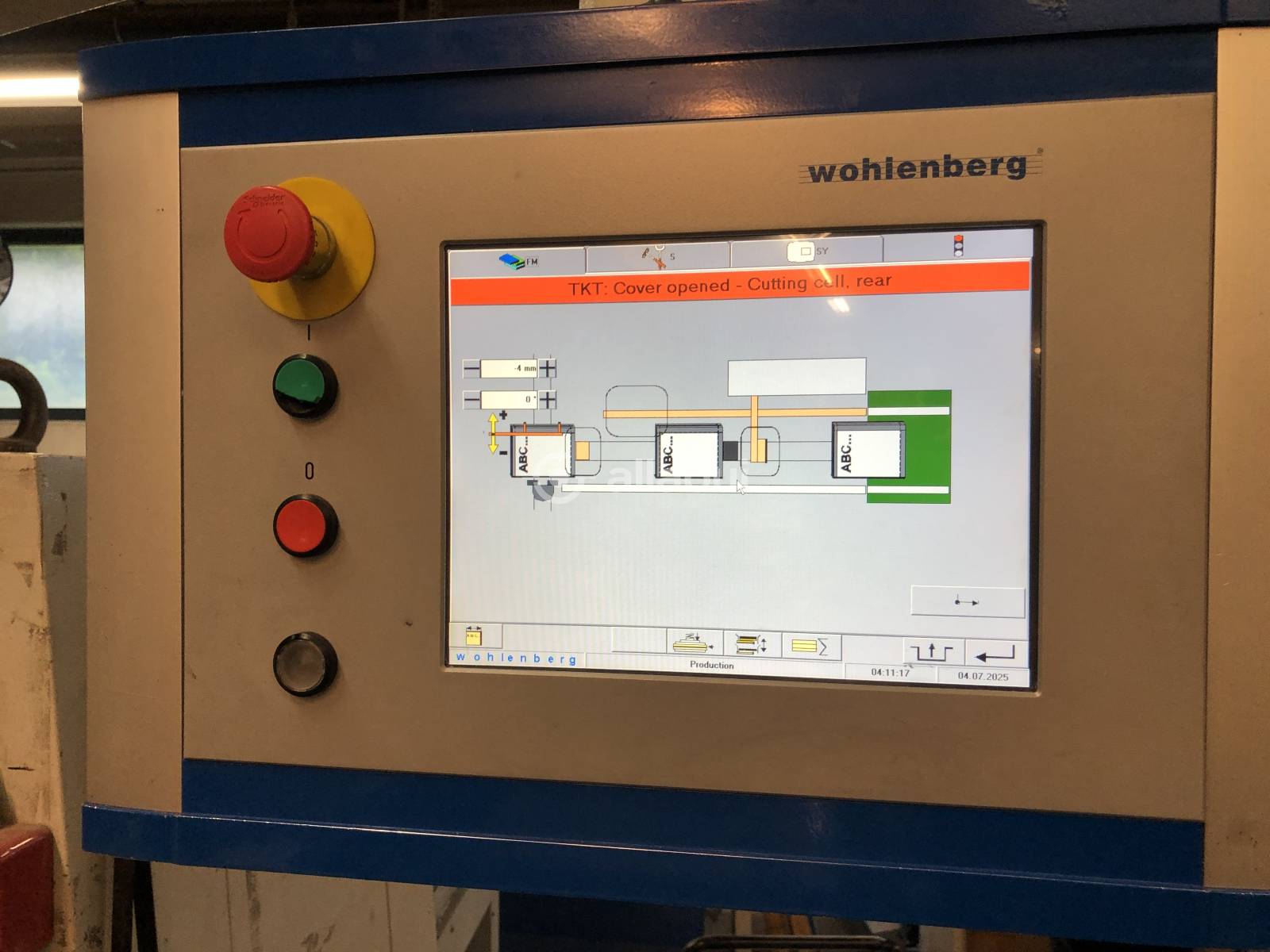

• Control panel
• automatic size adjustment

Technical Details

• Size max (cutted)): 300 x 400 mm
• Size min (cutted): 85 x 145 mm
• Size max (uncutted): 310 x 420 mm
• Front Cut max: 1-24 mm
• Mechanical speed max: 3,600 cycles/h
• Size min (uncutted): 87 x 147 mm

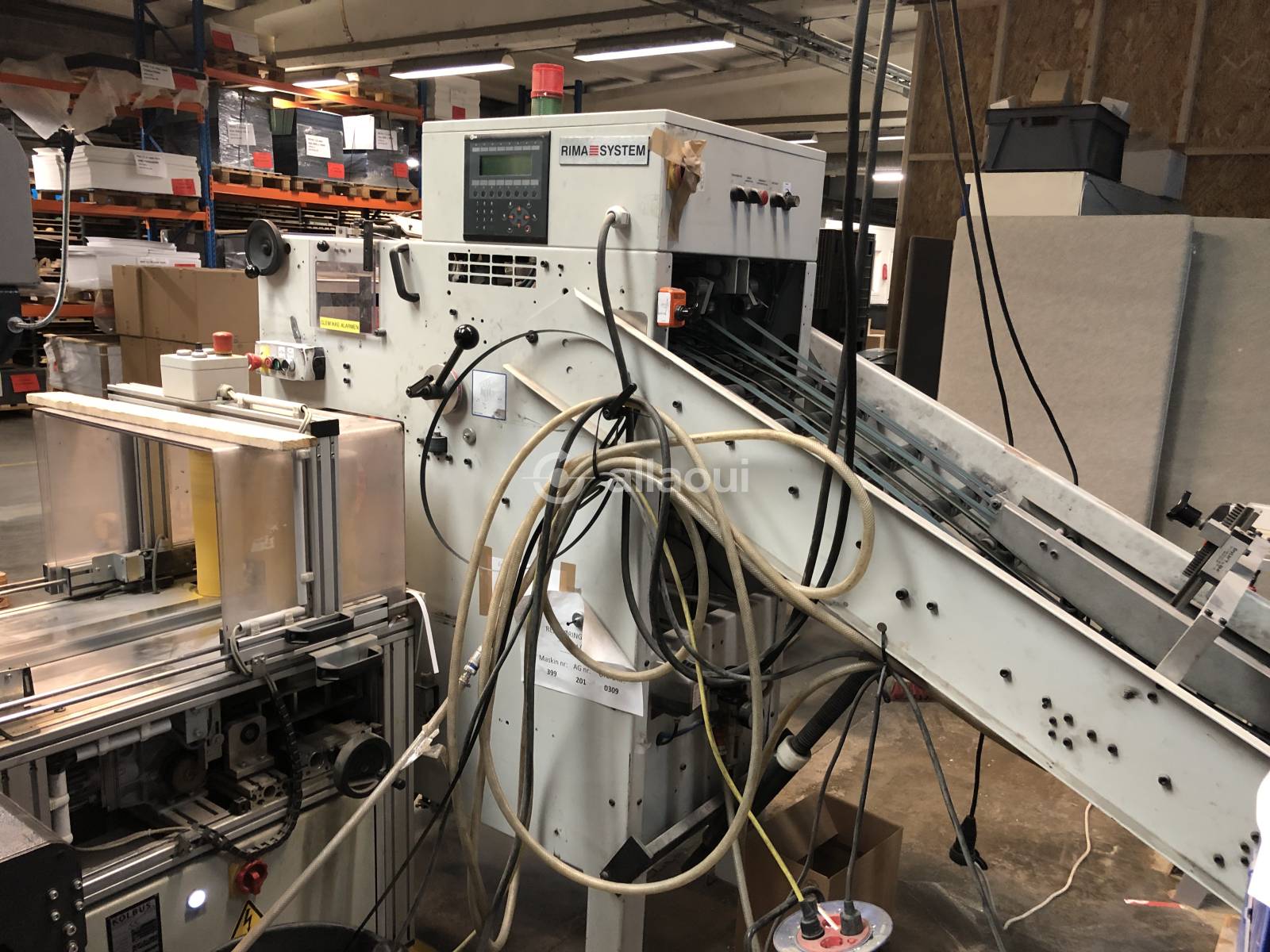

Stacker

• Type: Rima RS-3313S
• Year: 2007
• Output direction: To the left
• Control panel: E300
• automatic size adjustment

Technical Details

• Size max: 320 x 470 x 64 mm
• Size min: 102 x 152 x 7 mm
• Pile height max: 330 mm
• Mechanical speed max: 15,000 cycles/h

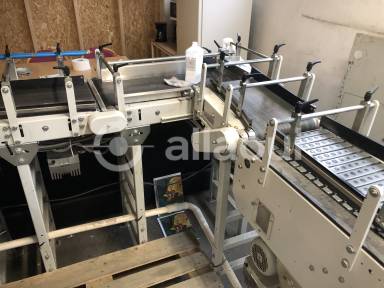

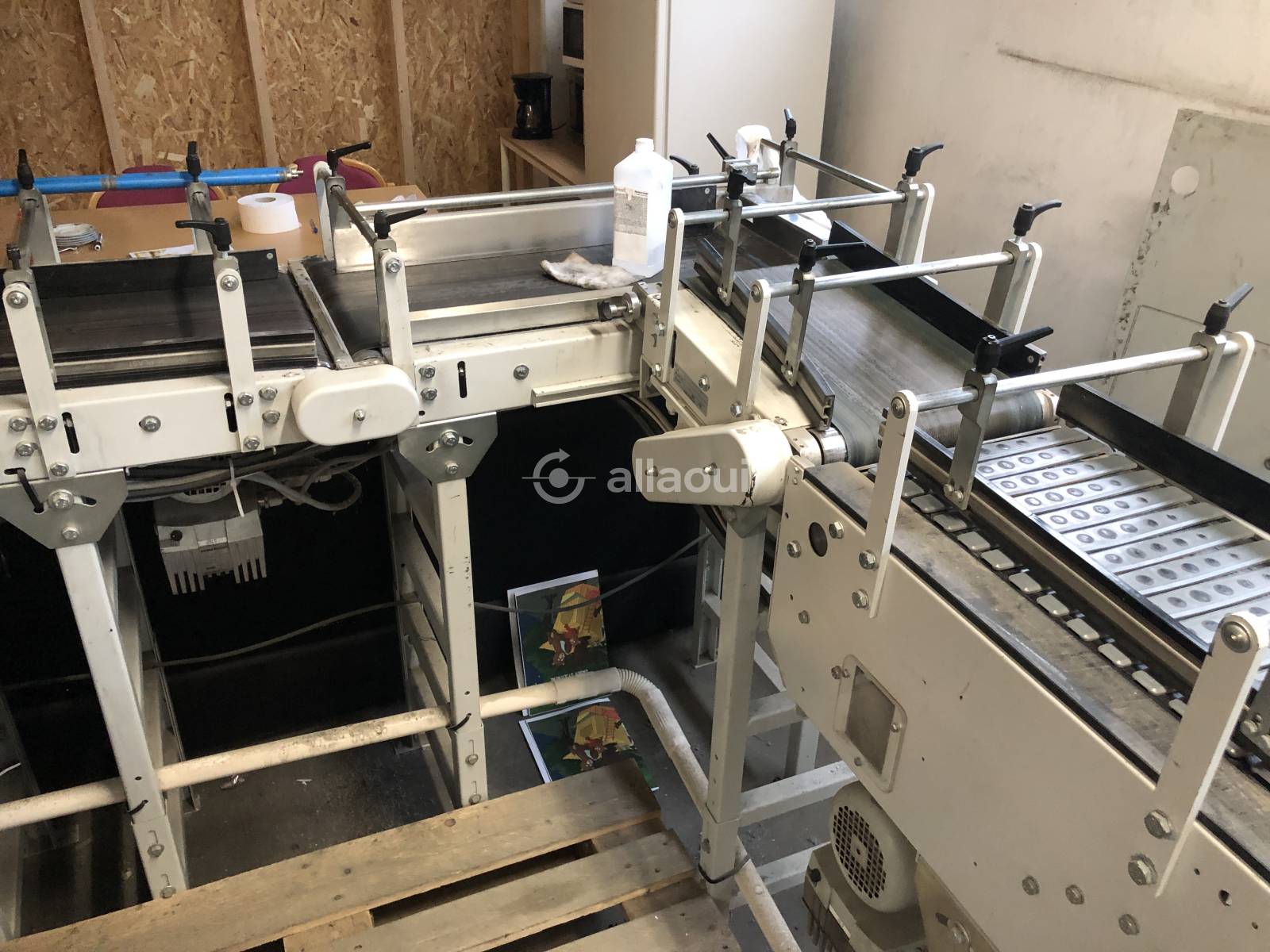

Delivery and Peripherals

• Blocking Unit: Kolbus RS 121

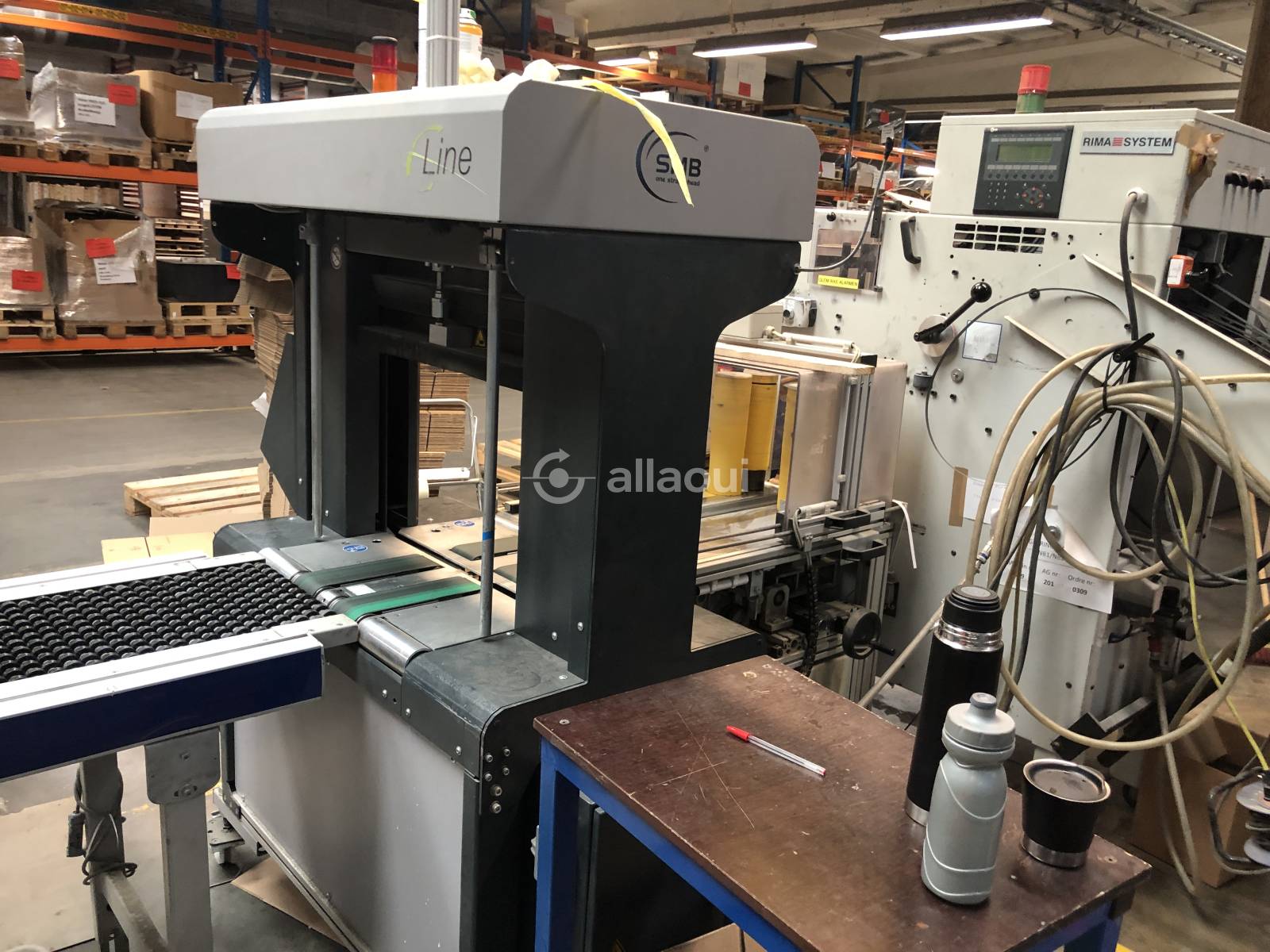

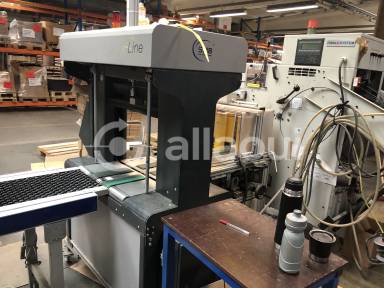

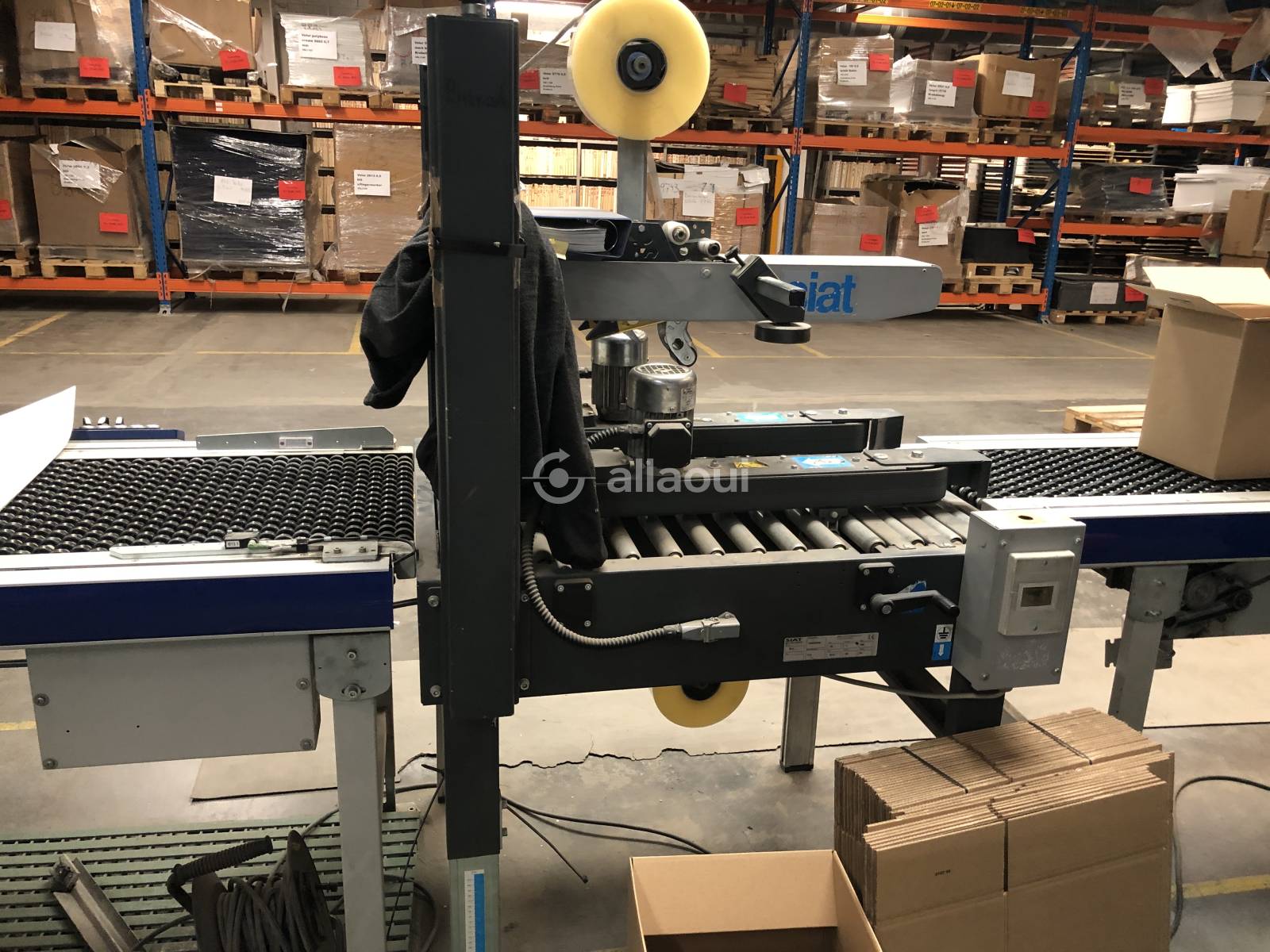

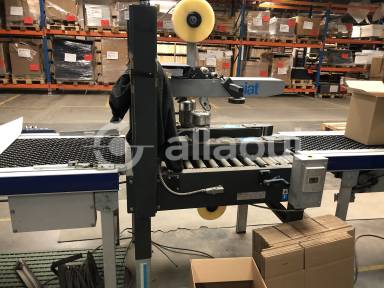

• Packaging machine: Strapping machine SMB CS2 & Siat S8-S

• Mechanical Speed: 7,000 cycles/h
• Book thickness: 2 - 62 mm
• Block height: 140 - 430 mm
• Block width: 105 - 320 mm
• Max. Cover size: 435 x 645 mm
• Min. Cover size: 140 x 208 mm
