Used Stock A-14 V567A/1650P

Laminating & Coating machine for sale

Reference	VA74951
Manufacturer	Stock
Type	A-14 V567A/1650P
Year	2000
Status	in stock
Video

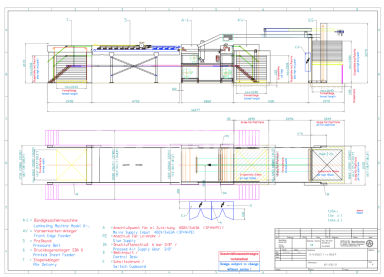

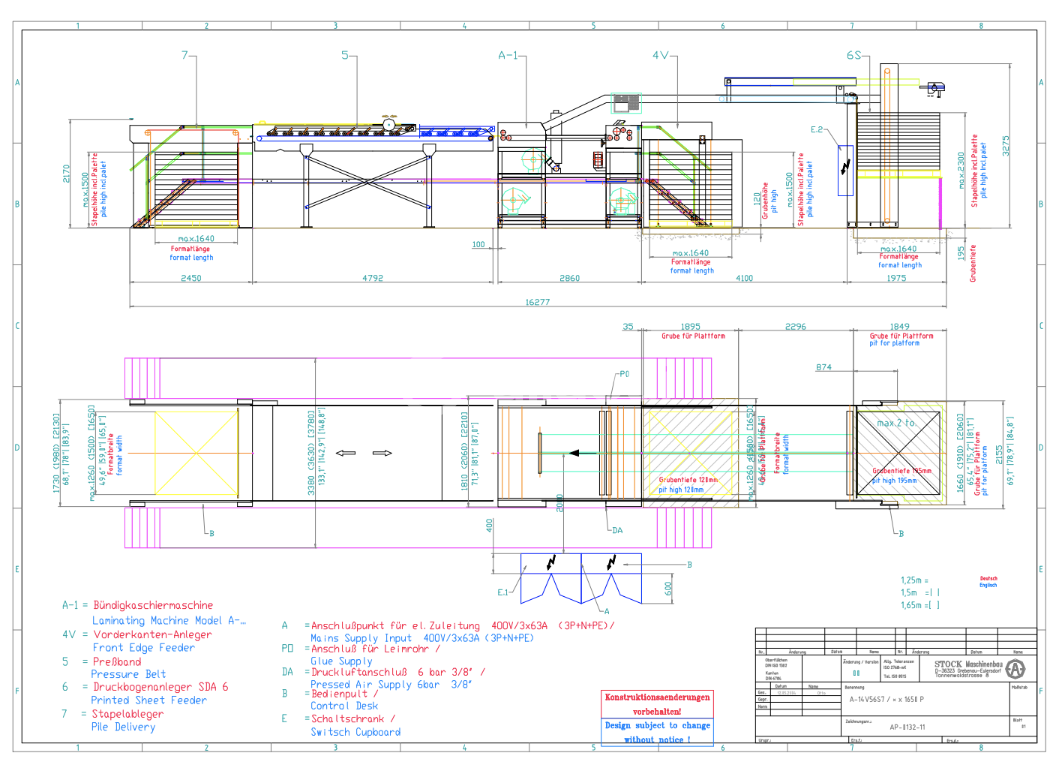

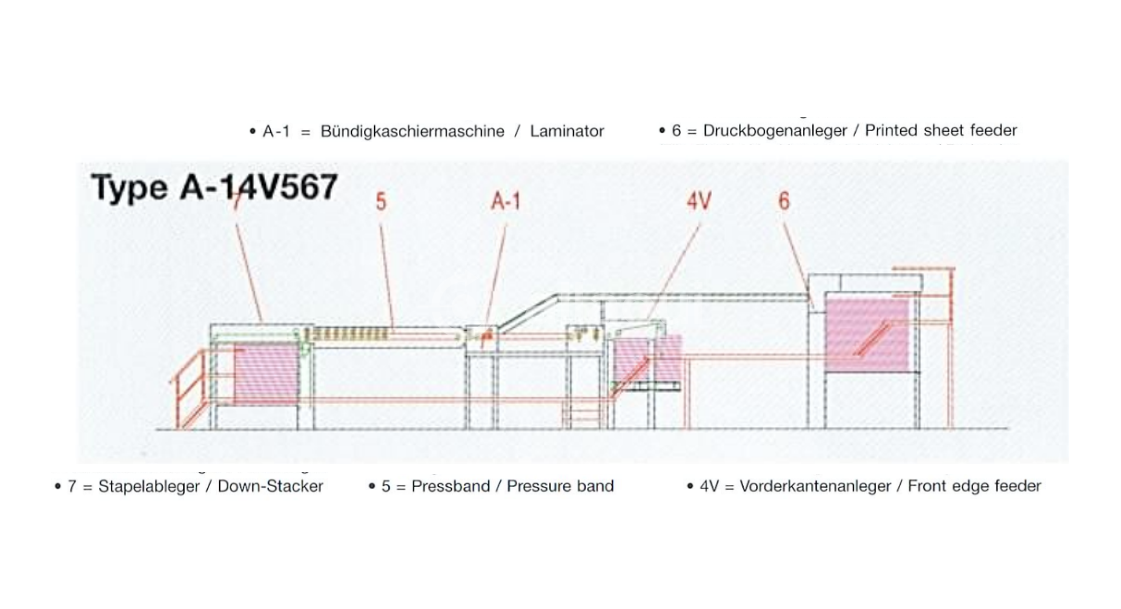

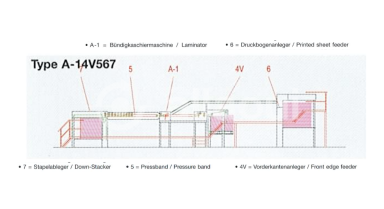

Attachments	IMG_4141 IMG_4113 Stock A Series Kaschiermaschinen stock_images layout_A-14V567 mit Mirrus
Request More Information

Description

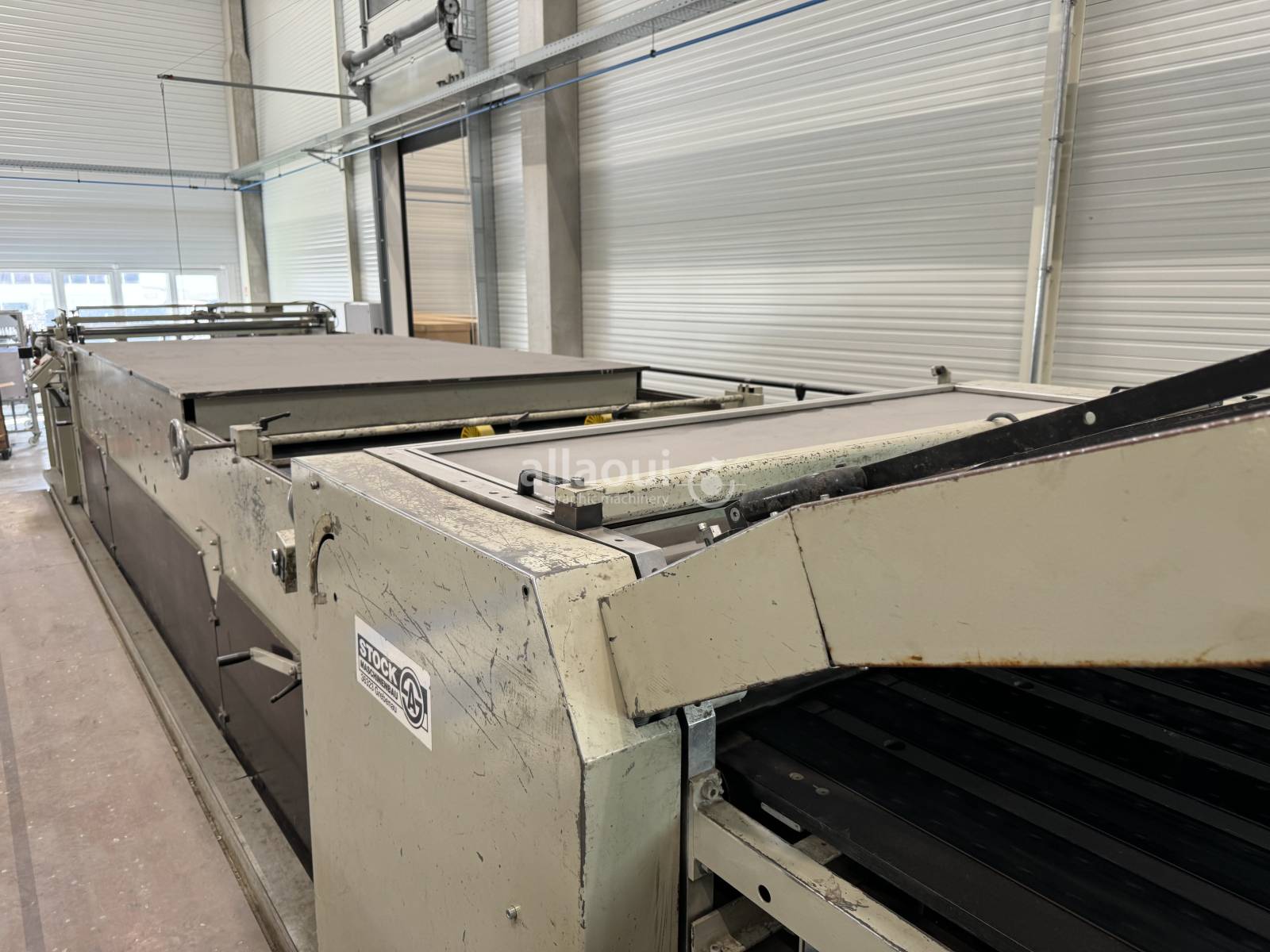

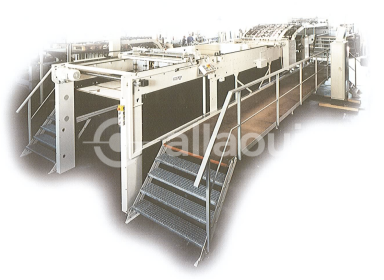

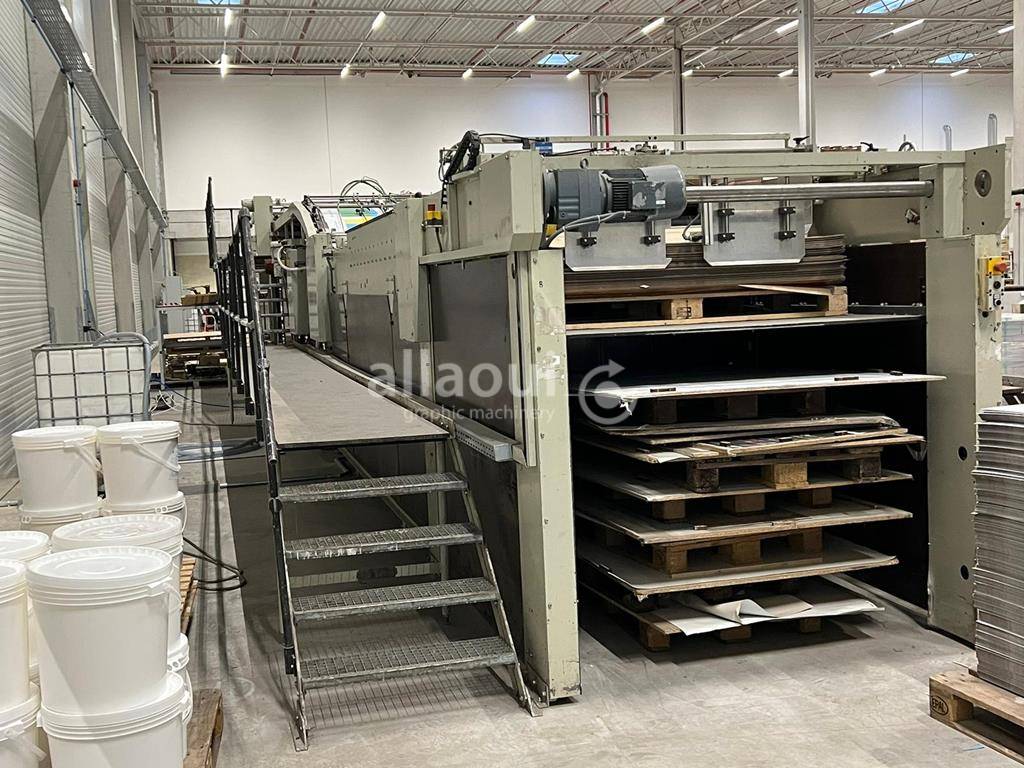

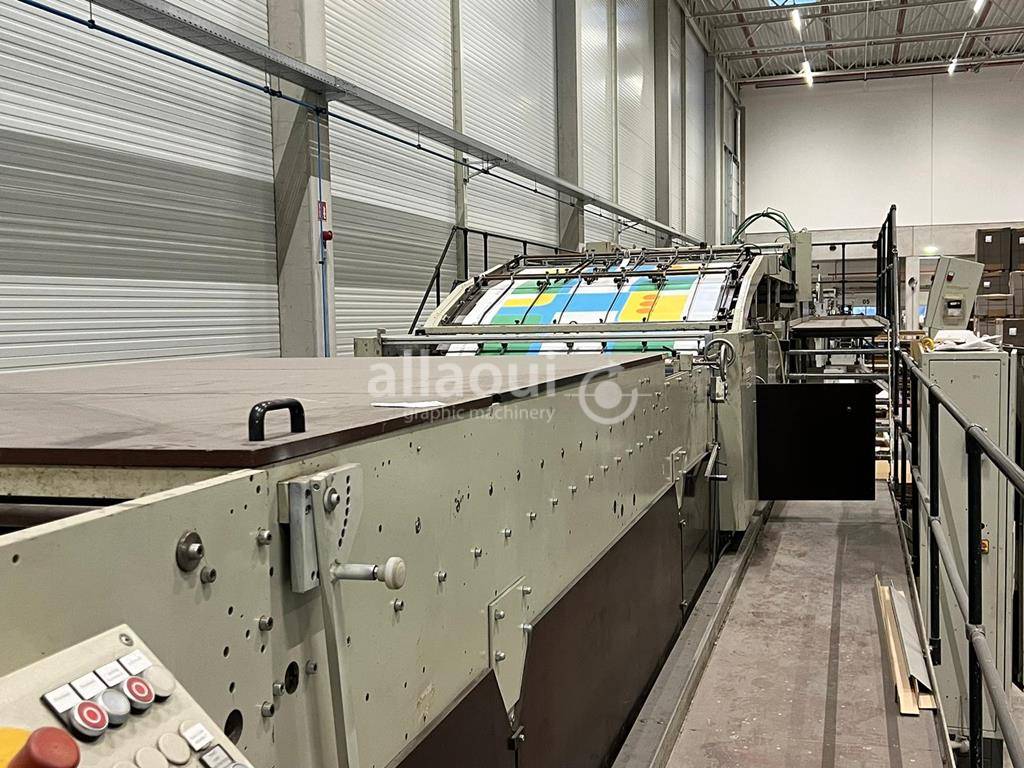

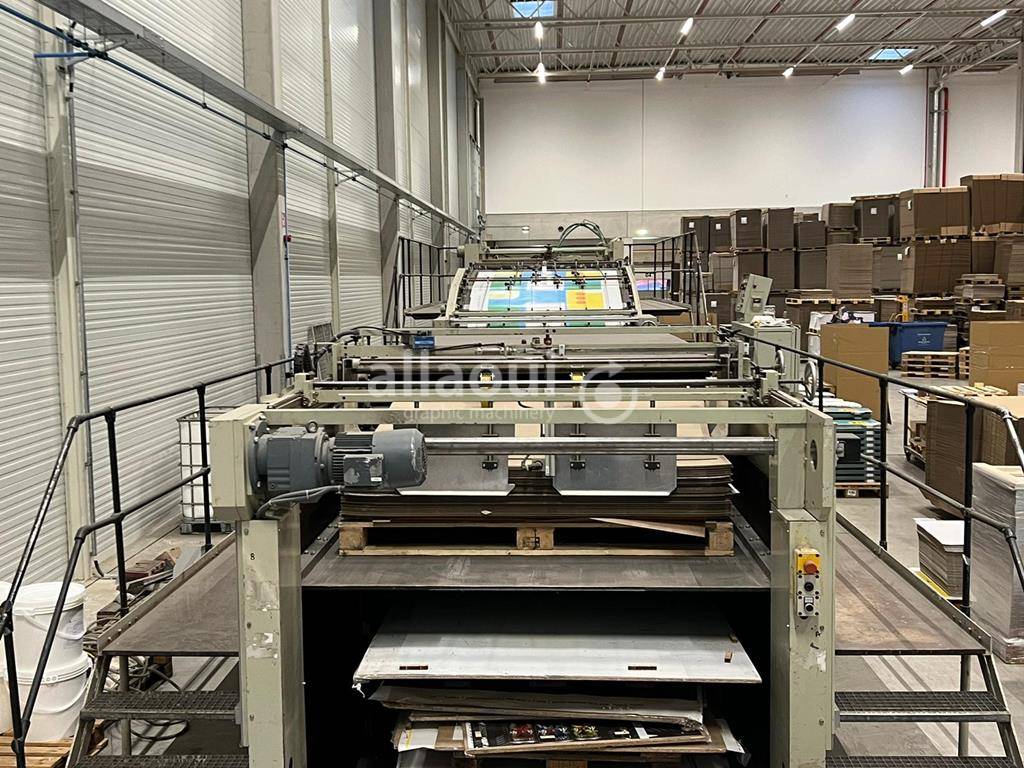

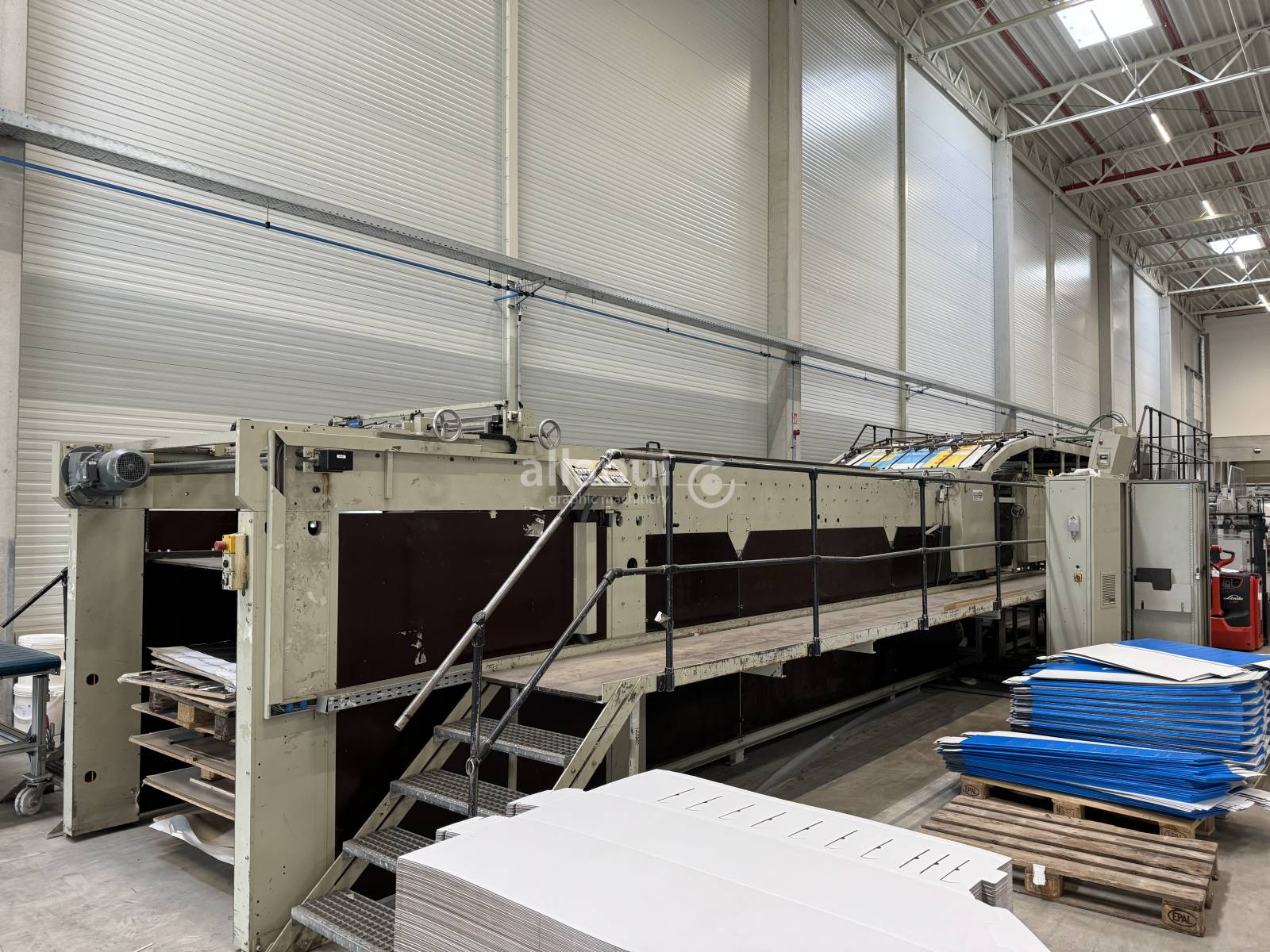

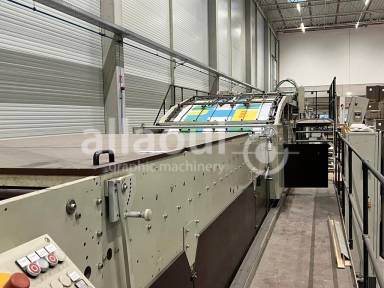

The Stock A-14 V567A/1650P is a high-speed laminating machine for the packaging industry. It laminates a wide range of materials efficiently, improving durability and protection of packaging products.

Technical Specifications

Max. Format: 1640 × 1640 mm

Min. Format: 500 × 500 mm

Material Range:
- Solid board from approx. 0.5 mm
- Corrugated board up to double wall, max. 7 mm

Tolerances: ±0.5 mm for front and side edge

Speed: up to 3,000 sheets/hour (with 2 operators)

Operational In production for inspection

Configuration

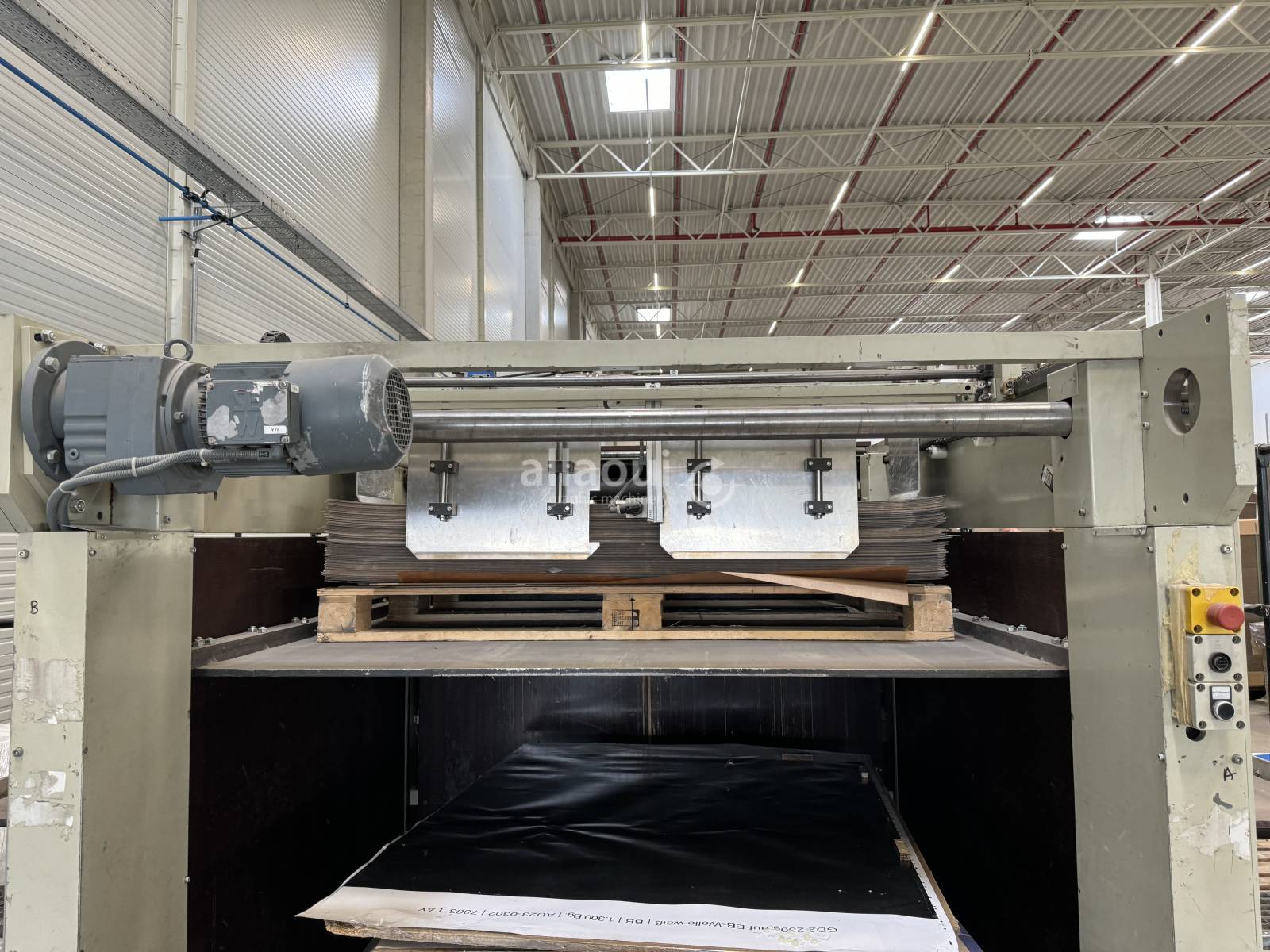

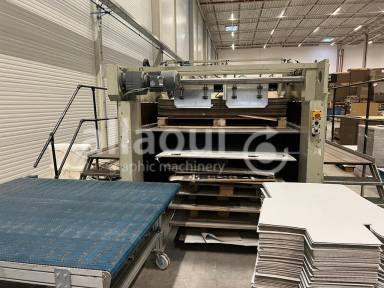

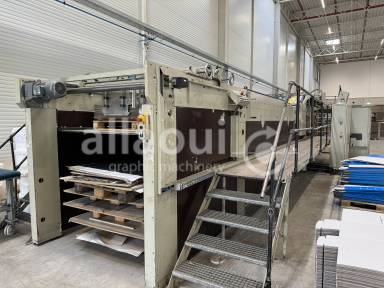

Fully automatic line with feeders for top sheet (MIRUS feeder) and carrier sheet

Top sheet: cardboard 100–800 g/m²

Carrier sheet: single-wall corrugated board (E-, B-, F-flute), up to 7 mm

Precision: ±0.5 mm alignment

Equipment

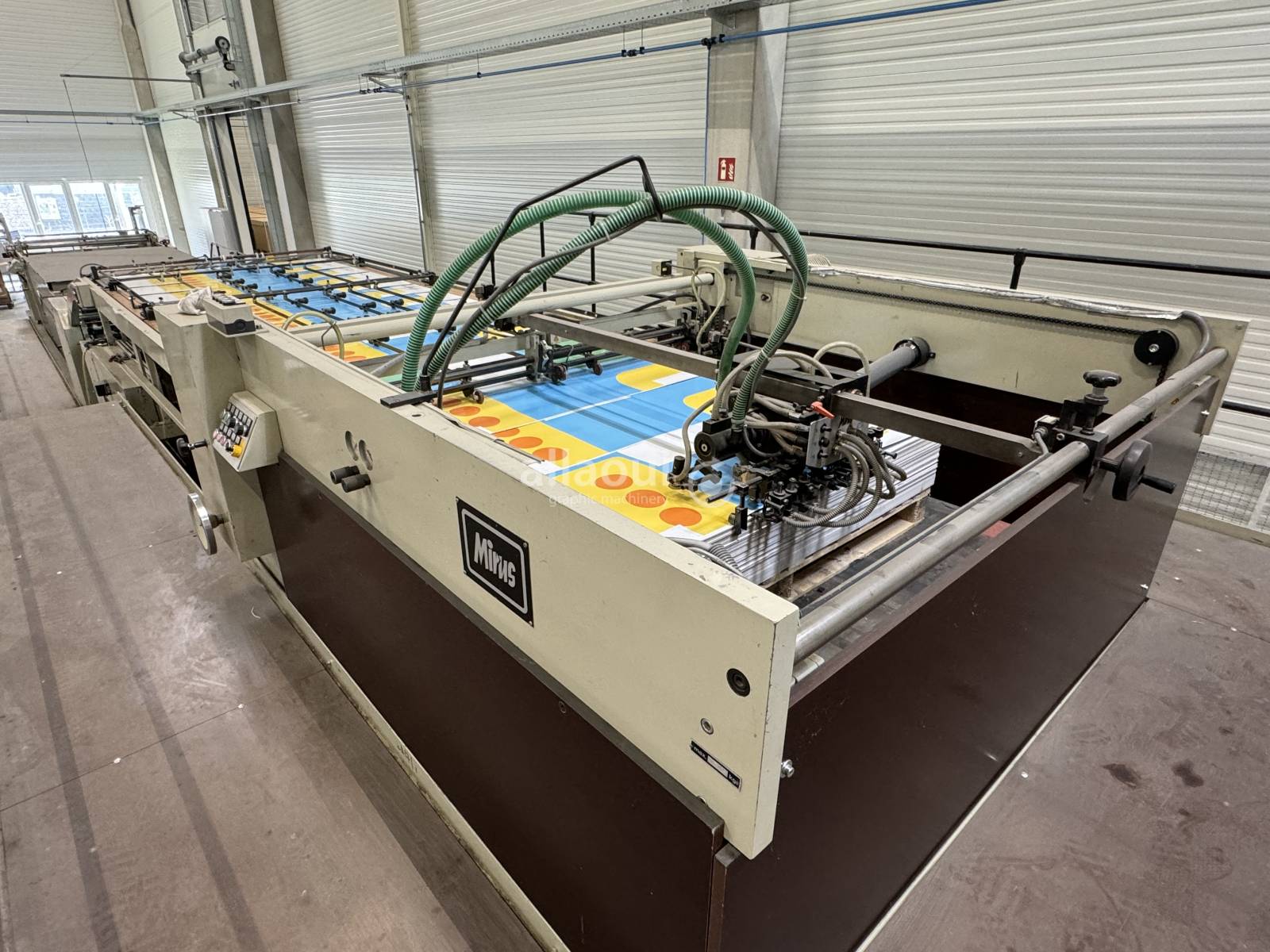

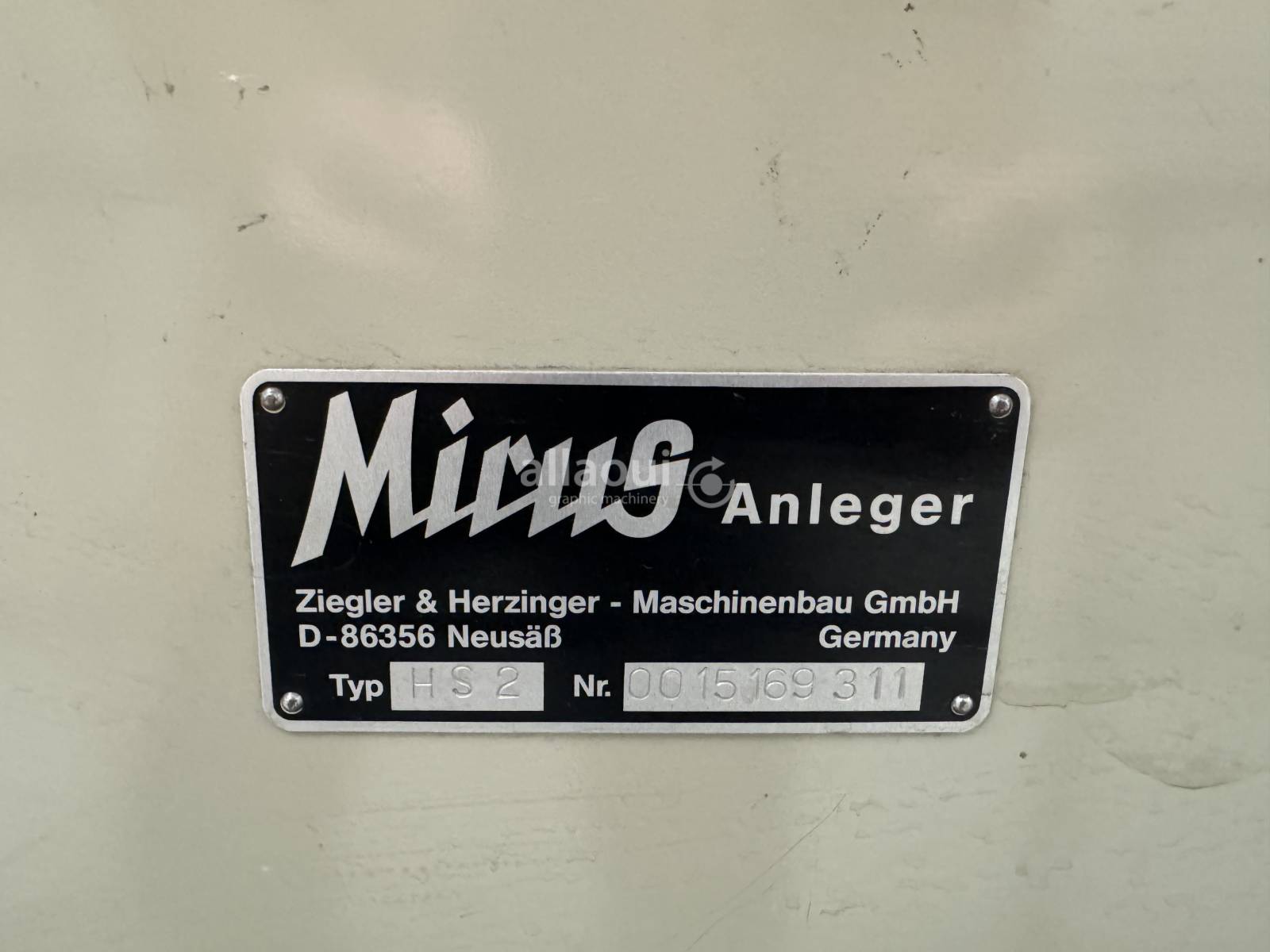

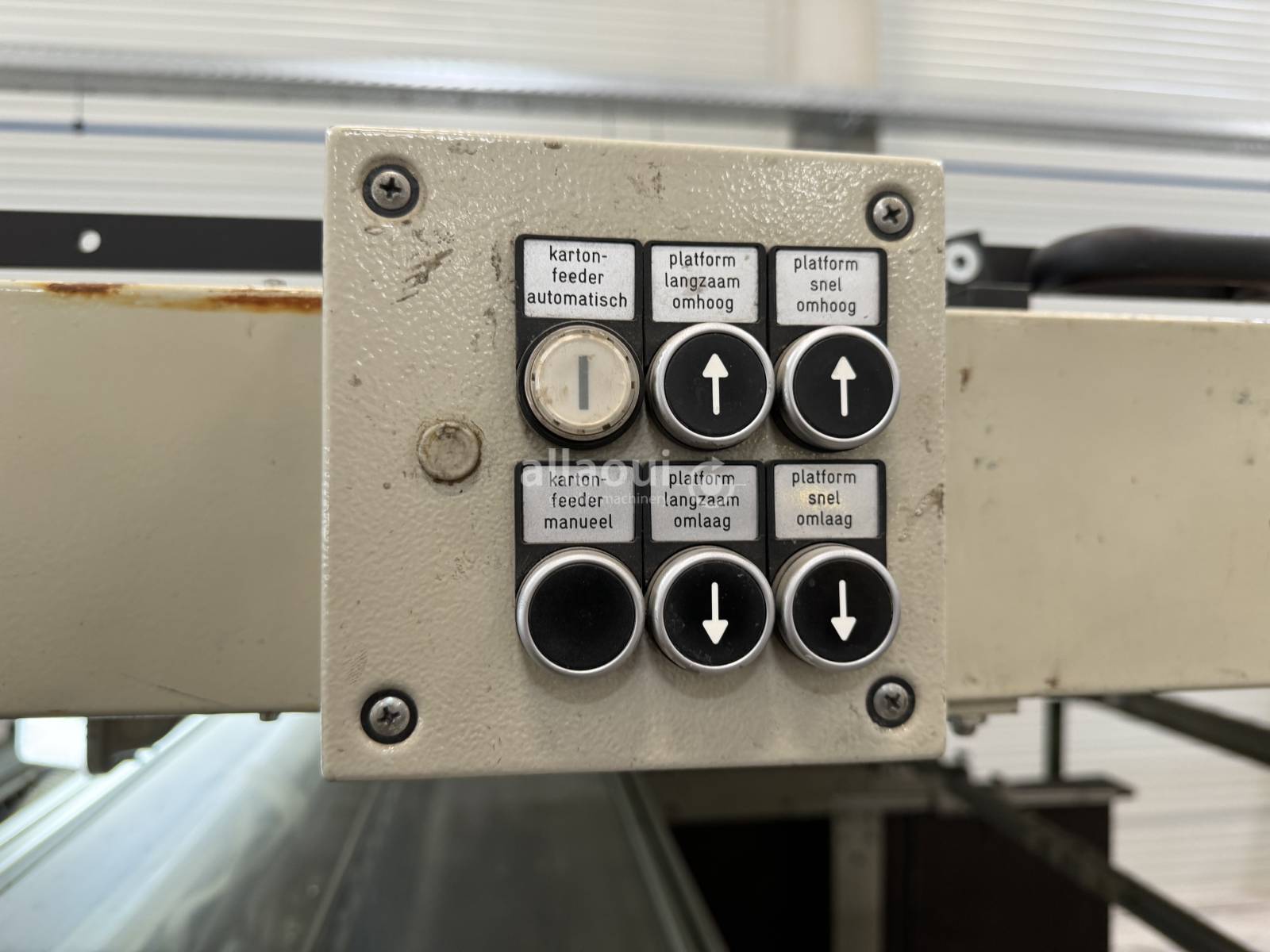

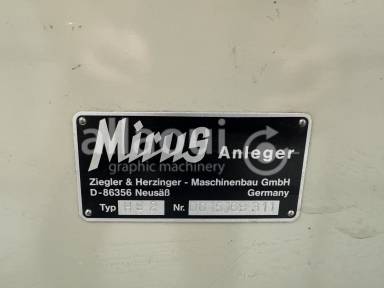

Feeder: Edge Feeder (MIRUS)
sheet feeder by carrier chains
Press Station Speed: 3,000 cycles/h

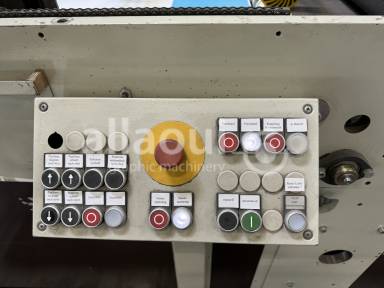

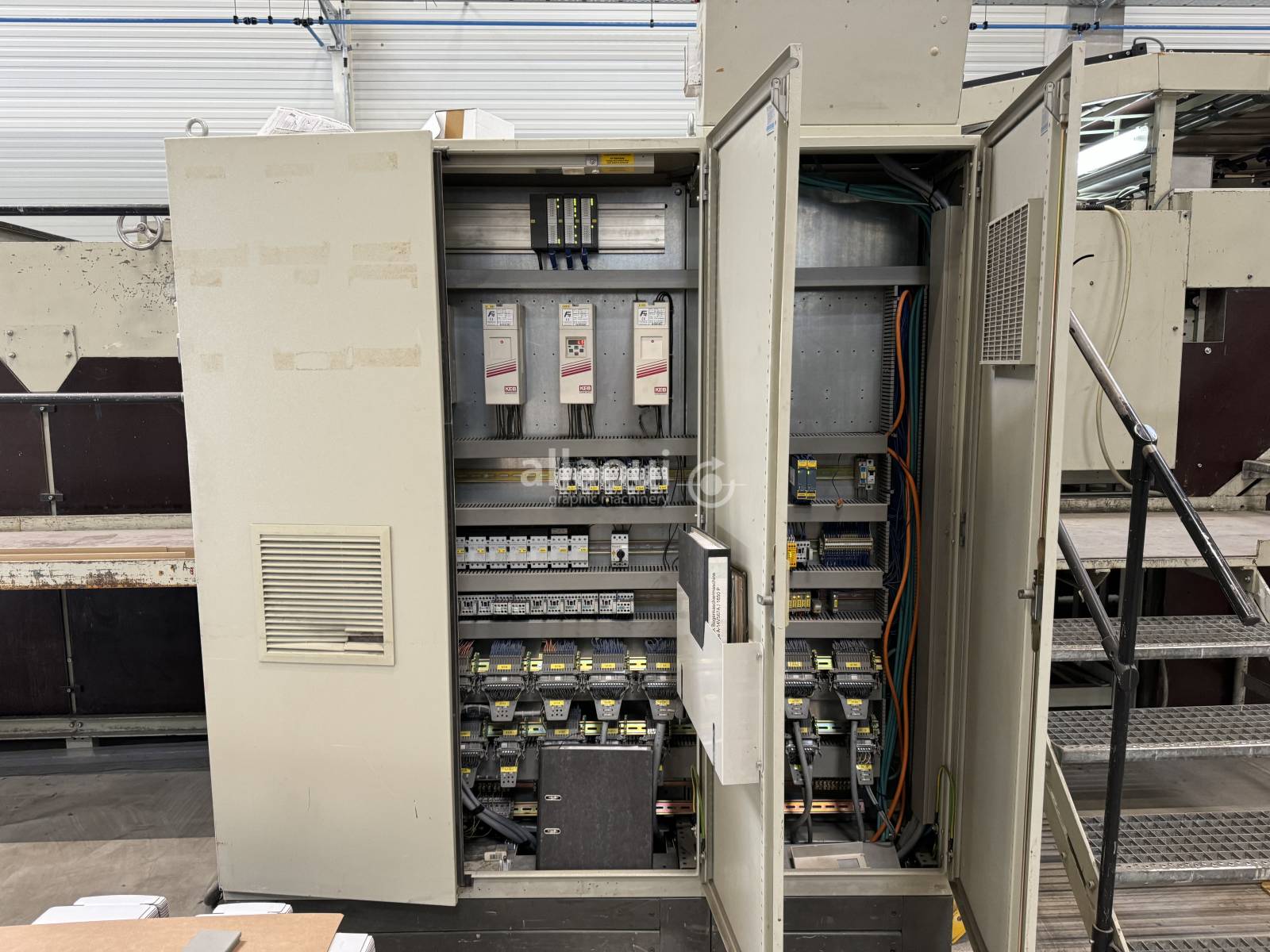

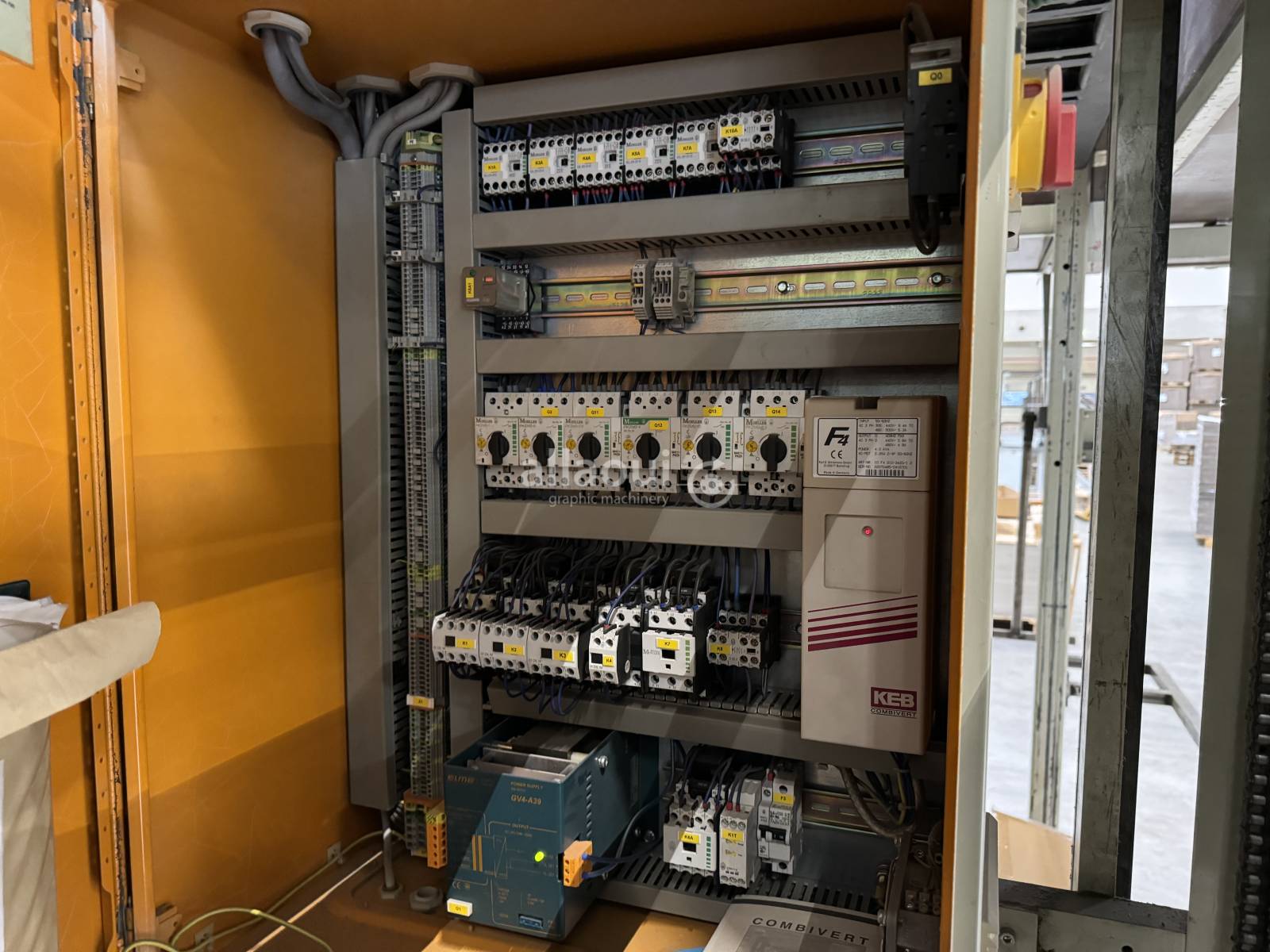

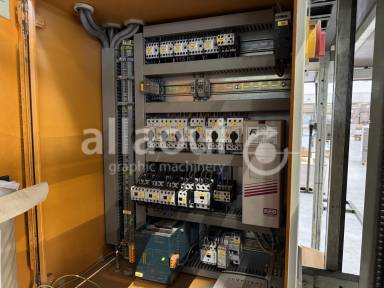

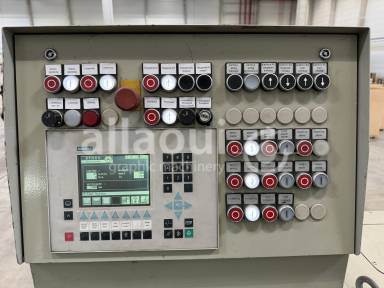

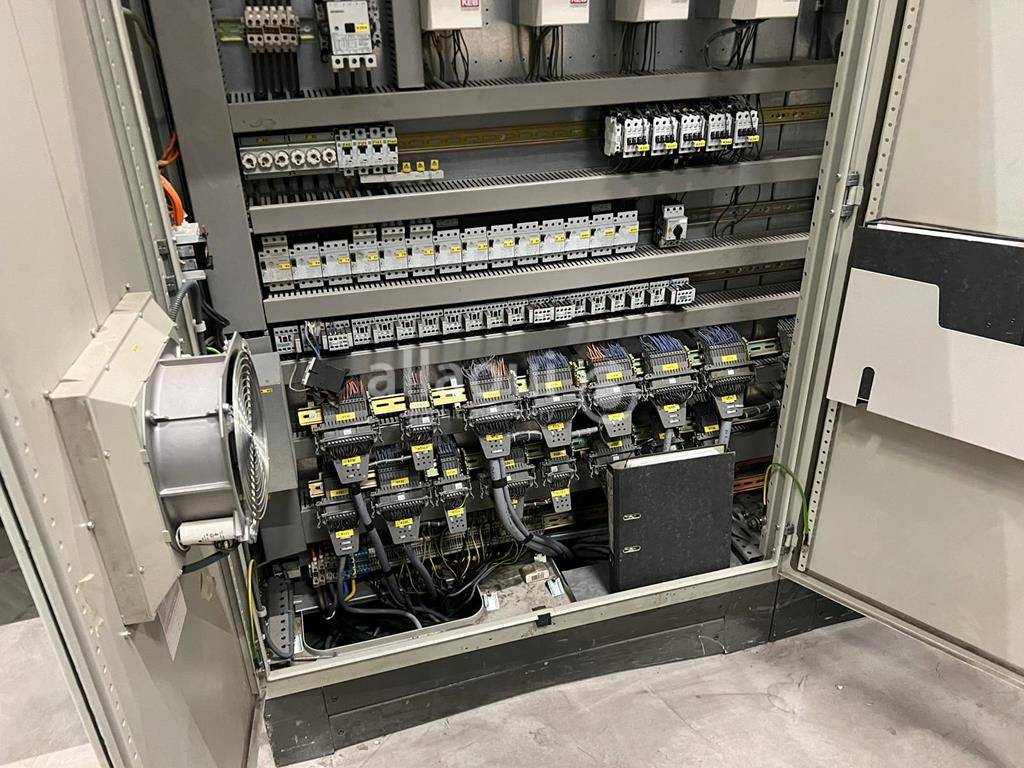

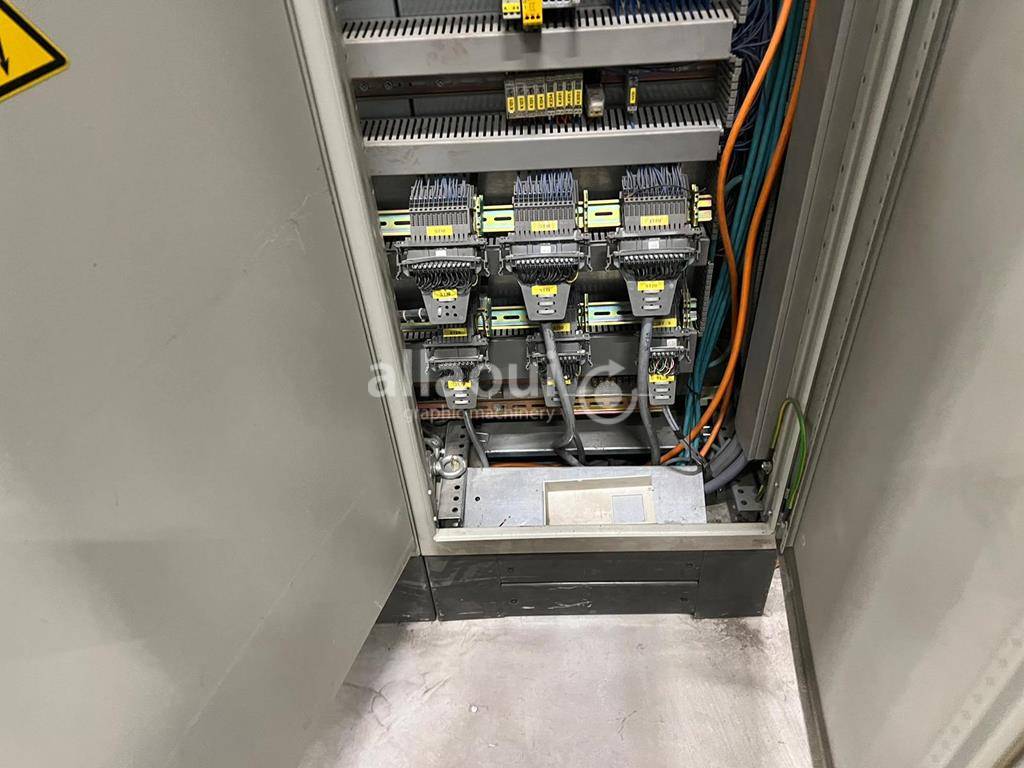

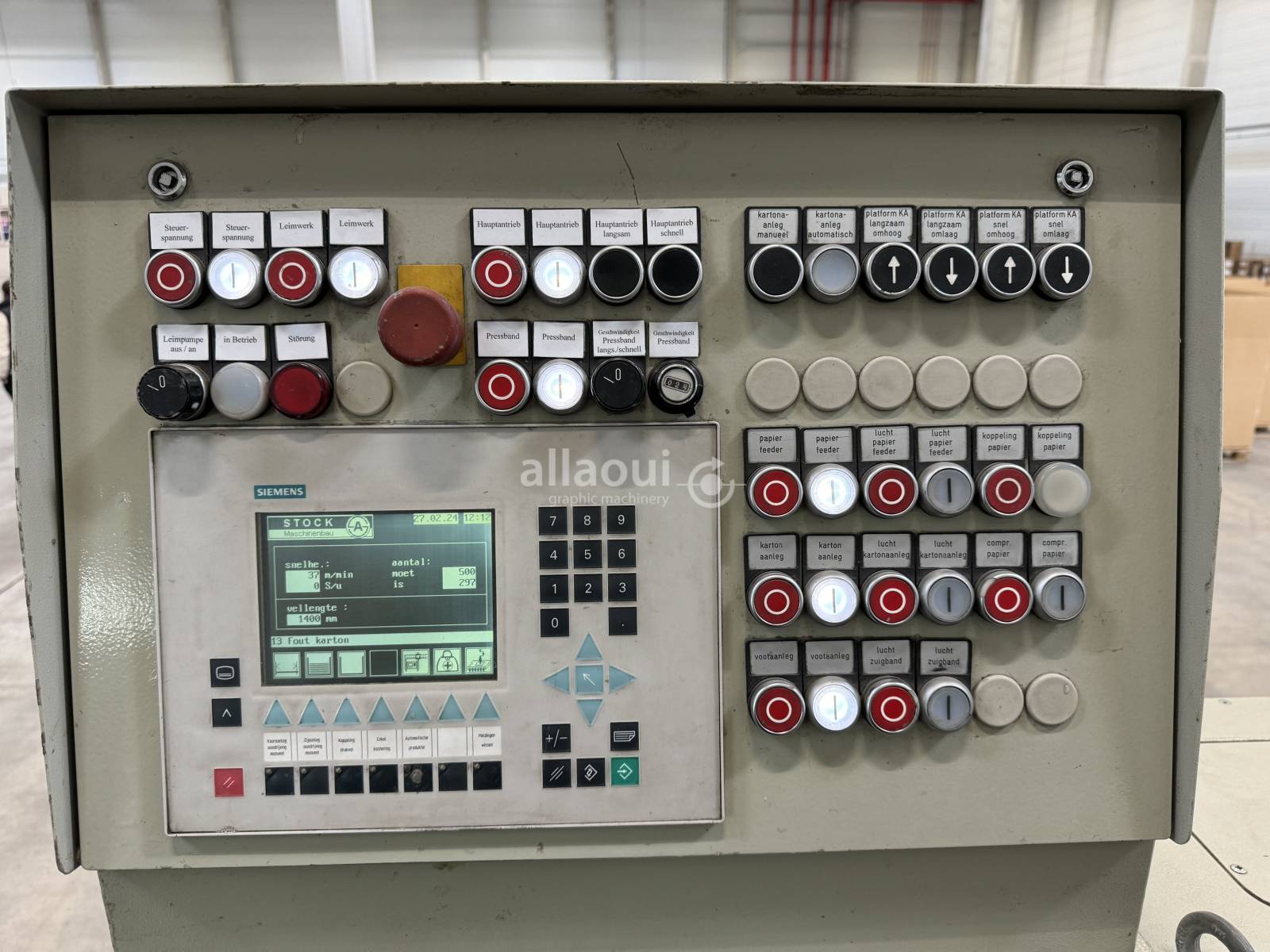

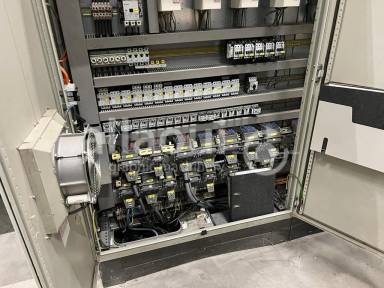

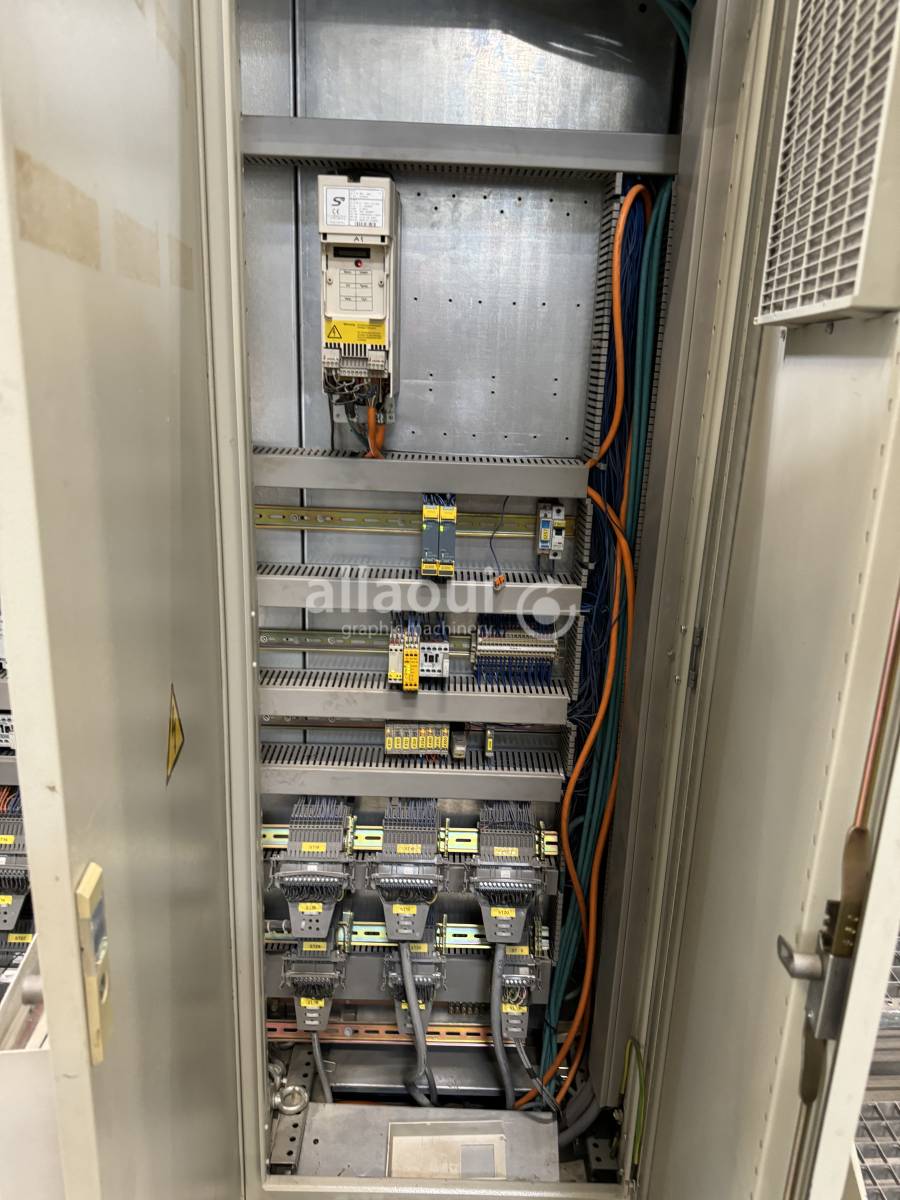

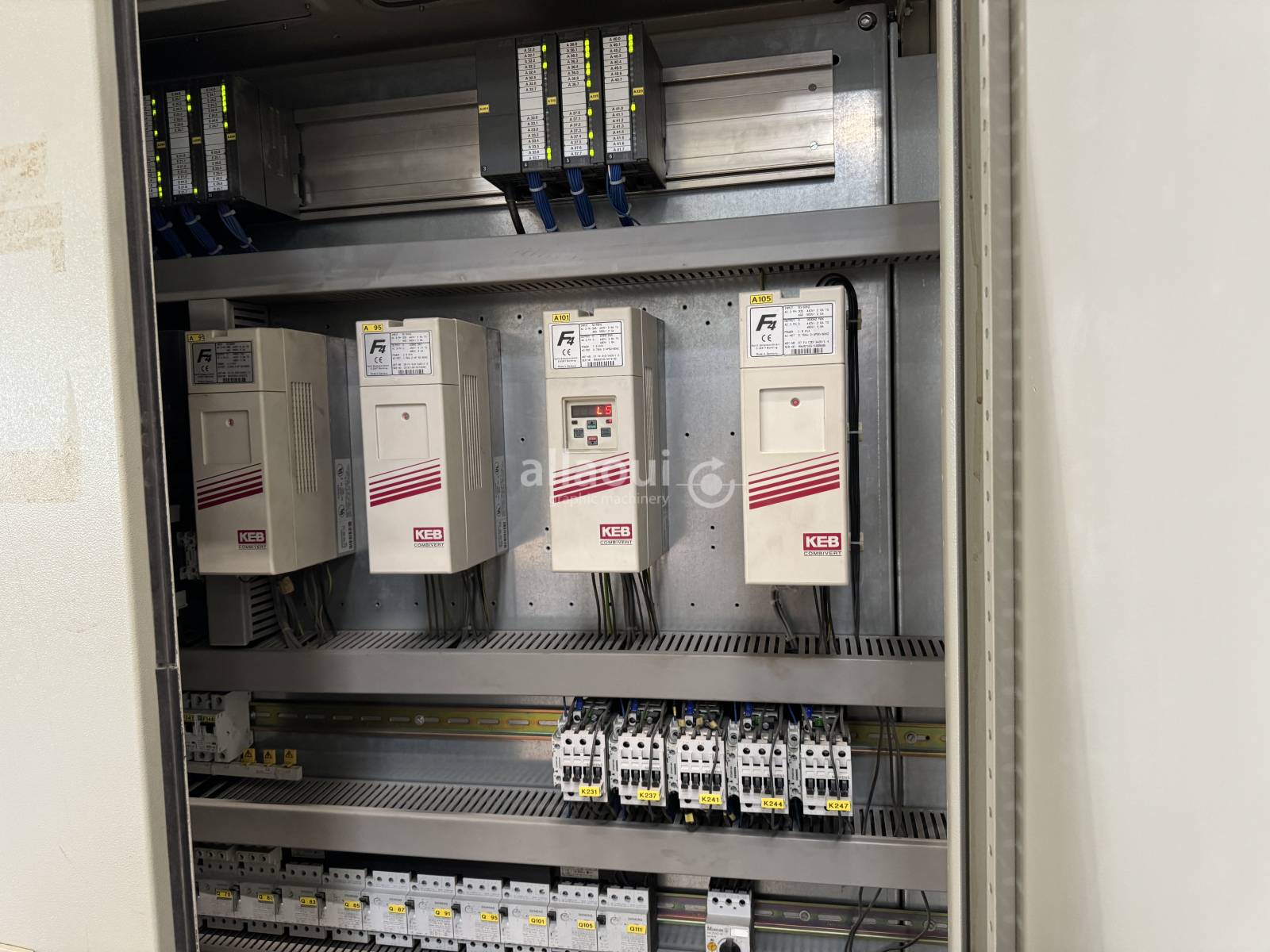

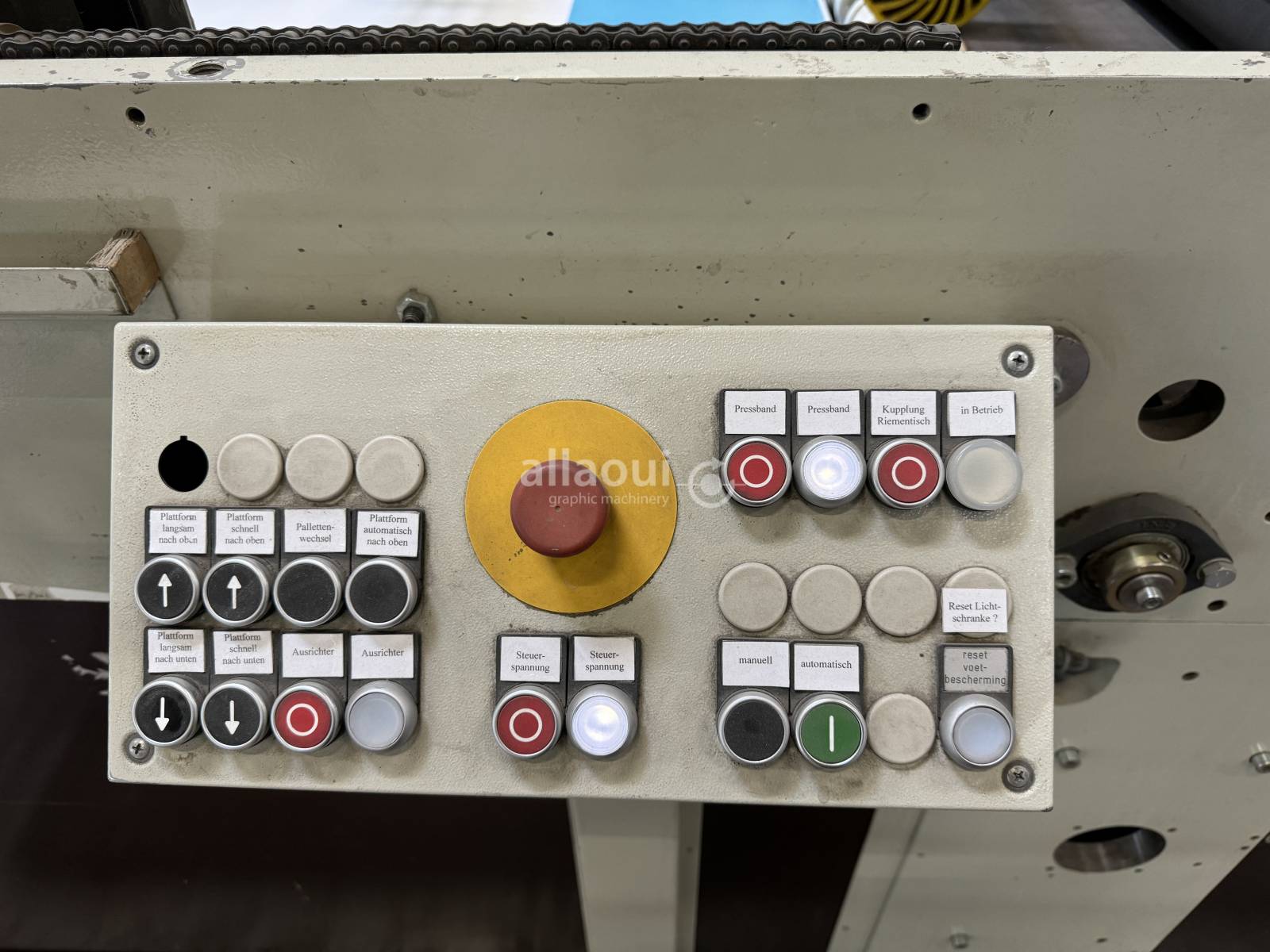

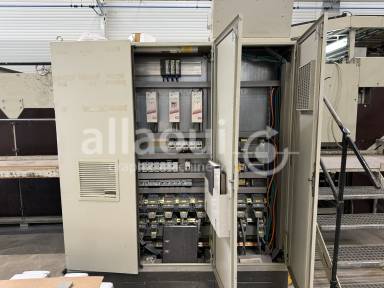

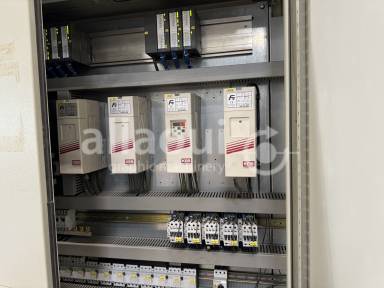

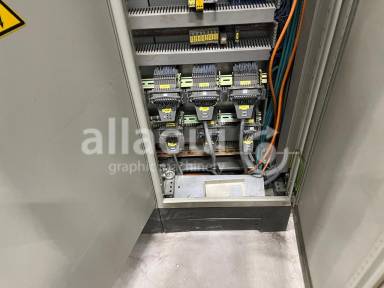

Control device: Siemens SPS-Control / Micro Control System

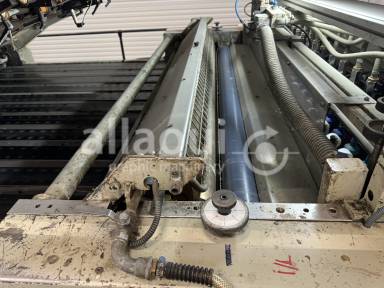

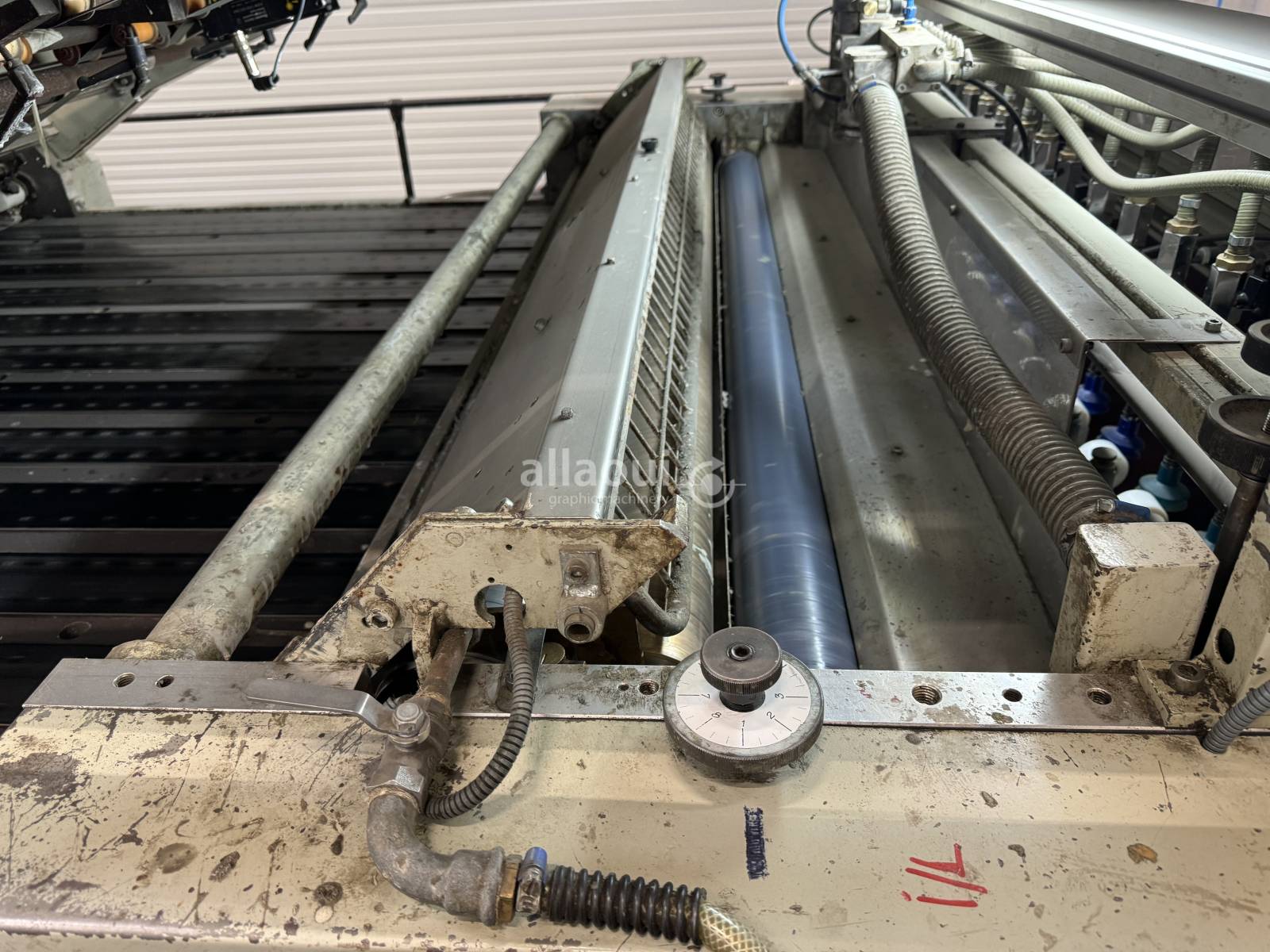

Gluing Station
Laminating Station

Technical Details

Size max: 1640 x 1640 mm
Size min: 500 x 500 mm
Sheet weight: Cardboard 100 - 800 g/qm
Infeed height: 1,400 / 1,800 mm
Carrier Sheets: one-sided corrugated board, E/B- and F-Flute, two-sided corrugated board up to 7 mm thickness cardboard from 0.5 mm thickness
