[SOLD] Used Müller Martini BF 513 PRO + Ribbon

Casing-In / Book Production machine for sale

Reference BR91571
Manufacturer Müller Martini
Type BF 513 PRO + Ribbon
Year 2022
Impressions 2,2 MM
Status in production
Video
Request More Information

Description

The compact and flexible middle ground solution between industrial and digital production.

Equipment

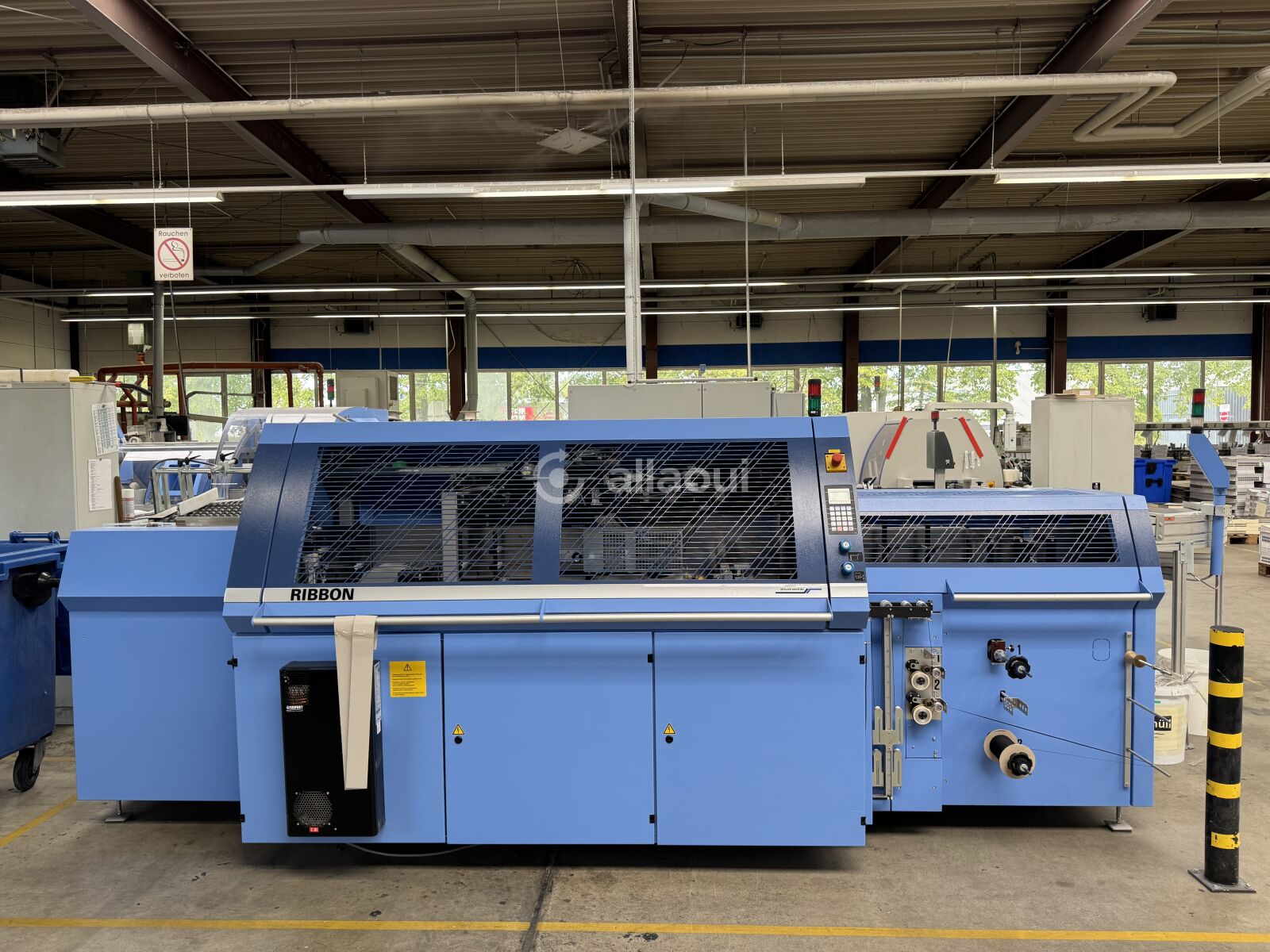

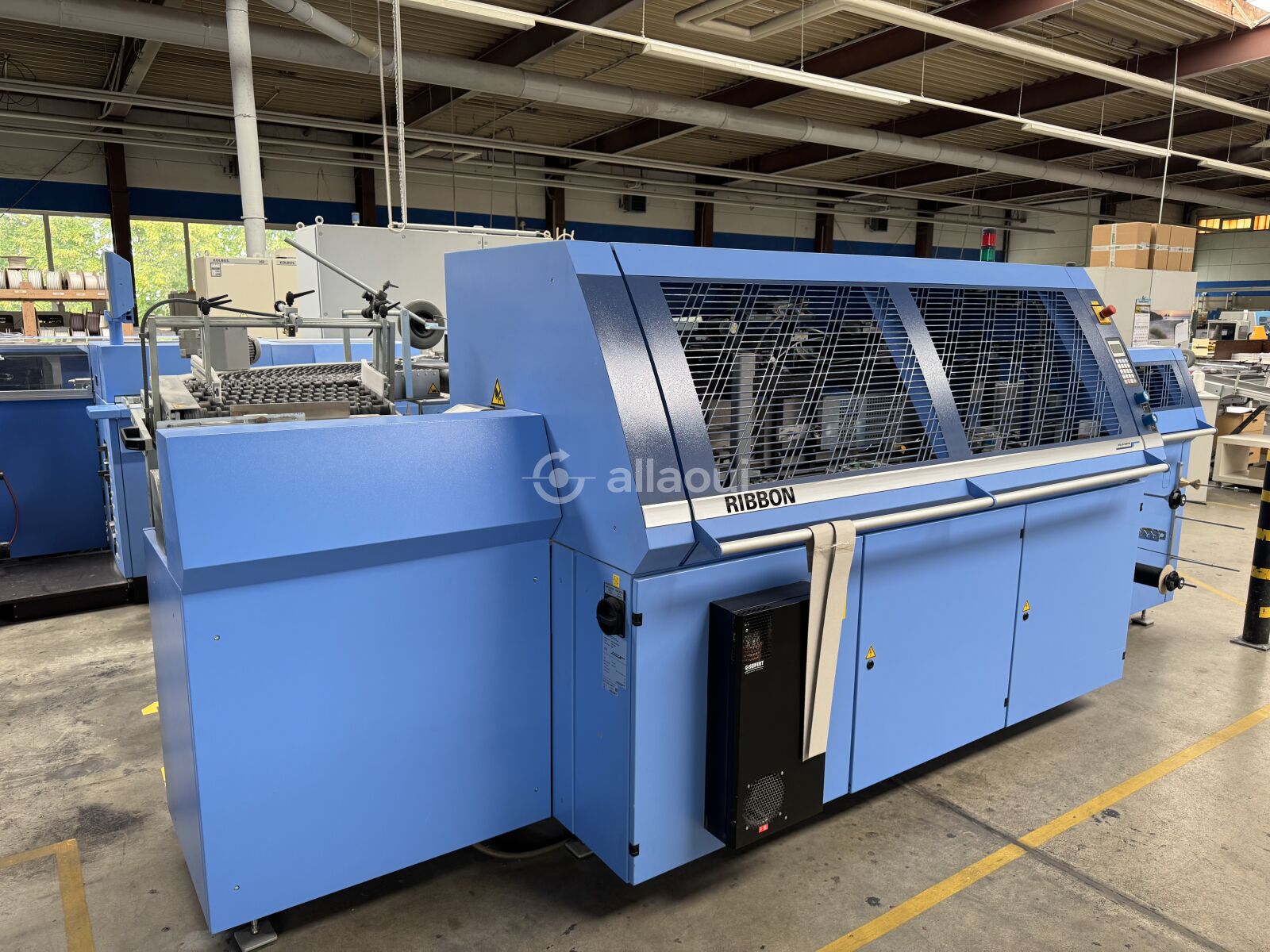

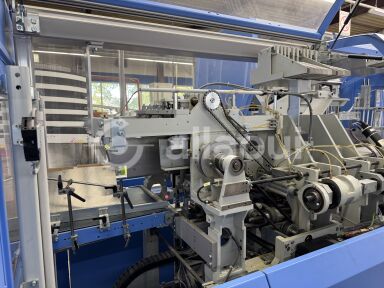

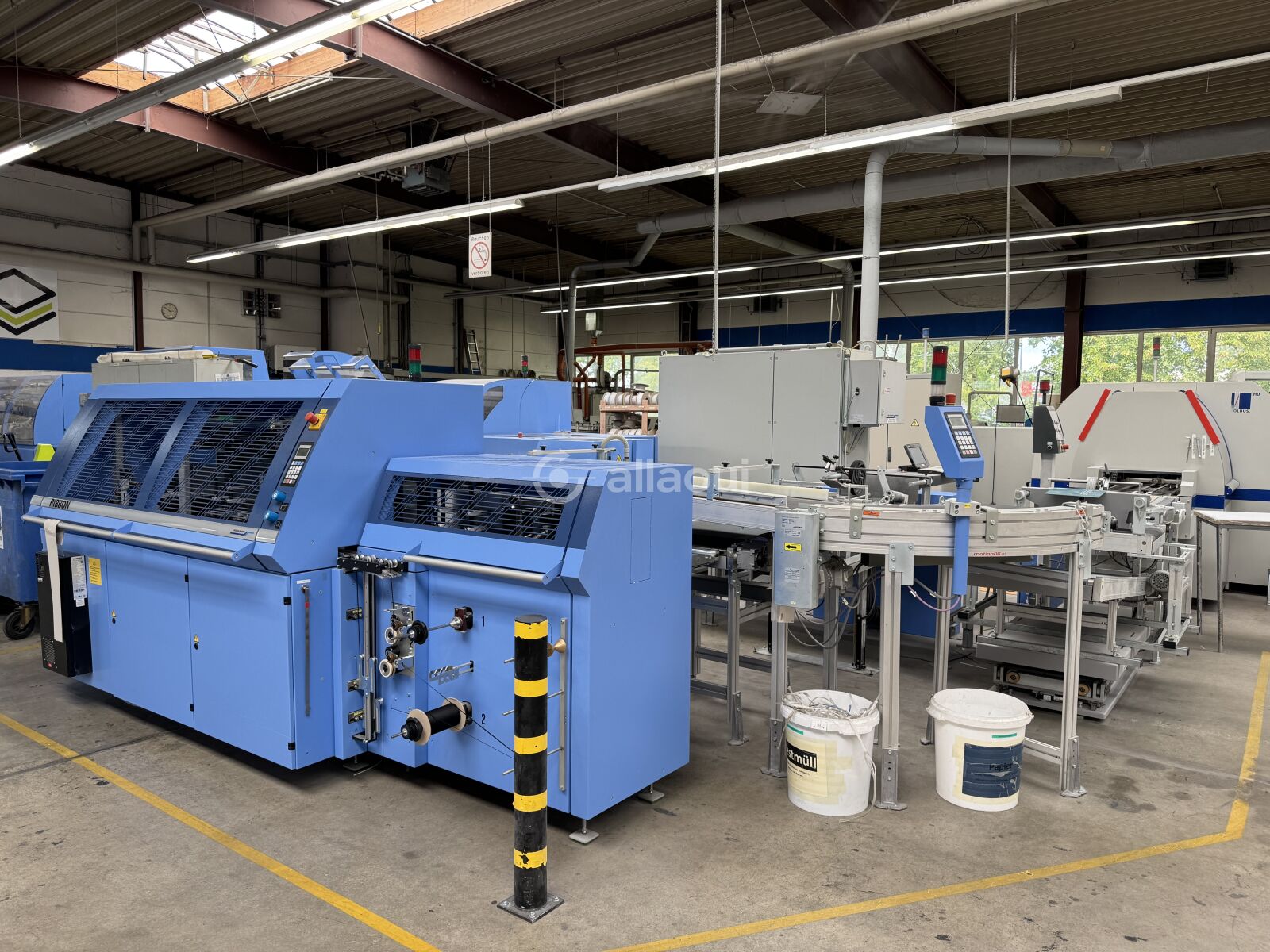

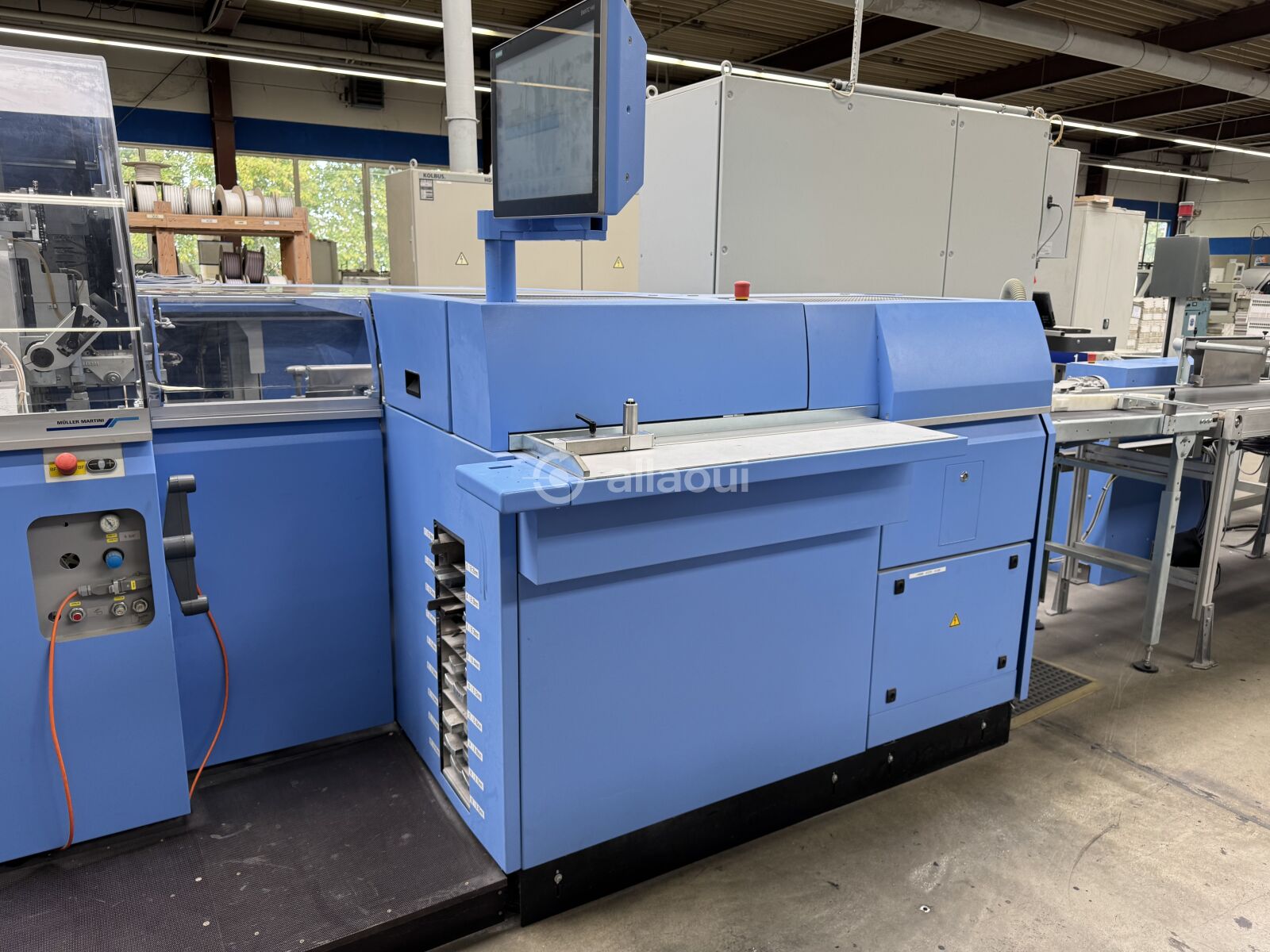

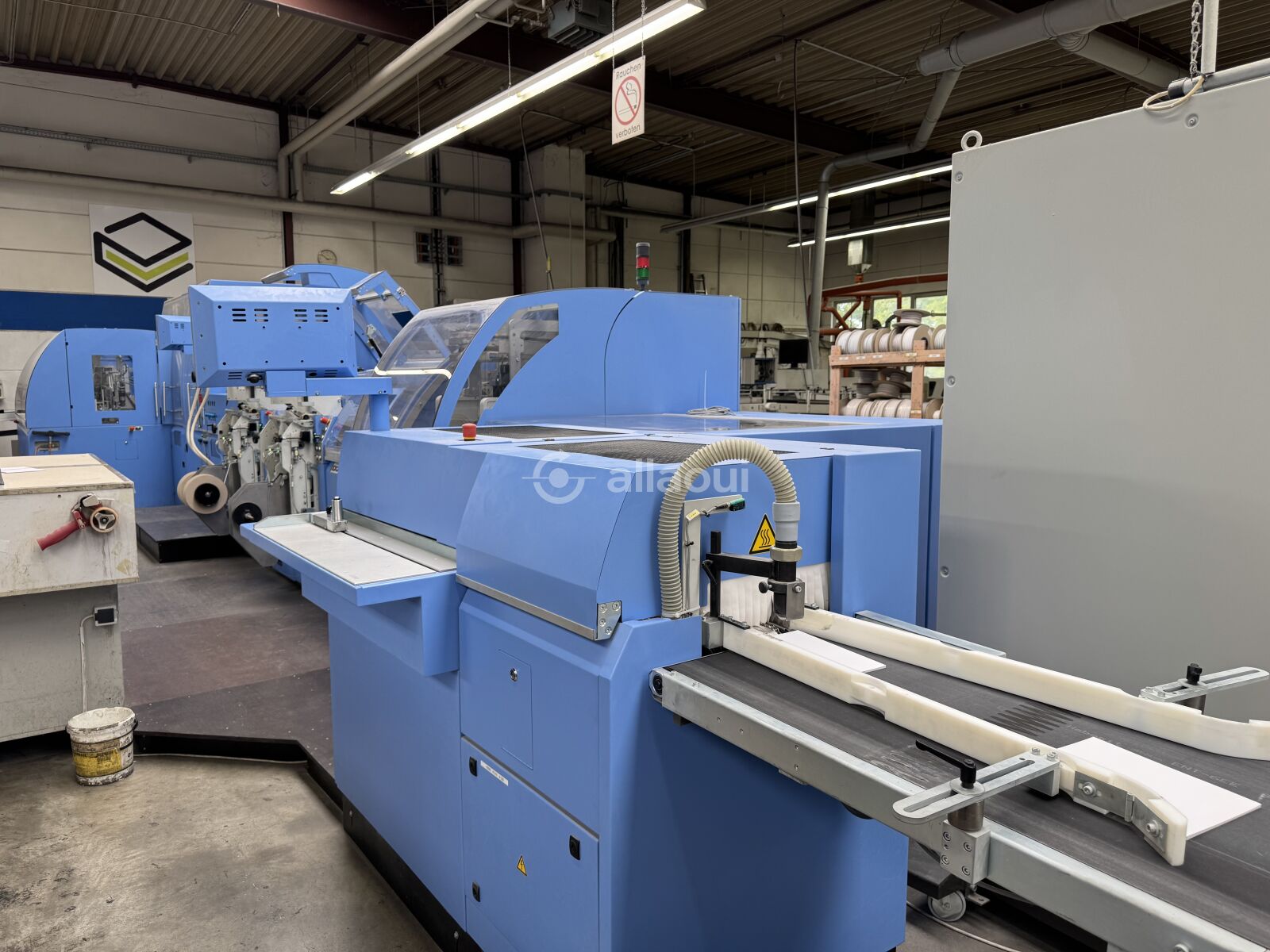

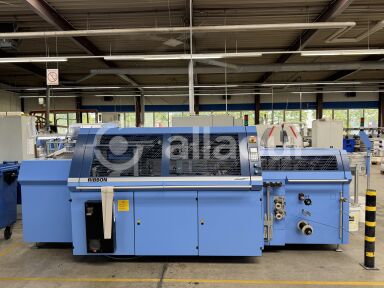

Ribbon Insertion Machine

  • Fully automated servo-driven ribbon insertion system
  • Operation via HMI touchscreen, running direction left to right
  • Vertical infeed channel with light barrier timing
  • Air-supported book block division at 2 positions
  • Ribbon insertion station for 1 or 2 ribbons
  • Pull-down device for straight ribbon insertion into spine
  • Ribbon cutting device with heated scissors
  • Integrable into Diamant Commander control system

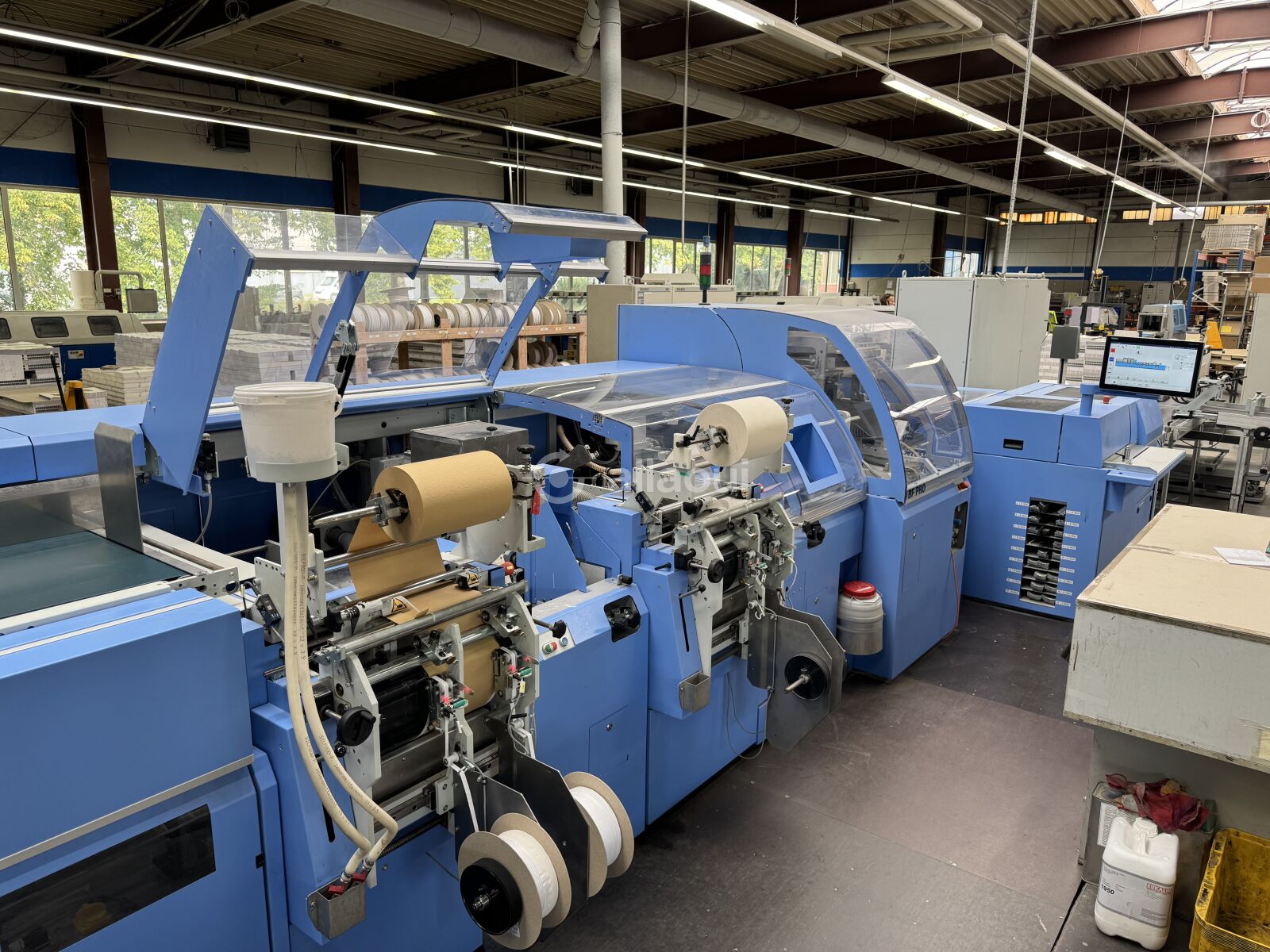

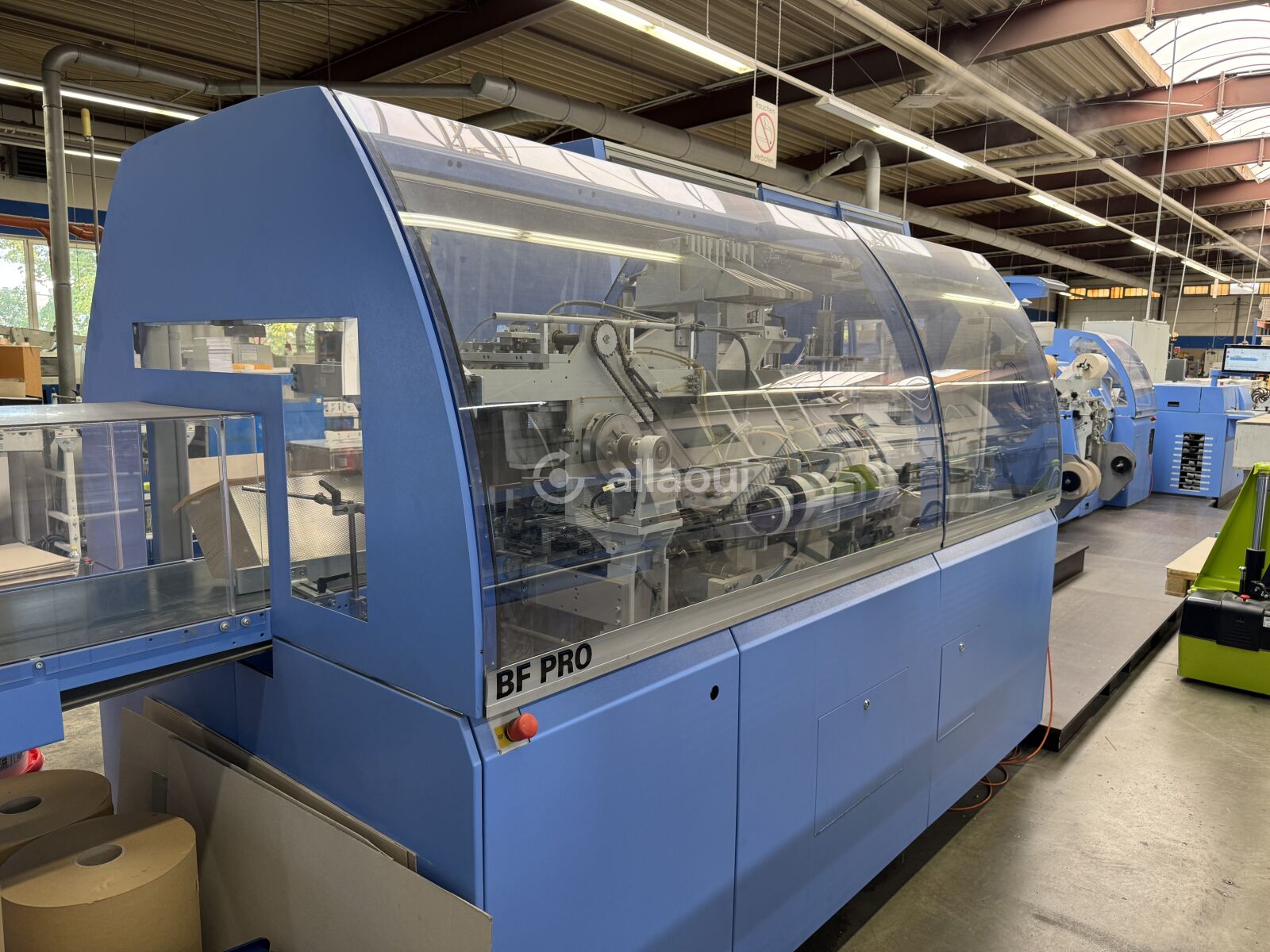

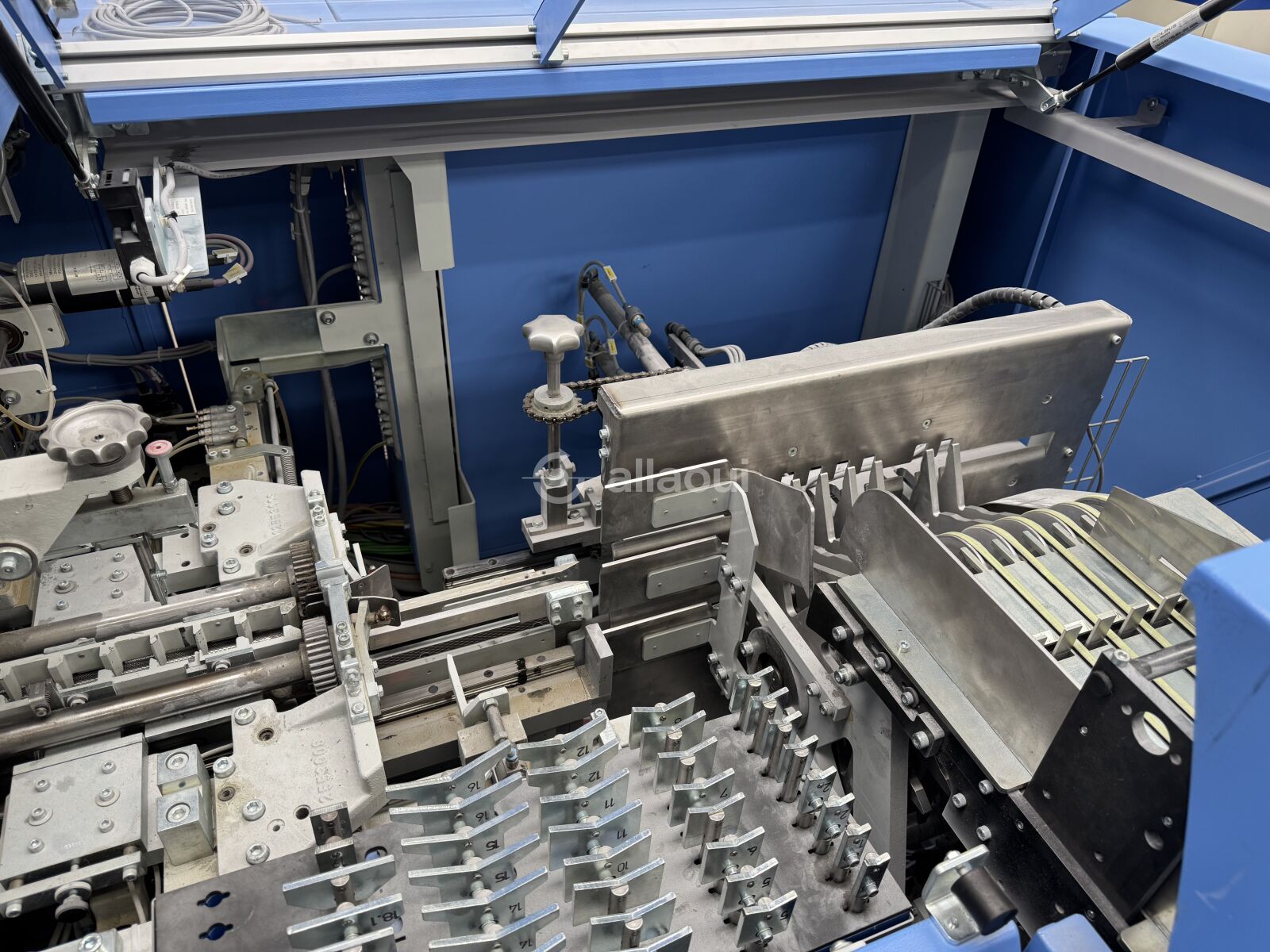

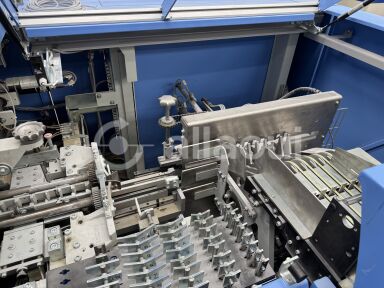

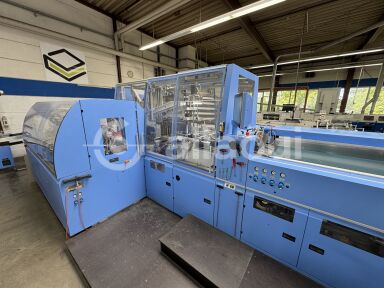

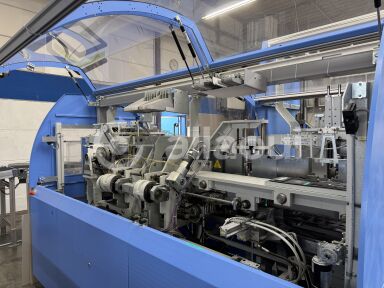

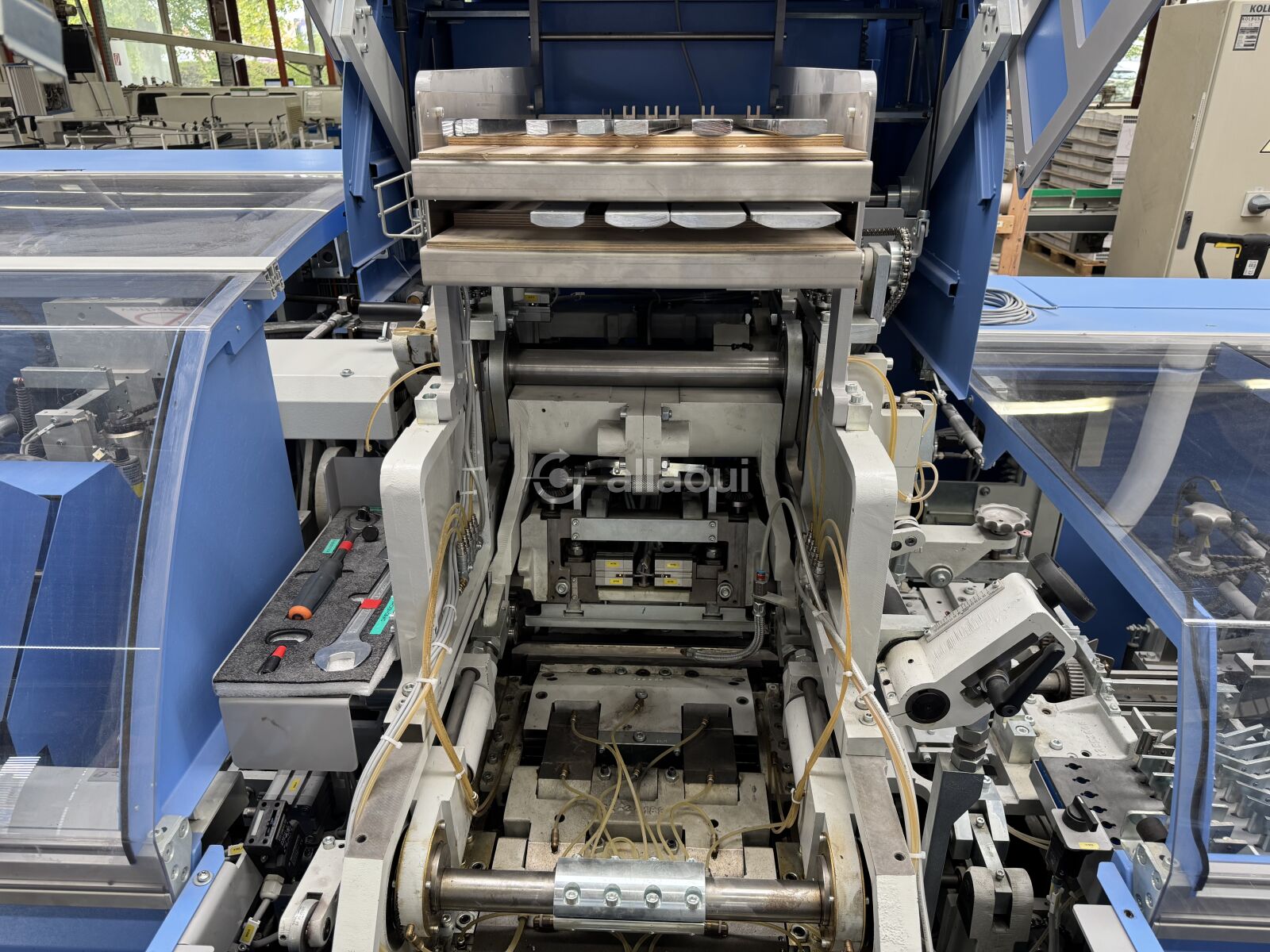

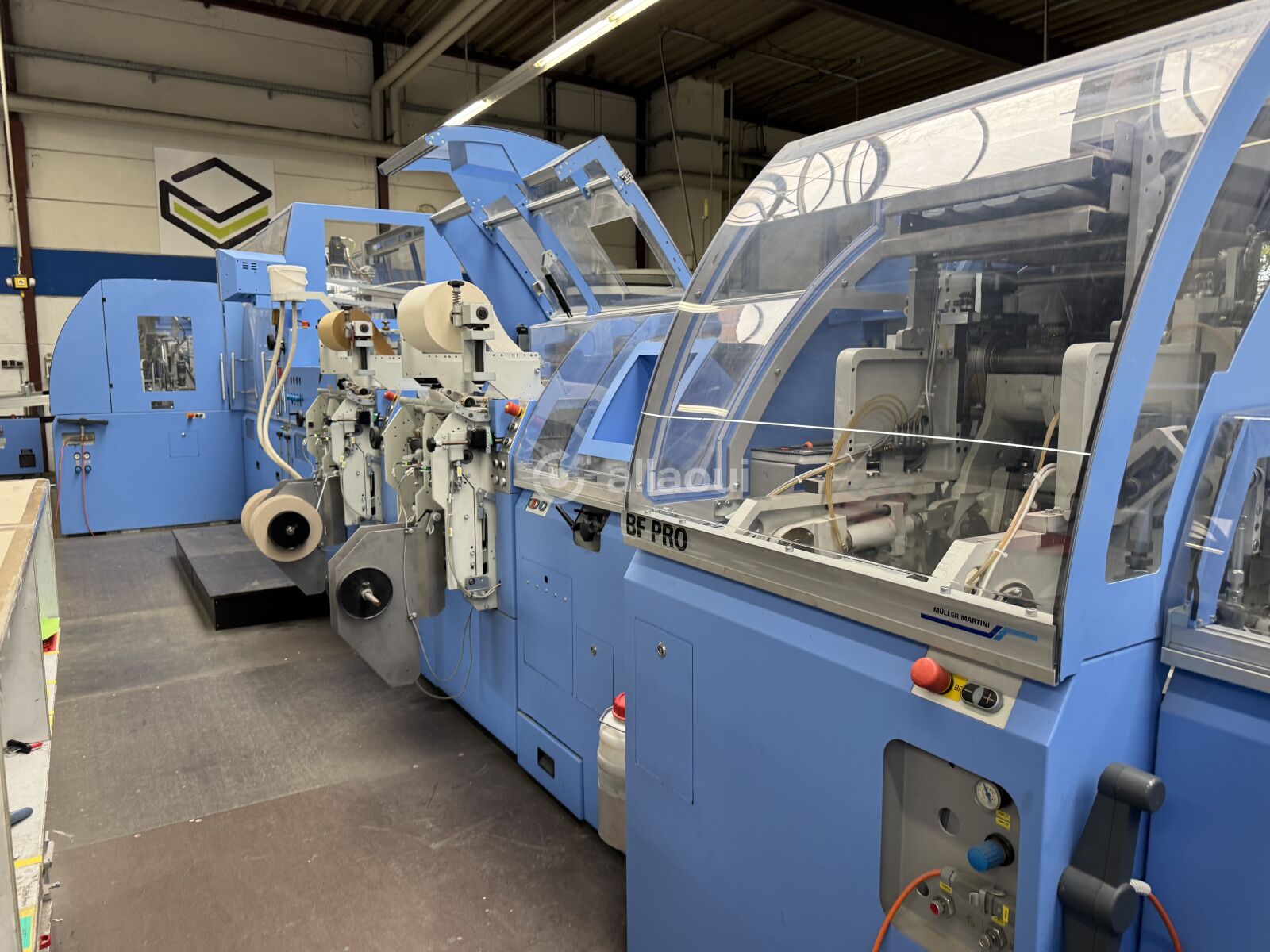

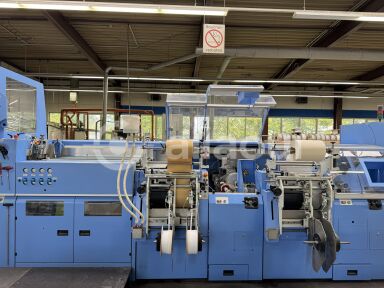

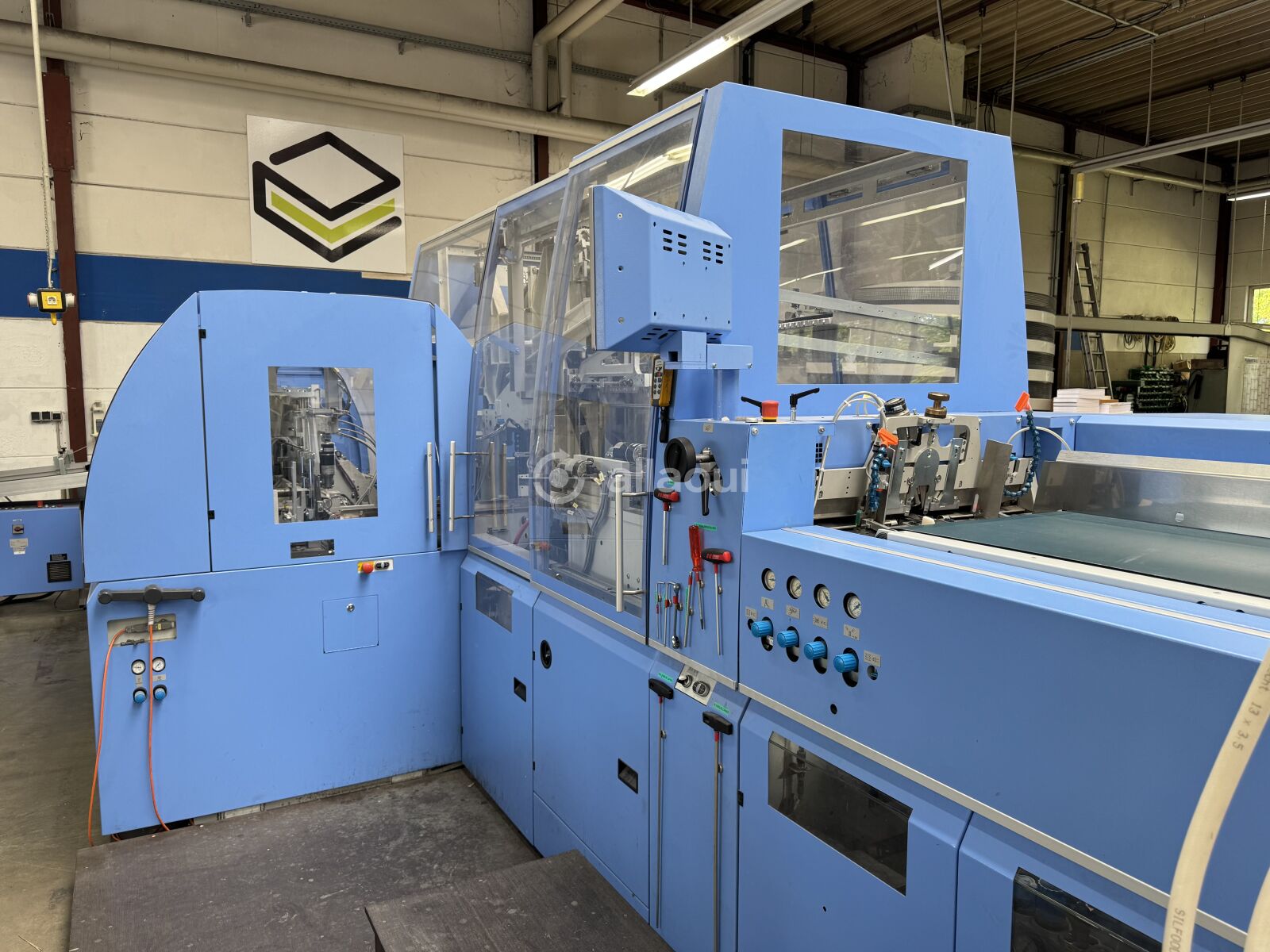

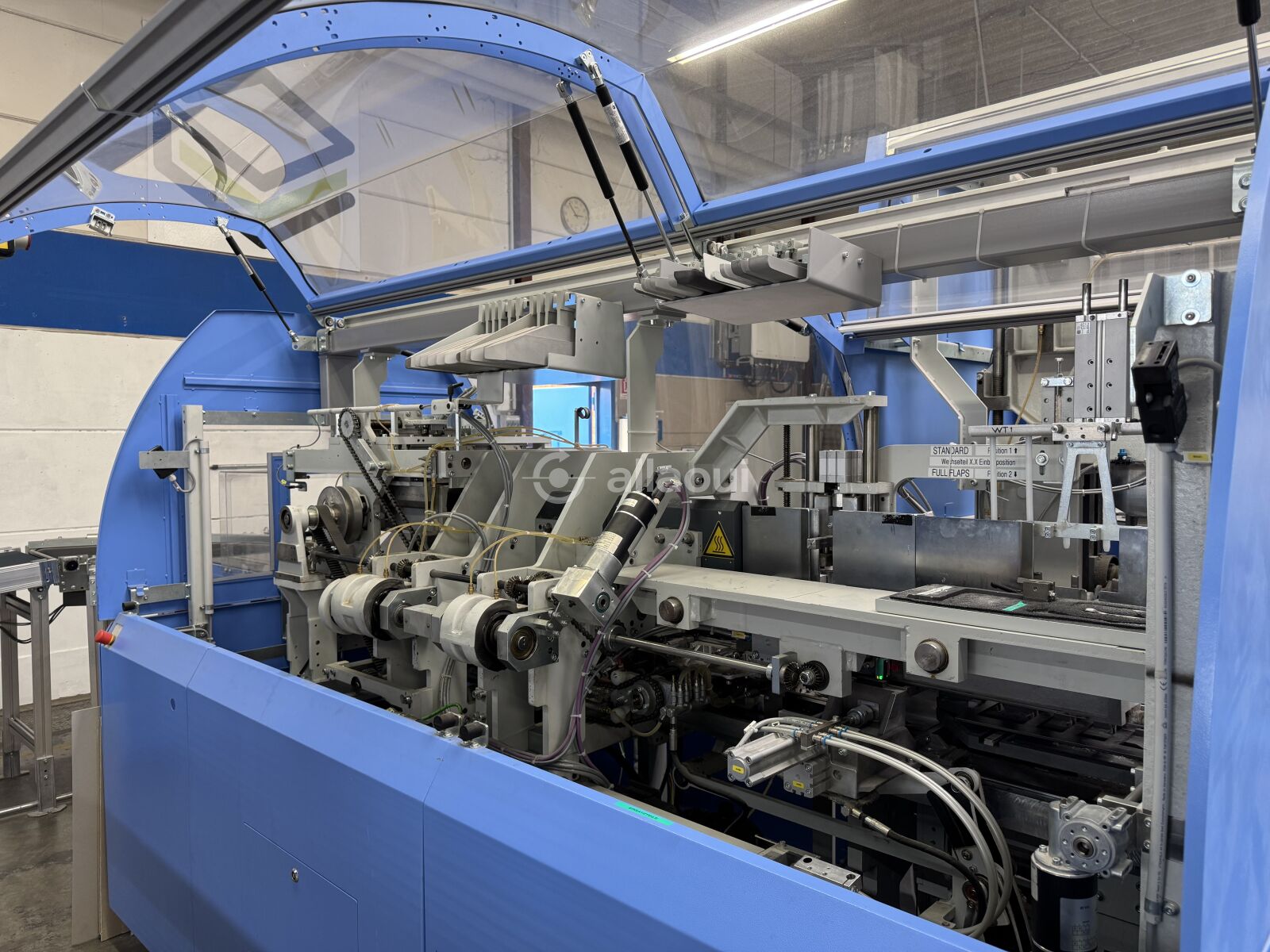

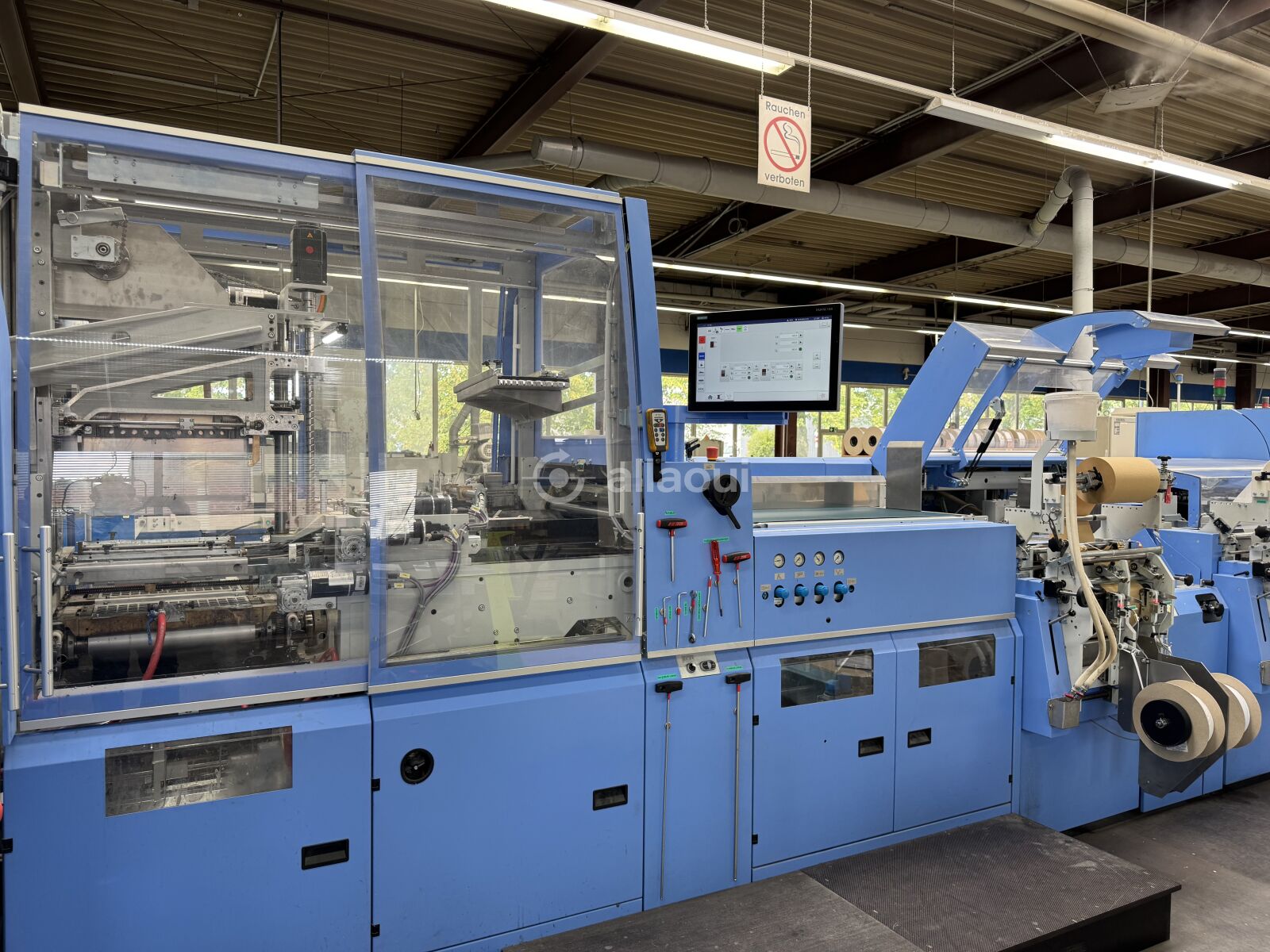

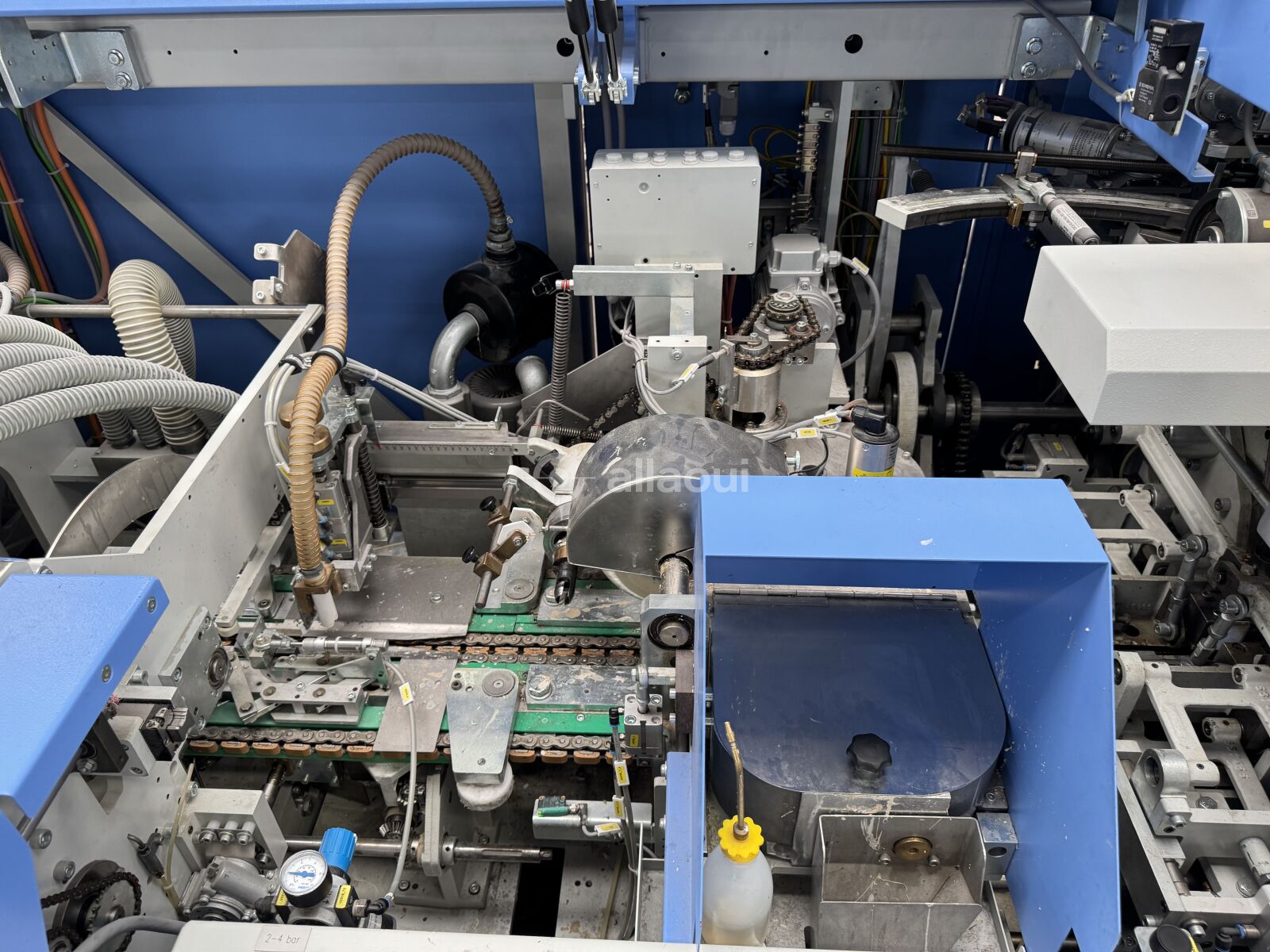

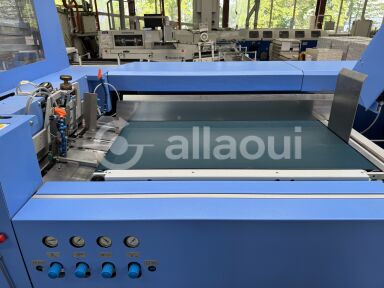

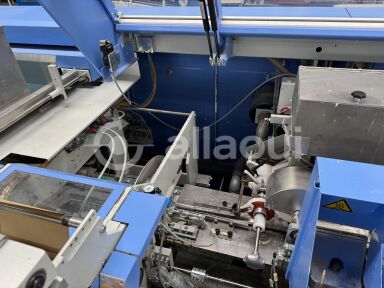

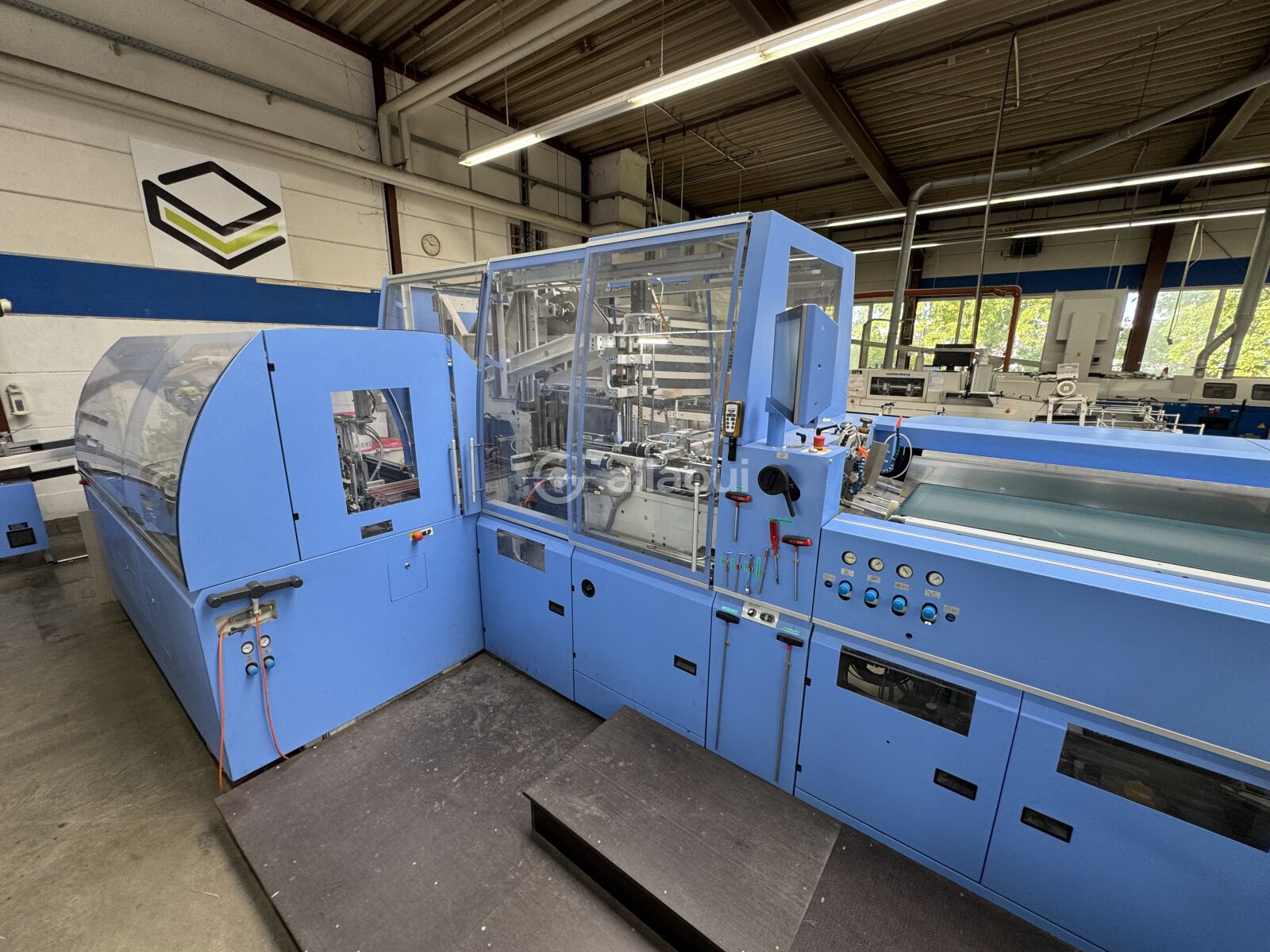

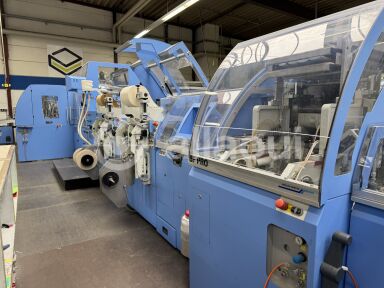

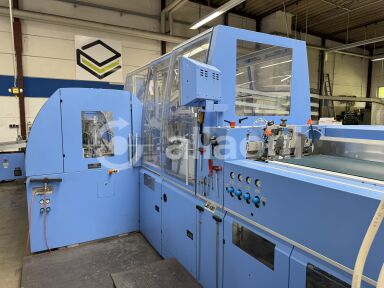

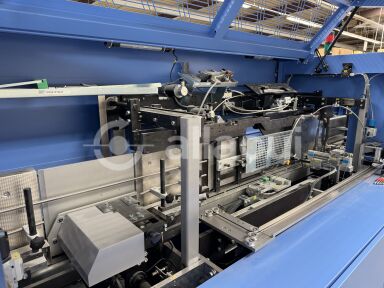

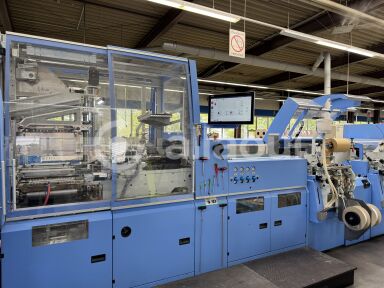

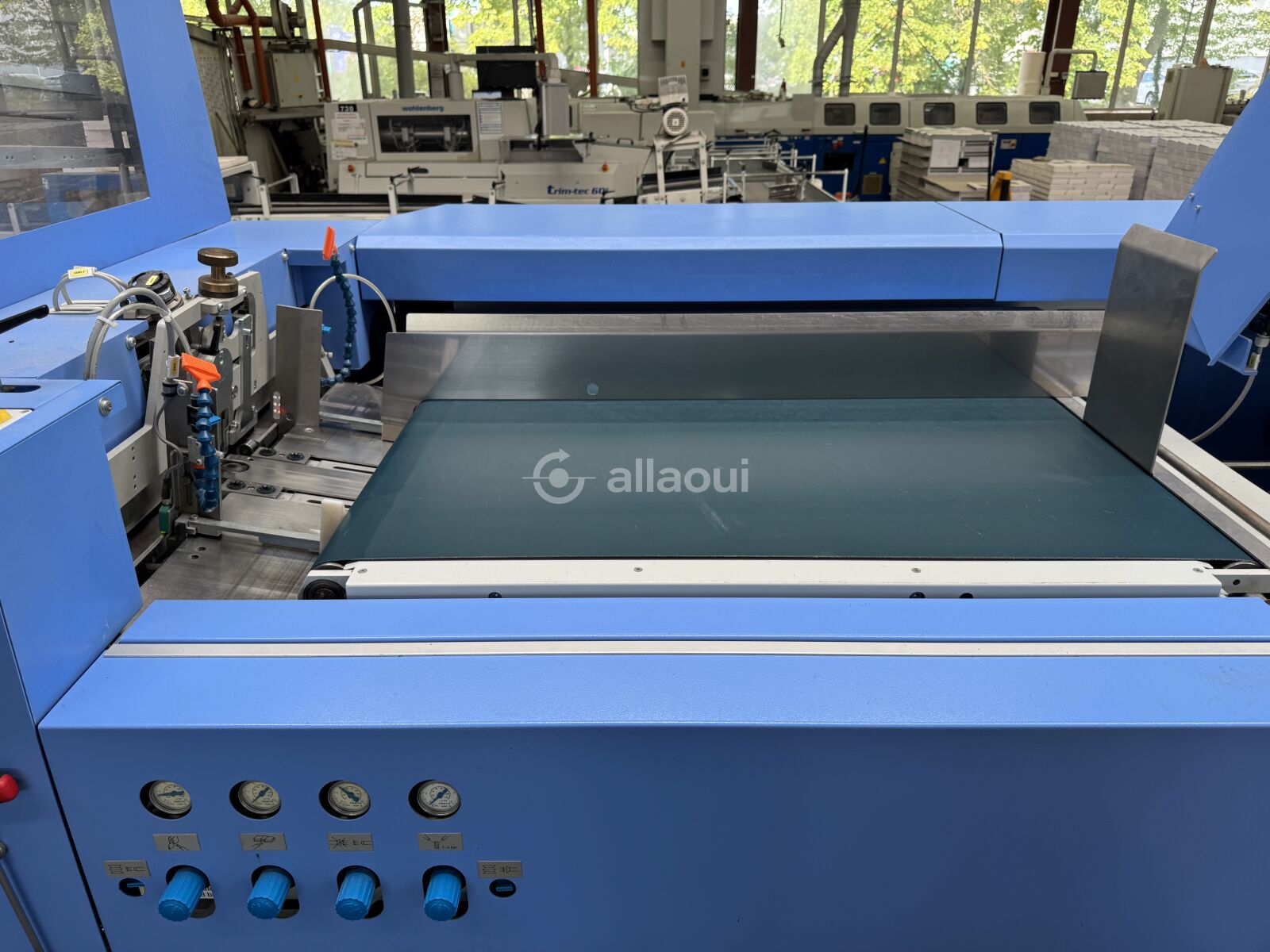

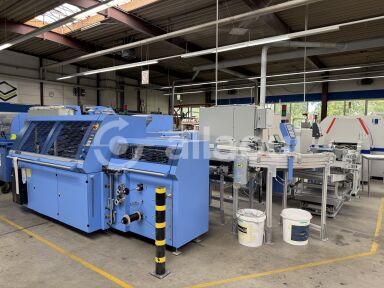

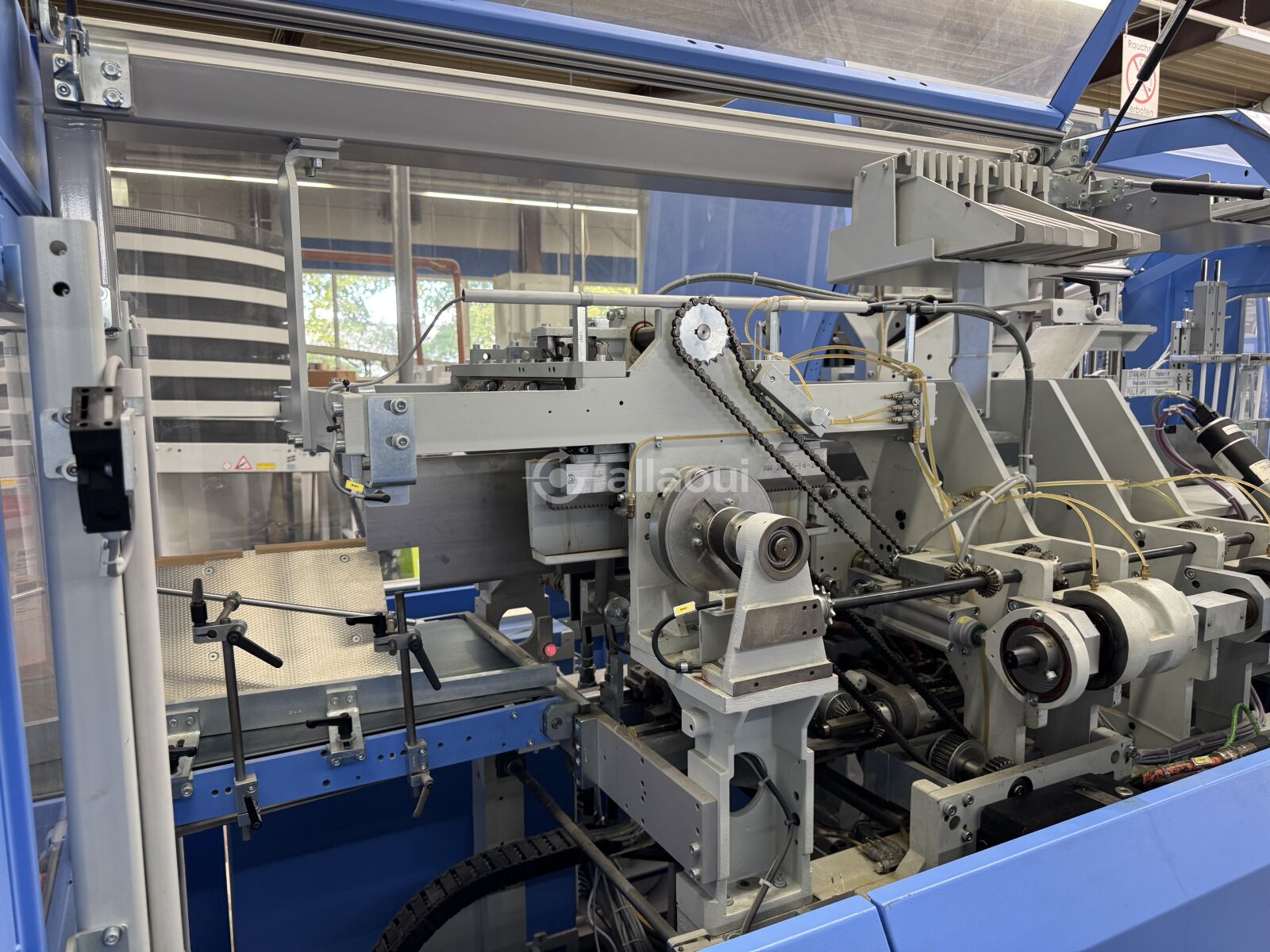

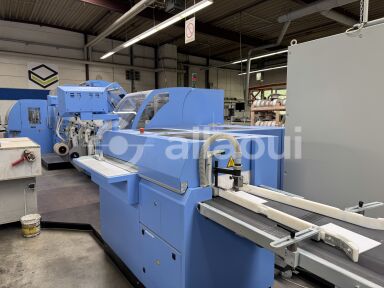

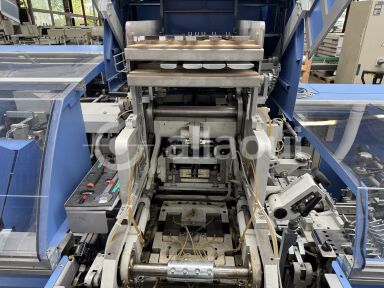

Hardcover Book Line BF PRO

  • CoPilot control system with dual multi-touchscreens
  • Linear book block infeed
  • Infeed conveyor L = 1,000 mm
  • Integrated warming section AS 320
  • Block gate AS and WR
  • Angle roller table WR 630
  • 6-point star feeder
  • Block position detection (spine and front edge) with vacuum
  • Automatic book block thickness control
  • Book rounding and pressing station
  • Cover pre-stacking conveyor
  • Automatic cover bending machine
  • Cover forming station
  • Cover magazine
  • Cut and base dividers for thin printing paper and gold edge
  • Book clamp
  • Glue pump timer monitoring
  • Electrically heated 15° folding burn-in rails (45° rails included)
  • Quick-change system for burn-in rails
  • 2 press stations with 15 kN each (2nd station switchable to 45 kN)
  • Heating monitoring system
  • Automatic central lubrication system
  • Servo-controlled drive technology (Siemens SIMOTION D)
  • Active Line Module for energy regeneration into mains
  • Safety standard according to EC directives

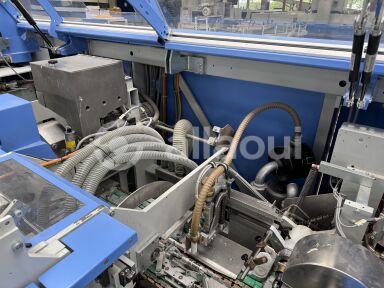

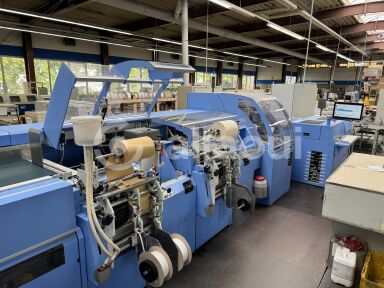

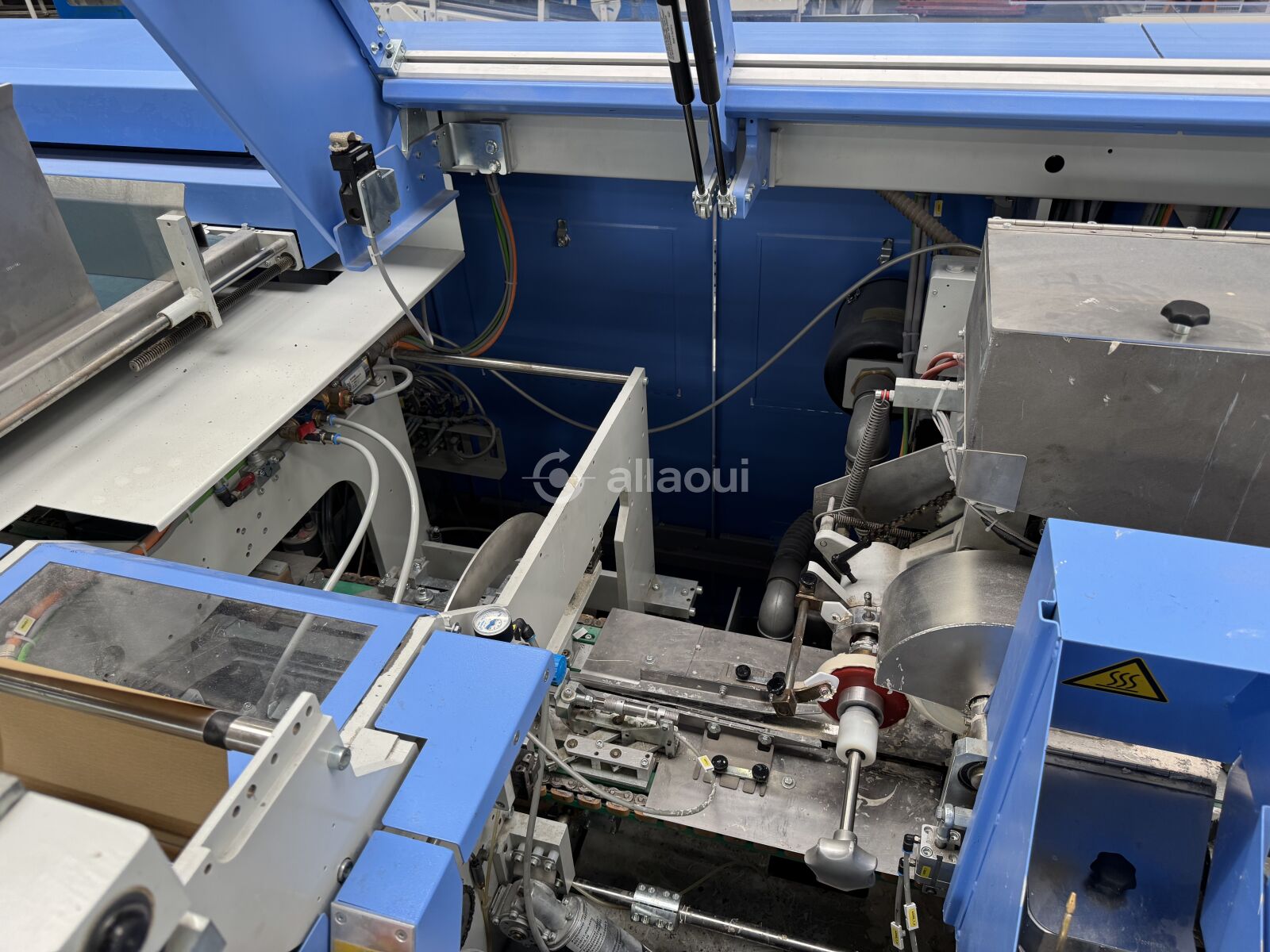

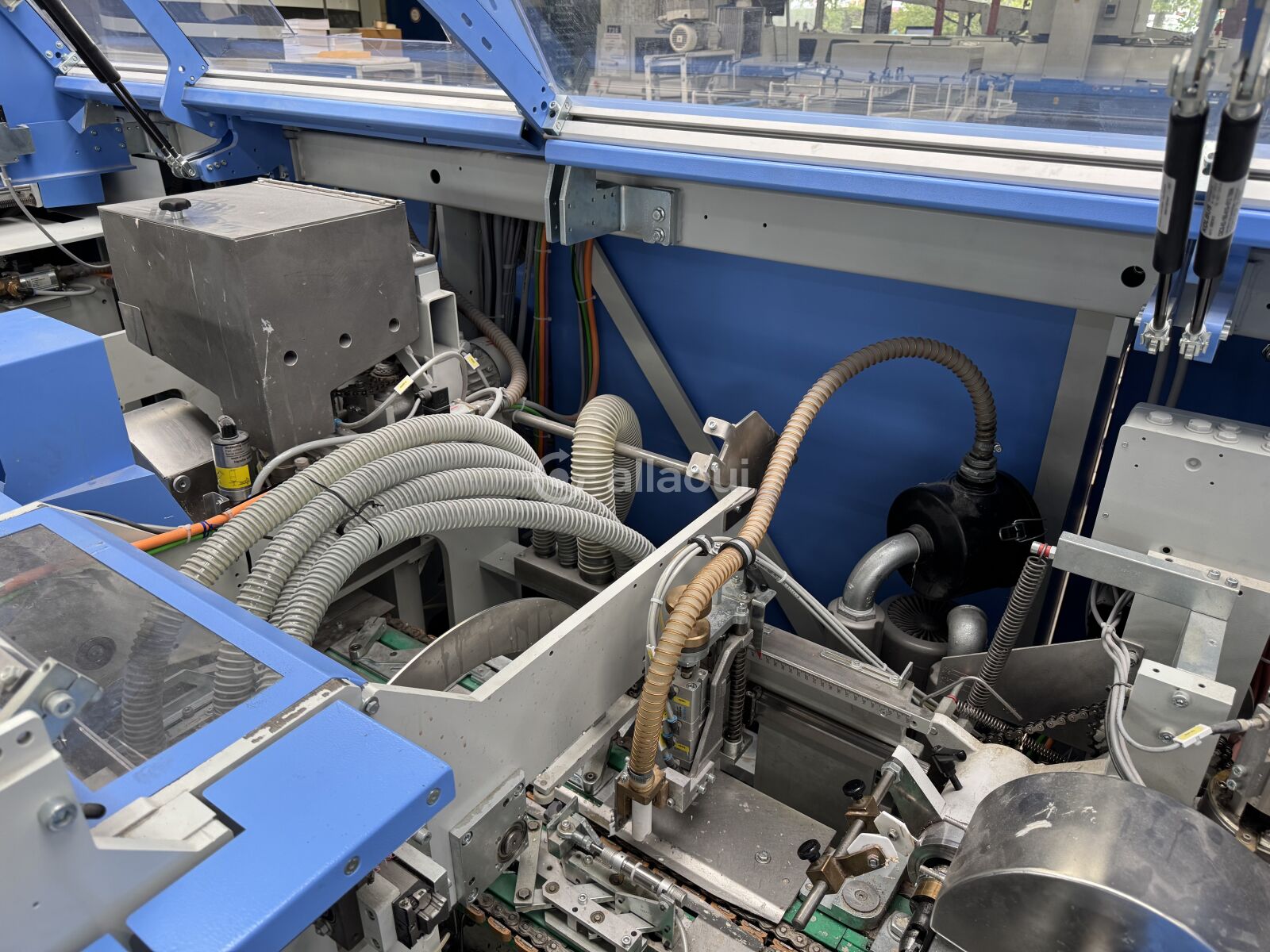

Gluing Stations (5-Station Configuration)

  • Station 1: Spine glue unit for hotmelt with circulation, 1 set of glue rollers, additional roller for straight-spine books (20–55 mm block thickness)

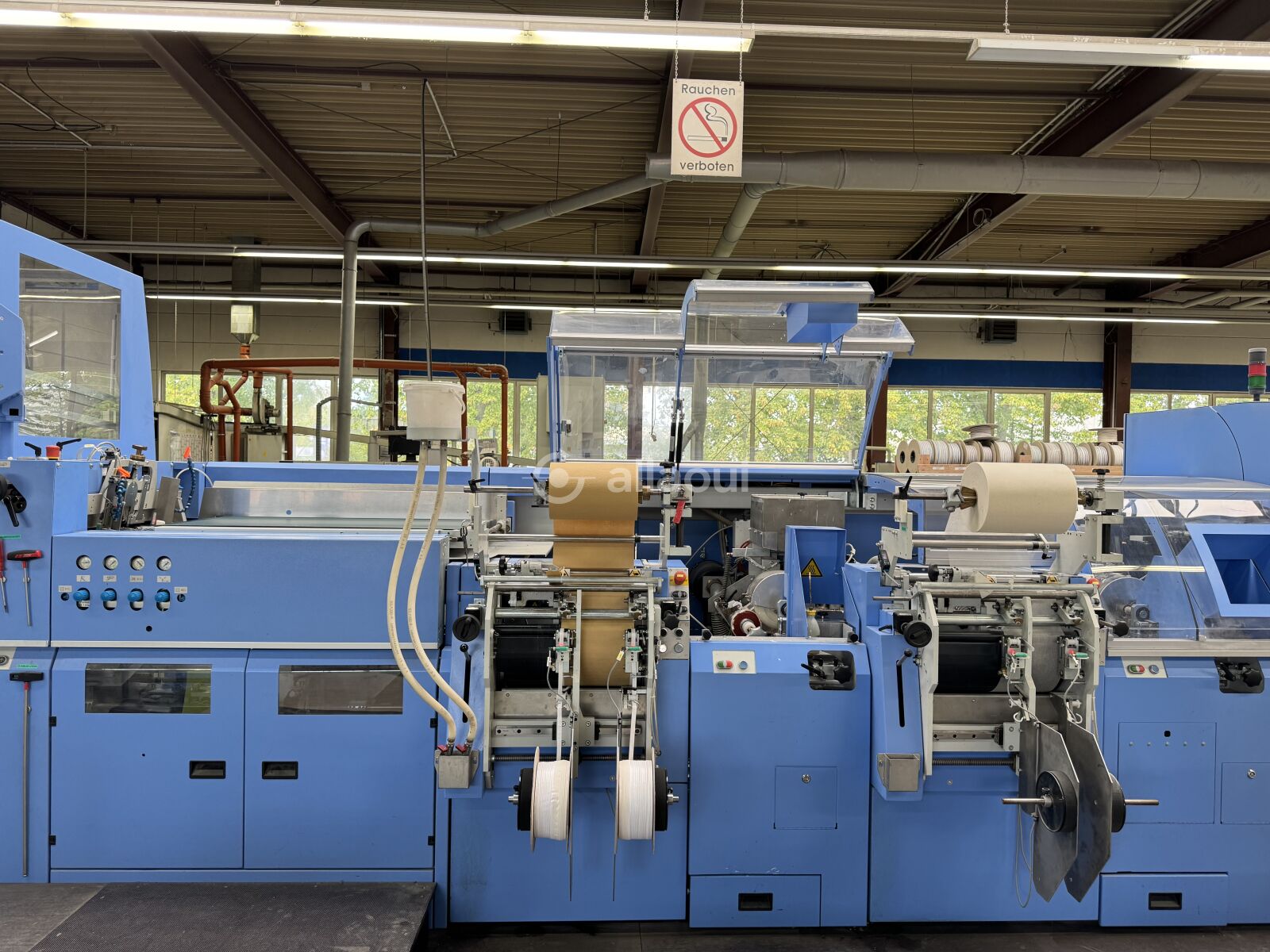

  • Station 2: Gauze and headband station with headband monitoring
  • Station 3: Spine glue unit for hotmelt with circulation (identical to Station 1)
  • Station 4: Headband station with headband monitoring
  • Station 5: Press station

Premelter

  • Nordson EVA-Hotmelt nozzle gluing system XNO 517
  • 15-liter capacity, melt rate 18.1 kg/h, max. delivery 32.7 kg/h
  • 2 heated hoses (4,800 mm)
  • Viscosity control for 2 spine glue units
  • Control integrated into CoPilot interface

Product-Specific Equipment

  • Setup for processing small formats (book block height min. 100 mm, width min. 70 mm)
  • Setup for processing books with thick cardboard pages (e.g., children's books, block width min. 140 mm)
  • Ribbon gluing device for ribbons inserted by machine or by hand
  • Setup for flexible covers with double cover control
  • Setup for covers with pre-scored flaps (Full-Flaps)
  • Setup for asymmetric covers (pre-scored flap on left side in running direction)
  • Setup for books with up to 7 mm wider schrenz vs. block thickness (photo books, CD booklets)

Quick Make Ready (QMR) Package

  • Bluetooth hand scanner for guided title selection from title memory
  • Customer-generated barcode-based job selection
  • Additional automatic adjustment axes

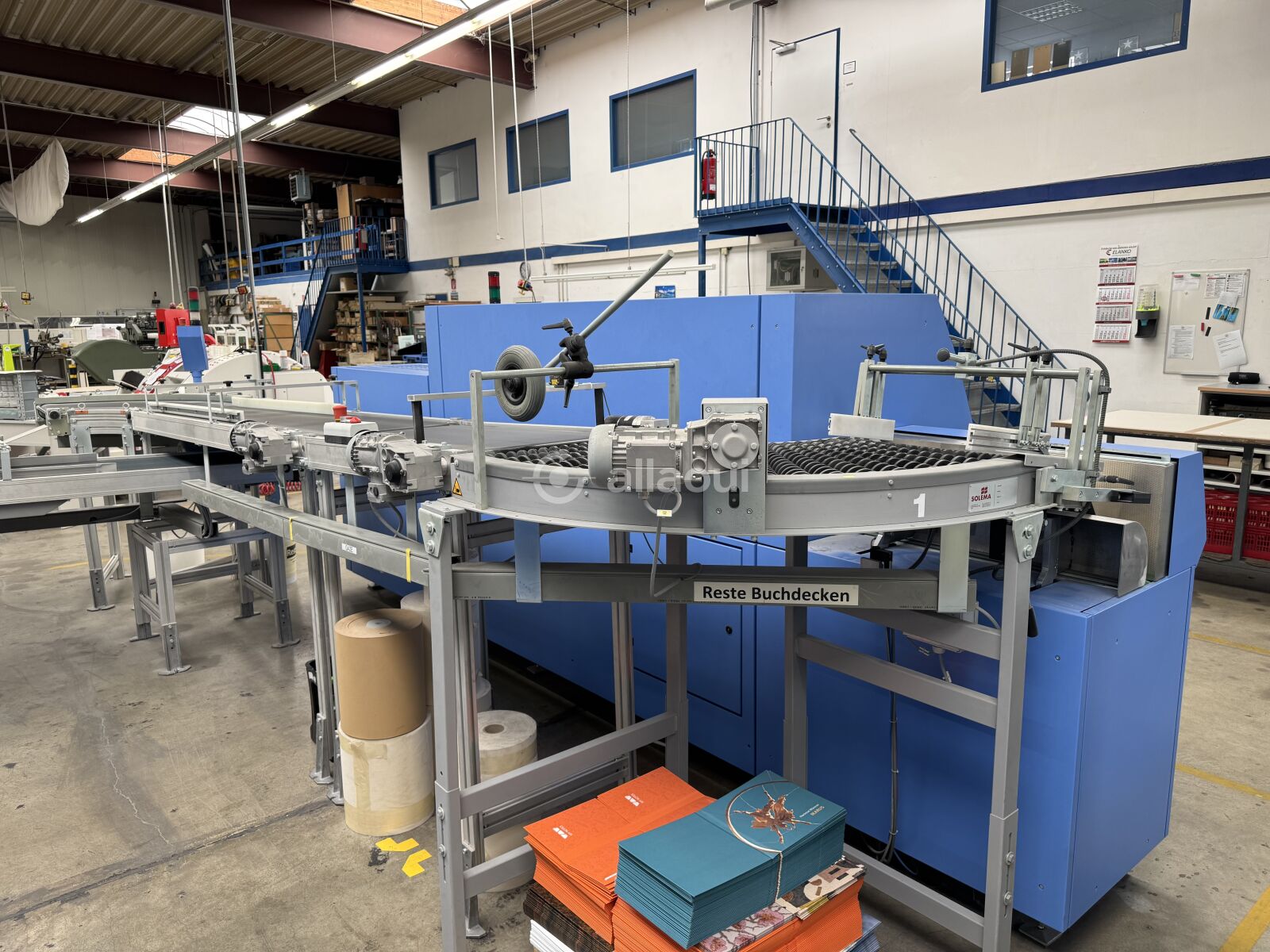

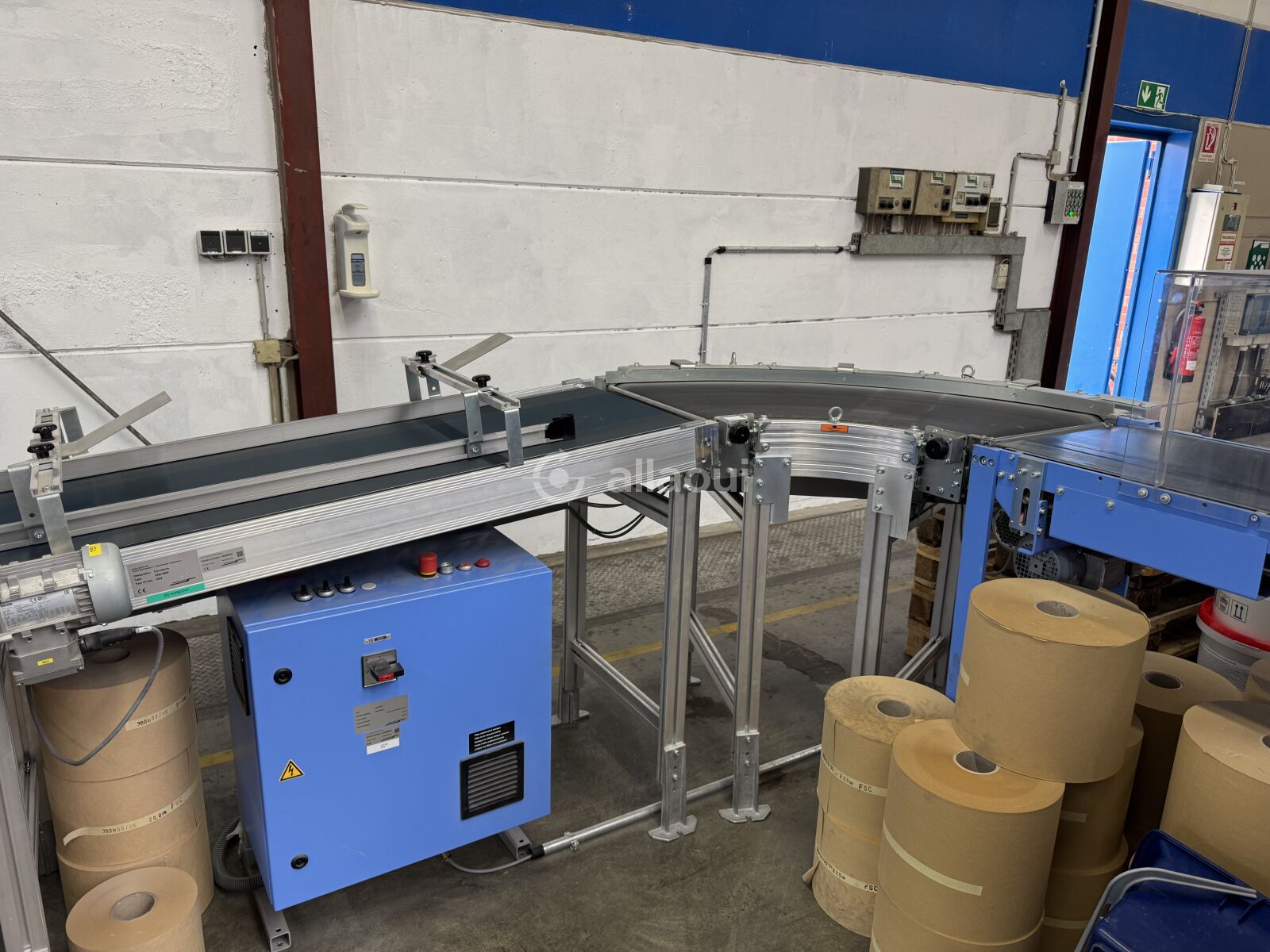

Delivery

  • Straight delivery, offset to right
  • Book transport lying flat

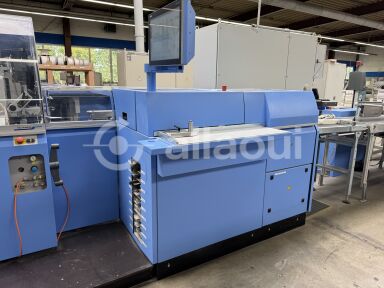

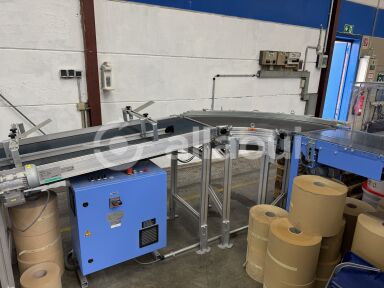

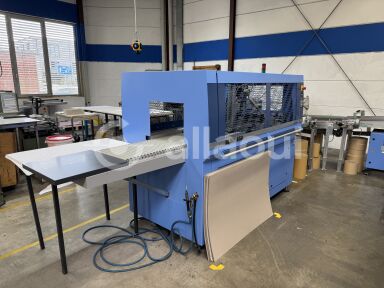

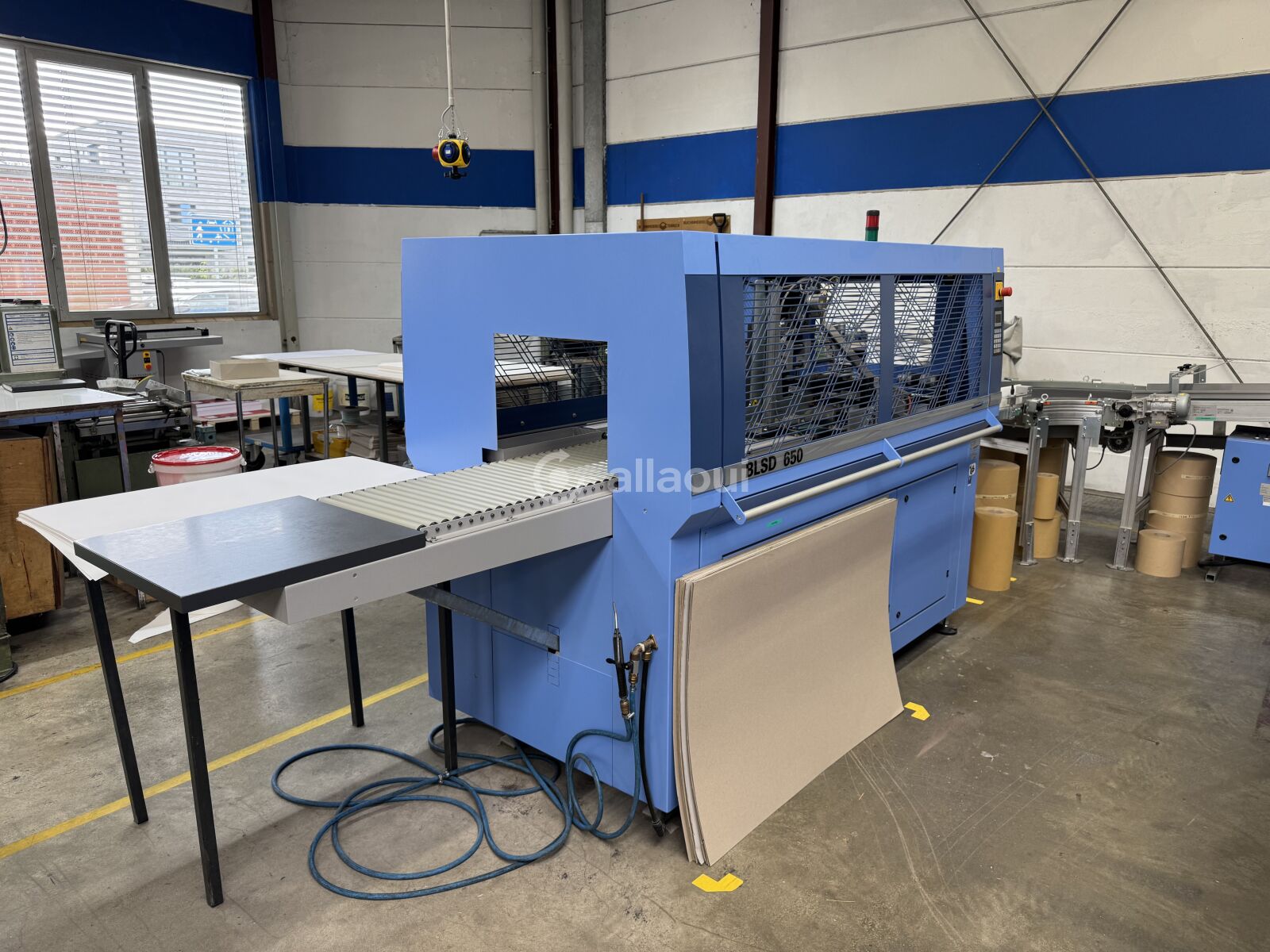

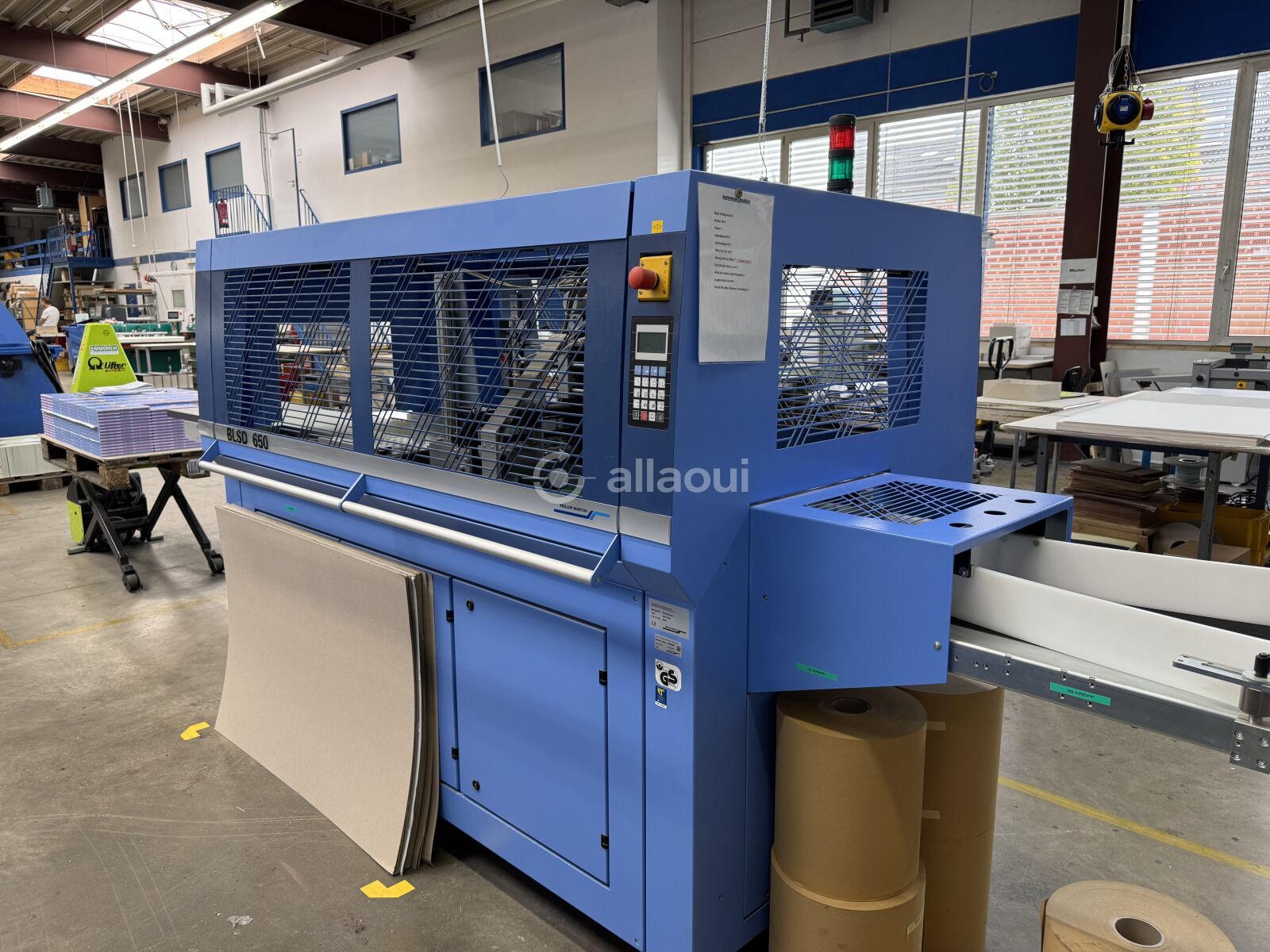

Book Stacker BLSD 650 ER

  • End stacker with roller conveyor delivery
  • Fully automated with Amrys, dual HMI panel operation
  • 90° and 180° stack rotation with multiple stacking patterns
  • Infeed conveyor L = 1,900 mm
  • Synchronously driven turntables (upper and lower)
  • Stack shaft with product-protecting positioning
  • Roller conveyor delivery L = 1,600 mm
  • Flex cover processing capability

Control System & Connectivity

  • Connectivity hardware terminal for machine-specific service requests
  • Service Manager and conference center access
  • Multi-functional communication tool (text, documents, video, audio, VNC)
  • MPOWER cloud platform integration
  • Data coupling with line network
  • Remote Line Plus (24/7 remote technical support)

Book Formats

Format Range Width (mm) Width (in) Height (mm) Height (in) Thickness (mm) Thickness (in)
Book Block Standard
min. 100 3.9 100 3.9 2 0.08
max. 305 12.0 375 14.8 80 3.1
Small Formats (Option)
min. 70 2.8 100 3.9 2 0.08
max. – – – – 30 1.2
Book Cover Standard
min. 210 8.3 105 4.1 0.1 0.004
max. 660 26.0 385 15.2 7 0.28
Small Formats (Option)
min. 155 6.1 105 4.1 – –
Finished Book Standard
min. 105 4.1 105 4.1 6 0.24
max. 285/315 11.2/12.4 385 15.2 90/30 3.5/1.2
Full-Flaps / Asymmetric Standard (trimmed)
min. 100 3.9 100 3.9 18 0.7
max. 210 8.3 300 11.8 50 2.0
Flap Width 50–100 2.0–3.9
Cover Width 320–660 12.6–26.0

Technical Details

Parameter Value
Maximum Speed (BF PRO) 1,800 cycles/h / 30 cycles/min
Maximum Speed (Ribbon) 3,900 cycles/h
Maximum Speed (BLSD 650) 3,900 cycles/h
Ribbon Width 3–8 × 200–530 mm
Stacker Max. Stack Height 340 mm / 13.4 in
Stacker Book Format (min.) 100 × 115 × 5 mm
Stacker Book Format (max.) 285 × 390 × 90 mm
Compressed Air (BF PRO) 11–16 Nm³/h at 6 bar
Compressed Air (Ribbon) 18 Nm³/h at 6 bar
Compressed Air (BLSD 650) 3 Nm³/h at 6 bar
Electricity 3-phase, 400 V / N / PE, 50 Hz
