Used Kolbus RF 700

Book Block Processing machine for sale

Reference EH98783
Manufacturer Kolbus
Type RF 700
Year 2018
Status in production
Request More Information

Description

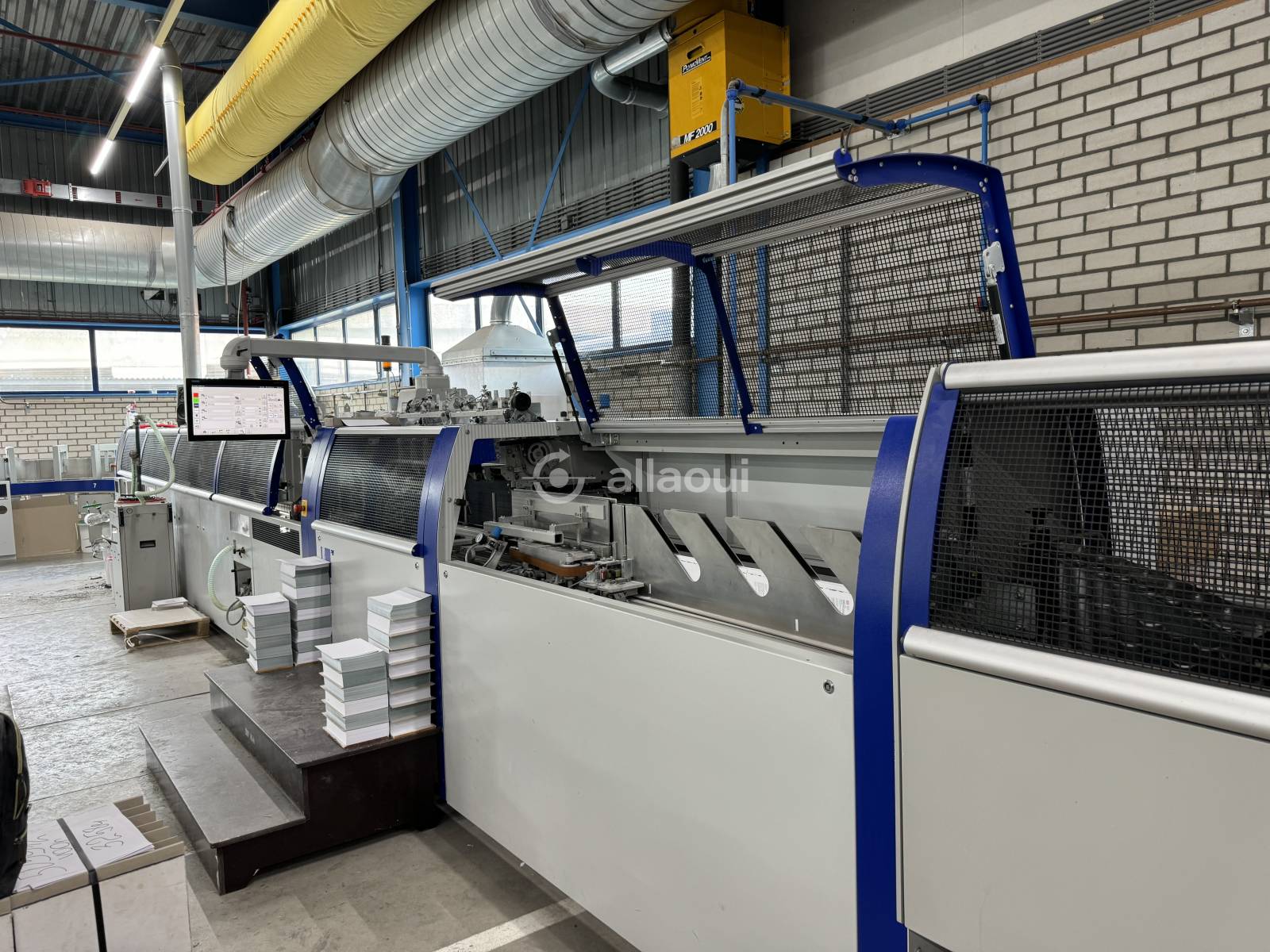

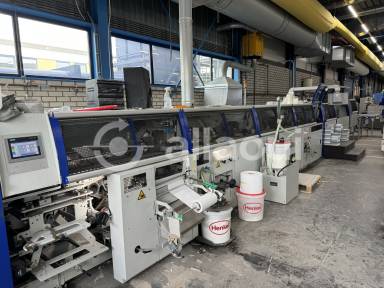

The Kolbus RF 700 is a backgluing and backlining machine designed for thread-sewn book blocks, capable of operating at 70 cycles per minute and applying endsheets before gluing. Featuring the CoPilot system for fast setup and intuitive operation and uses the cross-fold principle for lining.

Equipment

Book Block Feeder

  • Kolbus TS.A Book Block Feeder (2016)
  • Pneumatic stamp for book heights up to 510 mm
  • Externally positioned control panel
  • Book block thickness range: 4–70 mm
  • Frame height: 850–955 mm

Endsheet Feeder

  • 2x Endsheet feeders (Vorsatzblattanleger)
  • Dispersion (PVA) endsheet gluing
  • Automatic block thickness measurement

Backgluing and Backlining Machine

  • Kolbus RF 700 (2018) configured for 70 cycles/min
  • Two-shot spine gluing configuration:
    • 1st Spine Gluing Unit: PVA Dispersion (cold glue primer)
    • IR Intermediate Dryer (25.2 kW, 2,850 mm length)
    • 2nd Spine Gluing Unit: EVA Hotmelt
  • Side Gluing Unit: PVA Dispersion (long variant)
  • Glue disc width: 8.8 mm
  • Gauzing / Lining Station
  • Forming station
  • Venturi nozzle for lining strip waste removal
  • Integrated fume extraction for gluing units
  • Connected to LH 375.B Hotmelt Premelter (30 liter capacity)

Drying Section

  • Double-stream drying section
  • Dual conveyor configuration

Nipping Press

  • Kolbus FN 720 (2016)
  • Double-line throughfeed (two channels)
  • Delivery height: 900 mm

Three-Knife Trimmer

  • Kolbus HD 143.P (2016)
  • CoPilot system with touchscreen
  • Infeed from right side
  • Fine-grain carbide knives (3 sets)
  • Spray device
  • Small format capability: 70 × 100 mm (trimmed)
  • Standard cutting tables Nr. 04–18
  • Additional tables: Nr. 02 (100–112 mm), Nr. 03 (112–124 mm)
  • Tool cabinet included

Stacker

  • Kolbus KL 301 Compensating Book Stacker
  • CoPilot system with touchscreen
  • Flexible delivery options (straight, left, right)
  • Counting device

Technical Details

Parameter Metric Imperial
Production Speed max. 70 cycles/min max. 70 cycles/min
Book Block Width 100–320 mm 4–12.6 in
Book Block Height 120–400 mm 4.7–15.7 in
Book Block Thickness 2–80 mm 0.08–3.15 in
Endsheet Size (min) 100 × 120 mm 4 × 4.7 in
Endsheet Size (max) 315 × 395 mm 12.4 × 15.6 in
Endsheet Grammage 100–180 g/m² 27–48 lb/1000 sq ft
Infeed Channel Width 3–85 mm 0.12–3.35 in
IR Heater Power 25.2 kW 25.2 kW
Premelter Capacity 30 liters 7.9 gal
Glue Feed Rate (max) 30 kg/h 66 lb/h
Electrical Supply 400V 3~ 50 Hz 400V 3~ 50 Hz
Compressed Air 6 bar / 70 Nm³/h 87 psi / 41 CFM
