Used Kolbus BF 527 Complete Line

Book Production machine for sale

Reference AX31511
Manufacturer Kolbus
Type BF 527 Complete Line
Year 2008
Impressions 113 MM
Status in stock
Video
Request More Information

Description

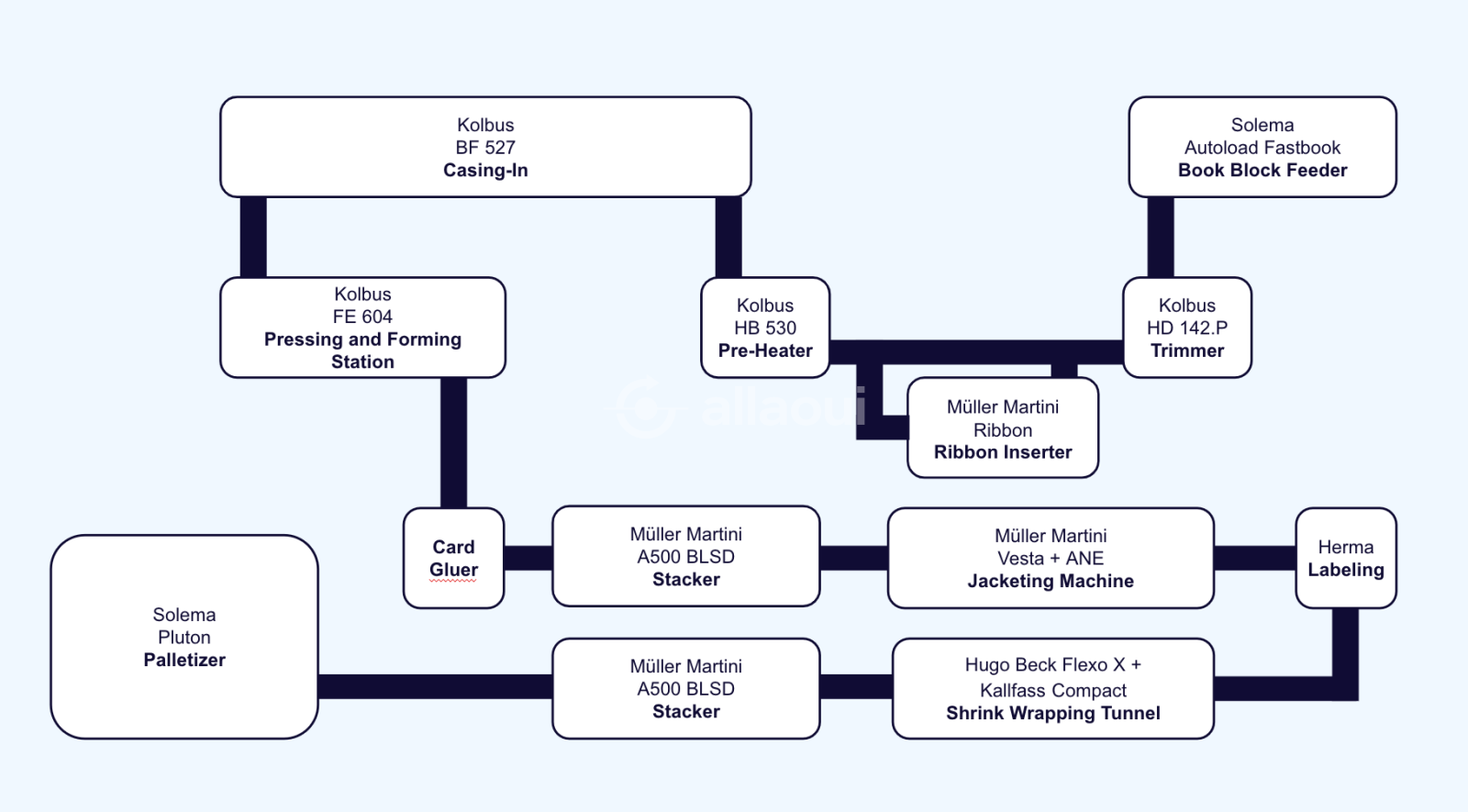

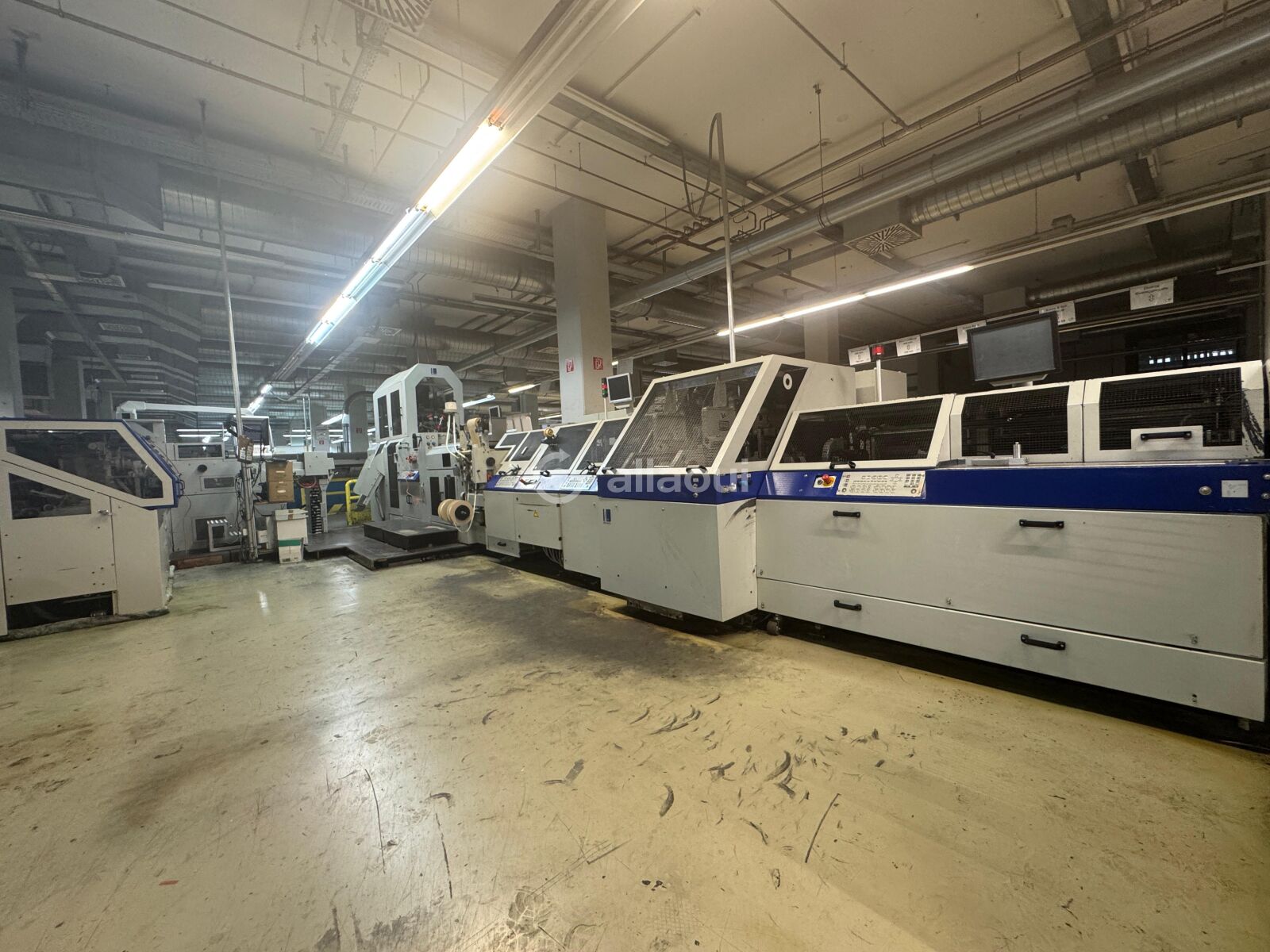

Offered here is a high-performance Kolbus BF 527 Casing-In Line integrated into a fully functional and synchronized hardcover book production system. This complete line includes complementary machines for trimming, pressing, ribbon inserting, labeling, shrink-wrapping, and palletizing - designed to streamline every stage from book block feeding to stacking and final packaging. Whether you're looking for a fully integrated line or want to select specific components to suit your needs, this setup offers flexibility, modularity, and industrial-grade reliability. Ideal for medium to high-volume hardcover book production, this line allows customization: each unit can be offered individually or as part of a tailored configuration, depending on your production requirements.

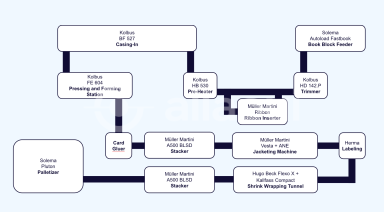

Equipment

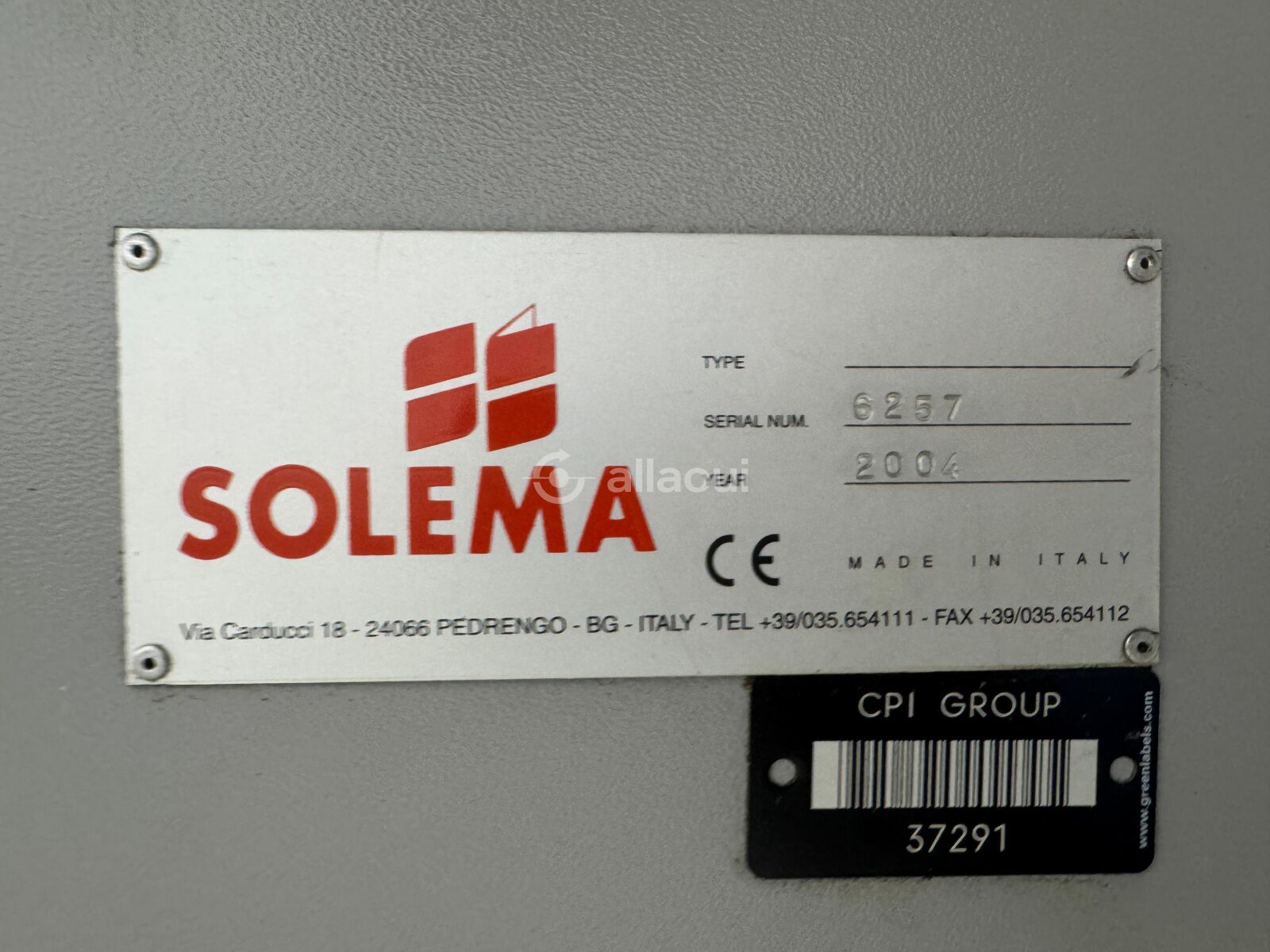

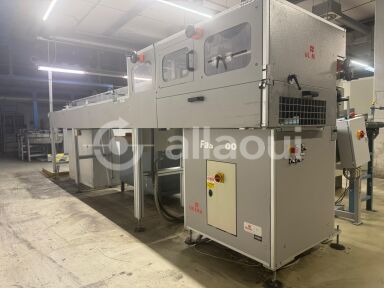

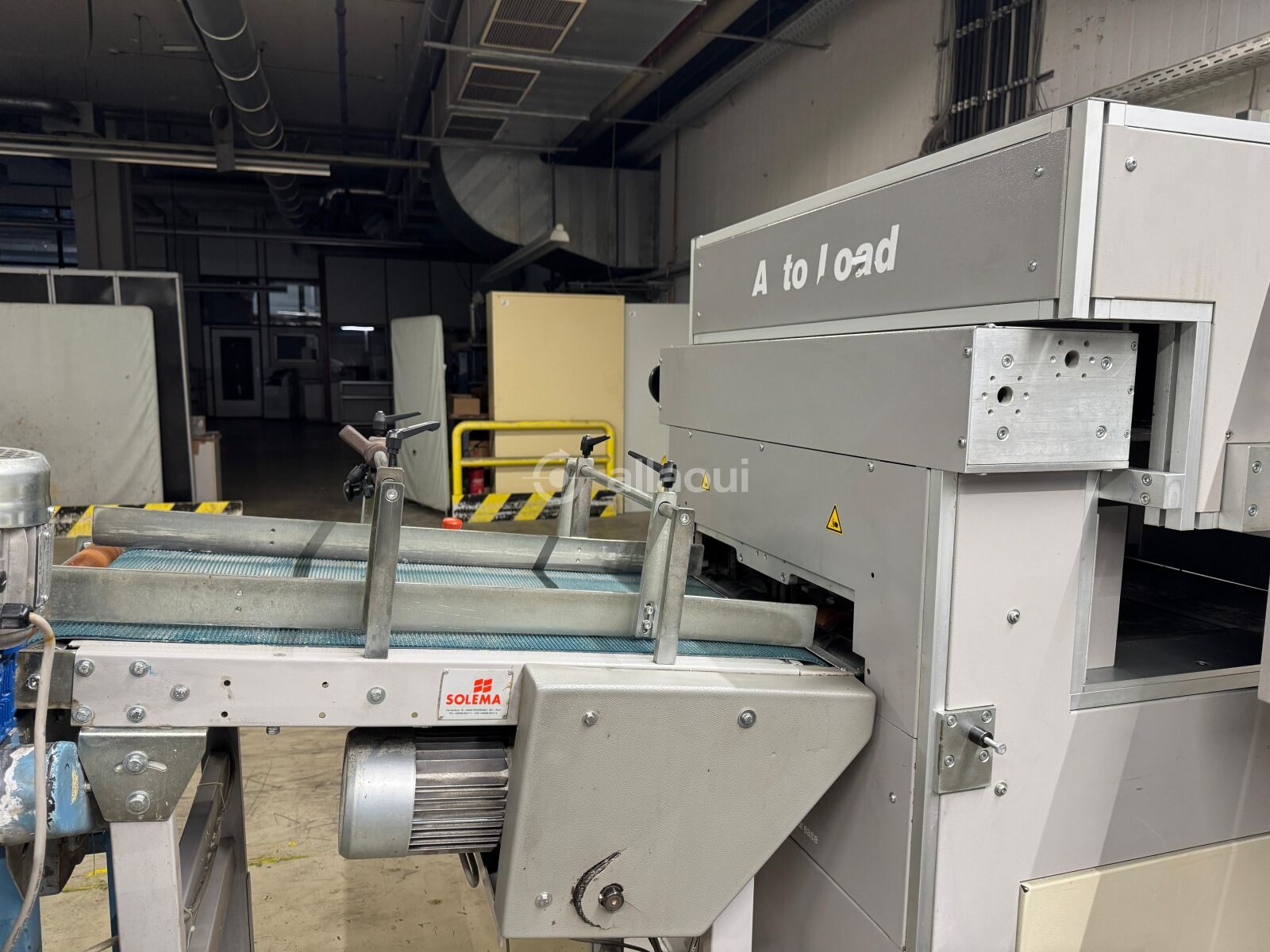

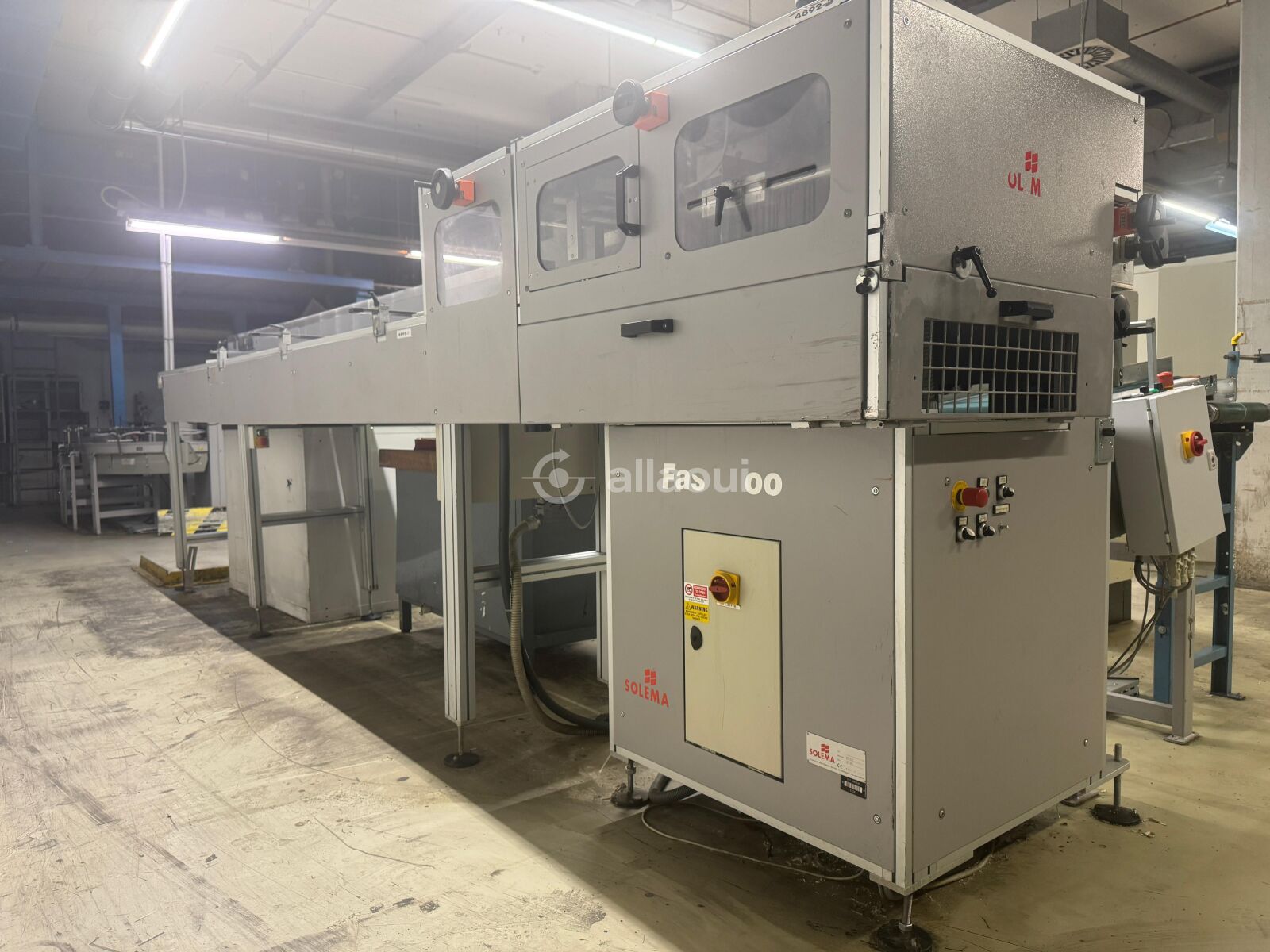

Book Block Feeder

  • Model: Solema Fastbook Autoload
  • Year: 2004
  • Type: Pile Feeder with Automatic Loading
  • Features: Prestacking conveyor

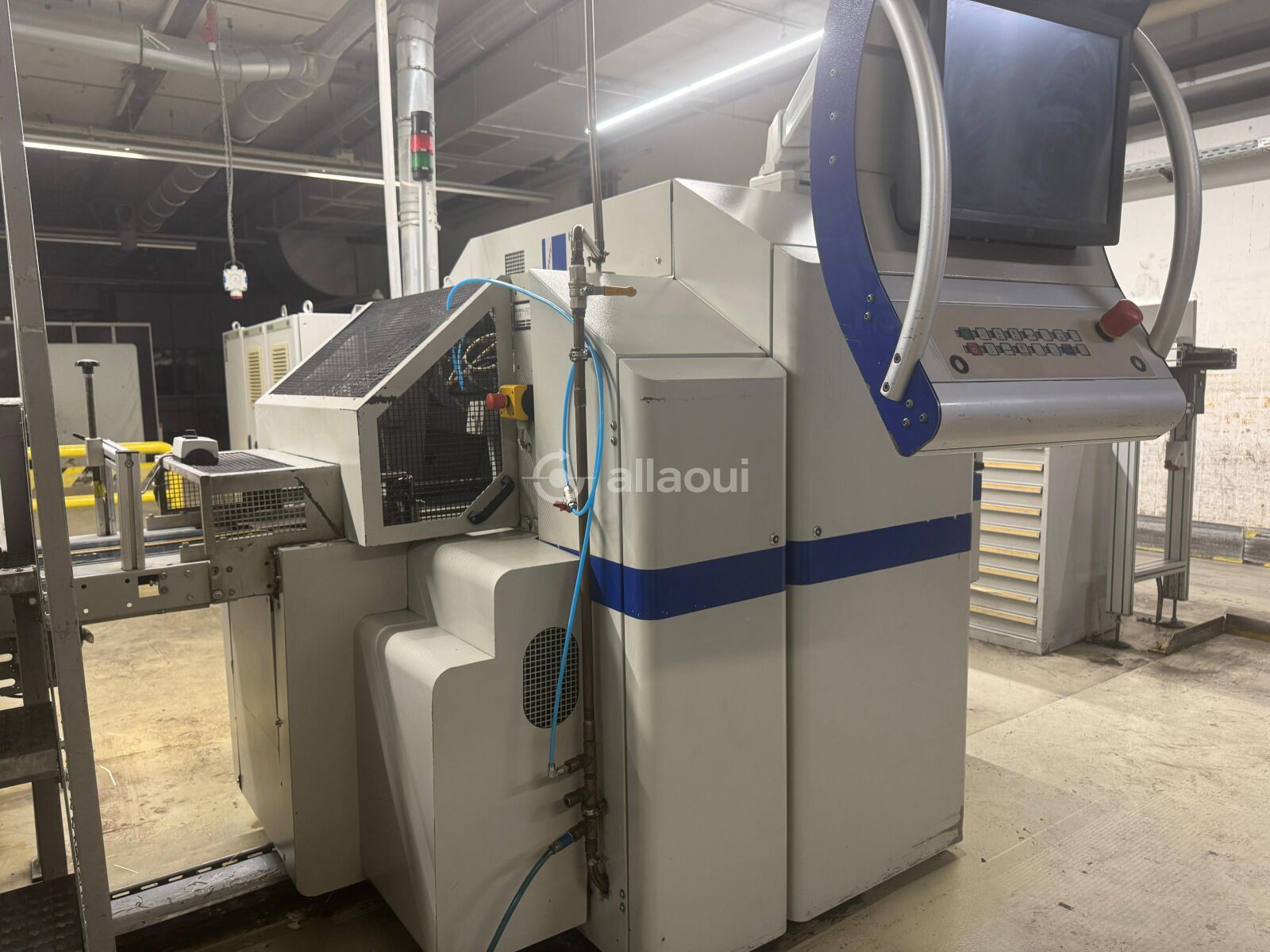

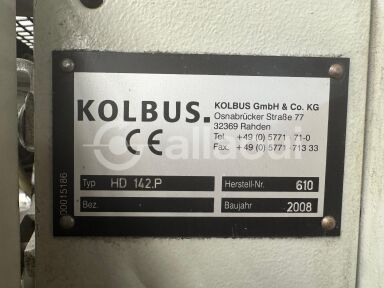

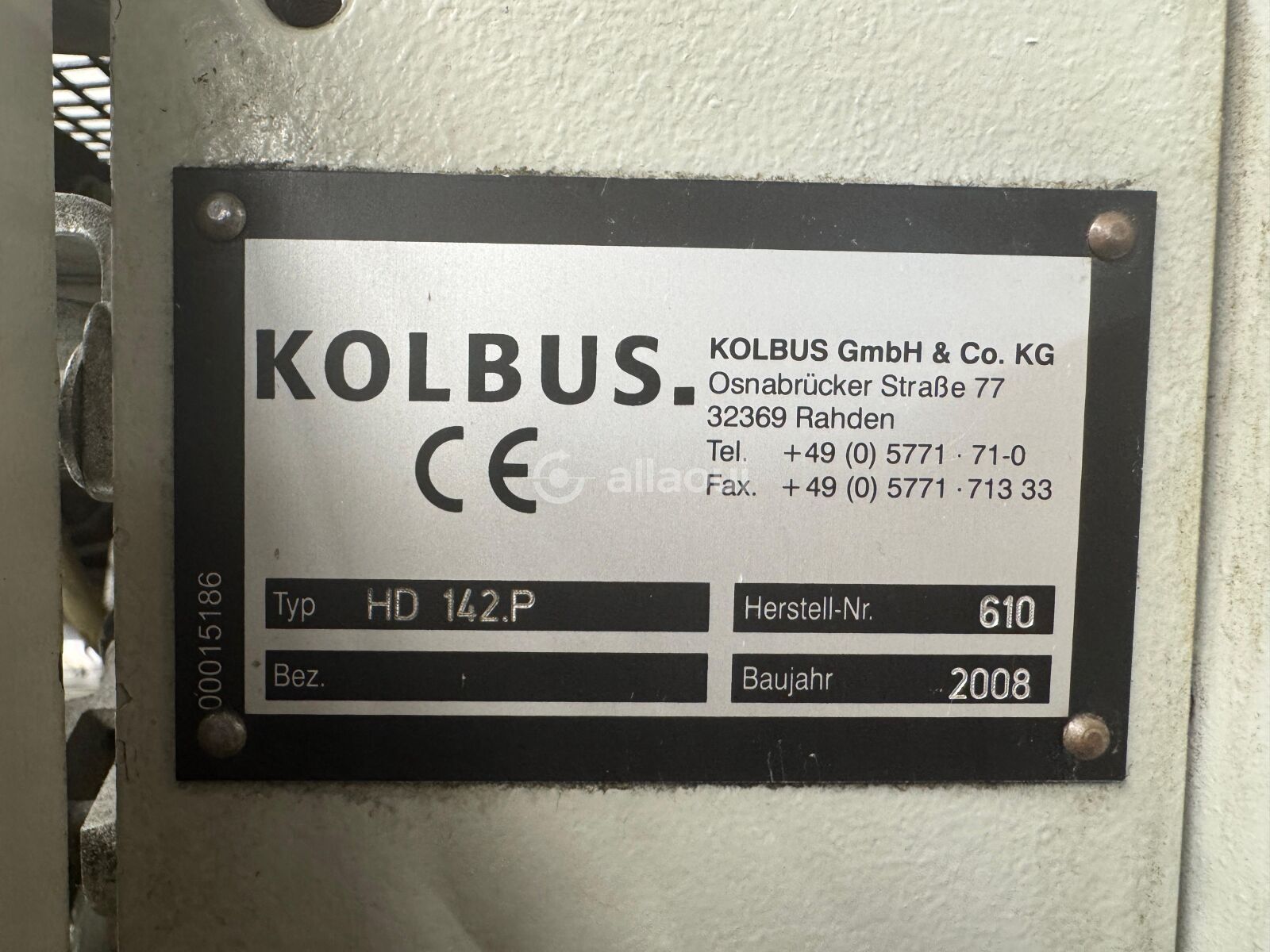

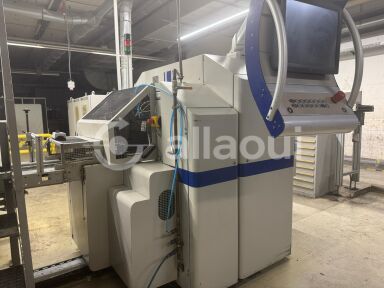

Three-Knife Trimmer

  • Model: Kolbus HD 142.P
  • Year: 2008
  • Control: Copilot system with touchscreen display
  • Infeed: Right-hand infeed with alignment side on the right
  • Knives: Carbide knives (2 sets included)
  • Cutting Sticks: For carbide knives (4 pcs front knife, 20 pcs side knives)
  • Tables: Complete set of interchangeable cutting tables for trimmed block heights from 100–304 mm (17 table sizes in 12 mm increments)
  • Small Format Capability: Down to 70 × 100 mm trimmed
  • Chip Removal: Prepared for central dust extraction (1 connection)
  • Lubrication: Automatic central lubrication system

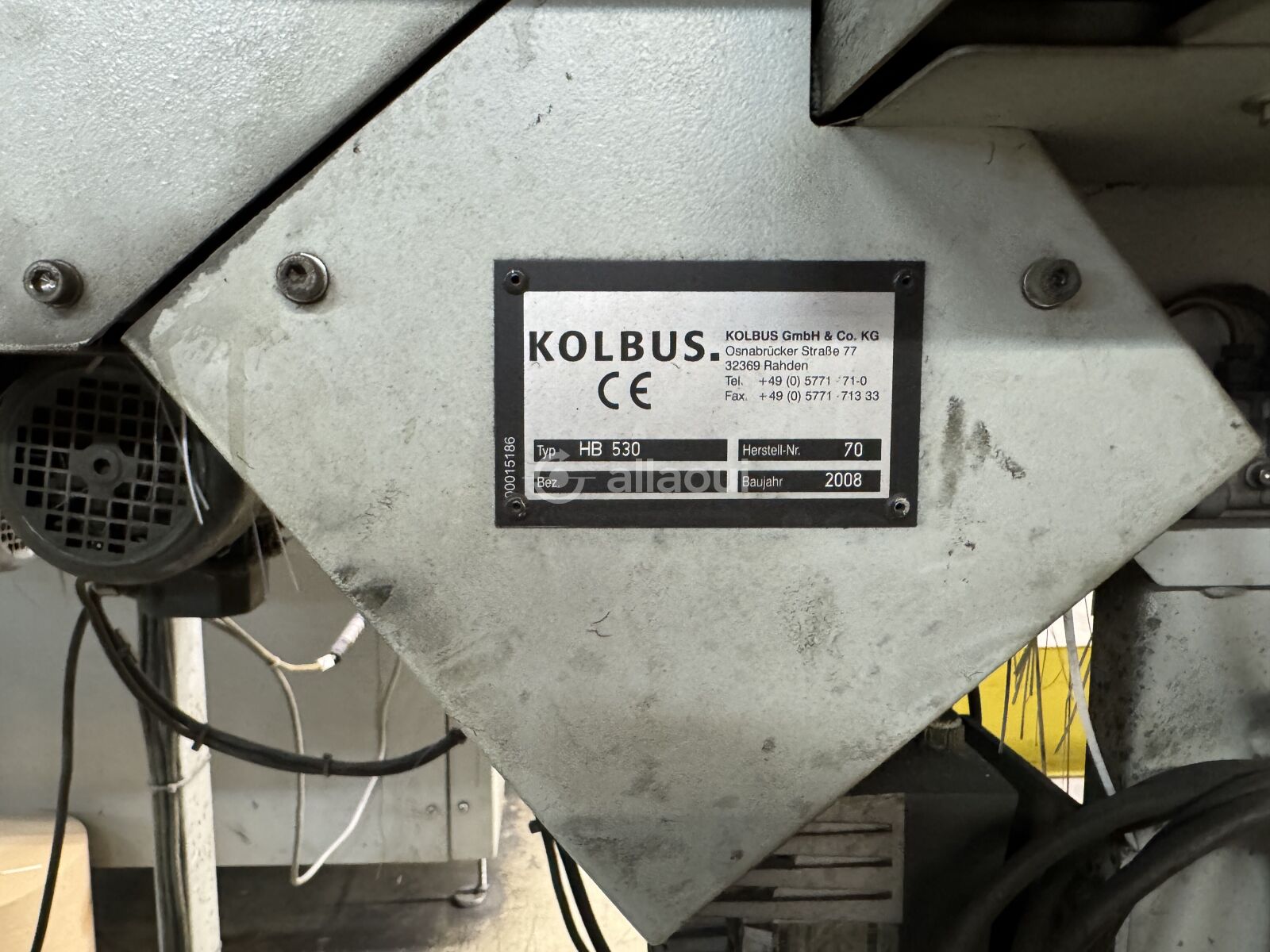

IR Preheating Unit

  • Model: Kolbus HB 530
  • Year: 2008
  • Heating: Lateral IR heating (9 kW, infinitely adjustable)
  • Heating Length: 1,500 mm
  • Belt Speed: 8–32 m/min
  • Features: Acceleration belt, electrical connection for upstream conveyor control

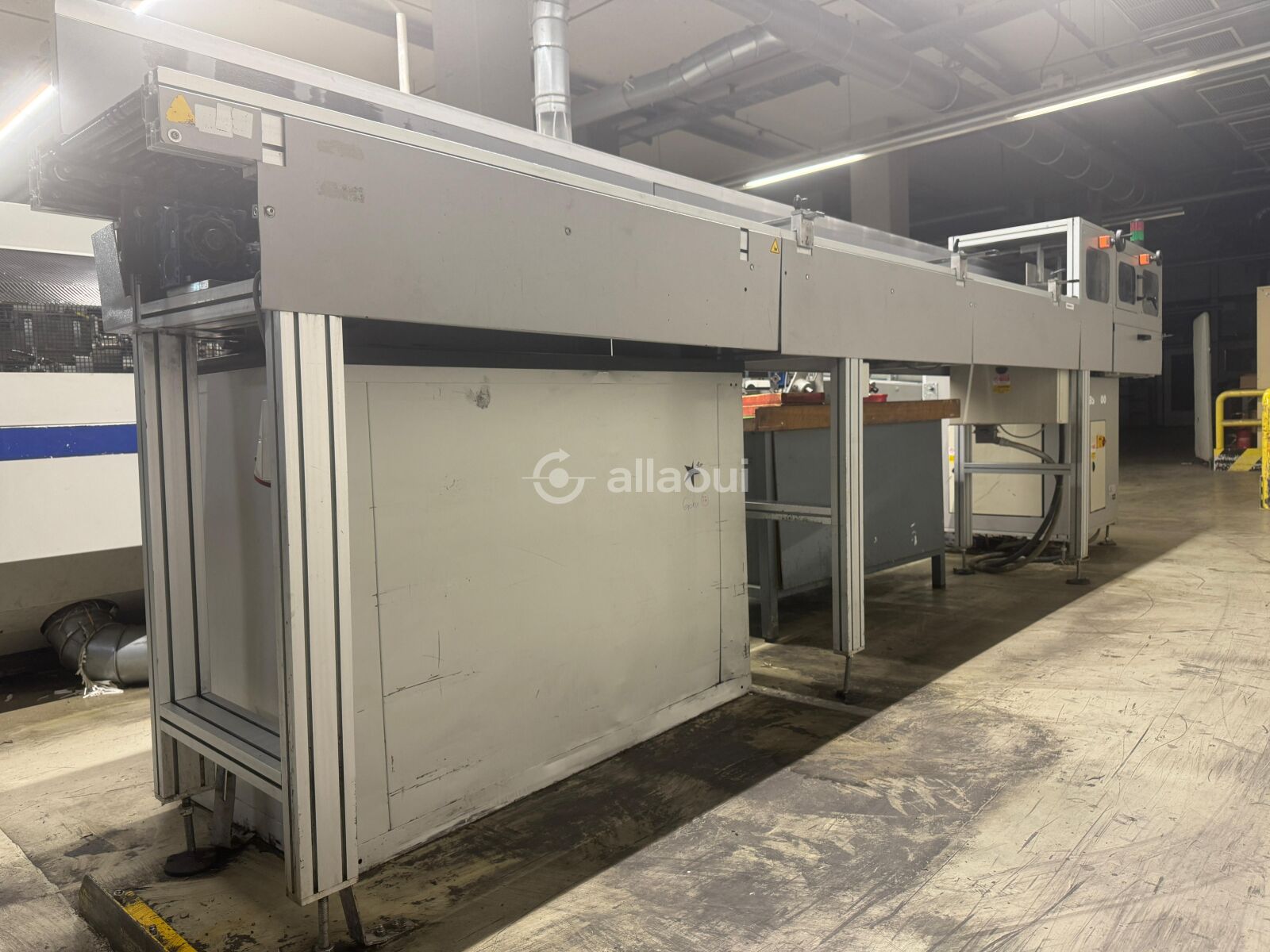

Transport Conveyor

  • Model: Kolbus TS.L
  • Year: 2008
  • Dimensions: 450 mm wide × 800 mm long
  • Features: Lateral guides for product alignment, special rail for product guidance (max. 150 mm clearance height)
  • Drive: Static drive controlled by upstream or downstream machine

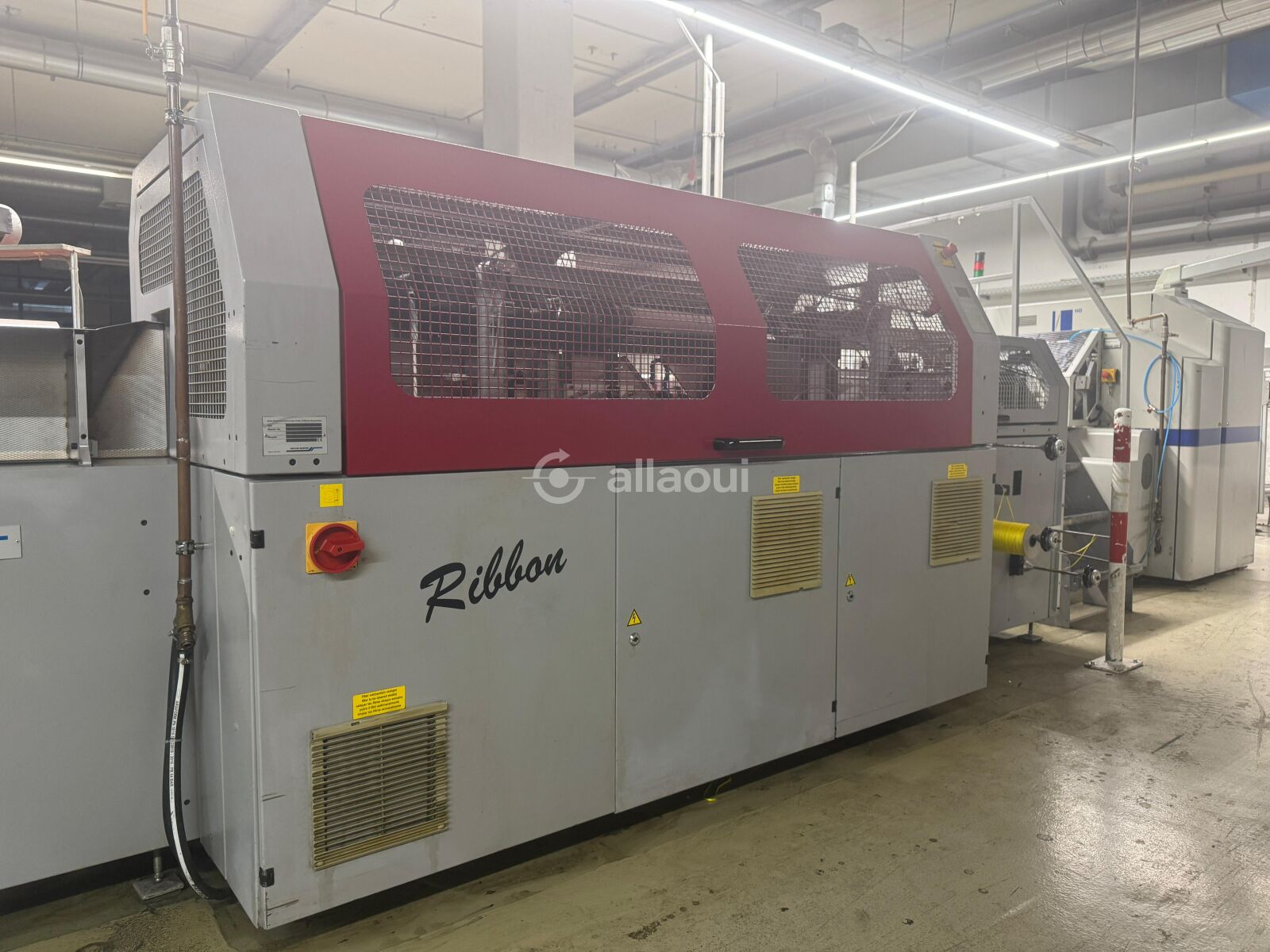

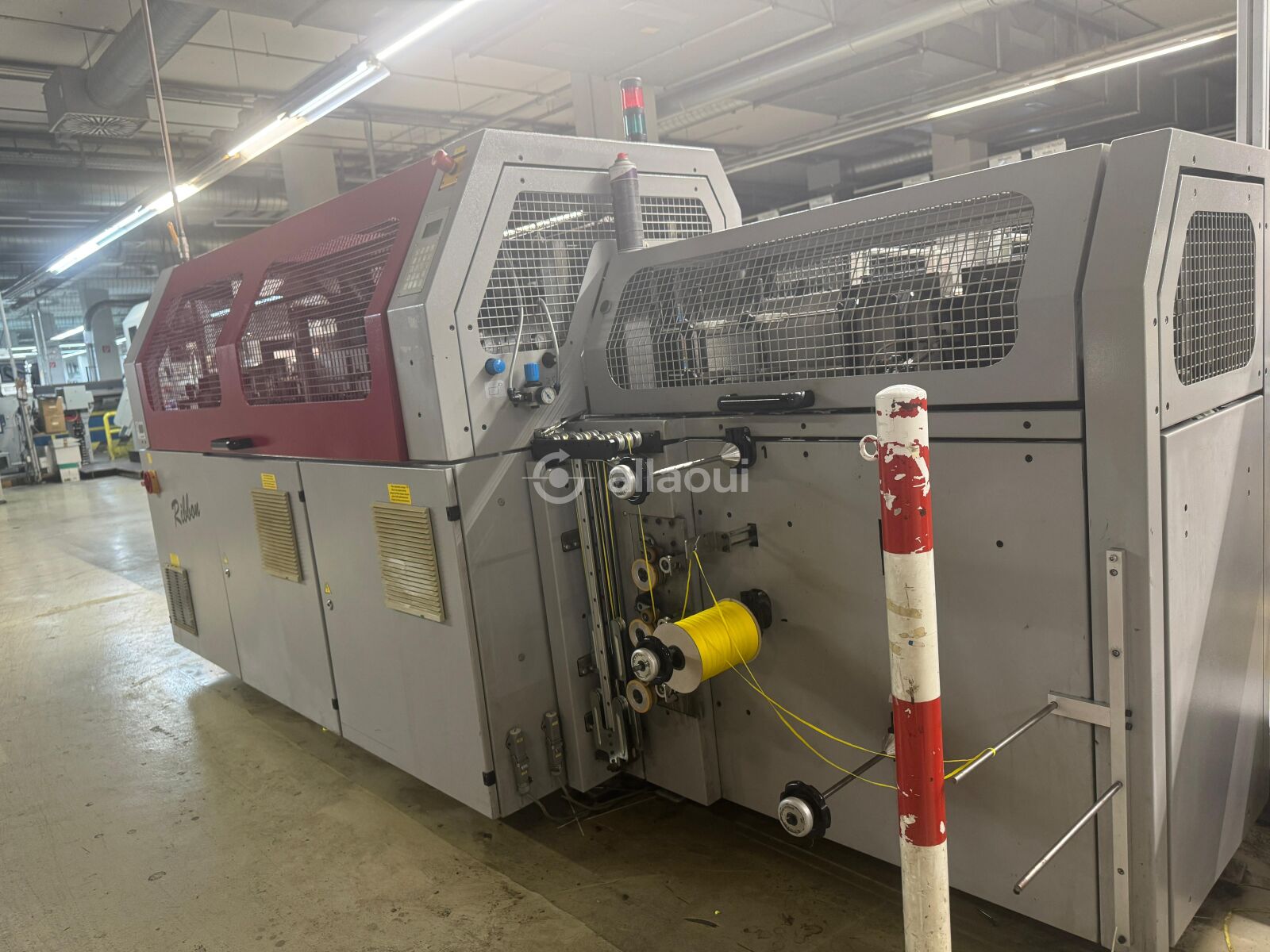

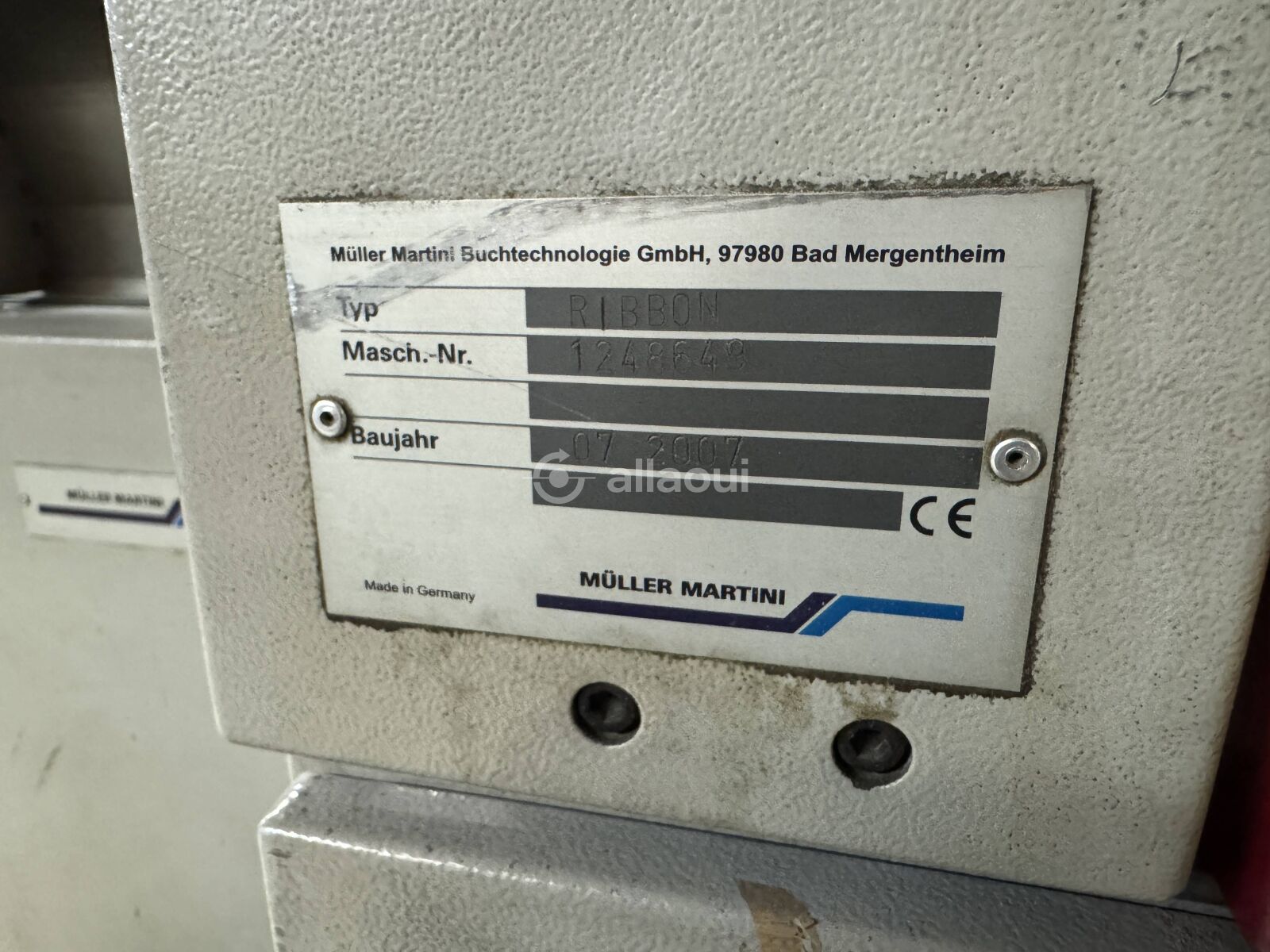

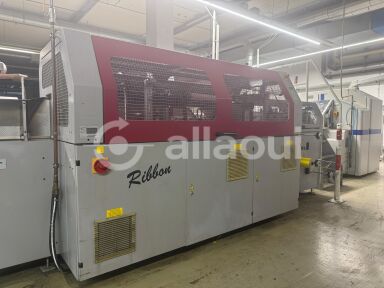

Ribbon Inserter

  • Model: Müller Martini Ribbon
  • Year: 2007
  • Function: Ribbon suction and gluing device

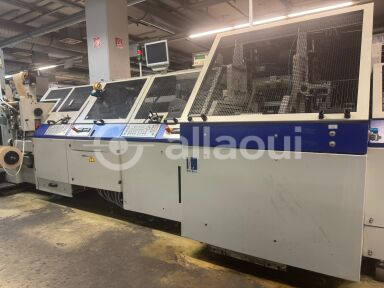

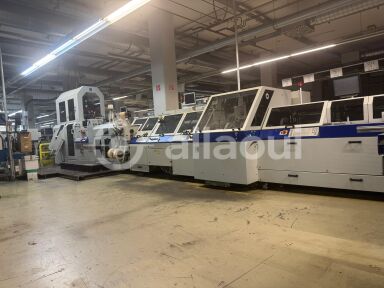

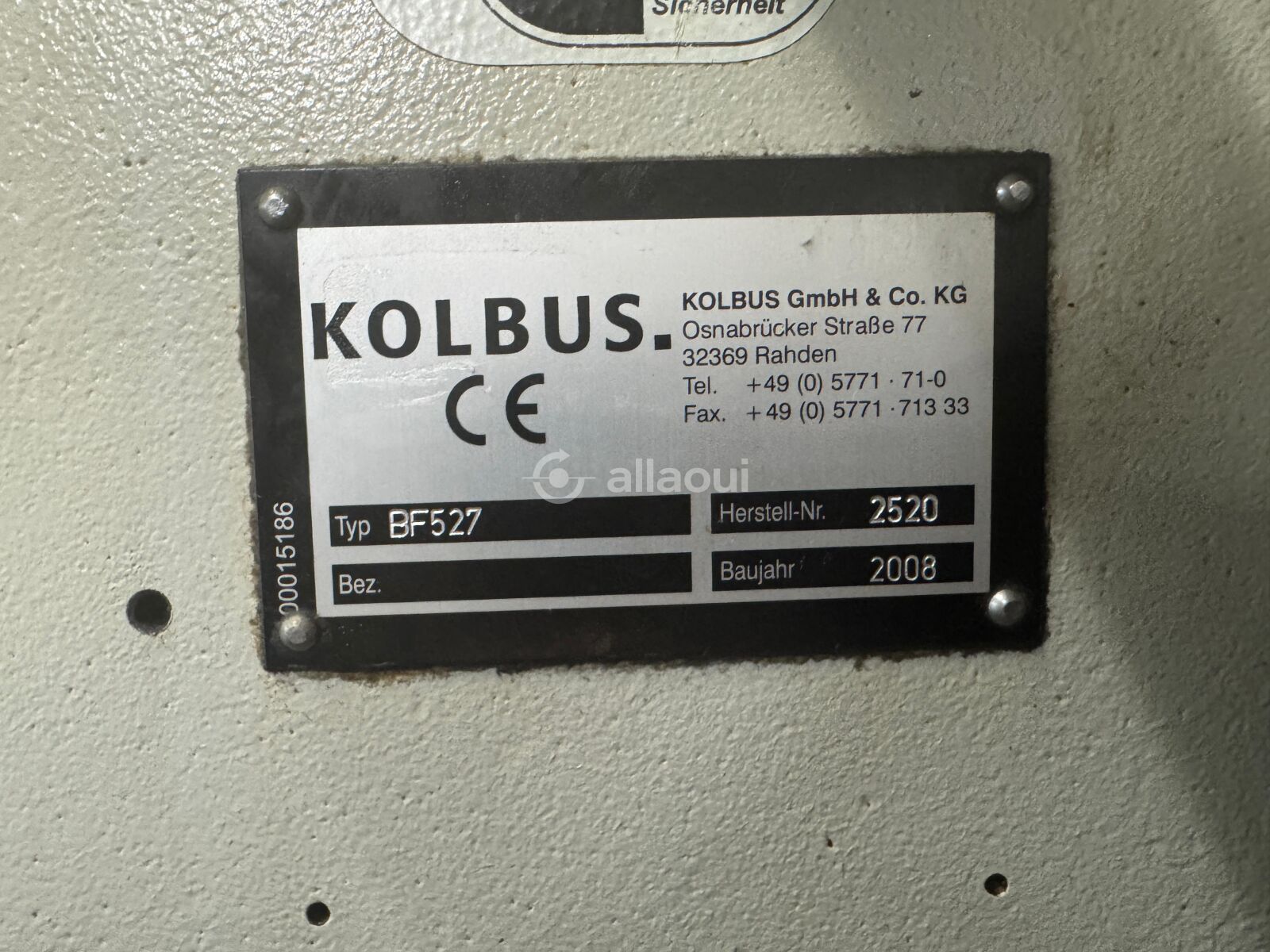

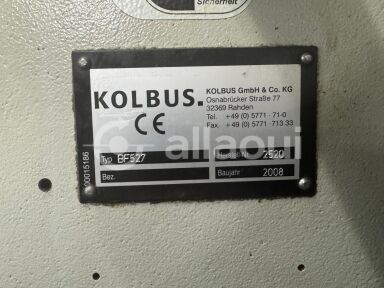

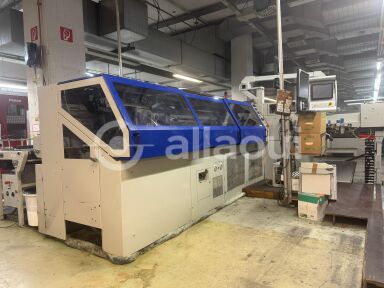

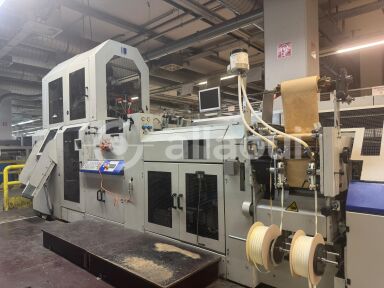

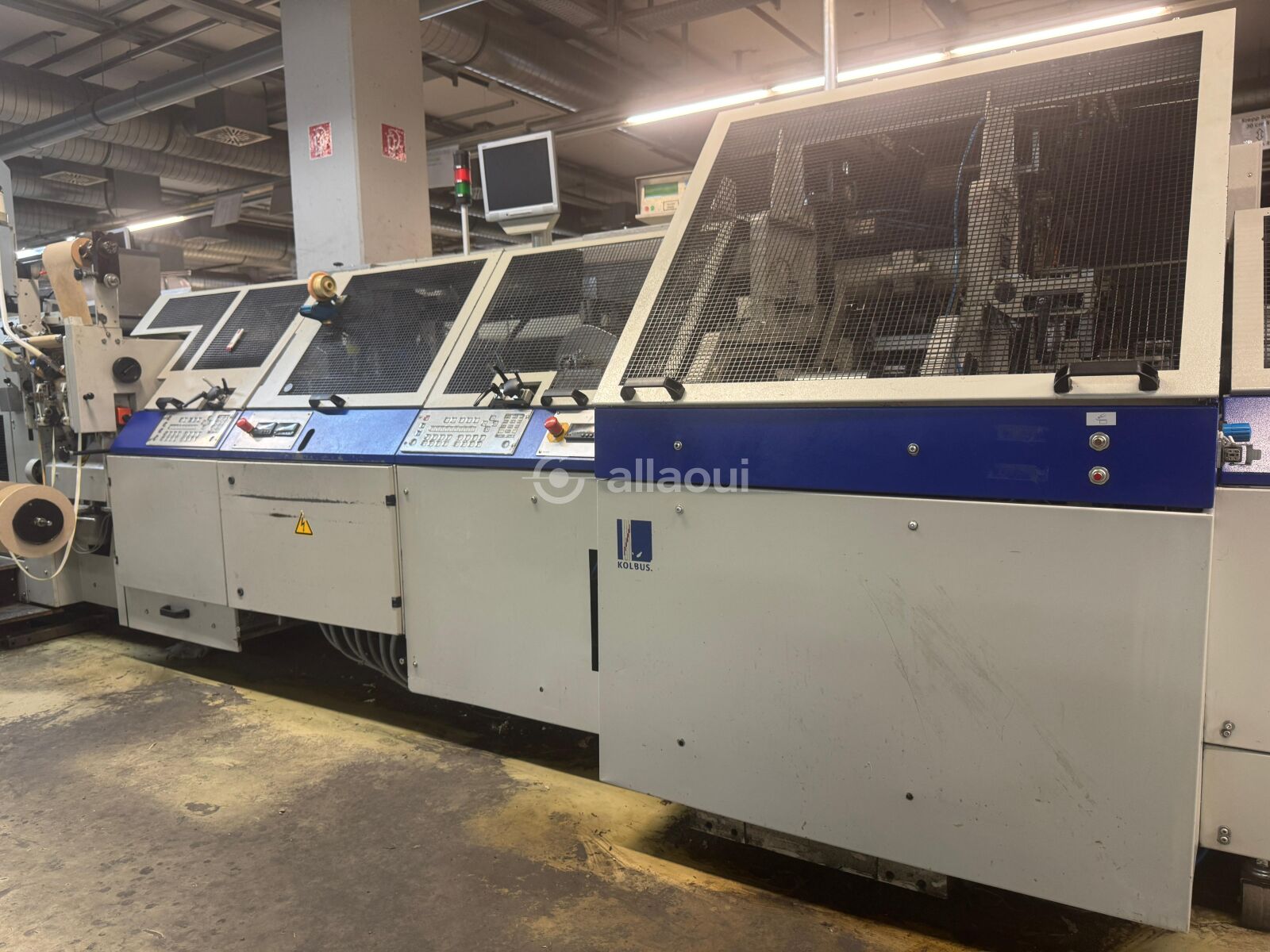

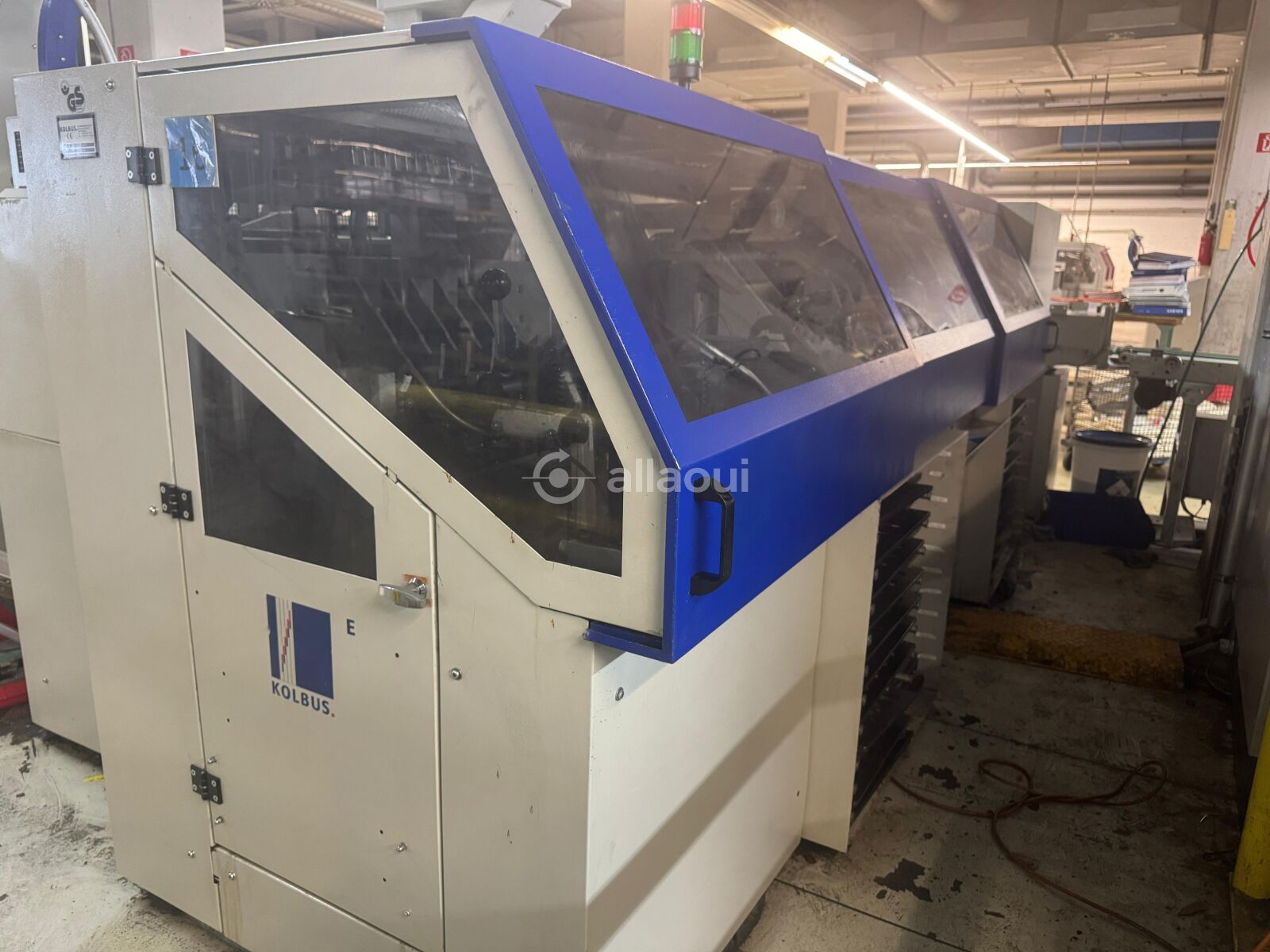

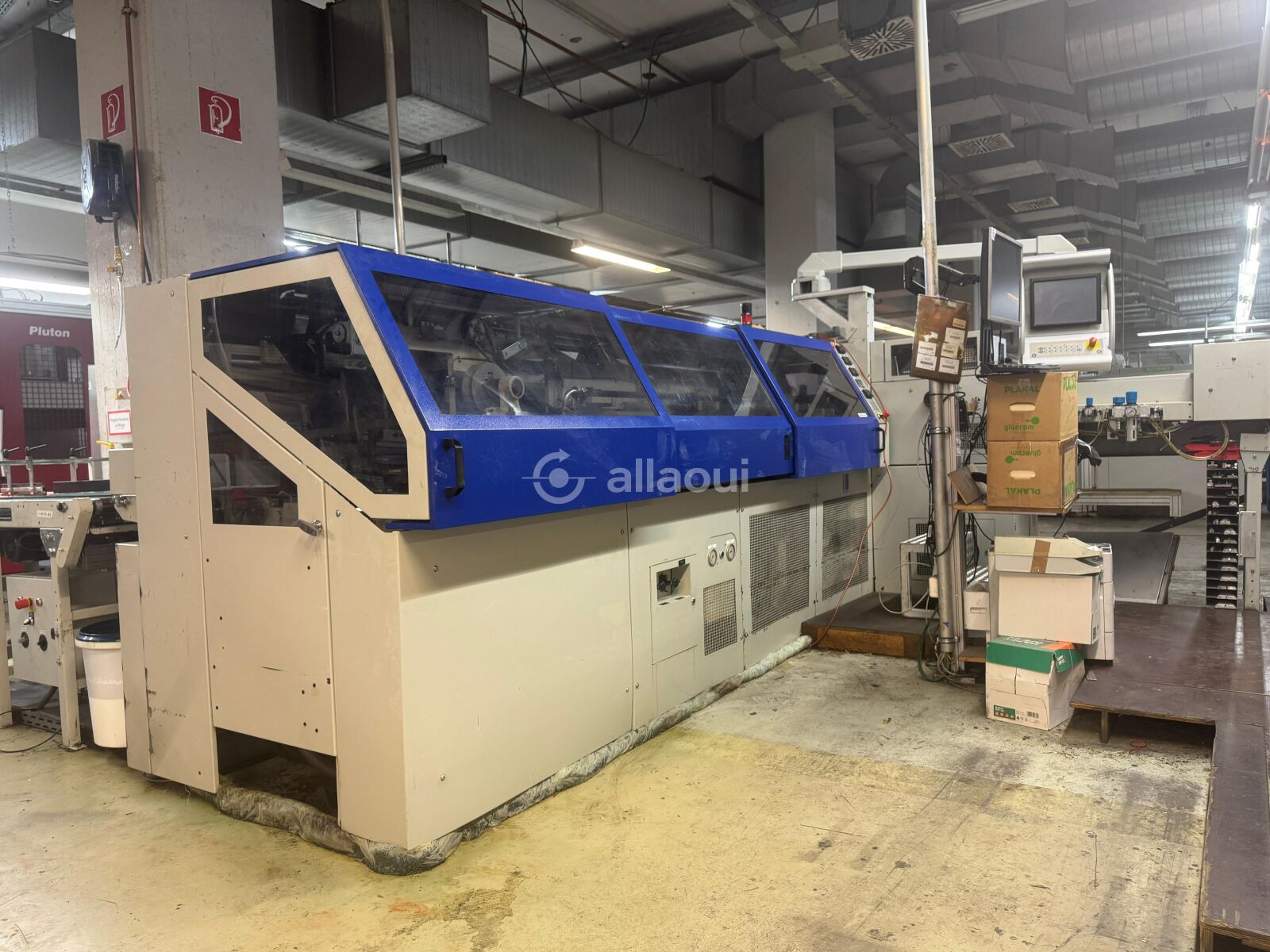

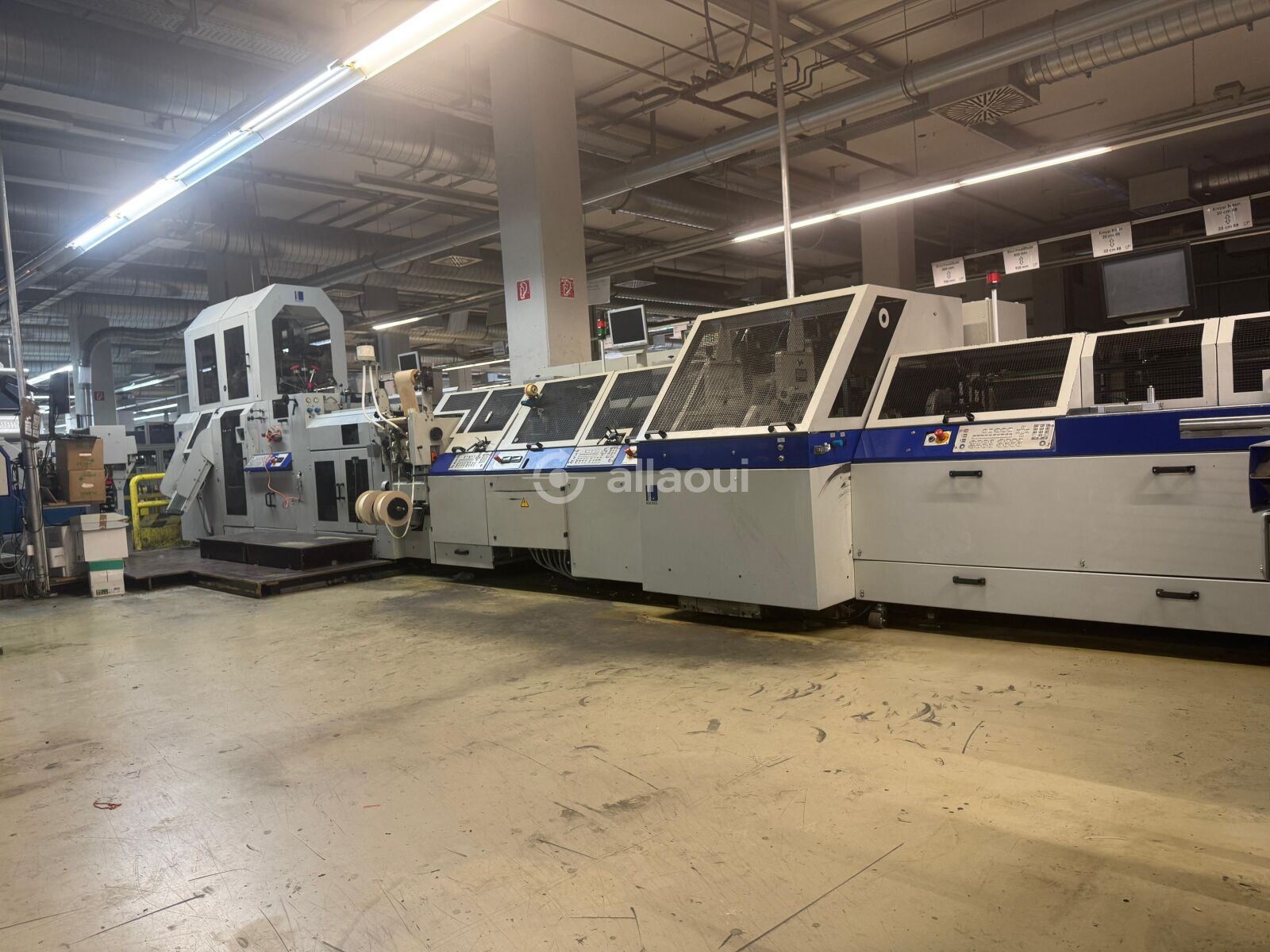

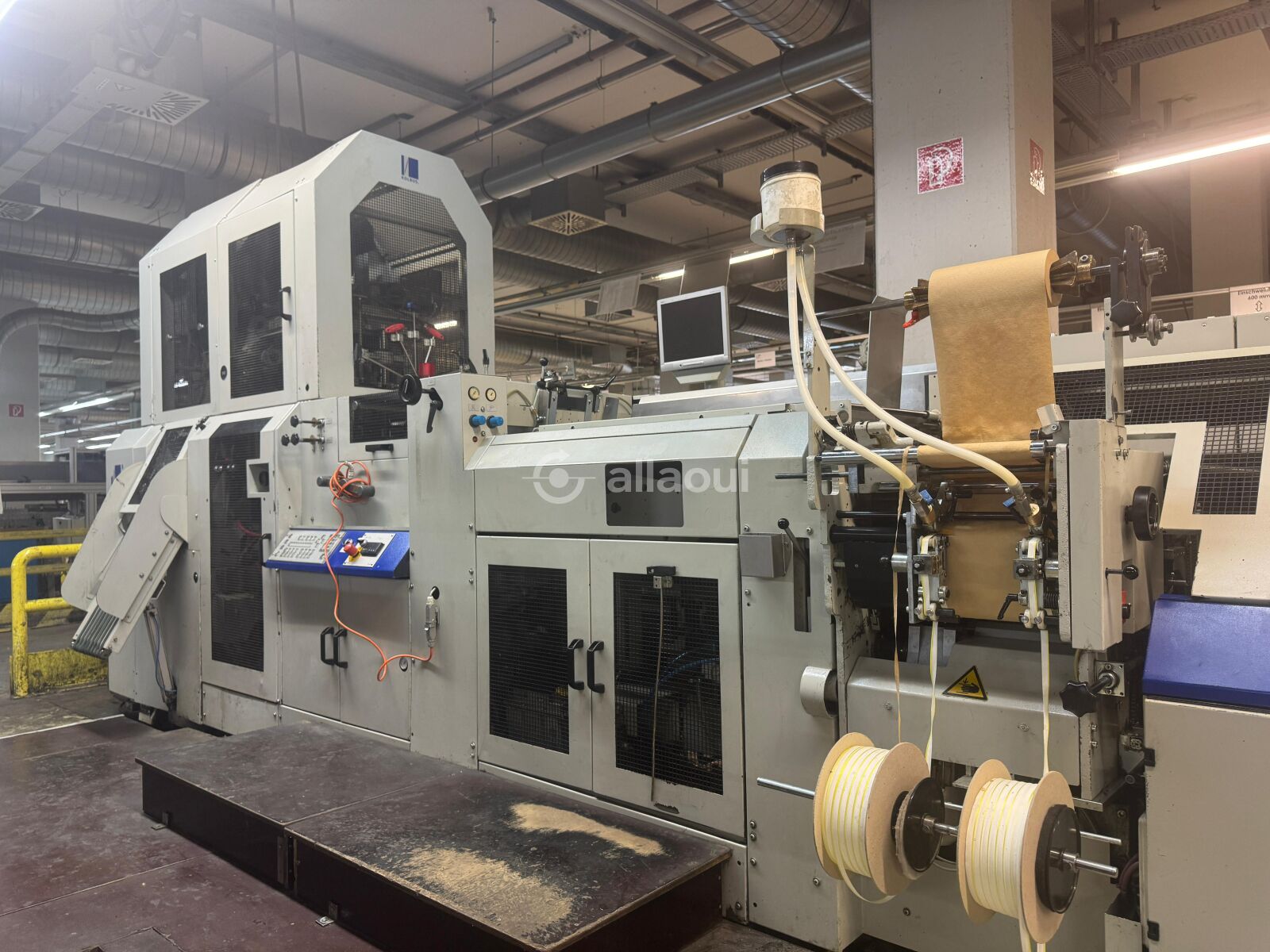

Casing-In Line

  • Model: Kolbus BF 527 Compact
  • Year: 2008
  • Control: Copilot system with touchscreen display, PLC control
  • Frame: 5-station frame
  • Block Infeed: Telescopic infeed conveyor from the left with gate and star feeder (8-point star)
  • Block Spine Heating: Hot air heating in infeed area for adhesive-bound and hotmelt-glued blocks
  • Block Detection: Spine and fore-edge detection via vacuum
  • Block Thickness Control: Automatic
  • Rounding and Backing Station: Included
  • Case Pre-stacking Conveyor: Included
  • Case Bending Machine: Automatic
  • Case Forming Station: With counter-holder
  • Case Magazine: Included
  • Edge and Bottom Divider: For bible paper and gilt edges
  • Book Gripper: With additional pressing station
  • Drive: Infinitely variable frequency-controlled drive
  • Lubrication: Automatic central lubrication system
  • Delivery Conveyor: 1,280 mm length

Station Configuration

  • Station 1: Back gluing unit with circulation, glue roller set, additional roller for straight-back blocks 20–55 mm thickness, premelter with automatic glue supply
  • Station 2: Without gauze station
  • Station 3: Back gluing unit with circulation, glue roller set, additional roller for straight-back blocks 20–55 mm thickness, premelter with automatic glue supply
  • Station 4: Backlining and headbanding station
  • Station 5: Pressing station with Teflon belt and integrated foam pressing element

Additional Features

  • Ribbon gluing device (for pre-inserted ribbons)
  • Viscosity control device for 2 back gluing units (automatic water supply for consistent glue viscosity)
  • Small format capability (min. block width 70 mm, min. block height 100 mm, block thickness 2–30 mm)
  • Electrical connection for upstream conveyor control

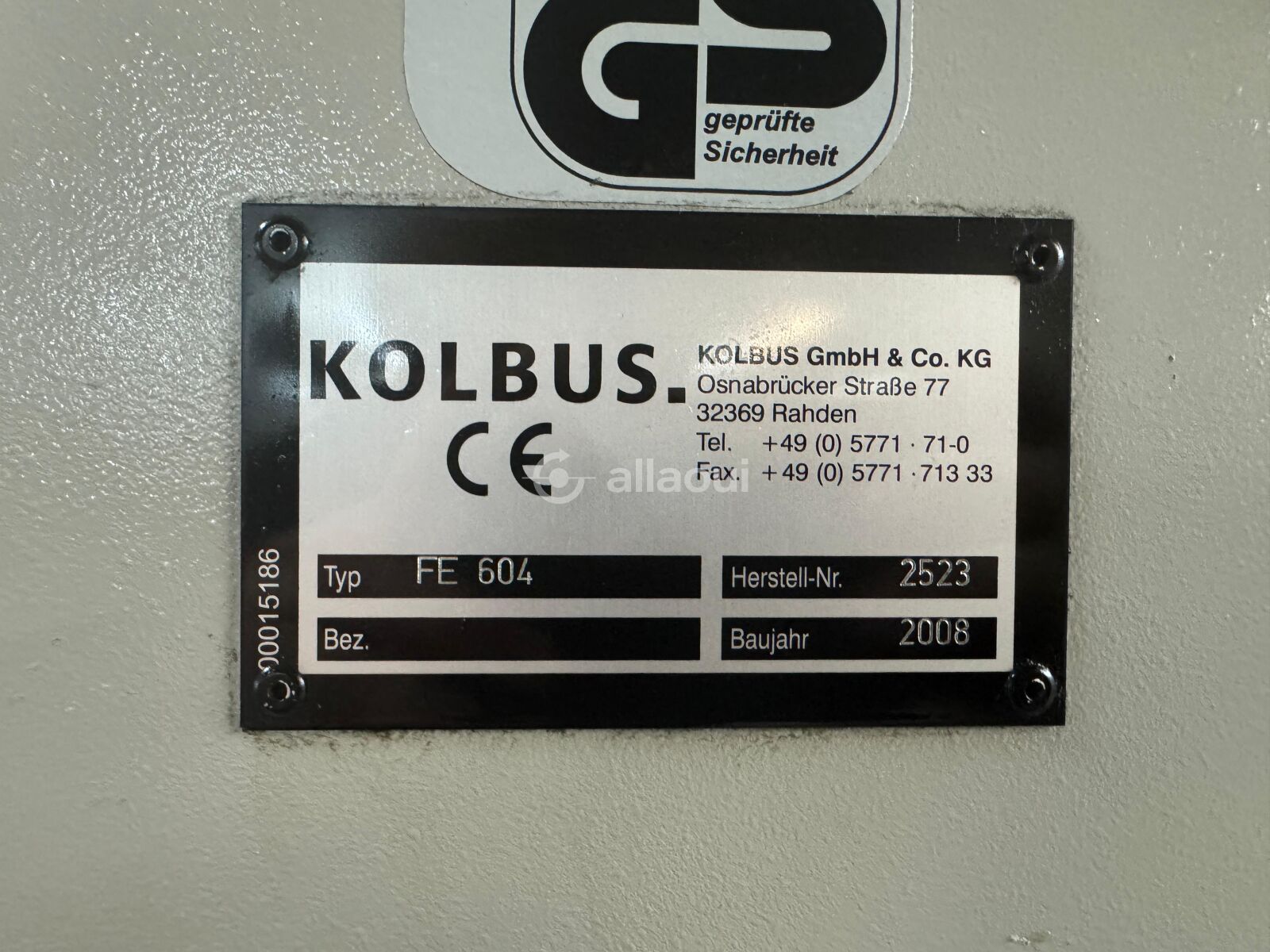

Book Forming Press

  • Model: Kolbus FE 604
  • Year: 2008
  • Control: Copilot system with touchscreen display, PLC control
  • Infeed: Left-hand infeed
  • Delivery: Right-hand delivery, books transported flat
  • Profile Form Bars: In infeed area for heavy, rounded books (retractable)
  • Groove Burning Rails: 5 pairs electrically heated (15° and 45° rails included), quick-change system
  • Cooling Rails: 1 pair
  • Pressing Stations: 2 stations (2nd station selectable 15 kN or 45 kN pressing force)
  • Form Bar: For 2 mm book blocks
  • Heating Monitoring: Included
  • Lubrication: Automatic central lubrication system

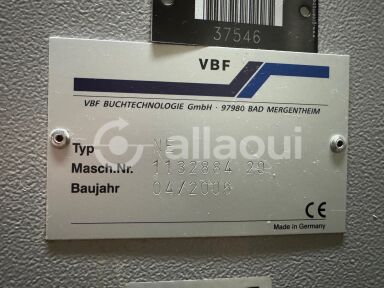

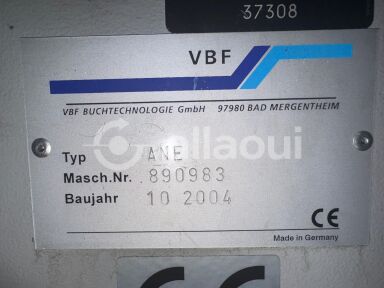

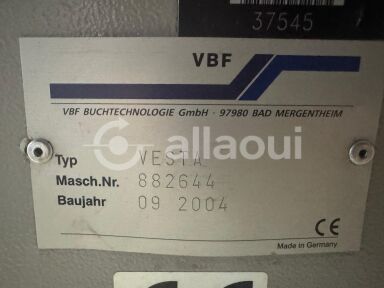

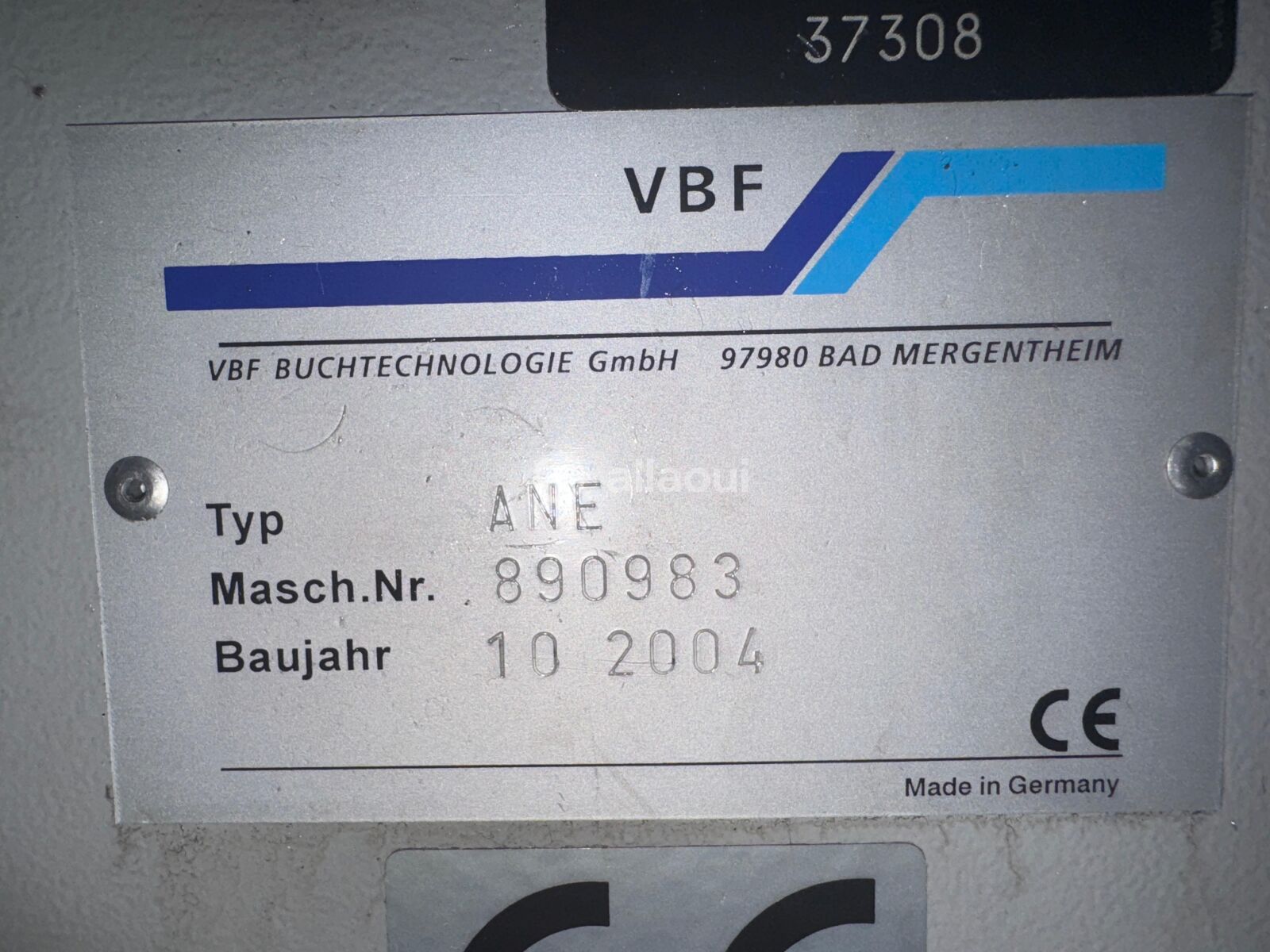

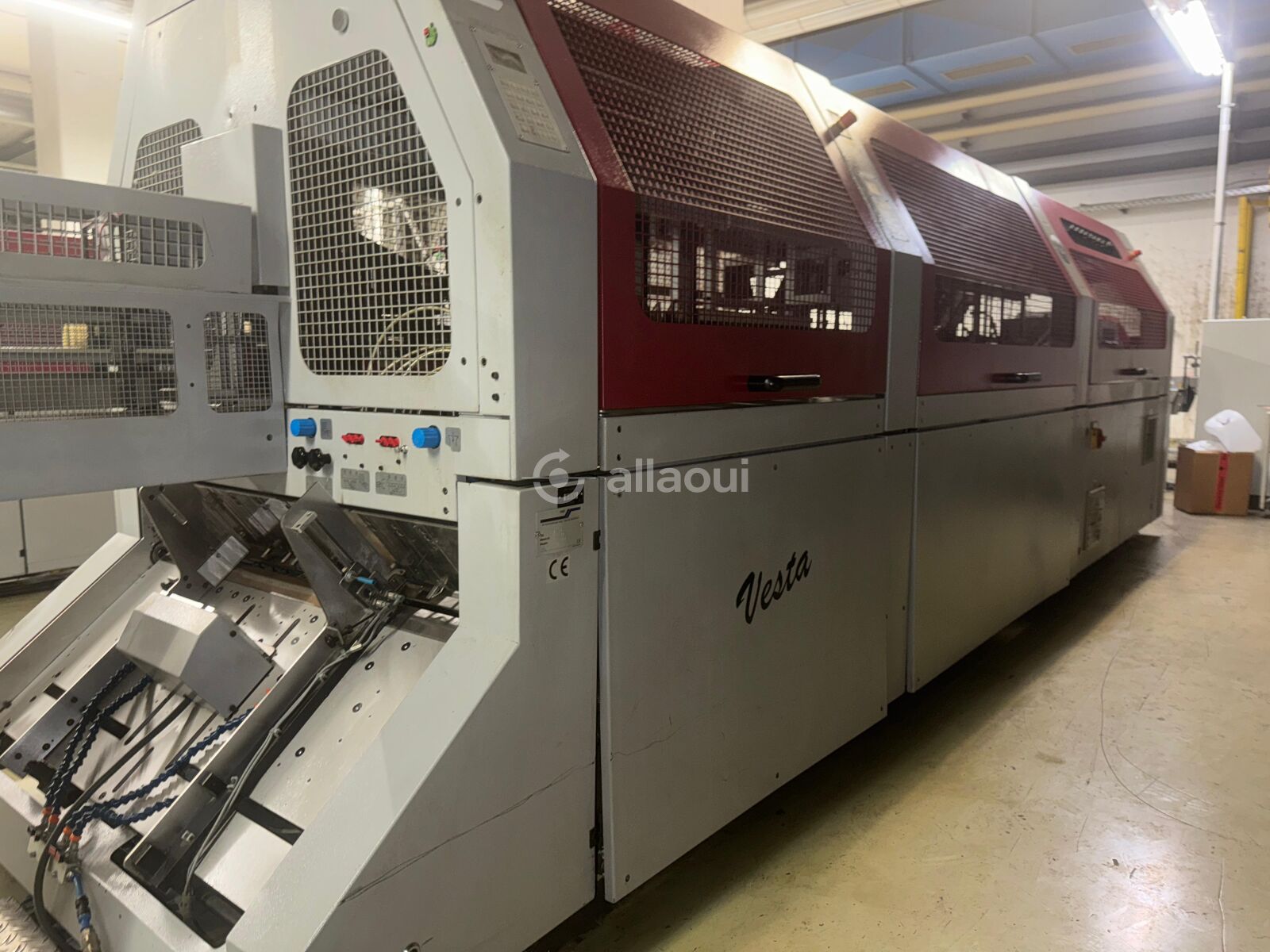

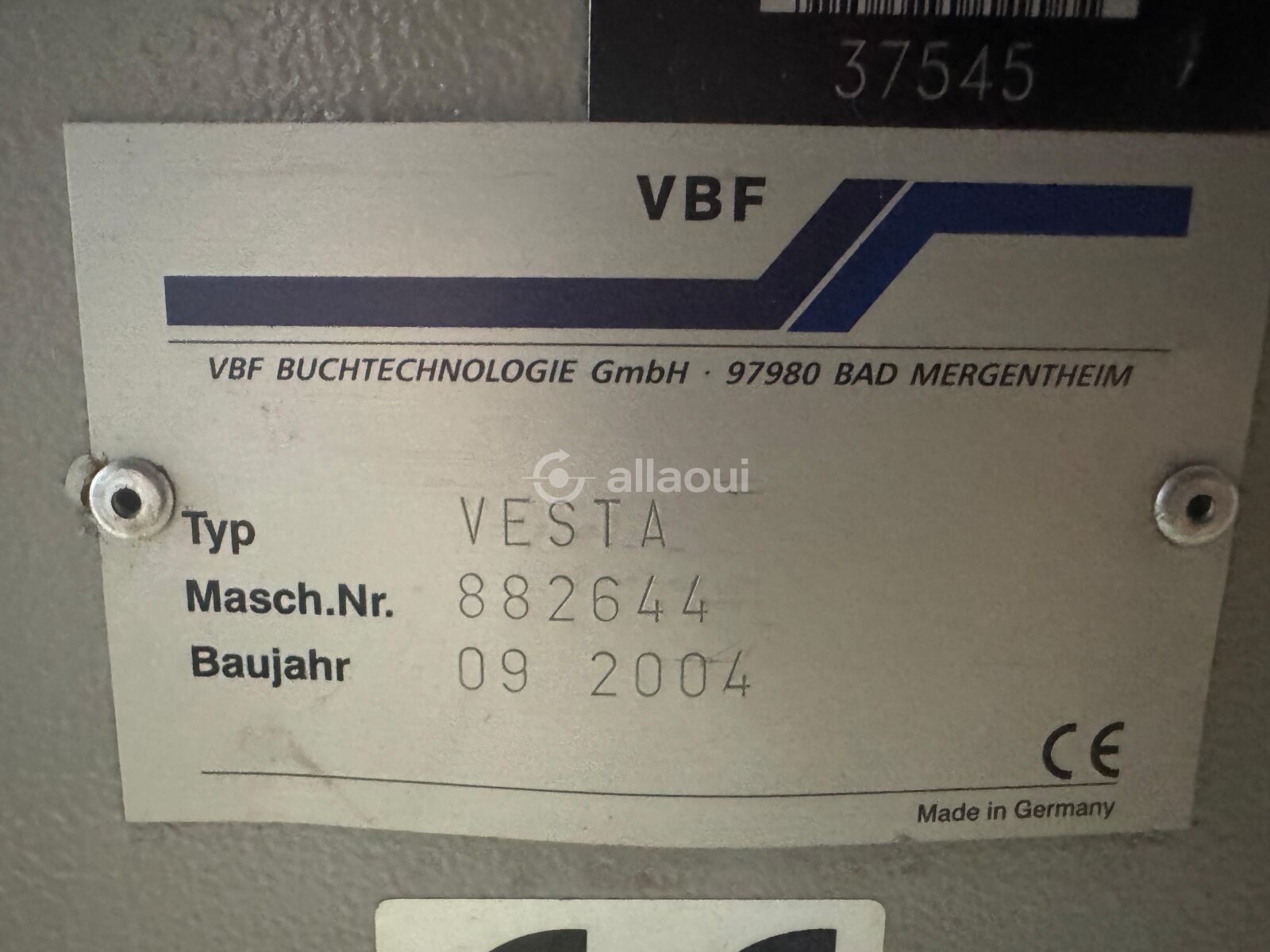

Jacketing Machine

  • Model: Müller Martini Vesta + ANE
  • Year: 2008

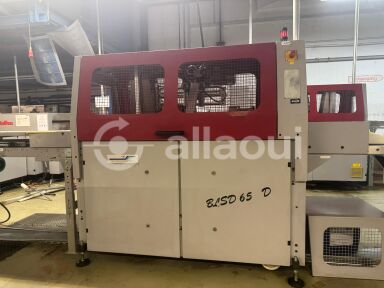

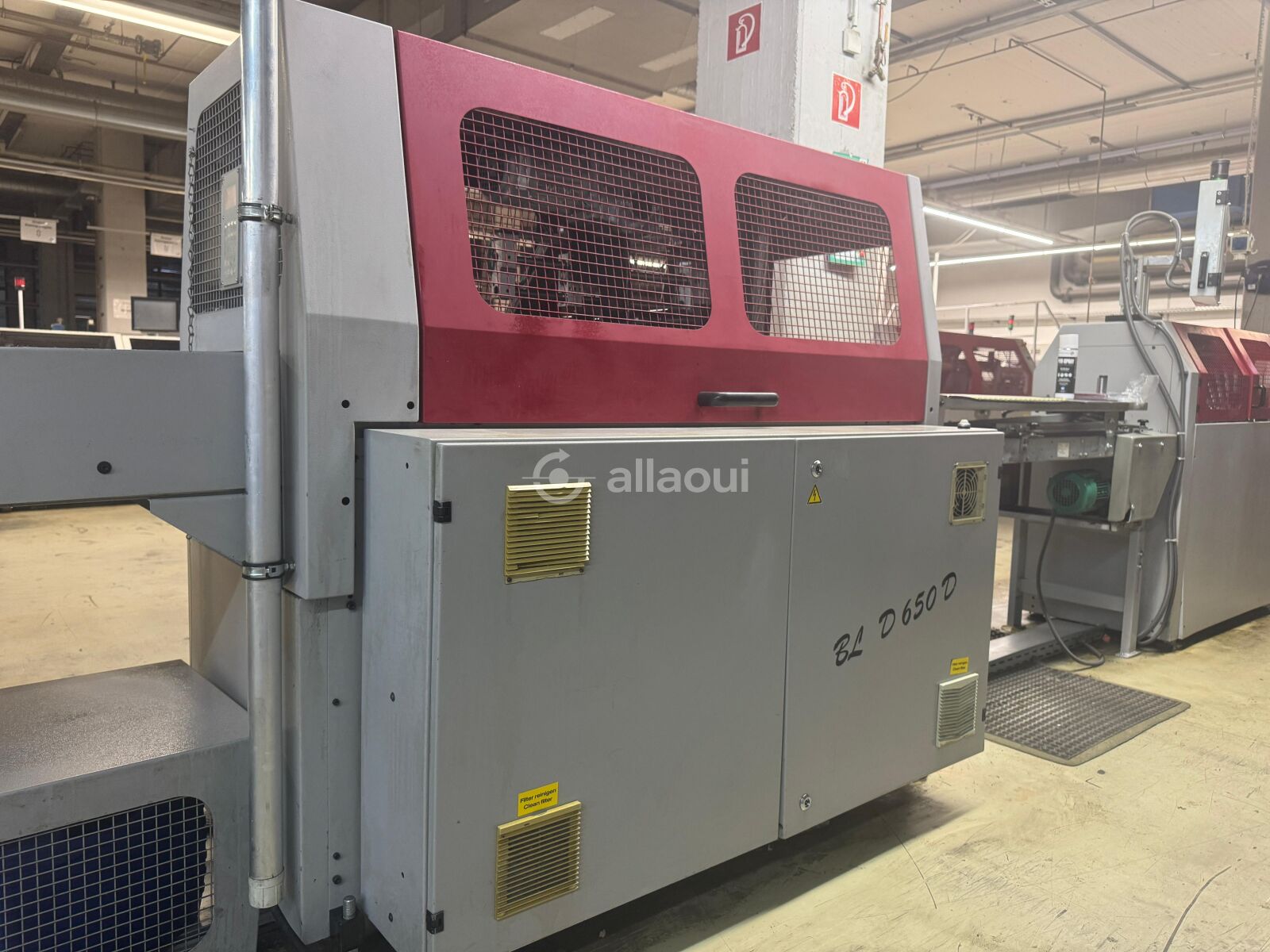

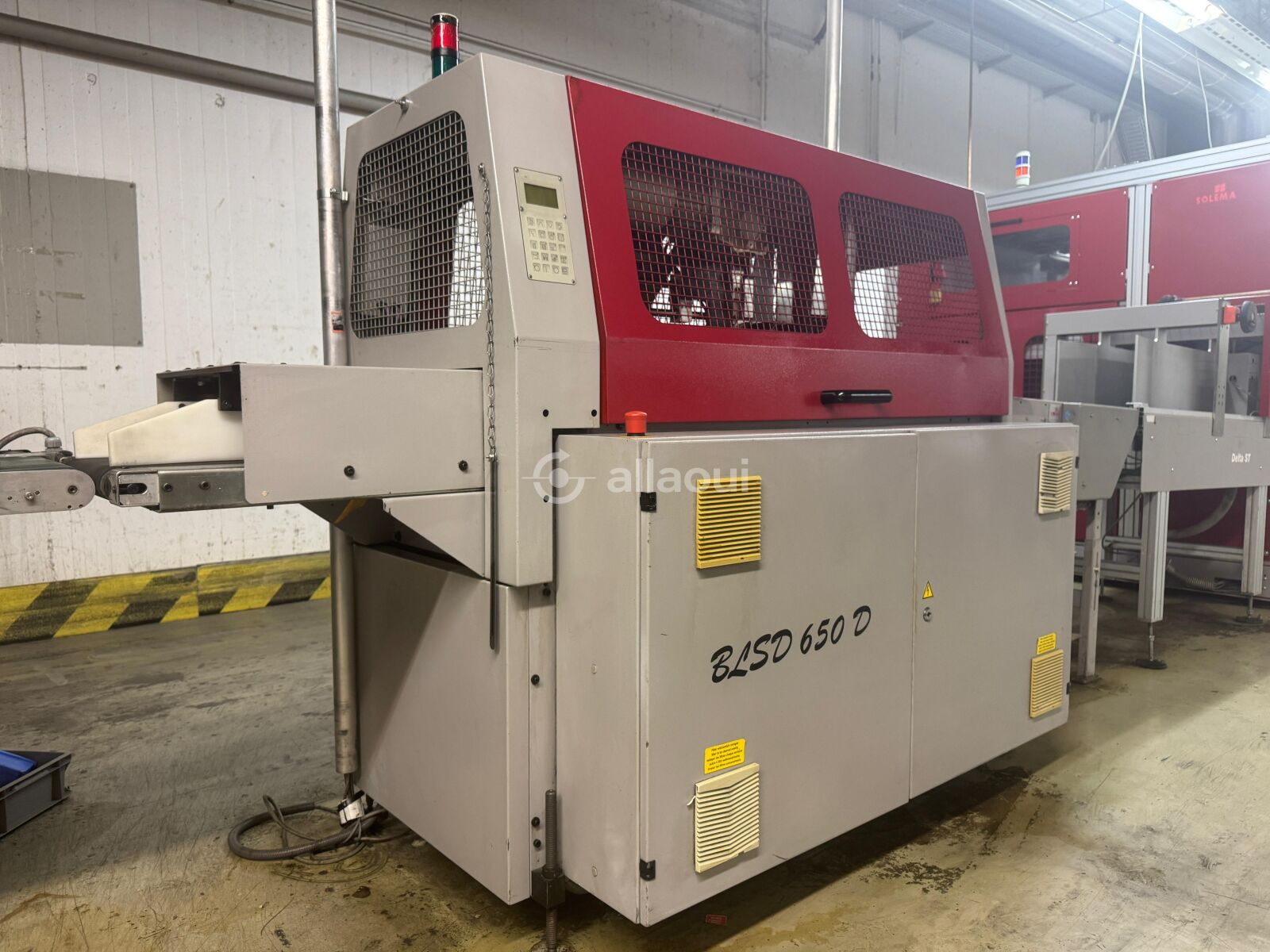

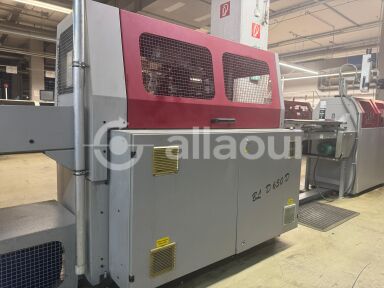

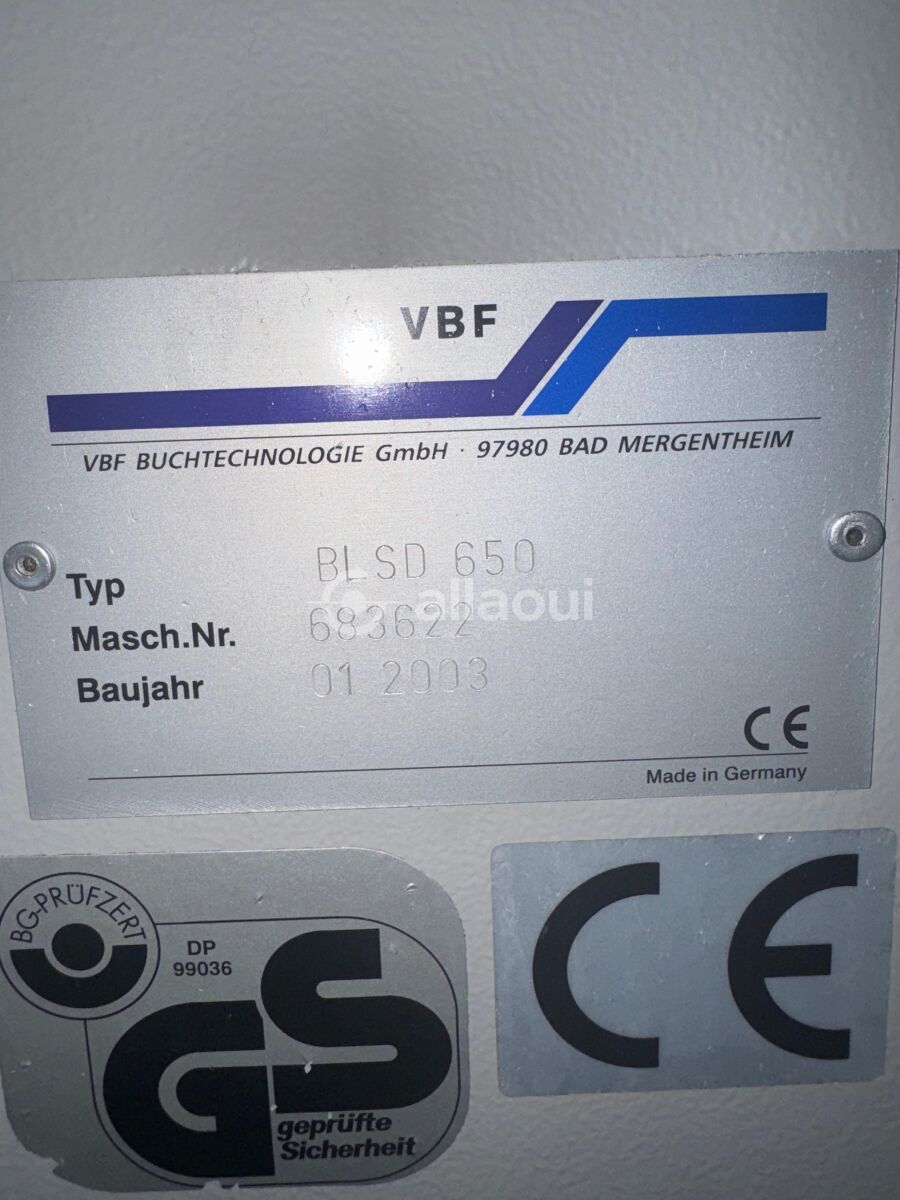

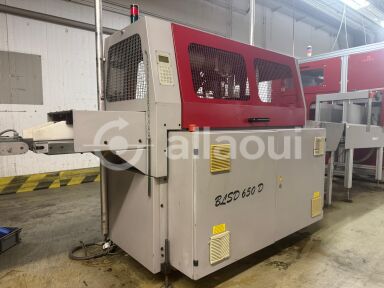

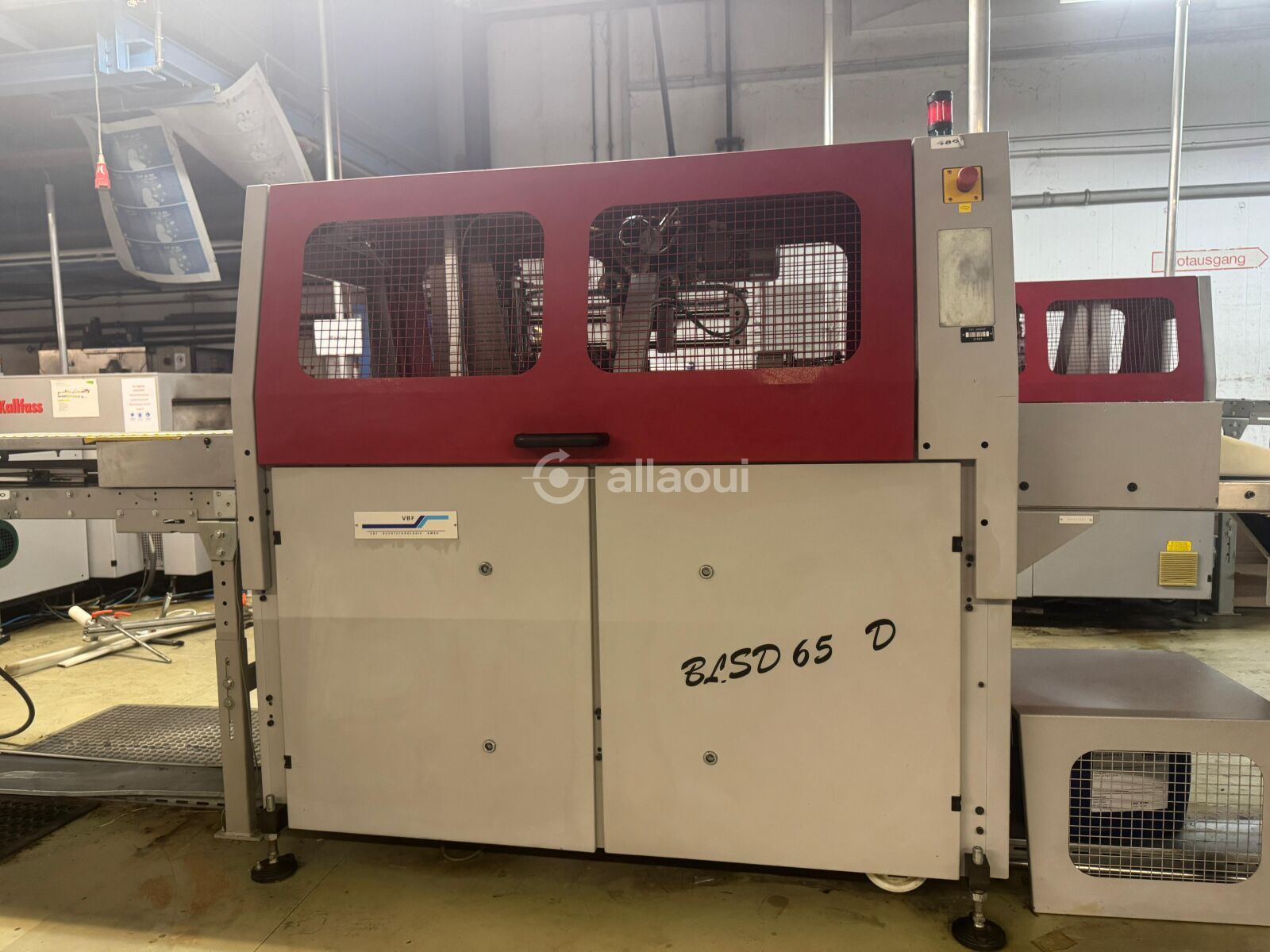

Stacker

  • Type: Belt Stacker
  • Model: 2 × Müller Martini BLSD 650
  • Year: 2003
  • Features: Infeed conveyor

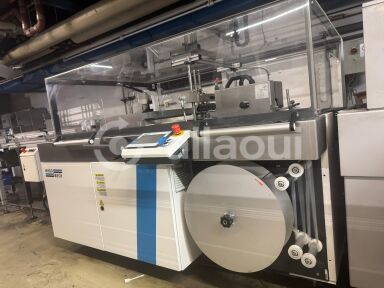

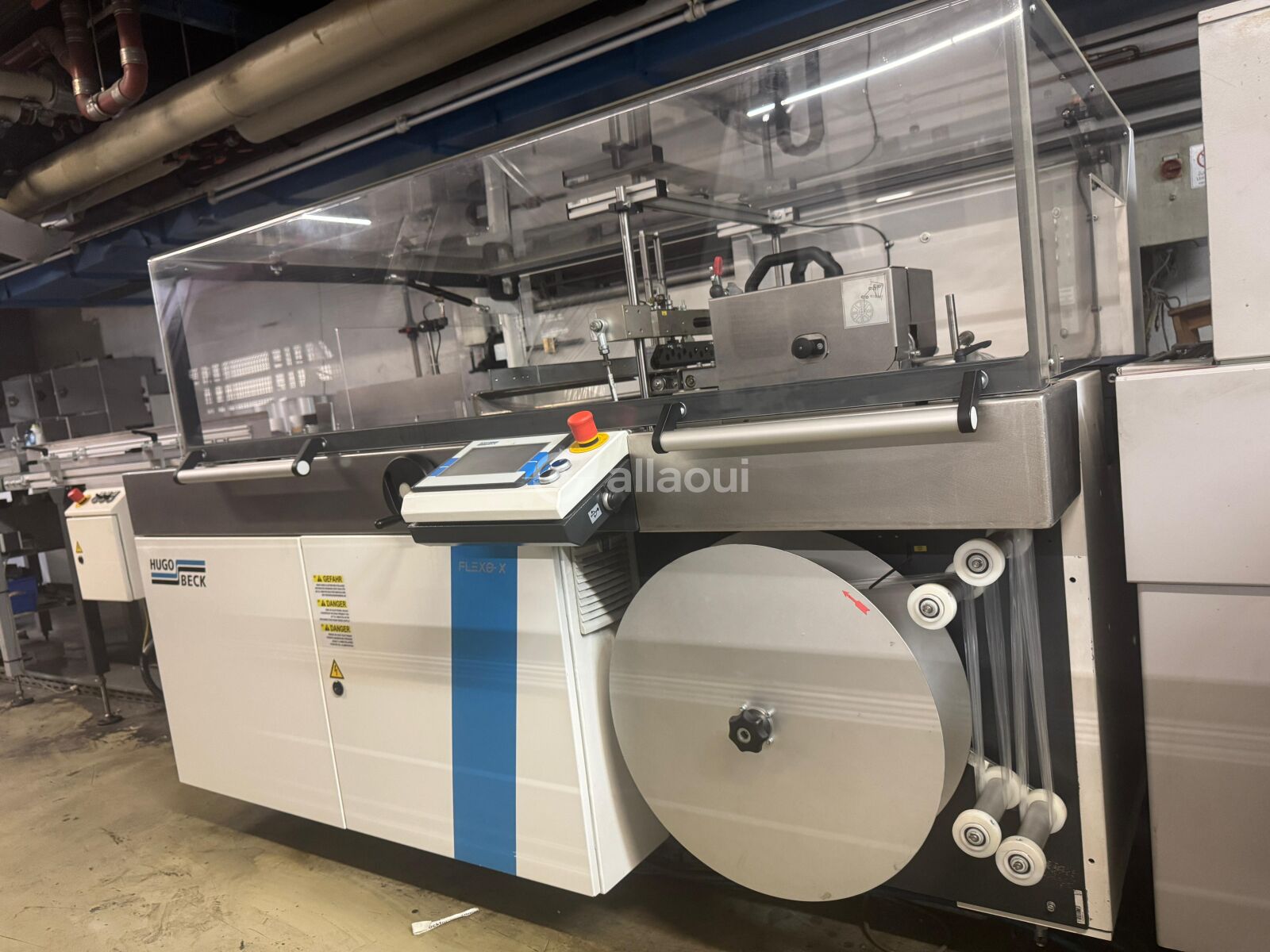

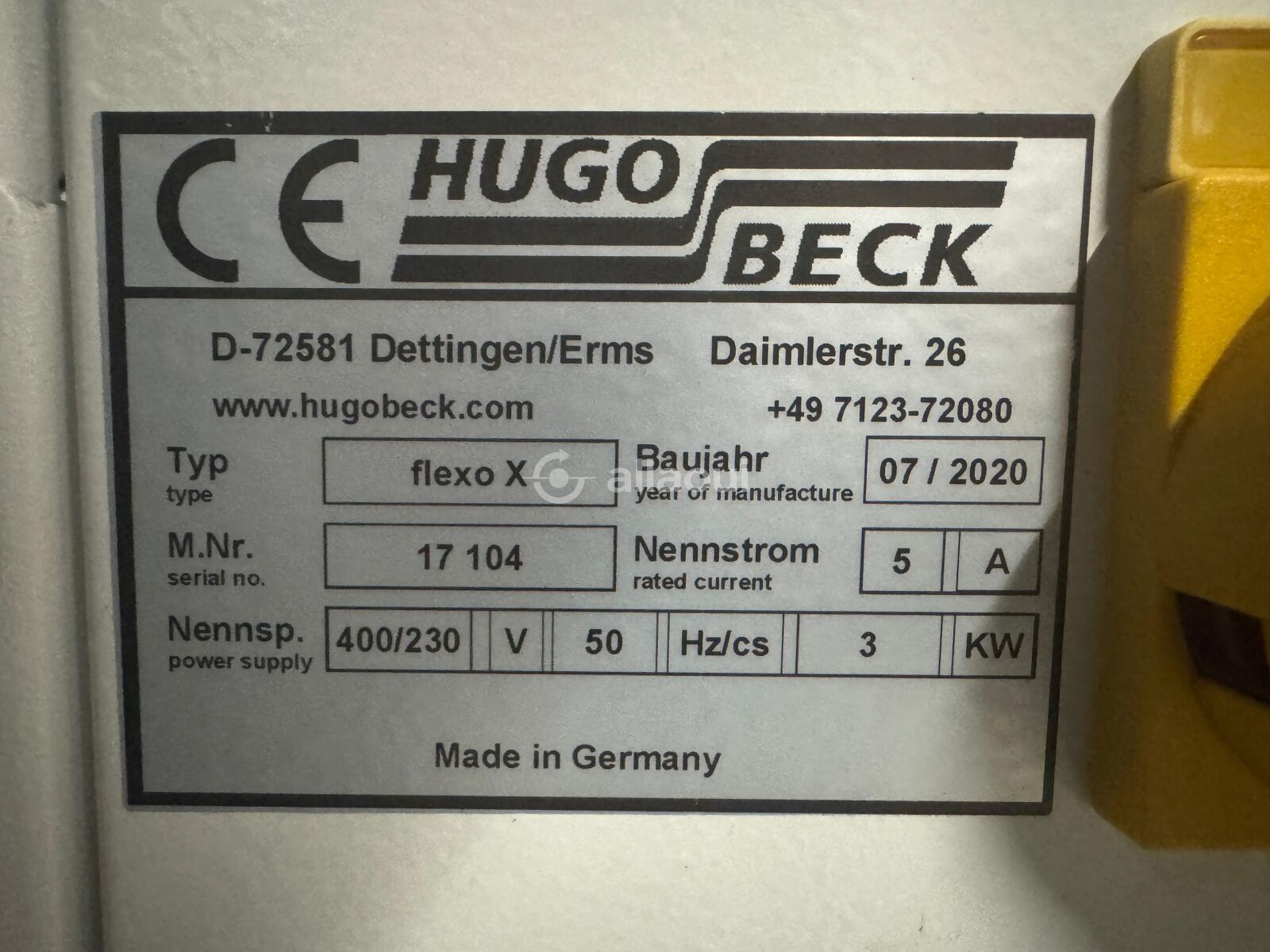

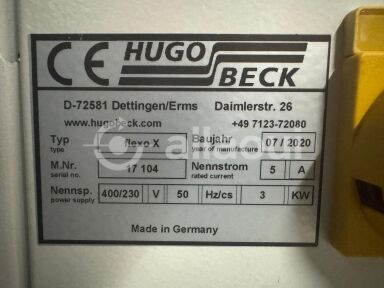

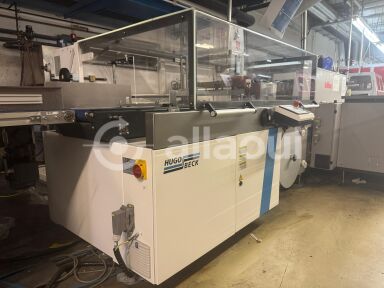

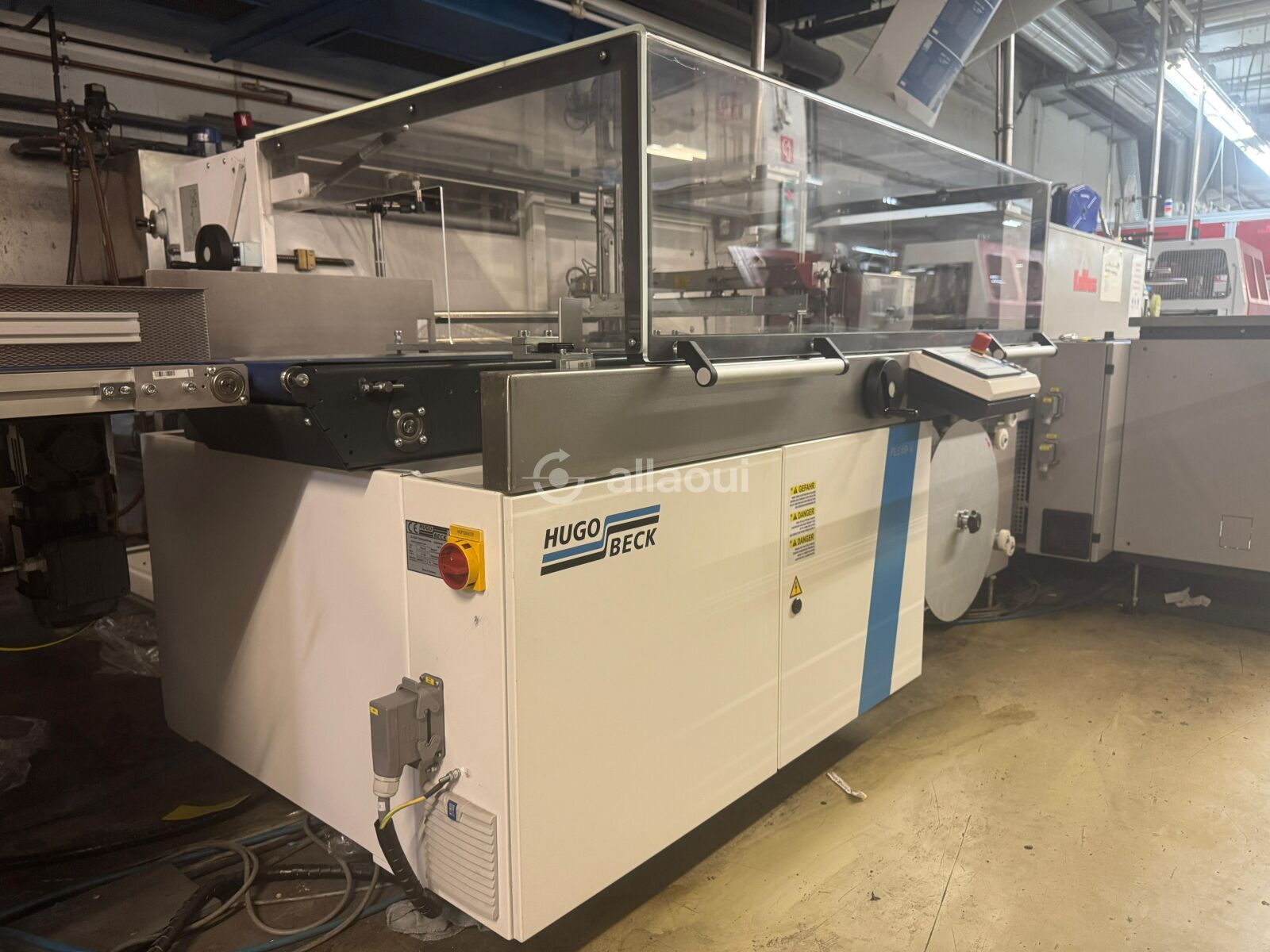

Foil Wrapping Machine

  • Model: Hugo Beck Flexo X
  • Year: 2020

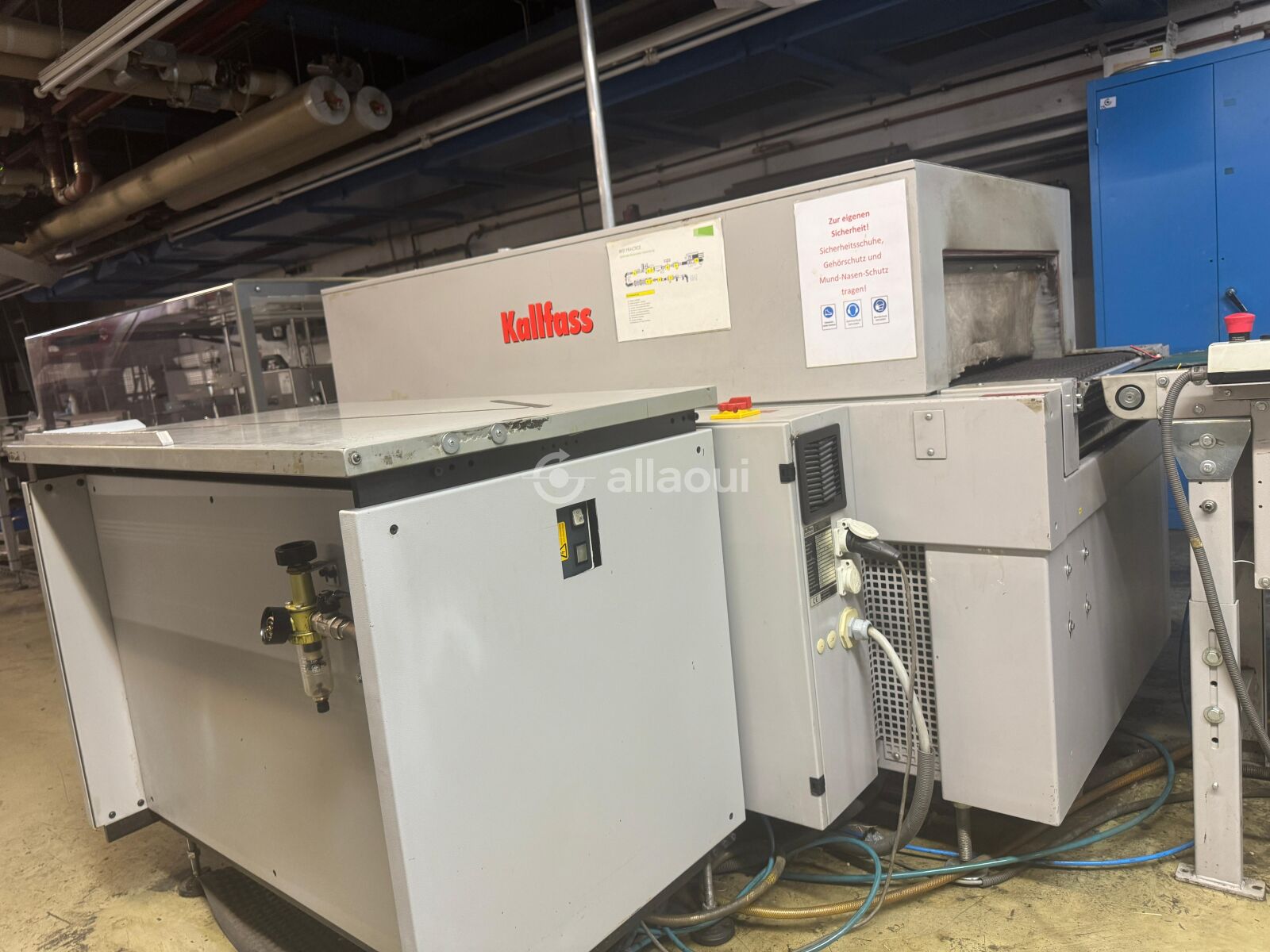

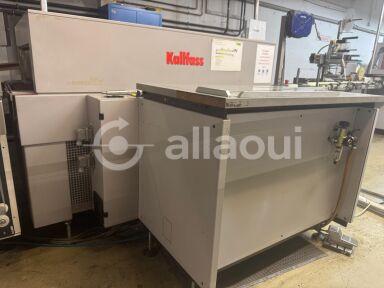

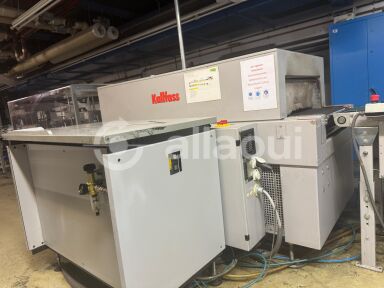

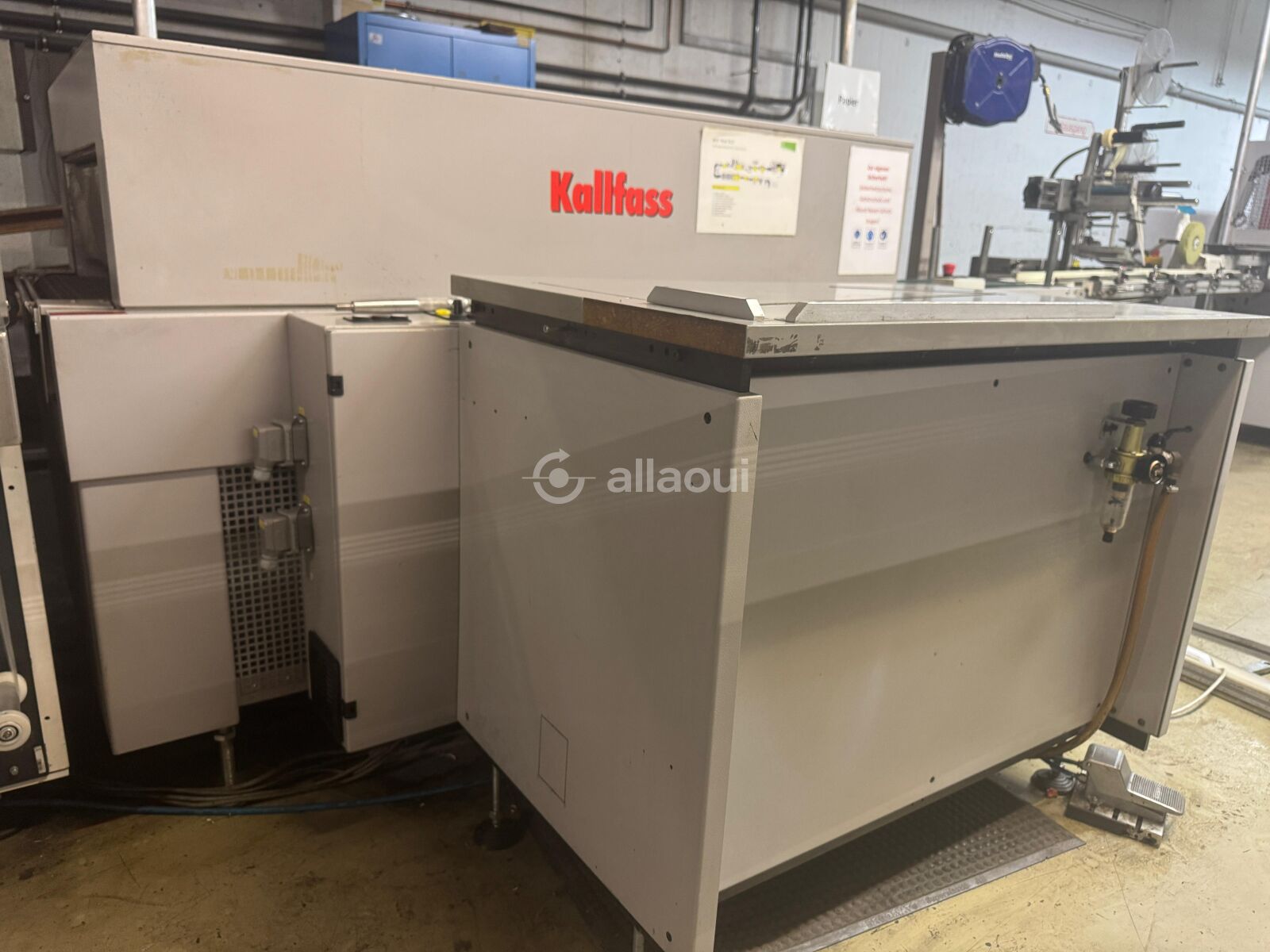

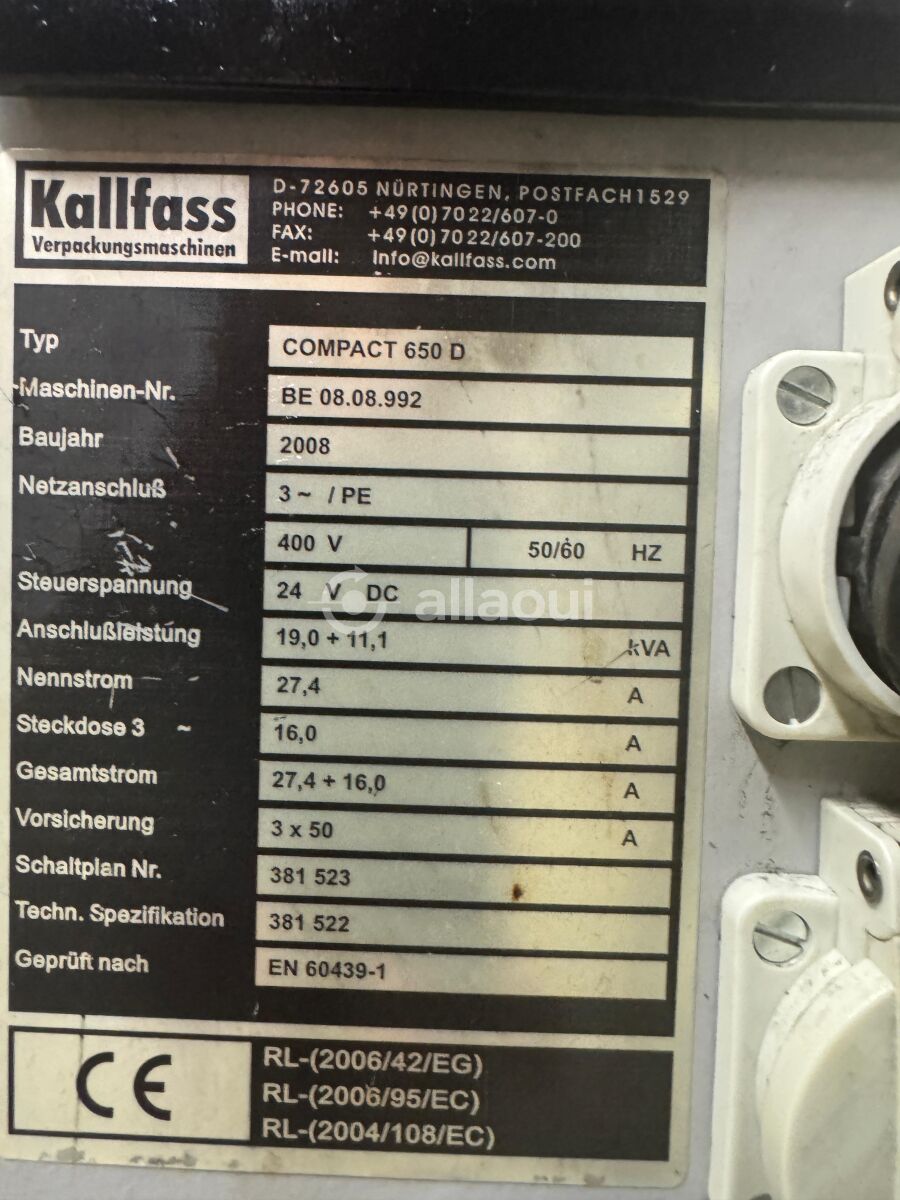

Shrink Tunnel

  • Model: Kalfass Compact 650 D

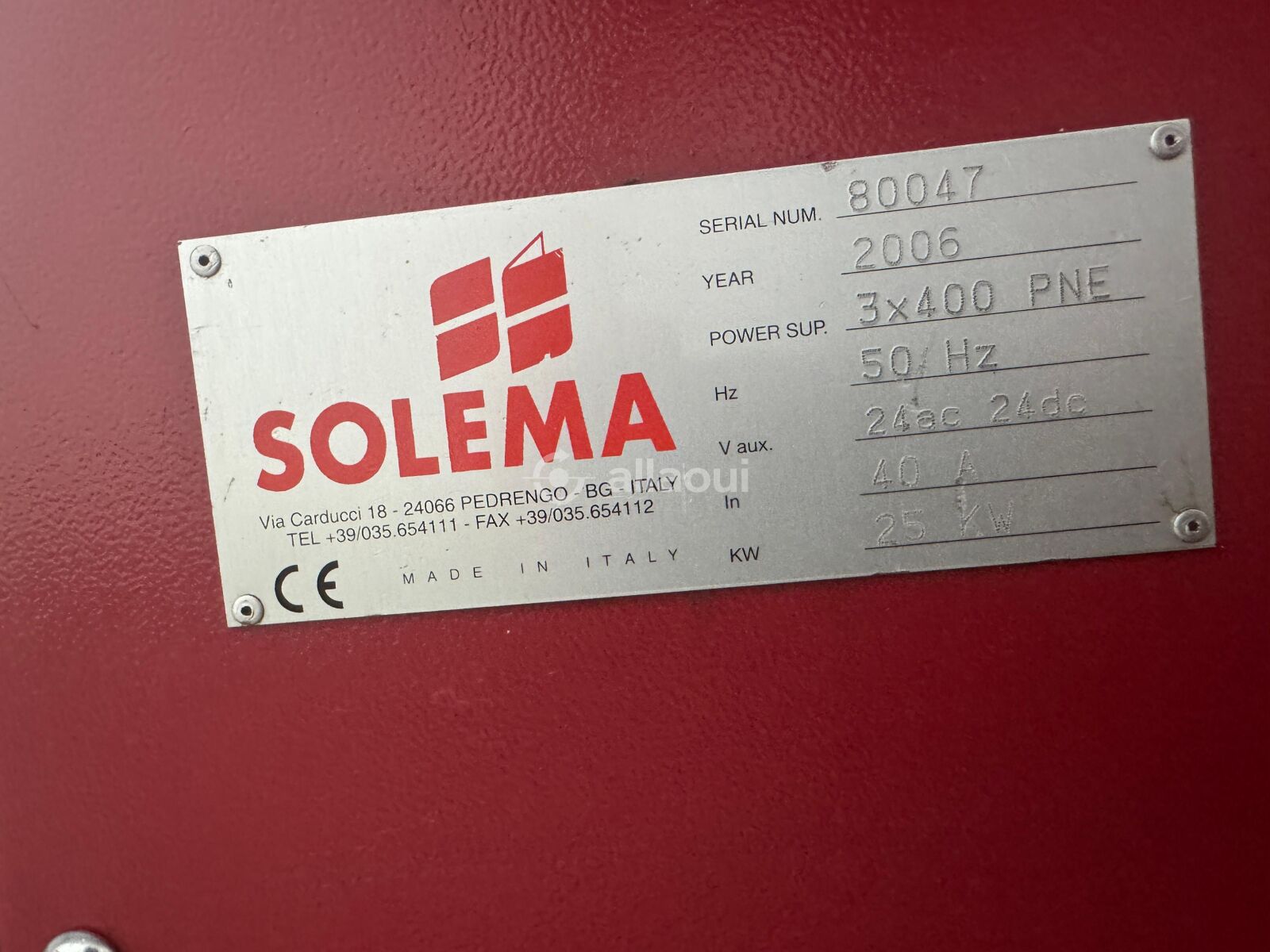

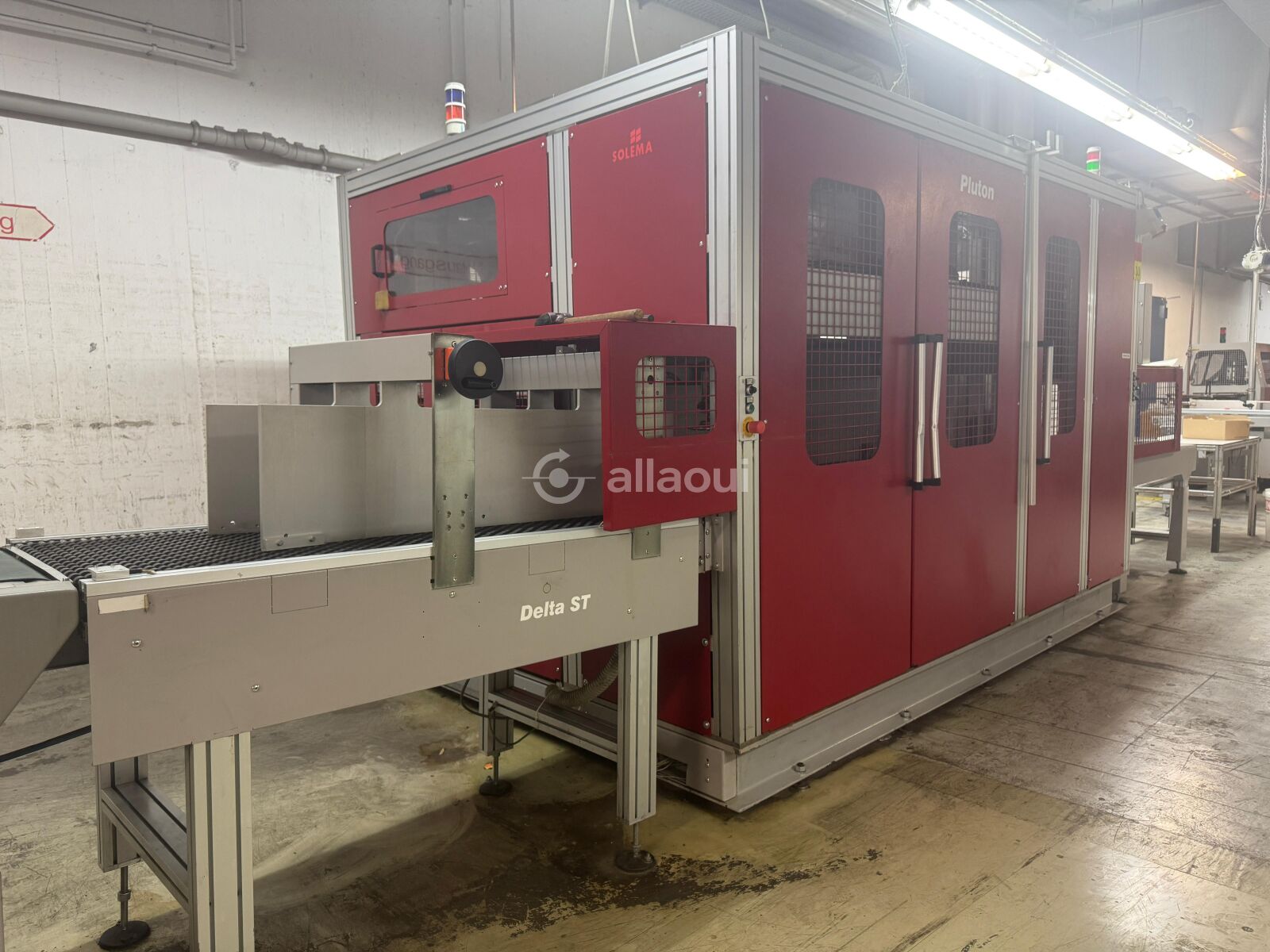

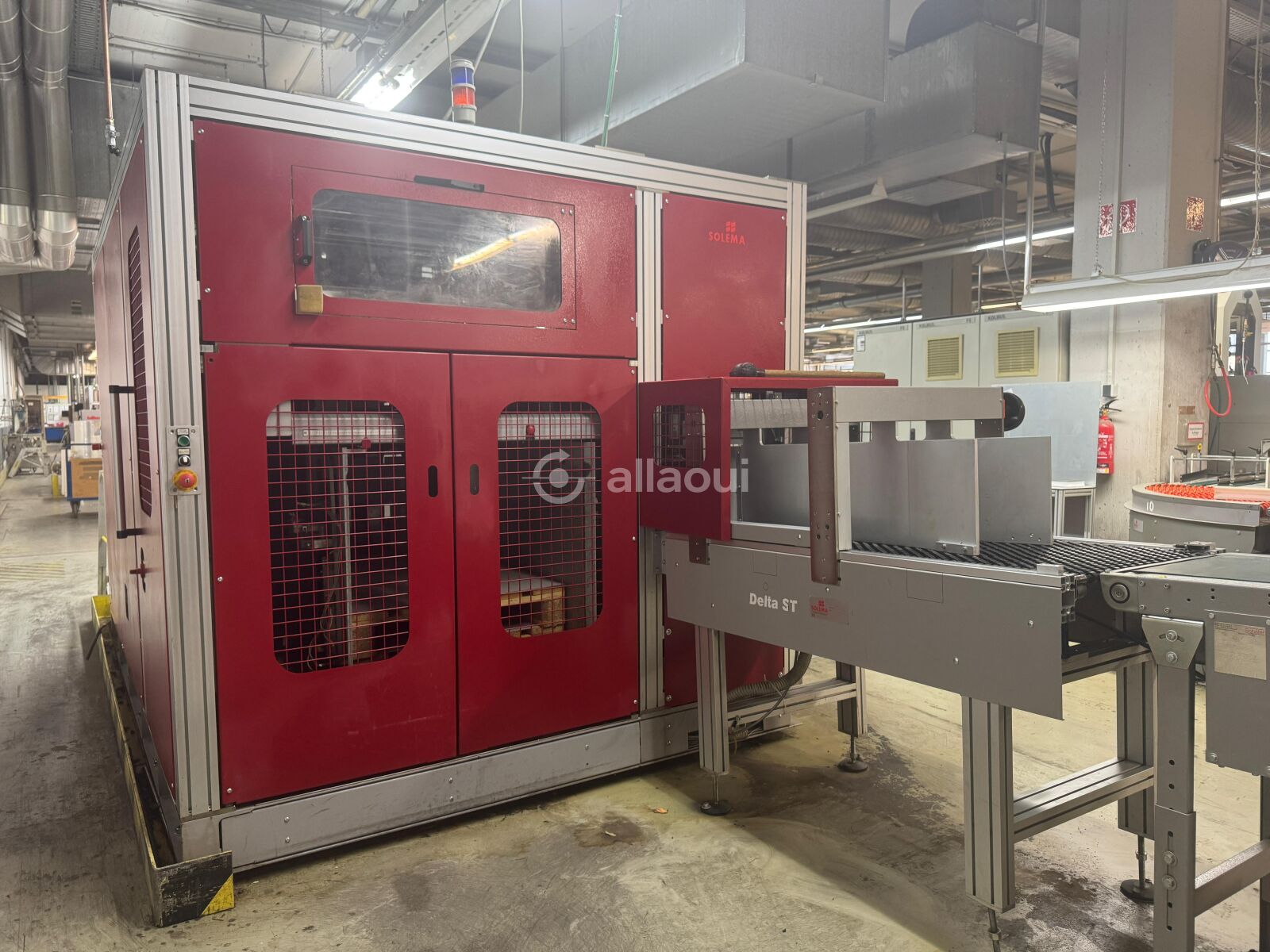

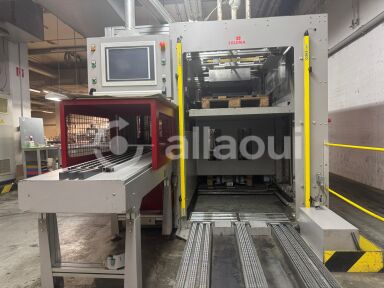

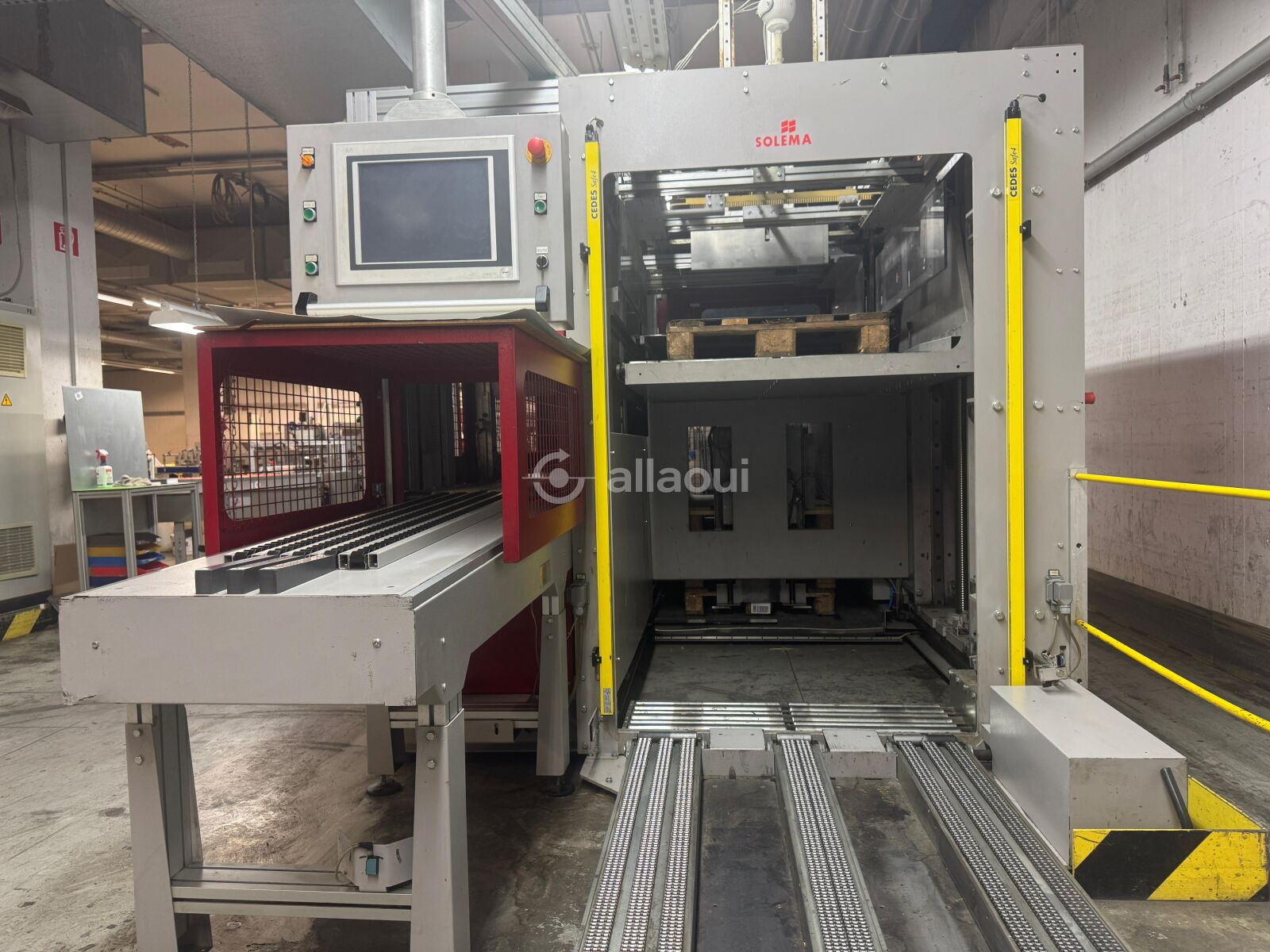

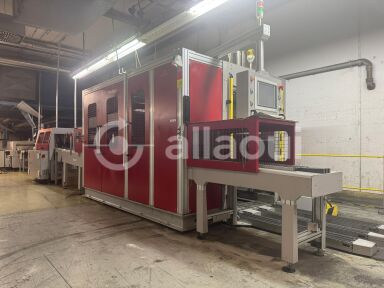

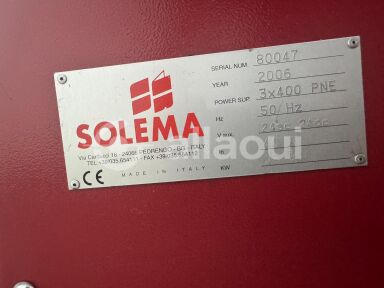

Palletizer

  • Model: Solema Pluton
  • Year: 2006

Technical Details

Parameter Value
Maximum Speed (Casing-In Line) 60 cycles/min
Maximum Speed (Trimmer) 3,900 cuts/h / 7,500 products/h (infeed)
Maximum Speed (Book Press) 62 cycles/min
Block Format (trimmed) min 100 × 100 × 2 mm / 3.9 × 3.9 × 0.08 in
Block Format (trimmed) max 280 × 375 × 80 mm / 11.0 × 14.8 × 3.1 in
Block Format (trimmed) max 285 × 375 × 40 mm / 11.2 × 14.8 × 1.6 in
Block Format (trimmed) max 300 × 375 × 30 mm / 11.8 × 14.8 × 1.2 in
Block Format (trimmed) max 305 × 370 × 30 mm / 12.0 × 14.6 × 1.2 in
Block Format (untrimmed) max 310 × 430 × 80 mm / 12.2 × 16.9 × 3.1 in
Small Format Block min 70 × 100 × 2 mm / 2.8 × 3.9 × 0.08 in
Case Format (opened) min 210 × 105 mm / 8.3 × 4.1 in
Case Format (opened) max 660 × 385 mm / 26.0 × 15.2 in
Finished Book Format min 70 × 100 × 6 mm / 2.8 × 3.9 × 0.24 in
Finished Book Format max 315 × 385 × 90 mm / 12.4 × 15.2 × 3.5 in
Stack Height (Trimmer) max 80 mm / 3.1 in
Trim Waste Strip Width max 40 mm / 1.6 in
Pressing Force (Trimmer) 20 kN
Compressed Air Requirement 40 Nm³/h (Trimmer) + 9–14 Nm³/h (BF 527) + 5 Nm³/h (FE 604)
Operating Pressure 6 bar / 87 psi
Electricity 3-phase, 400 V / N / PE, 50 Hz
