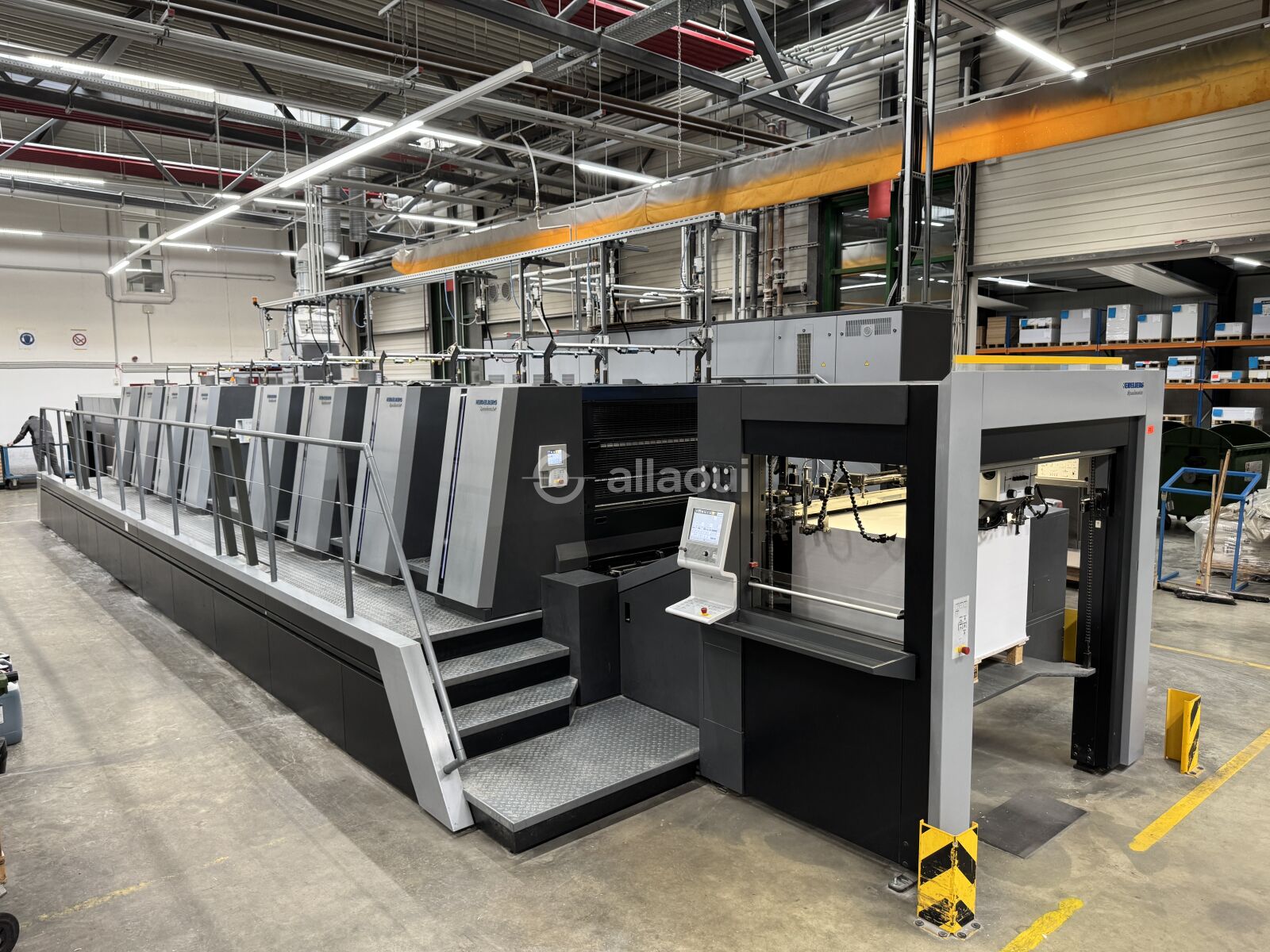

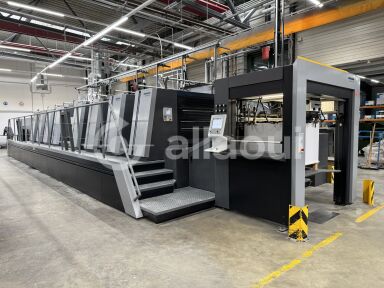

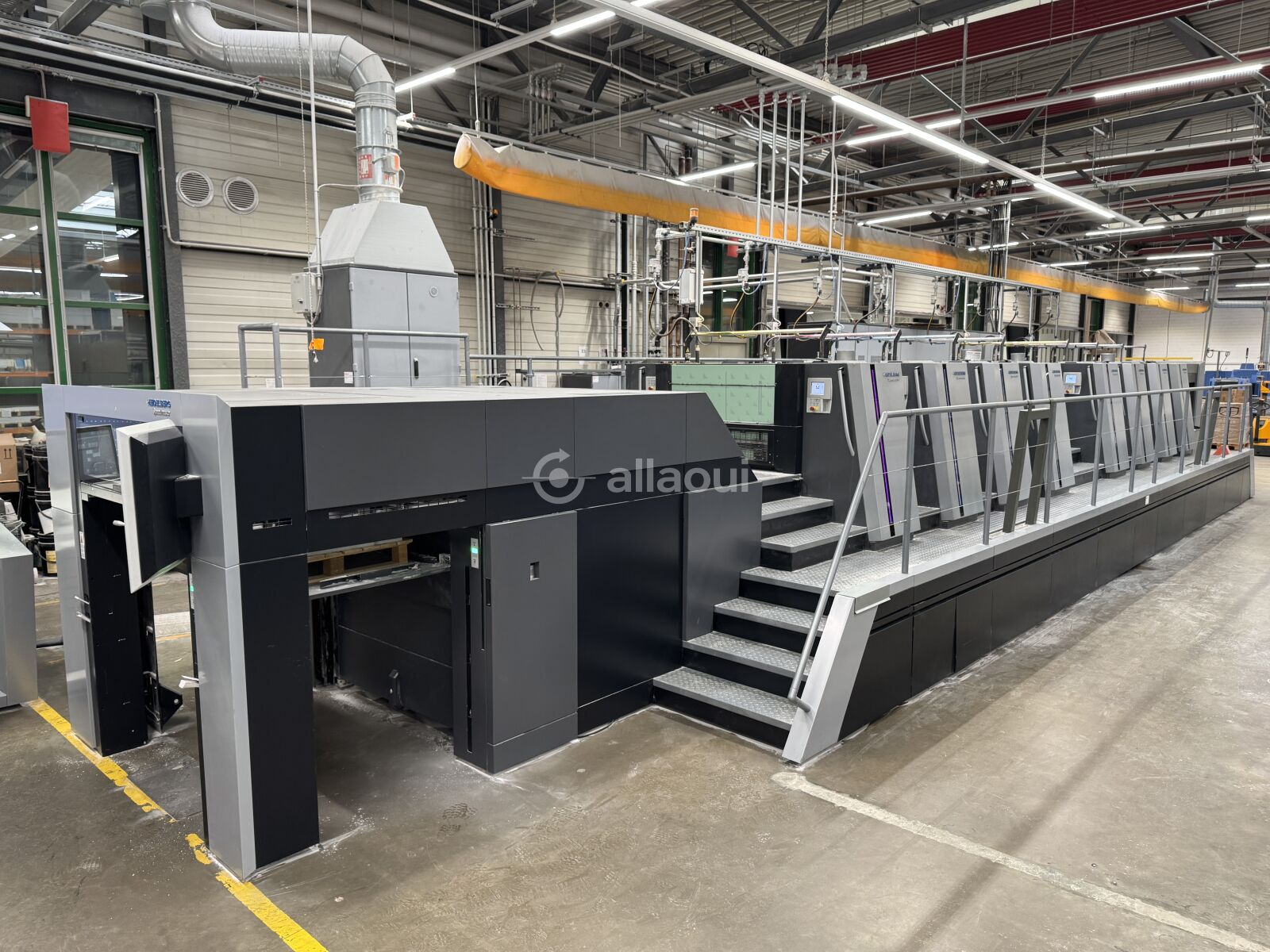

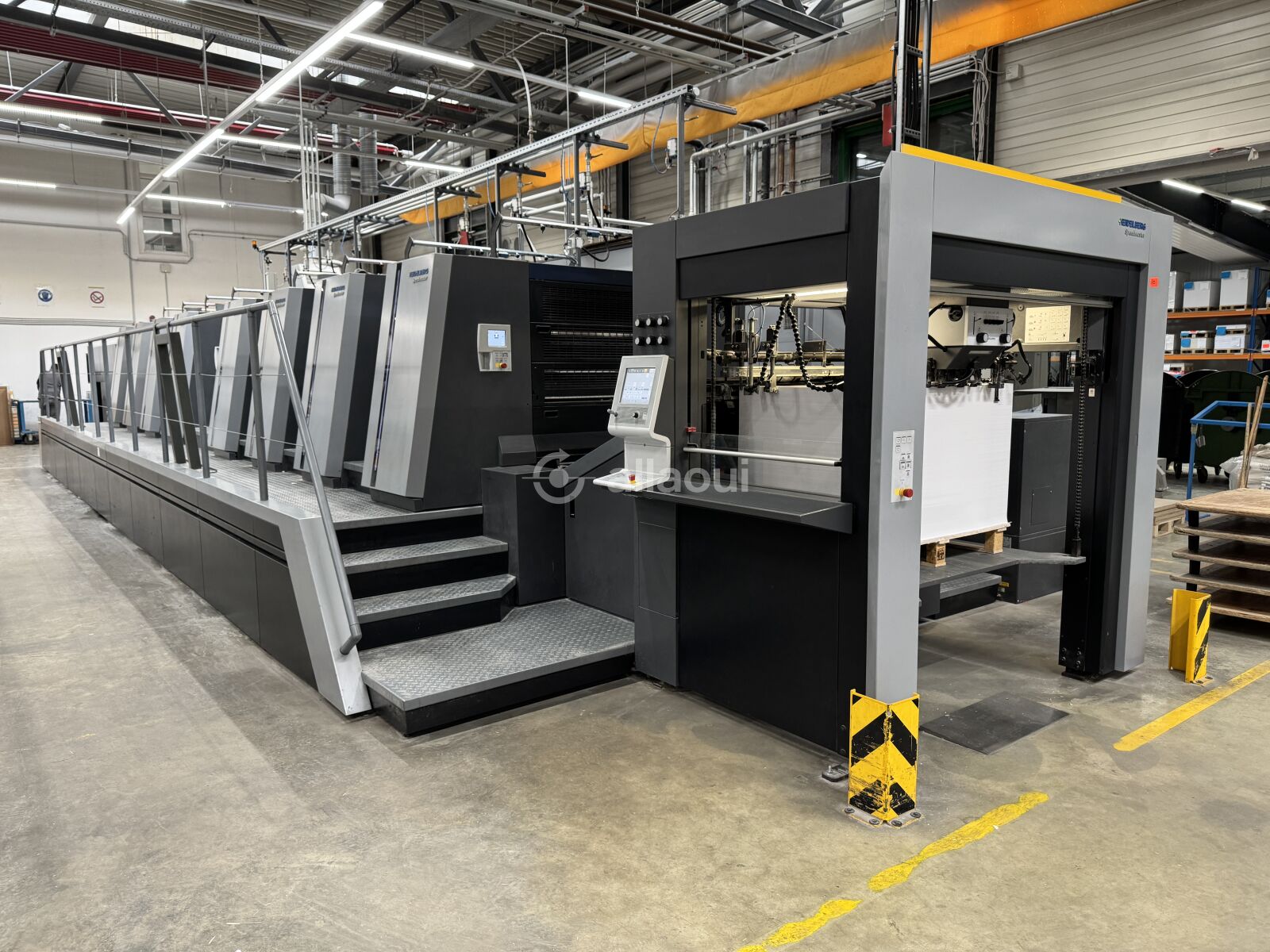

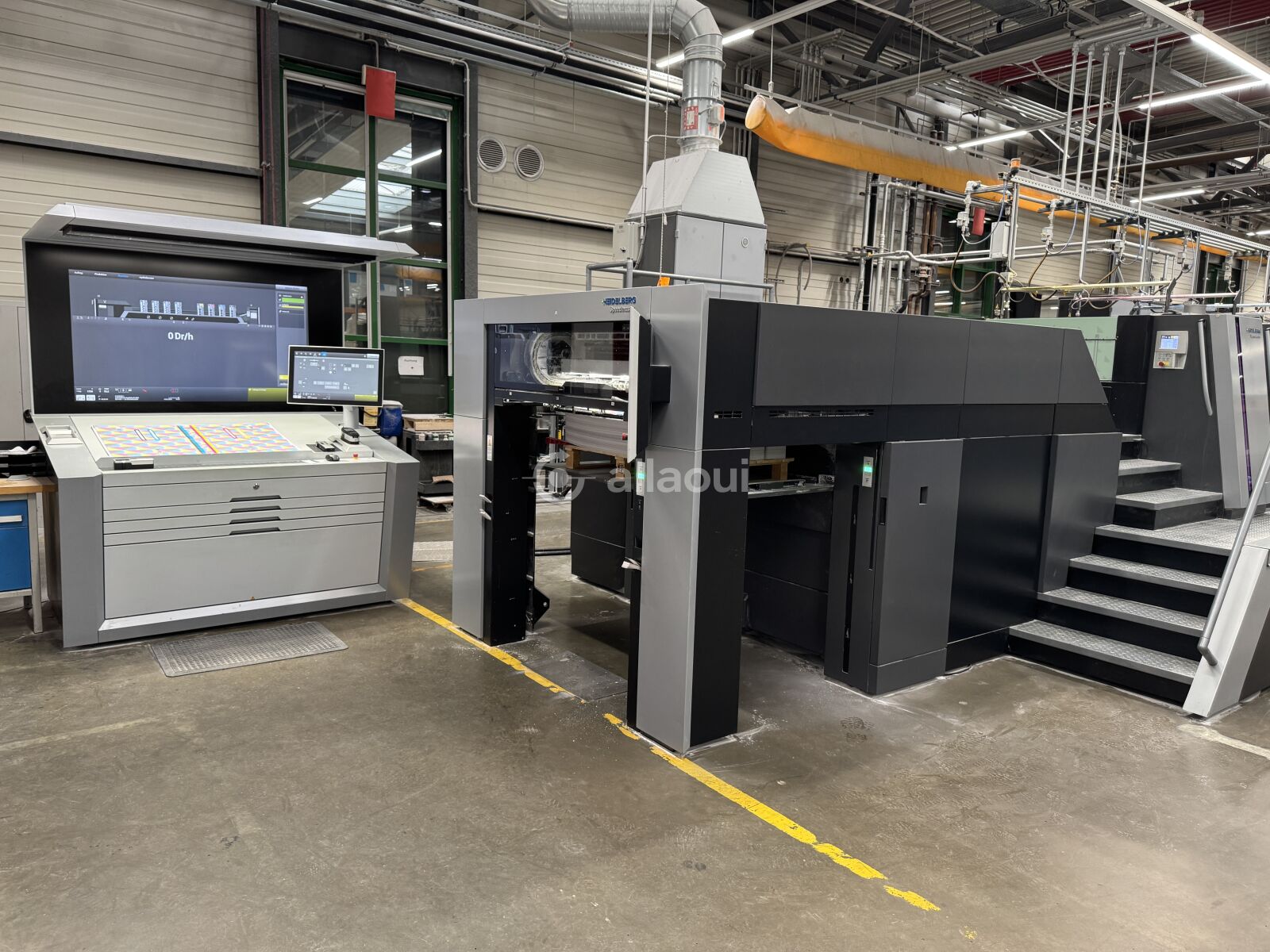

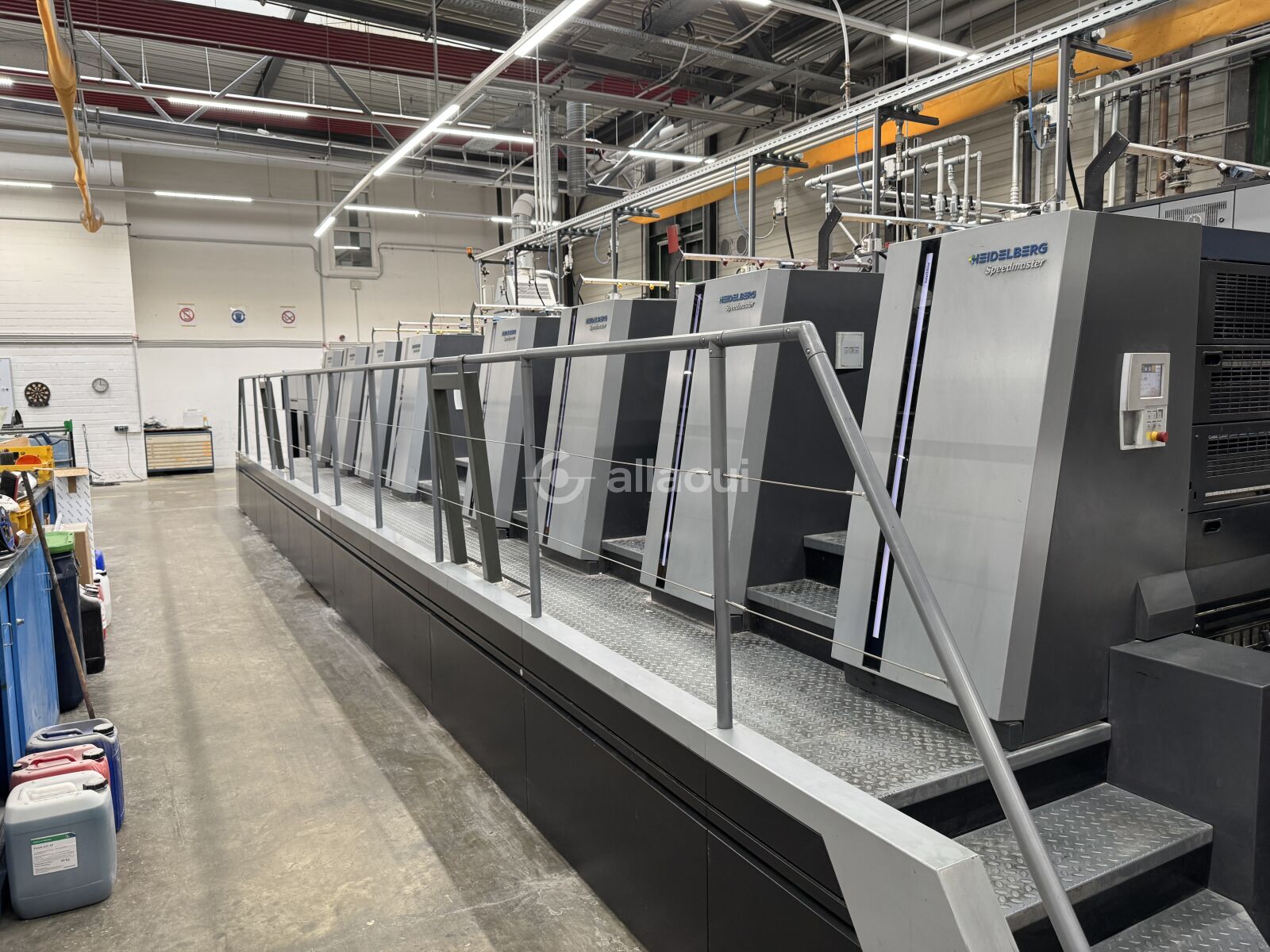

Used Heidelberg XL 106-8-P 18k

8 Color Offset machine for sale

Reference AK61781

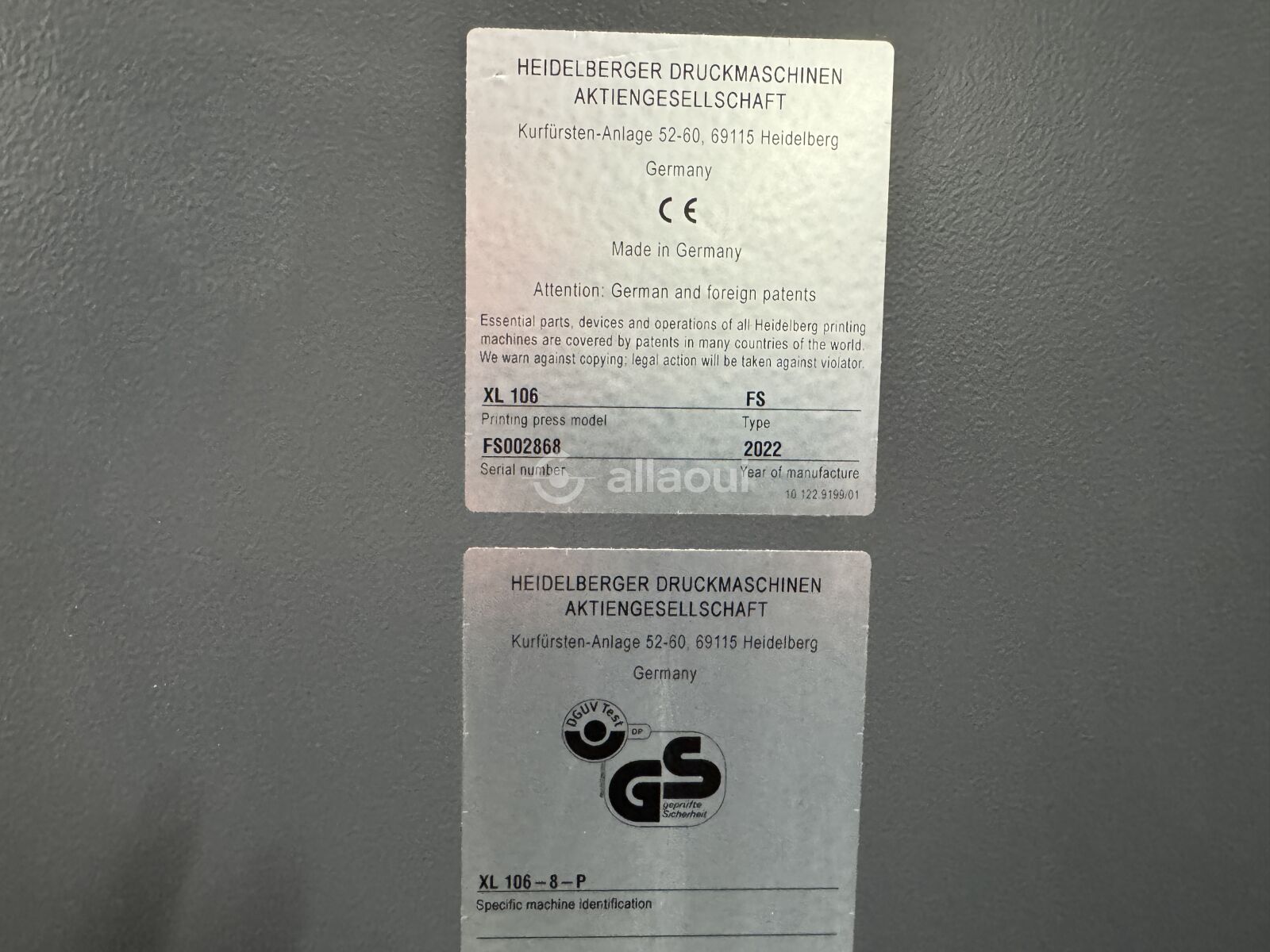

Manufacturer Heidelberg
Type XL 106-8-P 18k
Year 2022

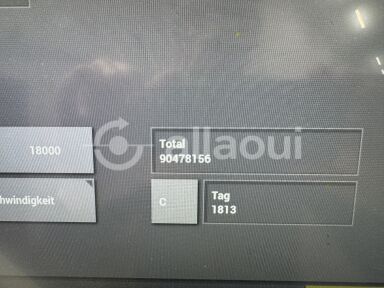

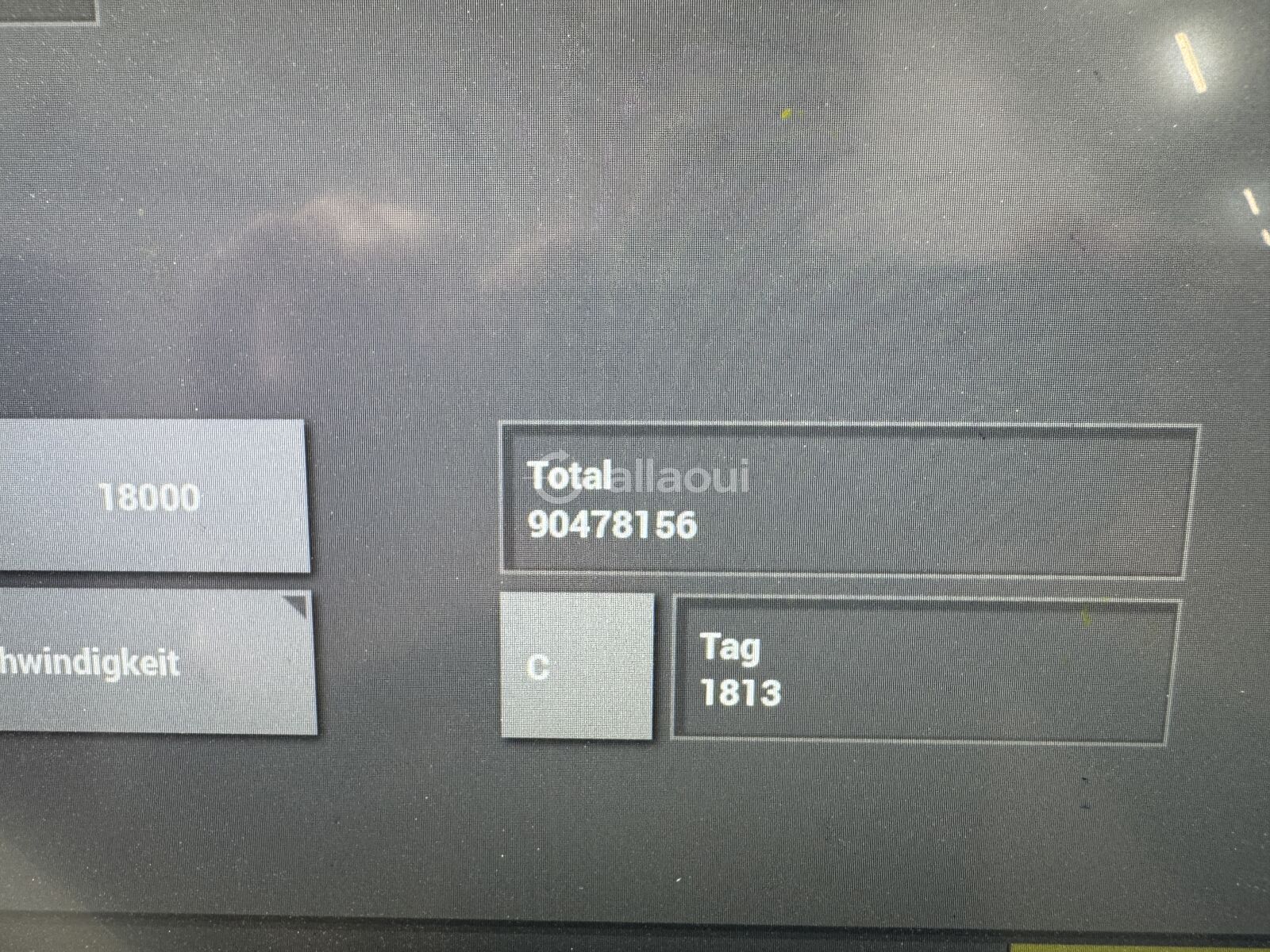

Impressions 85 MM
Status installed

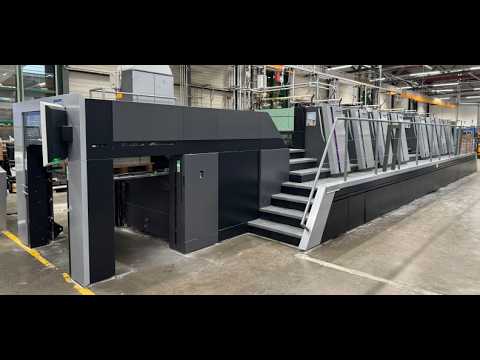

Video
Request More Information

Heidelberg XL 106-8-P 18k (2022)

Equipment

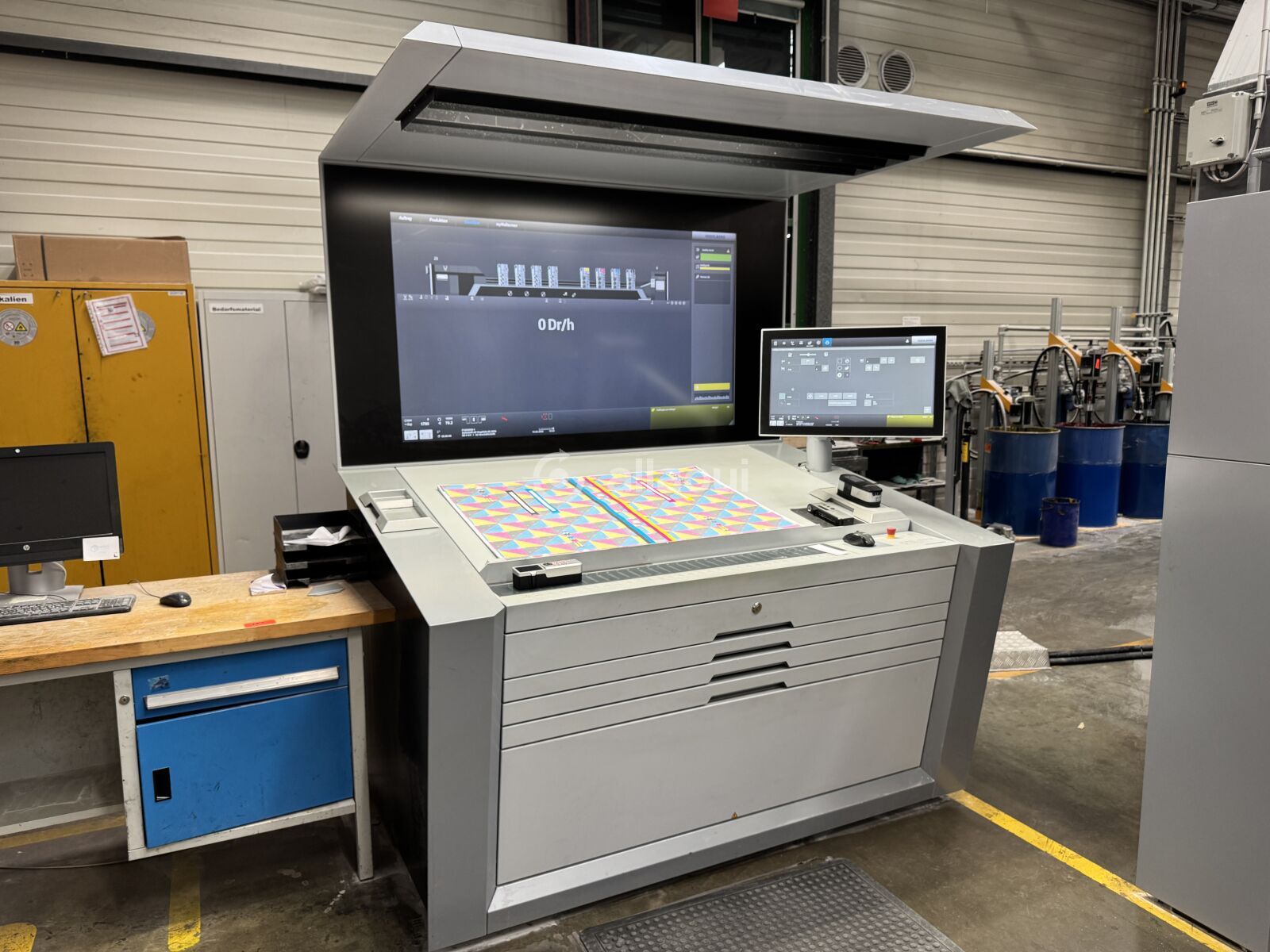

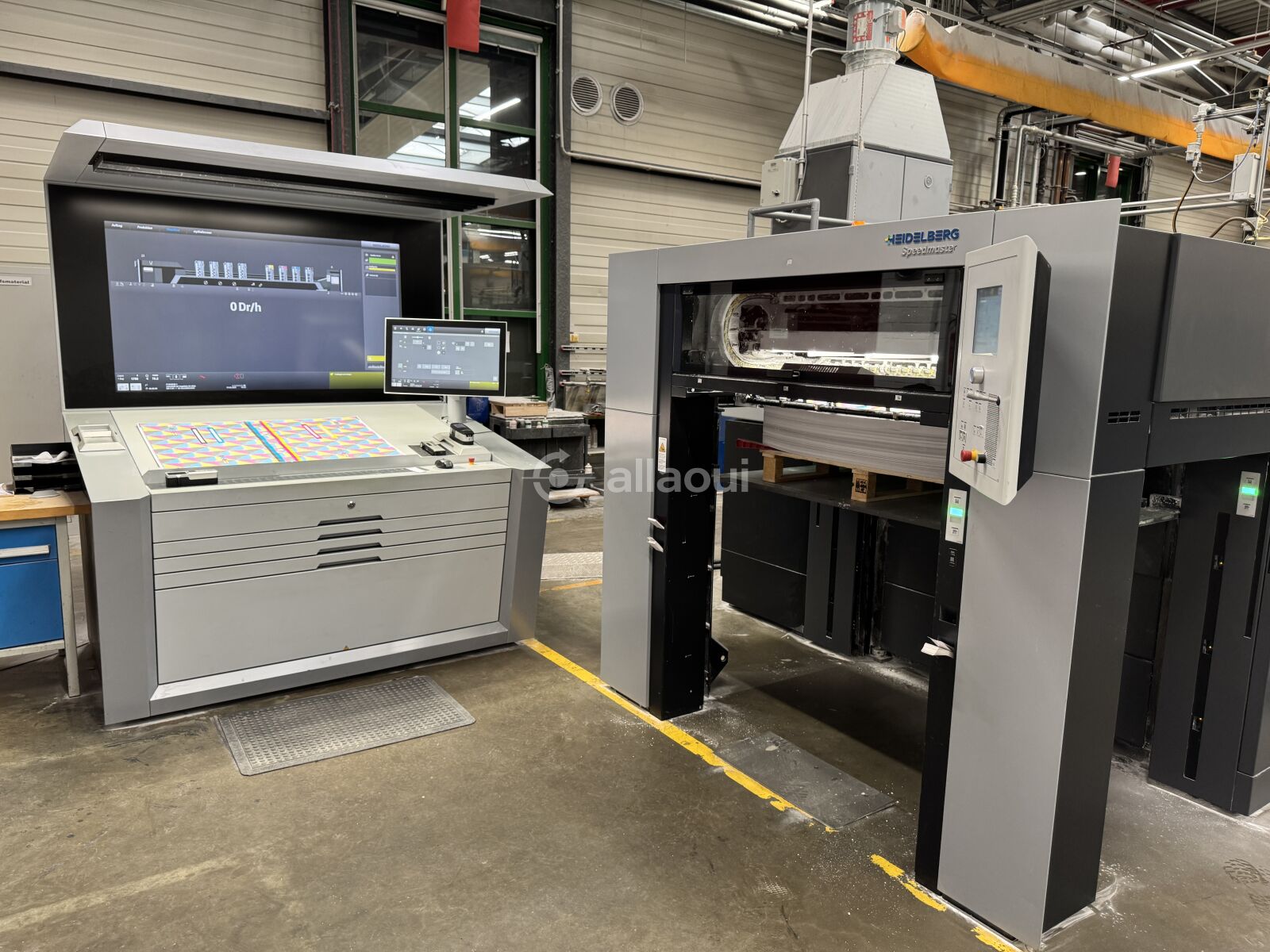

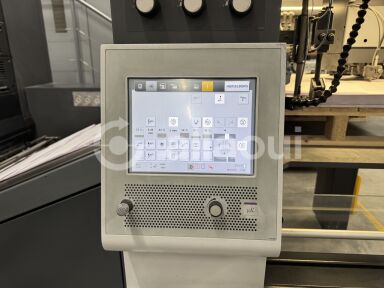

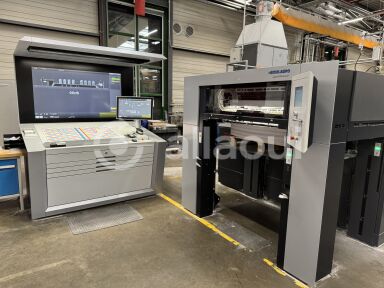

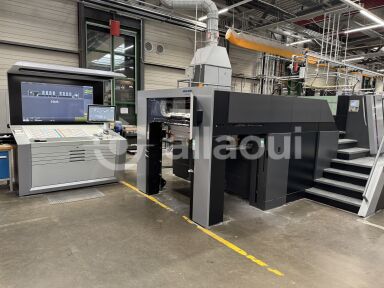

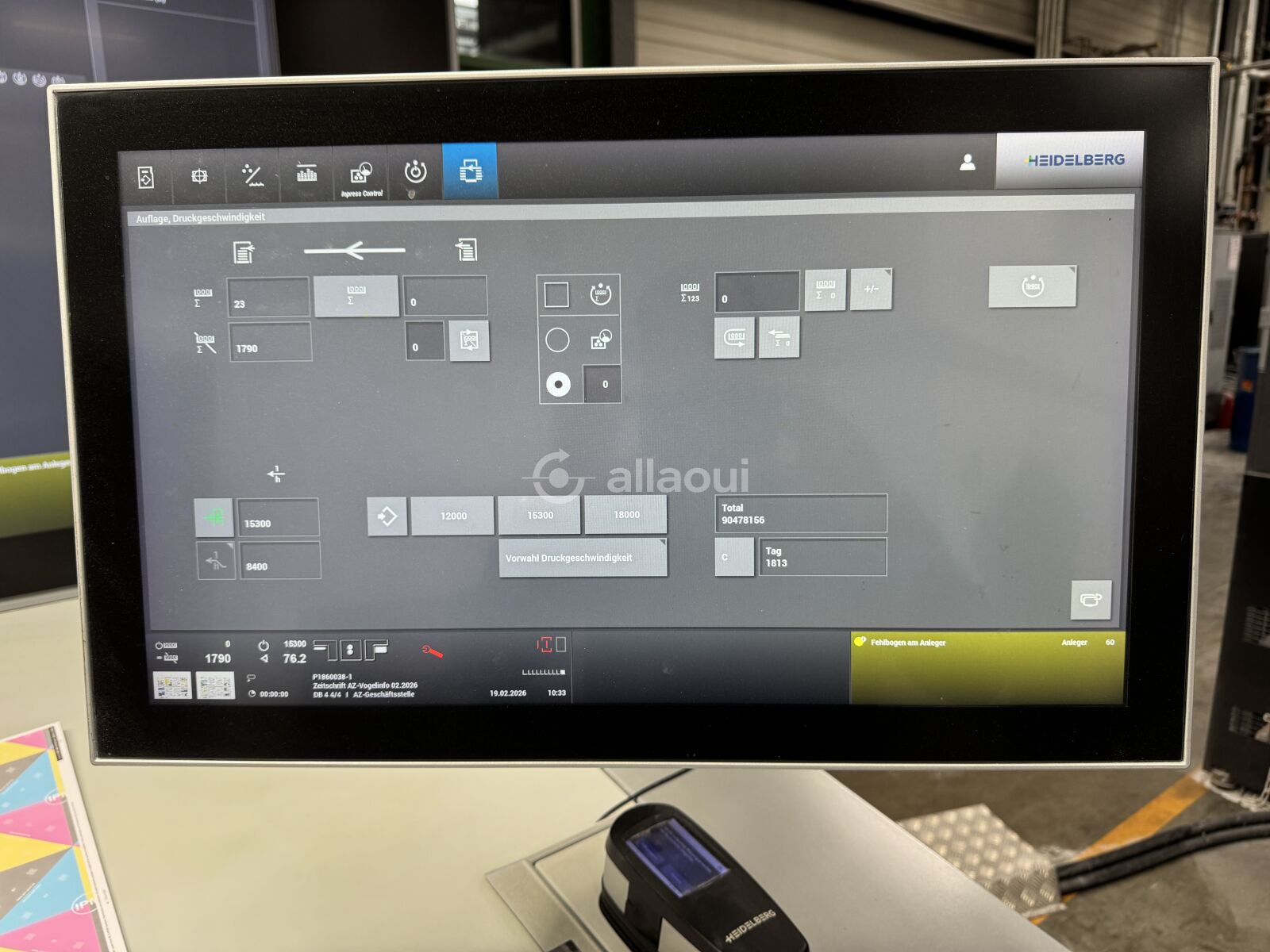

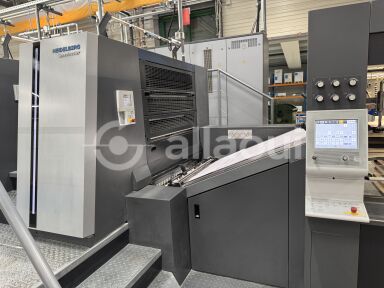

Machine Control

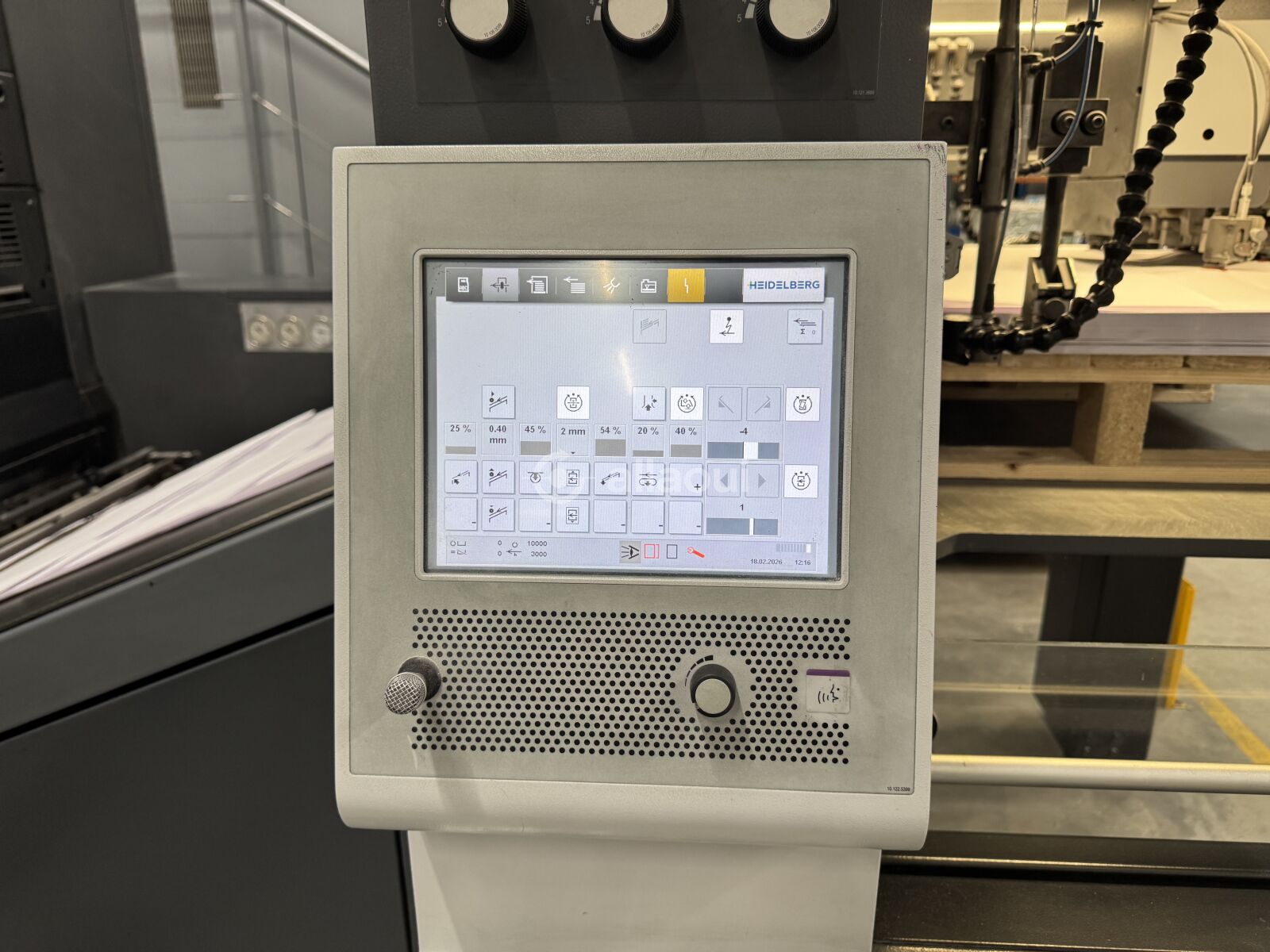

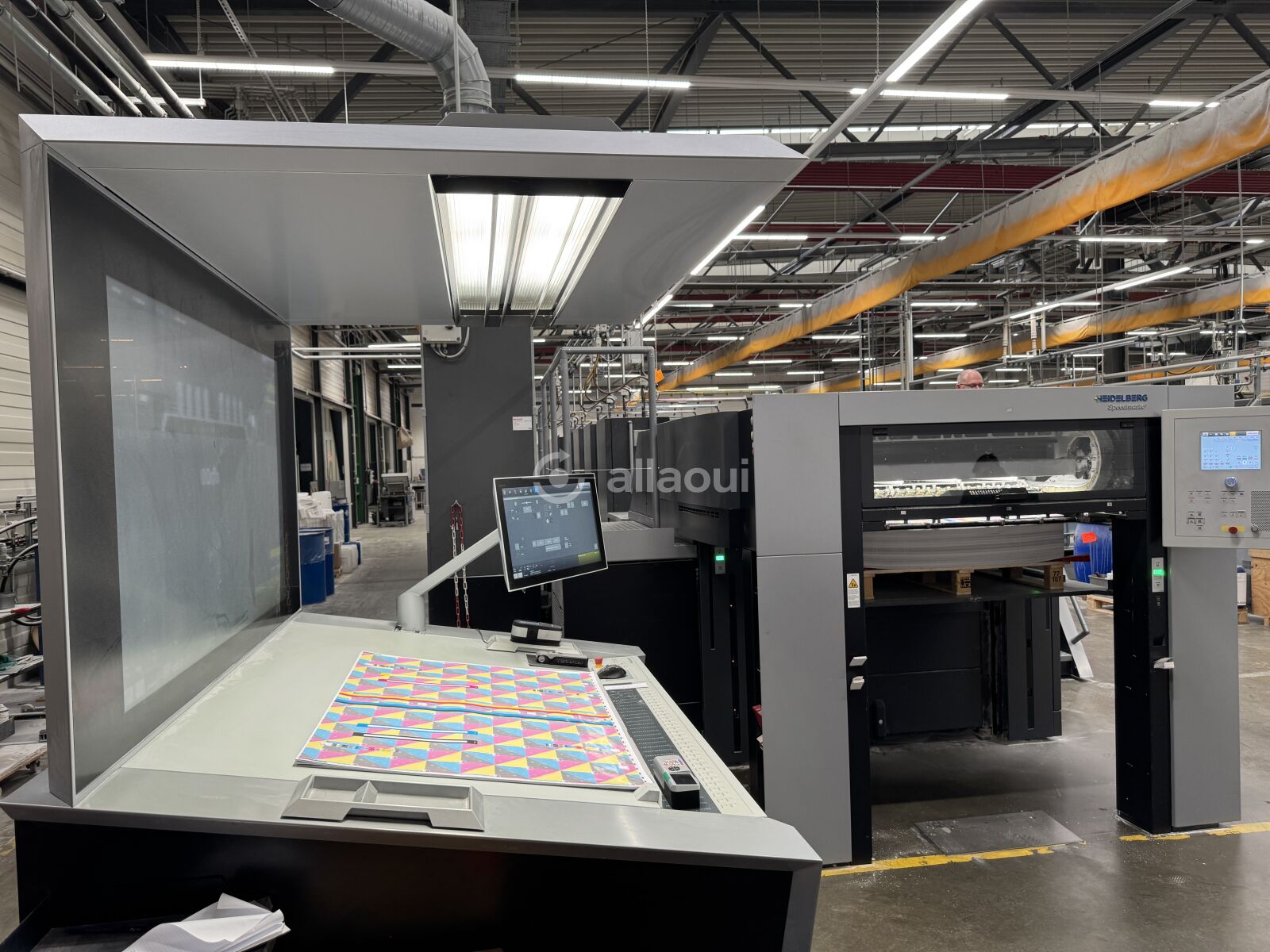

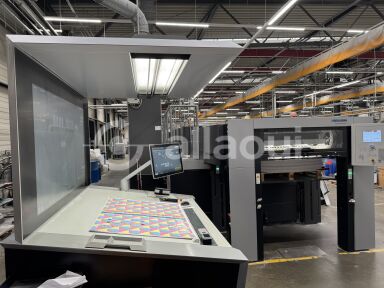

  • Control Unit: Prinect Press Center XL 3
  • Quality Control: Prinect Inpress Control 3 (2 measuring bars, for perfecting from P5)
  • Wallscreen XL
  • Speedmaster Operating System
  • Intellistart 3 with Performance Package and Wallscreen XL
  • Color Fast Solution
  • Air Assistant
  • Wash Assistant
  • Device Assistant
  • Press Center 3/XL 3 Instant Gate
  • Press Center 3/XL 3 Color Assistant Pro
  • Press Center XL 3 Wallscreen Application
  • Press Center XL 3 Netprofiler

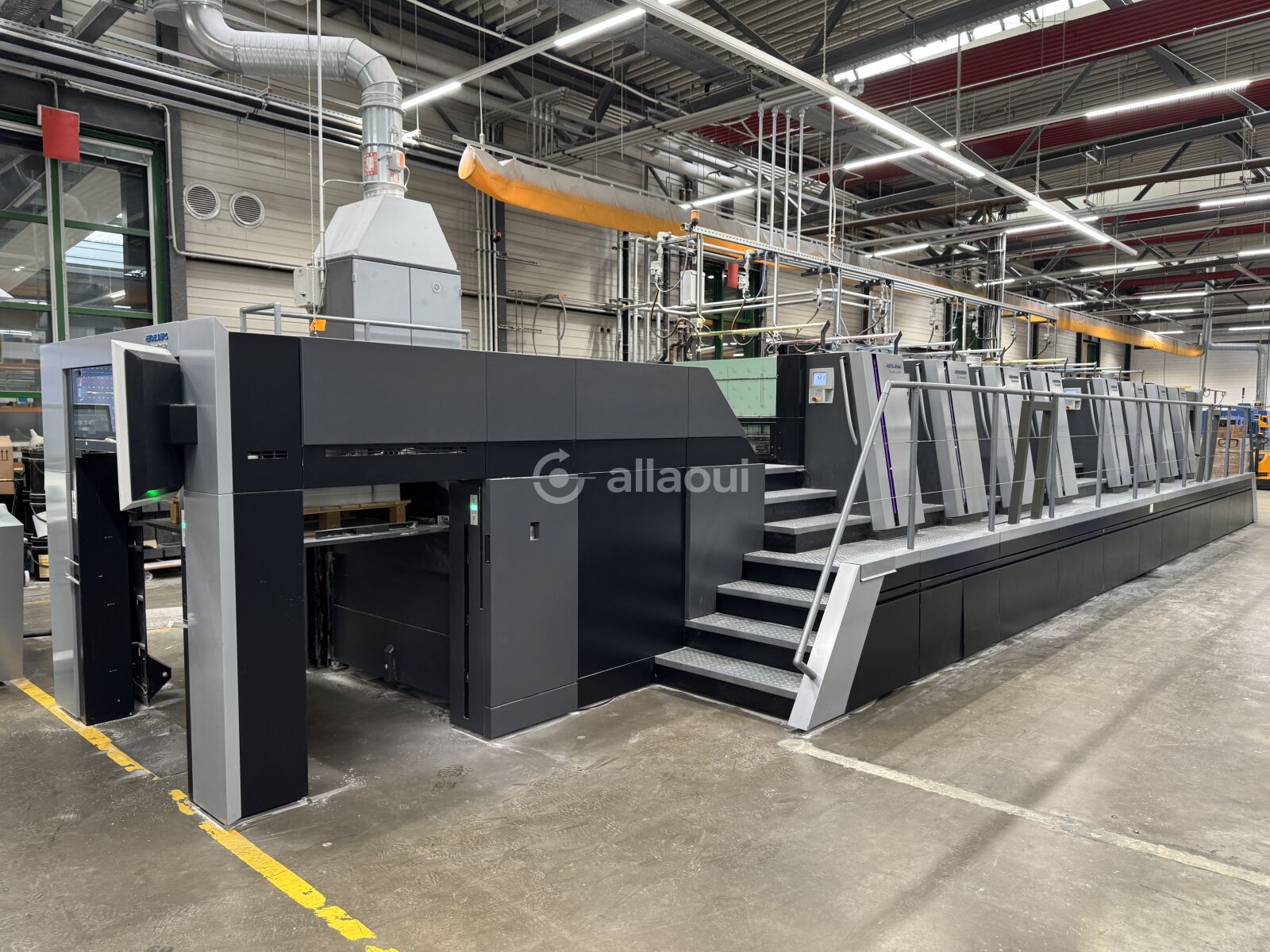

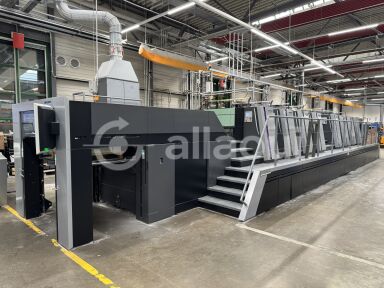

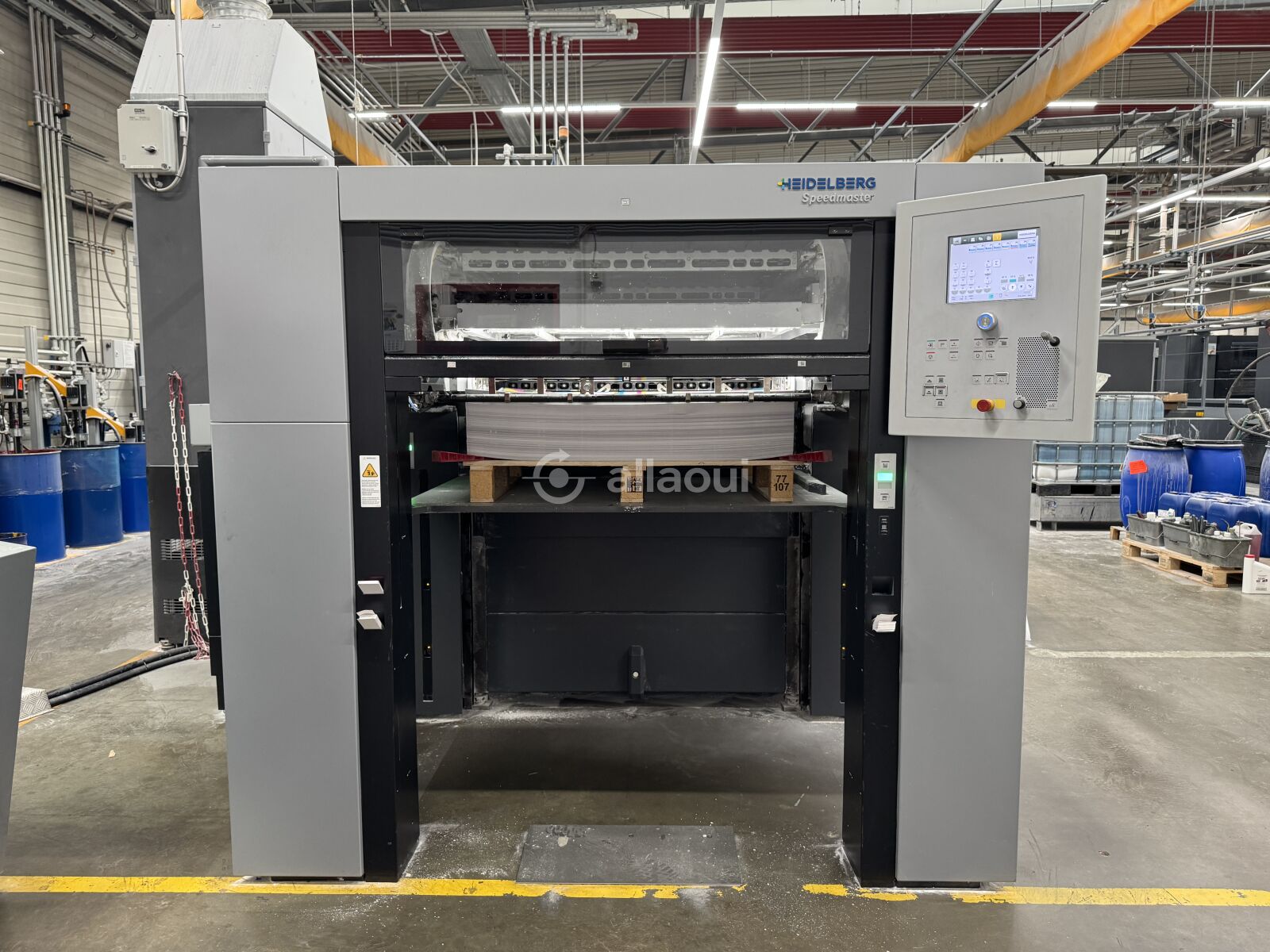

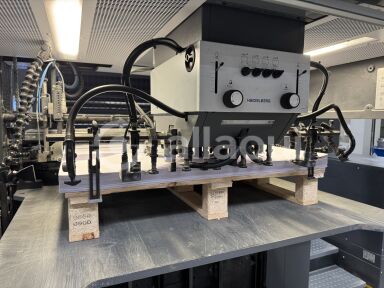

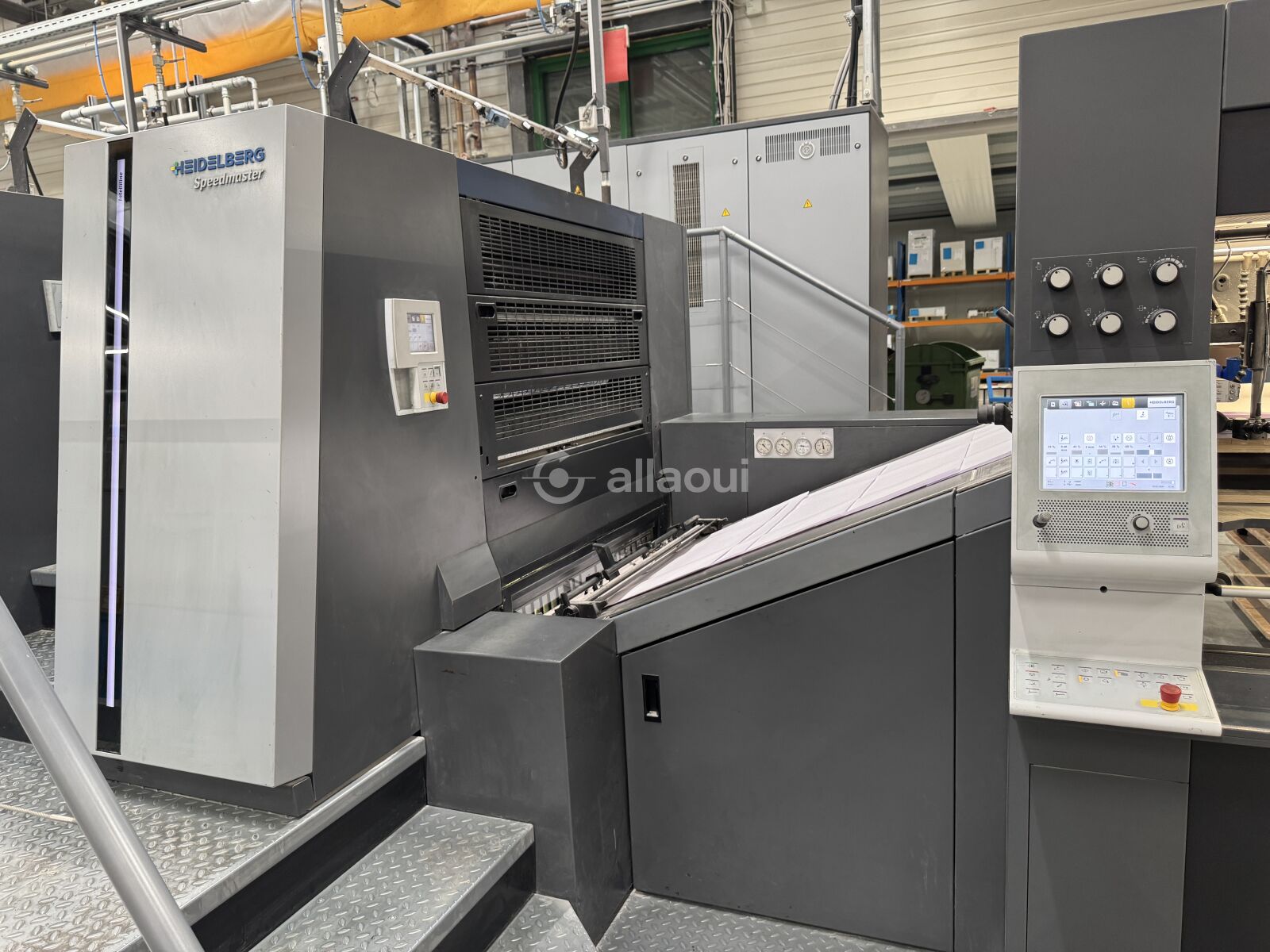

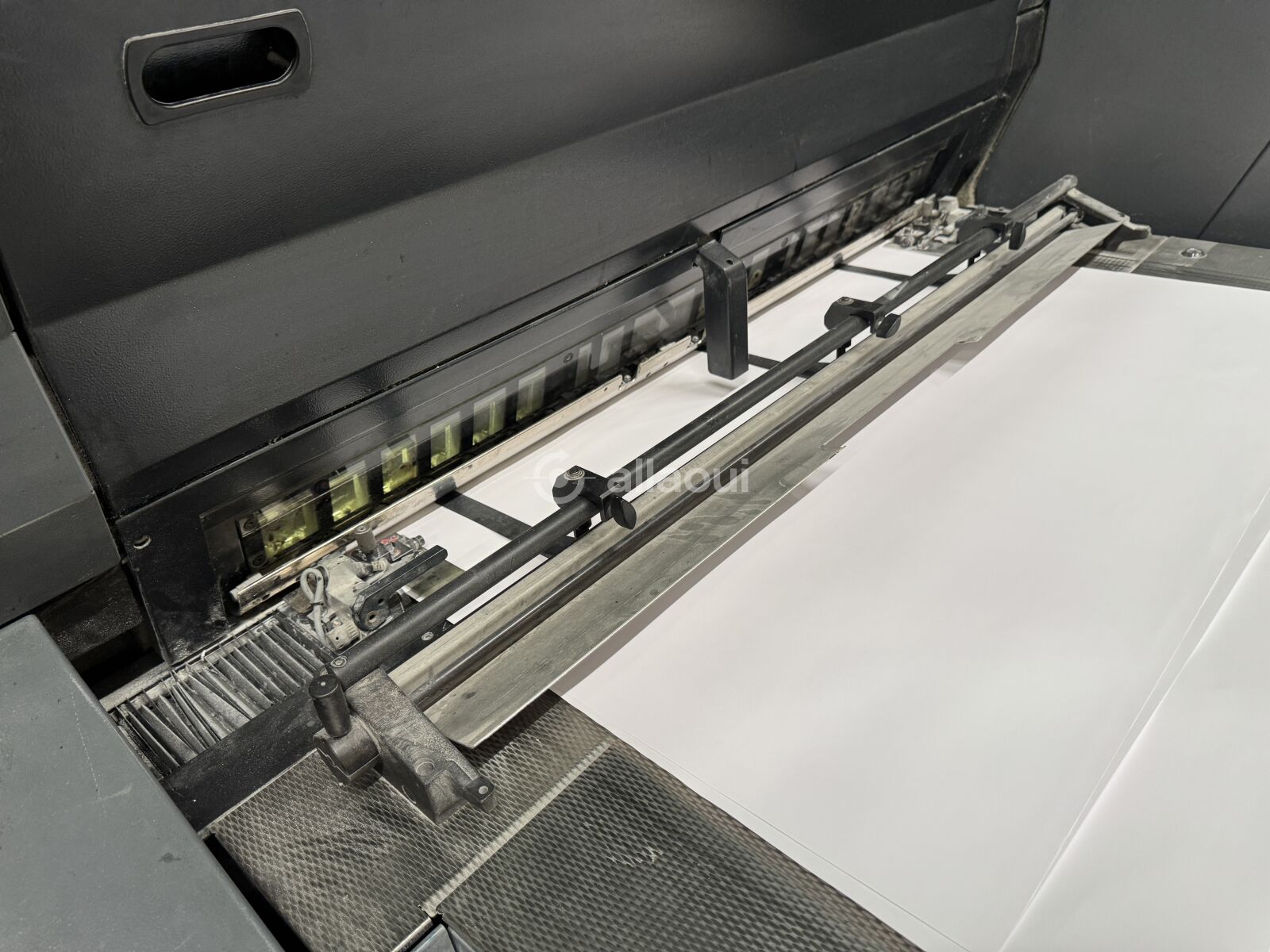

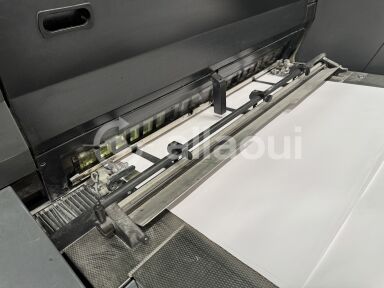

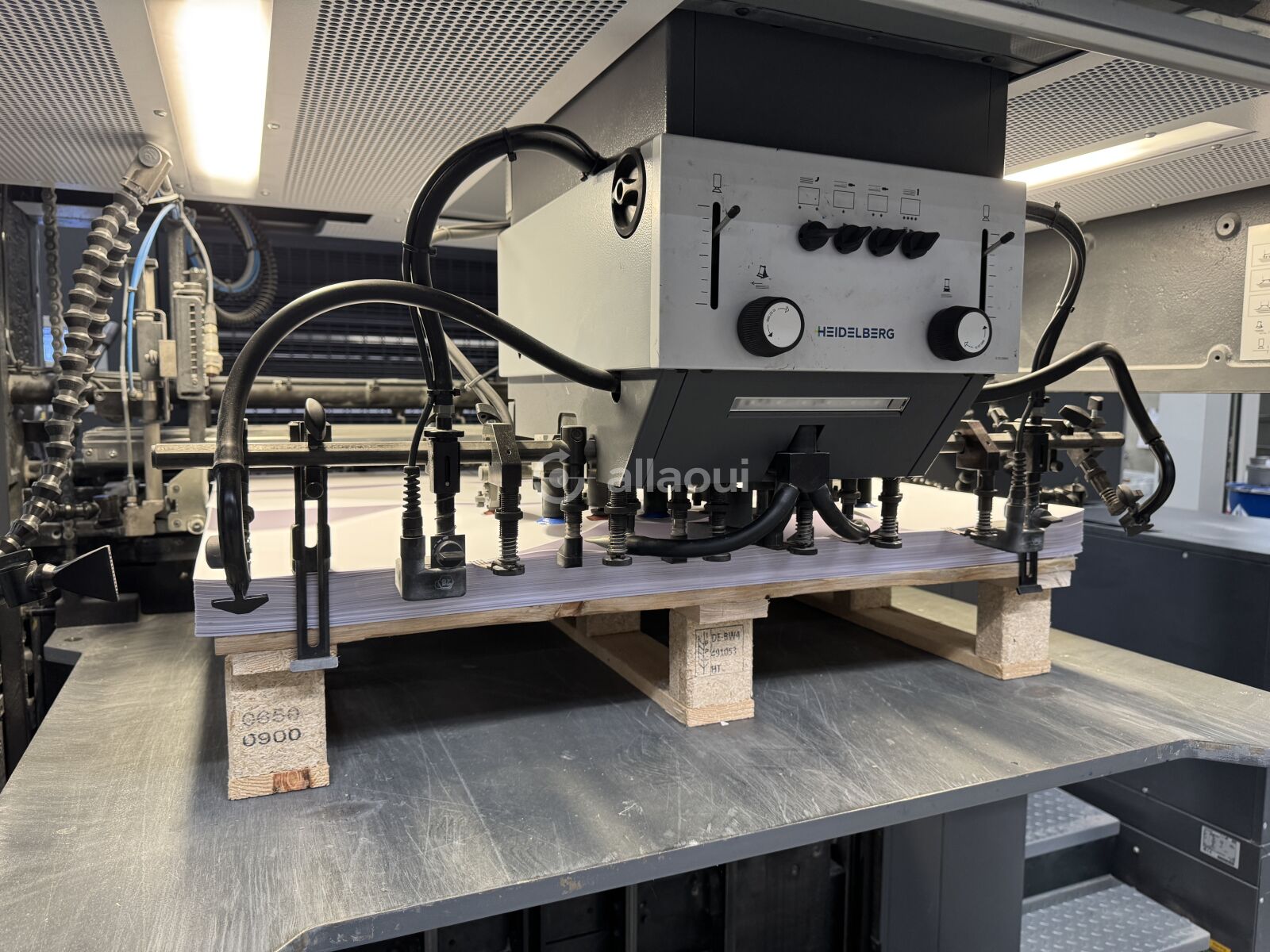

Feeder

  • Feeder type: Preset Plus Feeder
  • XL sheet arrival system
  • Ultrasonic double sheet control
  • Pull-gauge double sheet control
  • Electromechanical shingling control
  • Package control
  • Intercom system
  • Feeder pile plate retractable

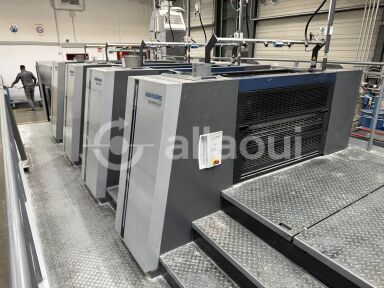

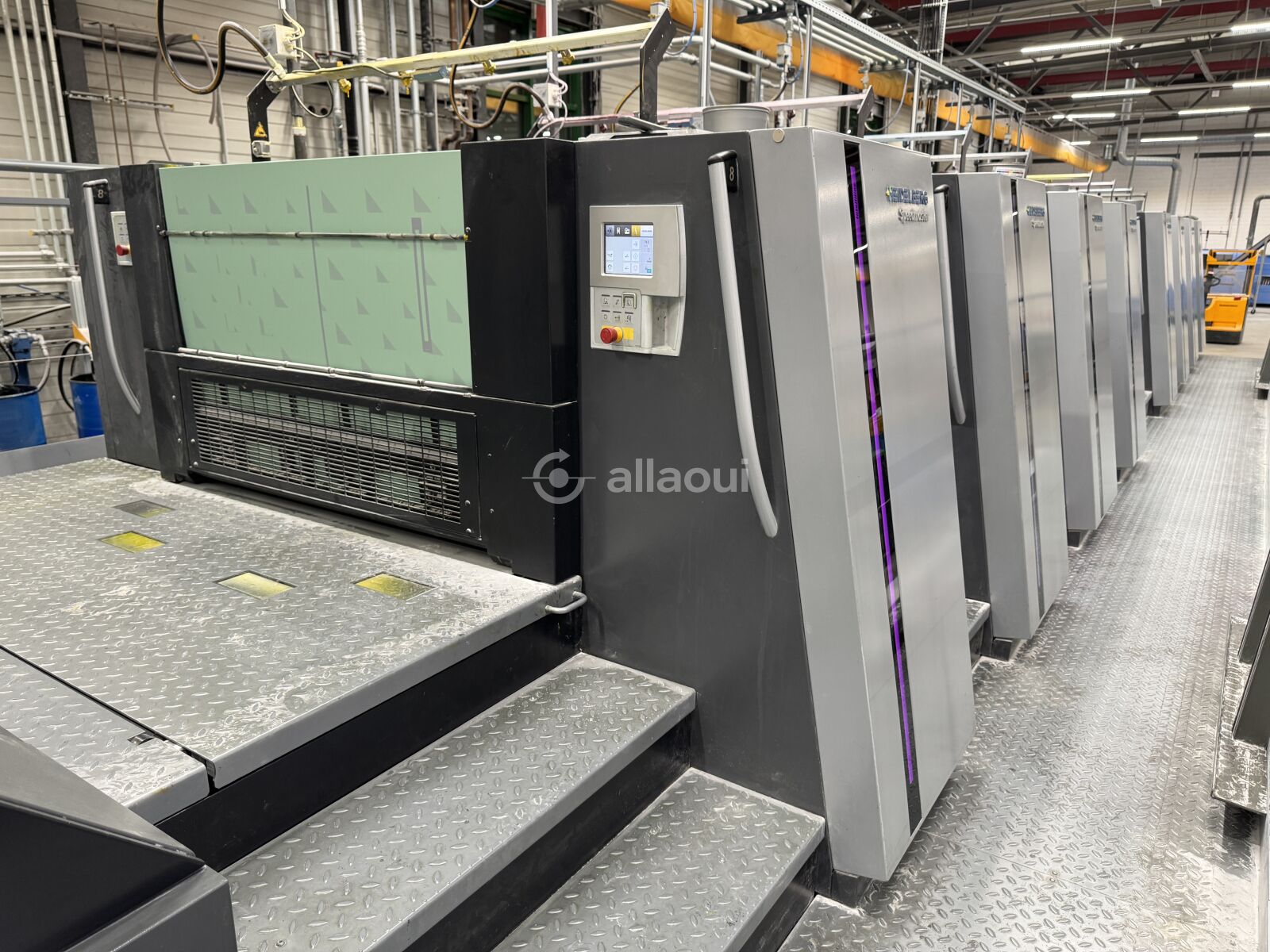

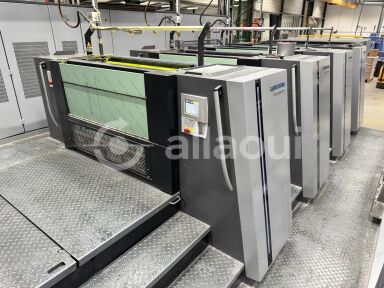

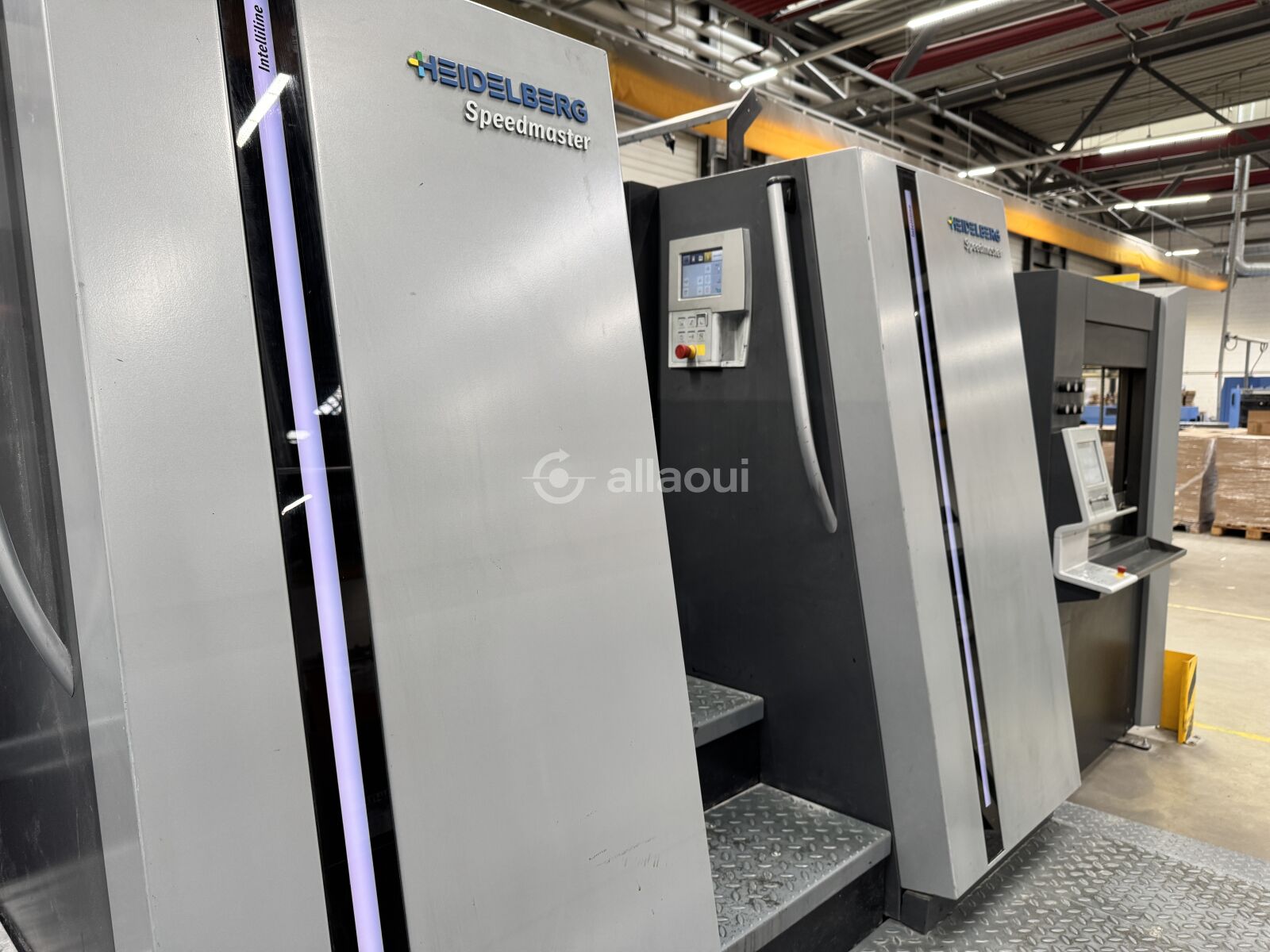

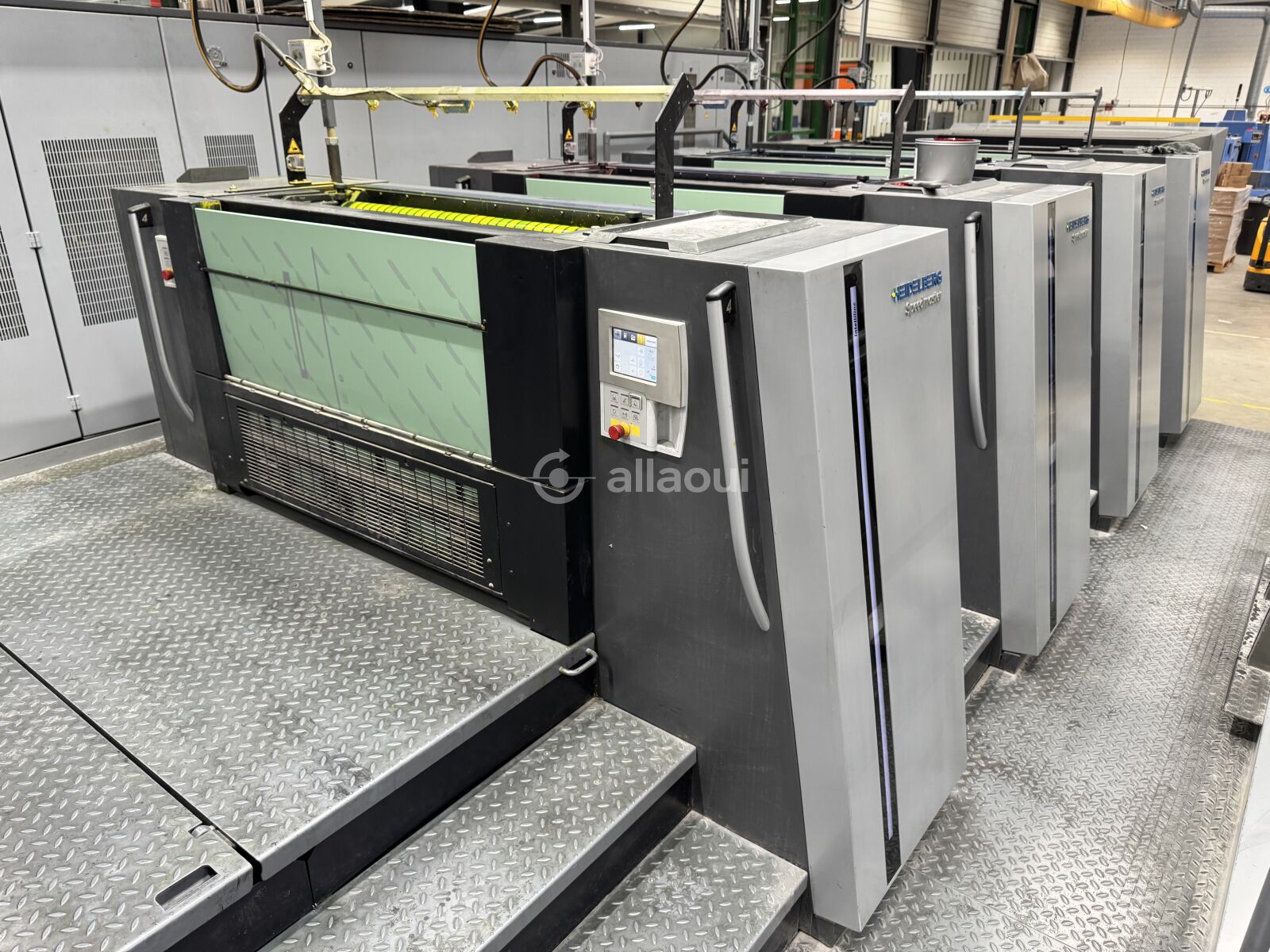

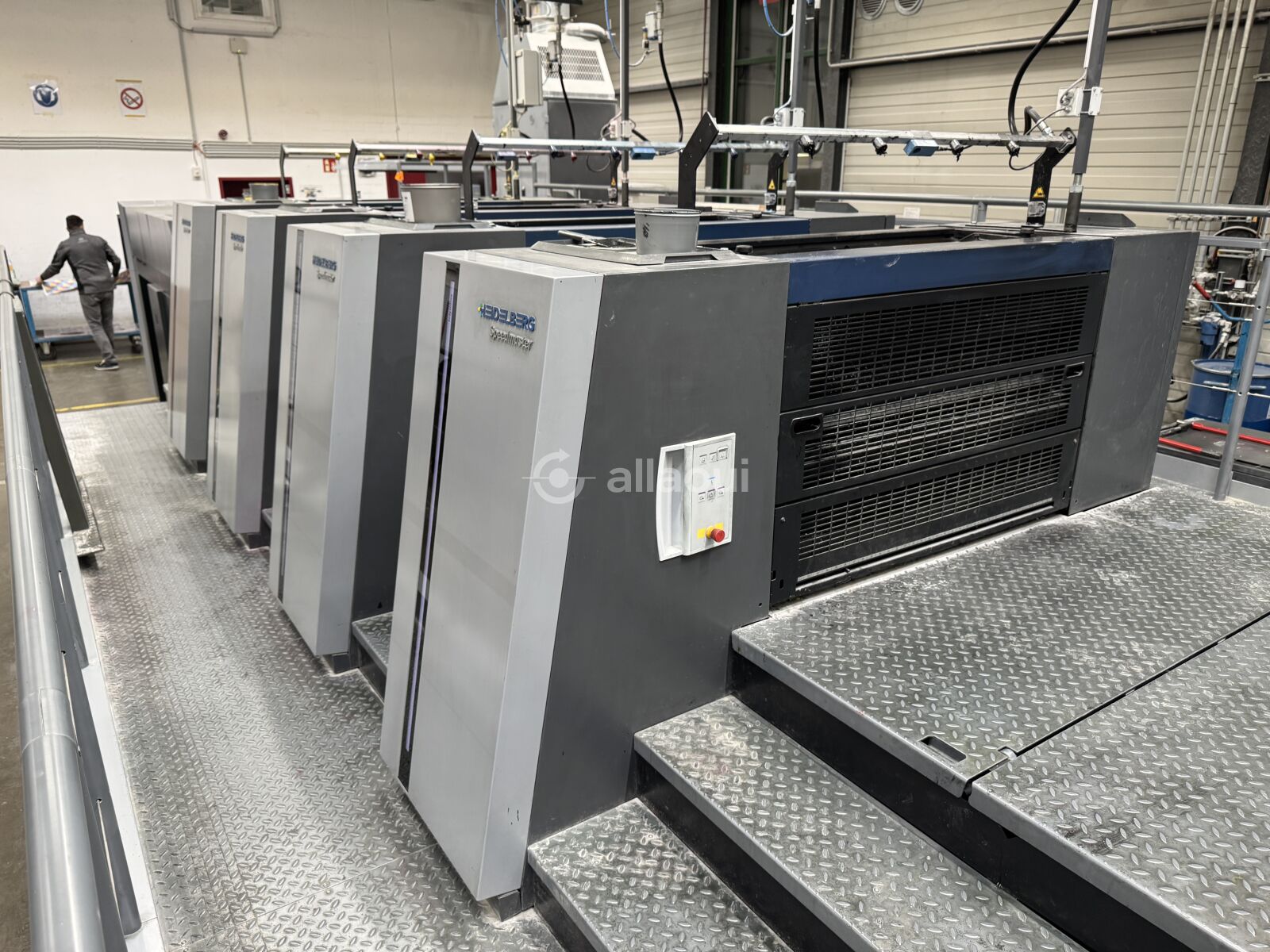

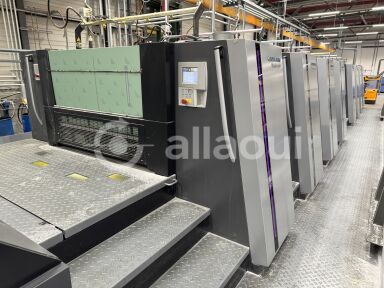

Printing Units

  • Number of printing units: 8x
  • Perfecting: 4/4 (perfecting position between unit 4 and 5)
  • Fully automatic three-drum perfecting system
  • Plate changing: AutoPlate XL 3 (simultaneous plate change at all units)
  • PerfectJacket
  • Sheet travel monitoring in all units
  • Variable AirTransfer system
  • Low-maintenance universal gripper system
  • Patented wing grippers and gripper bridge spoilers
  • Fully automatic preset air settings for all sheet guiding elements
  • Blanket washing device: program-controlled with lightweight tuch modules and automatic coupling
  • Impression cylinder washing device: program-controlled
  • Additional impression cylinder washing insert for DW/LW
  • Saphira Blanket Pro 100 (per printing unit)
  • Mechanical hickey catcher with zone scale
  • Roller-Check-Assistant

Inking and Dampening

  • Inking/dampening unit: Heidelberg Hycolor
  • Separate ductor tempering
  • Remote-controlled short inking unit switching
  • Roller group separation
  • Remote rider roller adjustment
  • Hycolor Pro film dampening unit (5 rollers)
  • Longlife chrome dosing rollers
  • Fully automatic ink roller washing device (12 wash programs)
  • Roller protection system Auto Protect
  • CombiStar CAN (water-cooled)
  • FilterStar Compact
  • Digidos P 150 + Sonden retrofit (fountain solution dosing with pH probe and conductivity measurement)

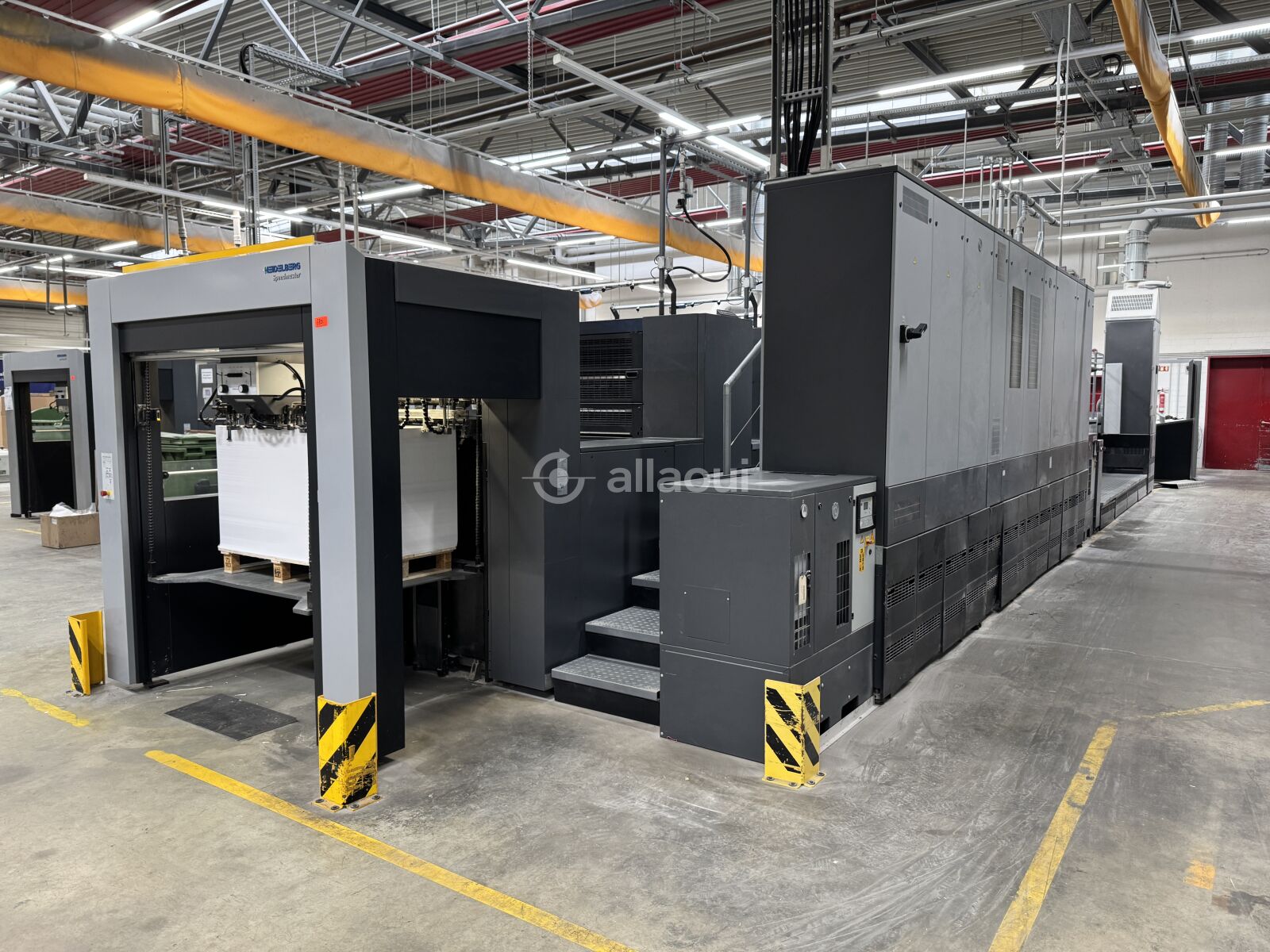

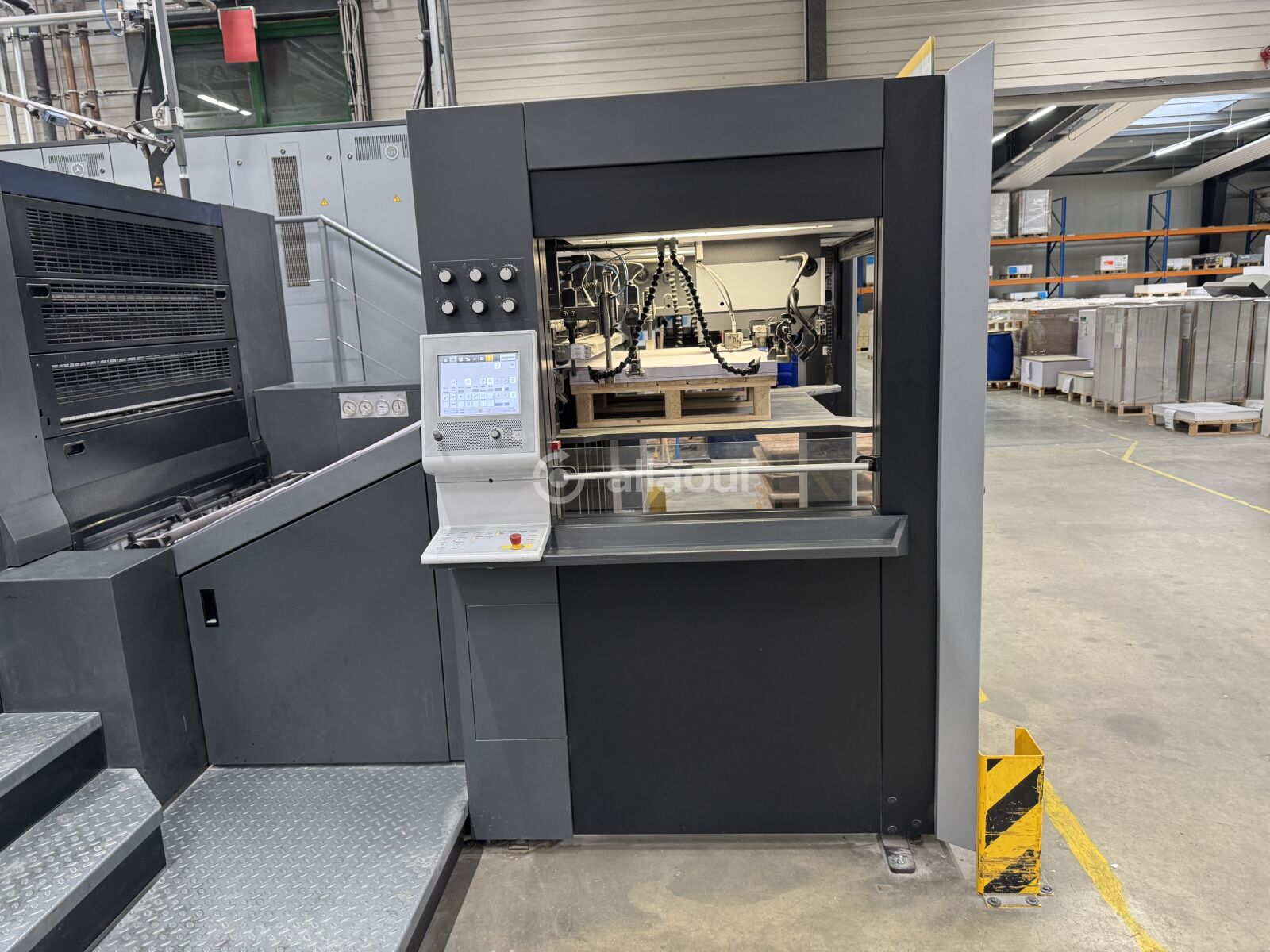

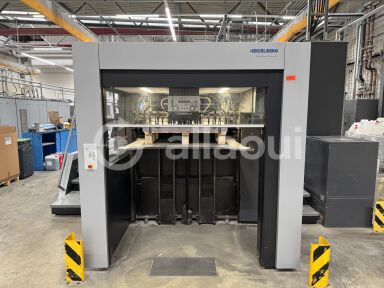

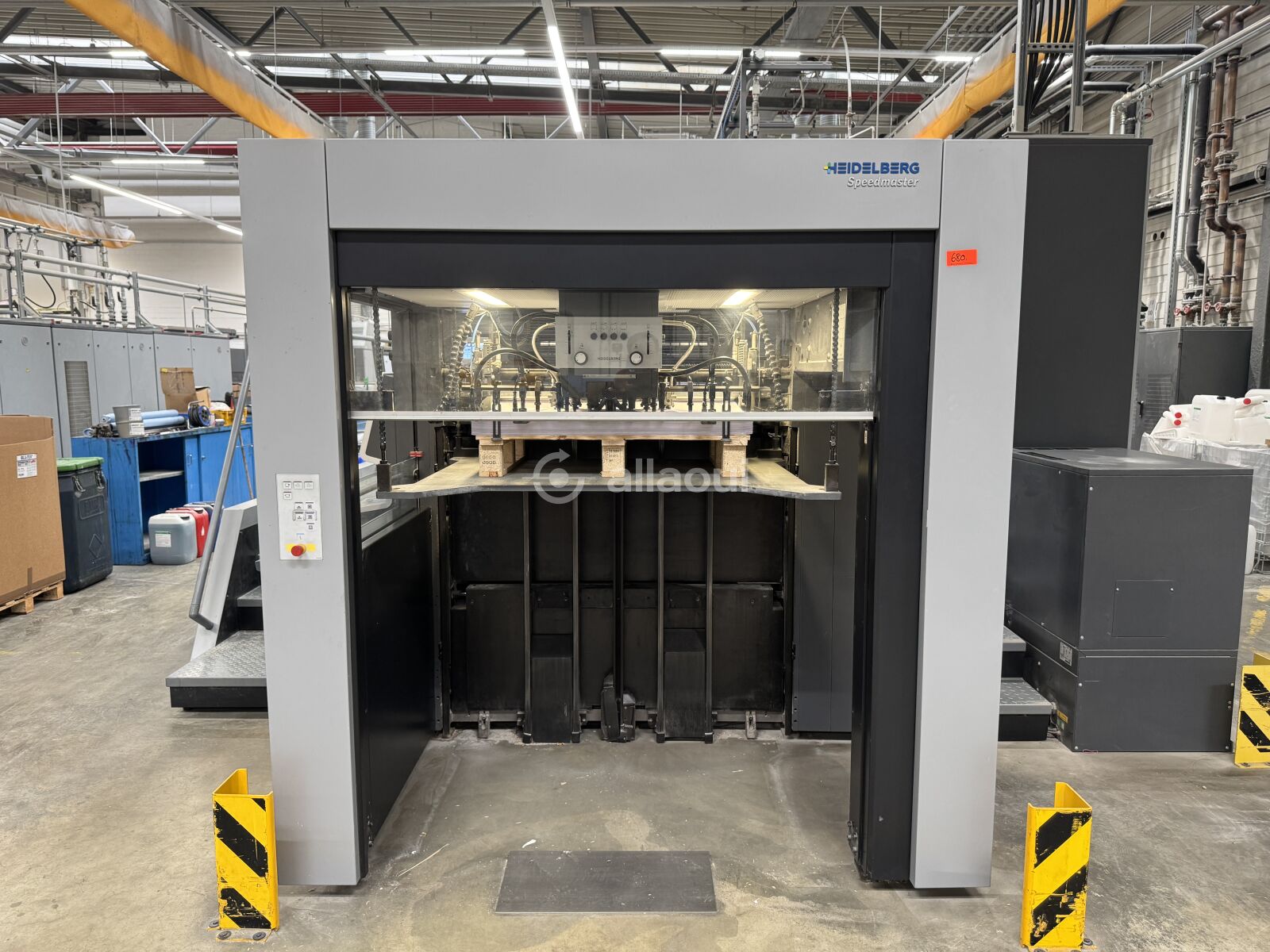

Delivery

  • Delivery type: Preset Plus Delivery
  • Delivery extension: X1
  • Preset-controlled suction segment discs
  • Sheet brake system with preset-capable brake modules
  • Dynamic sheet brake
  • Pile plate in delivery with ramp
  • InsertStar (drive-side strip feeder with counting function and waste marking)
  • CleanStar for delivery extension

Powder Device

  • PowderStar AP 500 Duo CAN

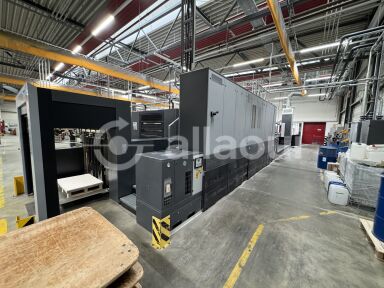

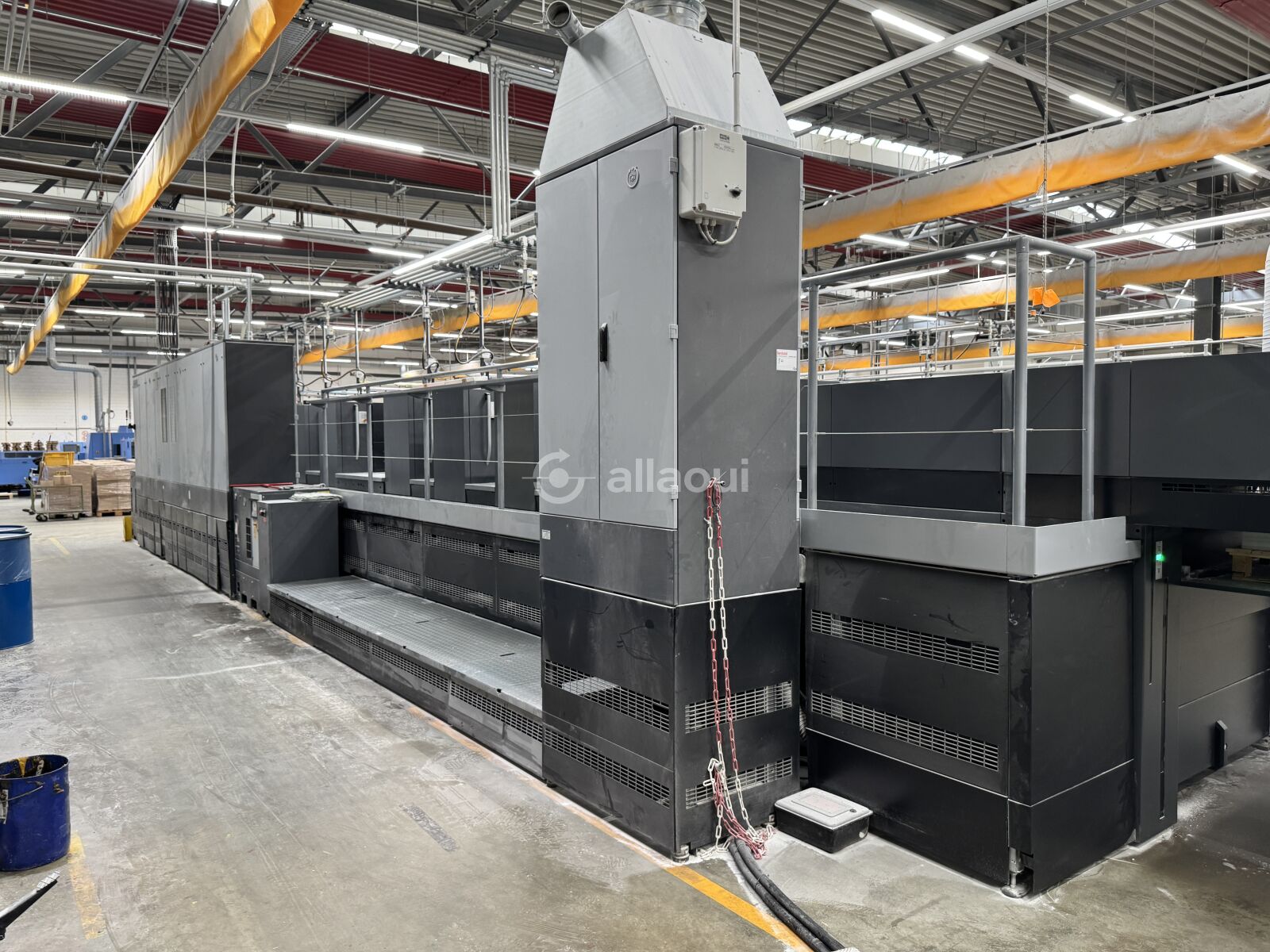

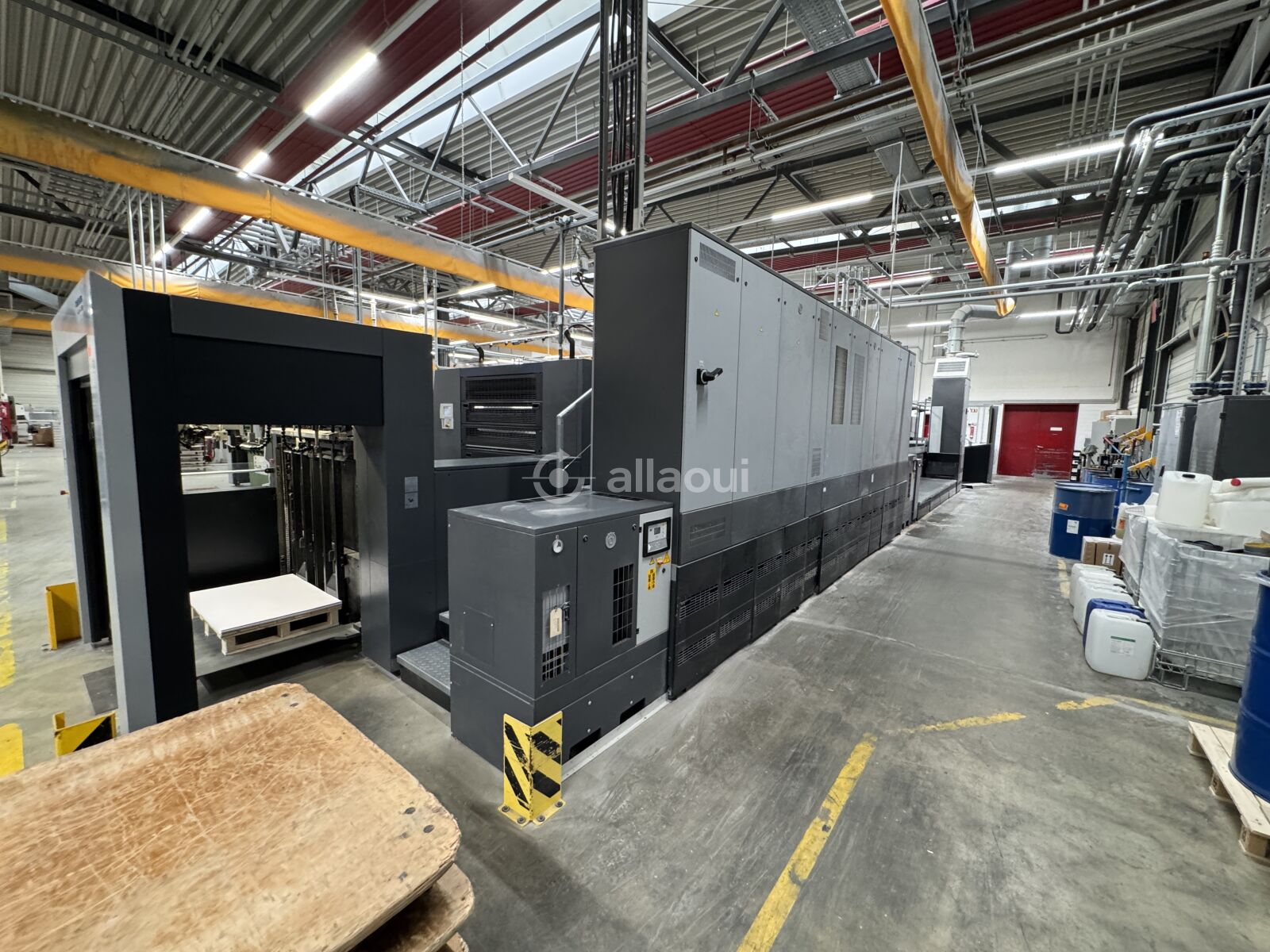

Periphery

  • AirStar Pro (water-cooled)
  • ScrollStar
  • StaticStar Compact (antistatic system)
  • Automatic central lubrication
  • Acoustic package (82–83 dB(A))
  • Narrow setup variant AS (with sub-frame for elevated periphery on non-elevated machines)

General

  • Performance Package (18,000 sheets/h)
  • Conventional operation (conventional ink and coating systems)
  • Electronically regulated sine synchronous main drive (efficiency up to 95%)
  • Standby function
  • Thin stock package for perfecting machines
  • HEI ECO package

Technical Details

Parameter Value
Max. Speed 18,000 sheets/h
Max. Sheet Size 750 × 1,060 mm / 29.53 × 41.73 in
Min. Sheet Size (straight) 340 × 480 mm / 13.39 × 18.90 in
Min. Sheet Size (perfecting) 410 × 480 mm / 16.14 × 18.90 in
Max. Print Size (straight) 740 × 1,050 mm / 29.13 × 41.34 in
Max. Print Size (perfecting) 730 × 1,050 mm / 28.74 × 41.34 in
Plate Size 811 × 1,055 mm / 31.93 × 41.54 in
Stock Thickness 0.03–0.8 mm / 0.0012–0.031 in
Max. Stiffness (DIN 53121) 130 mNm / 1.15 ibf in
Gripper Margin 10–12 mm / 0.39–0.47 in
Max. Pile Height Feeder 1,320 mm / 51.97 in
Max. Pile Height Delivery (front) 1,295 mm / 50.98 in
Max. Pile Height Delivery (side) 1,275 mm / 50.20 in
Max. Pile Weight (Feeder / Delivery) 2,000 kg / 4,410 lbs
Noise Level 80–84 dB(A) (EN 13023)
Voltage 400 V / 50 Hz
Light Voltage 230 V
