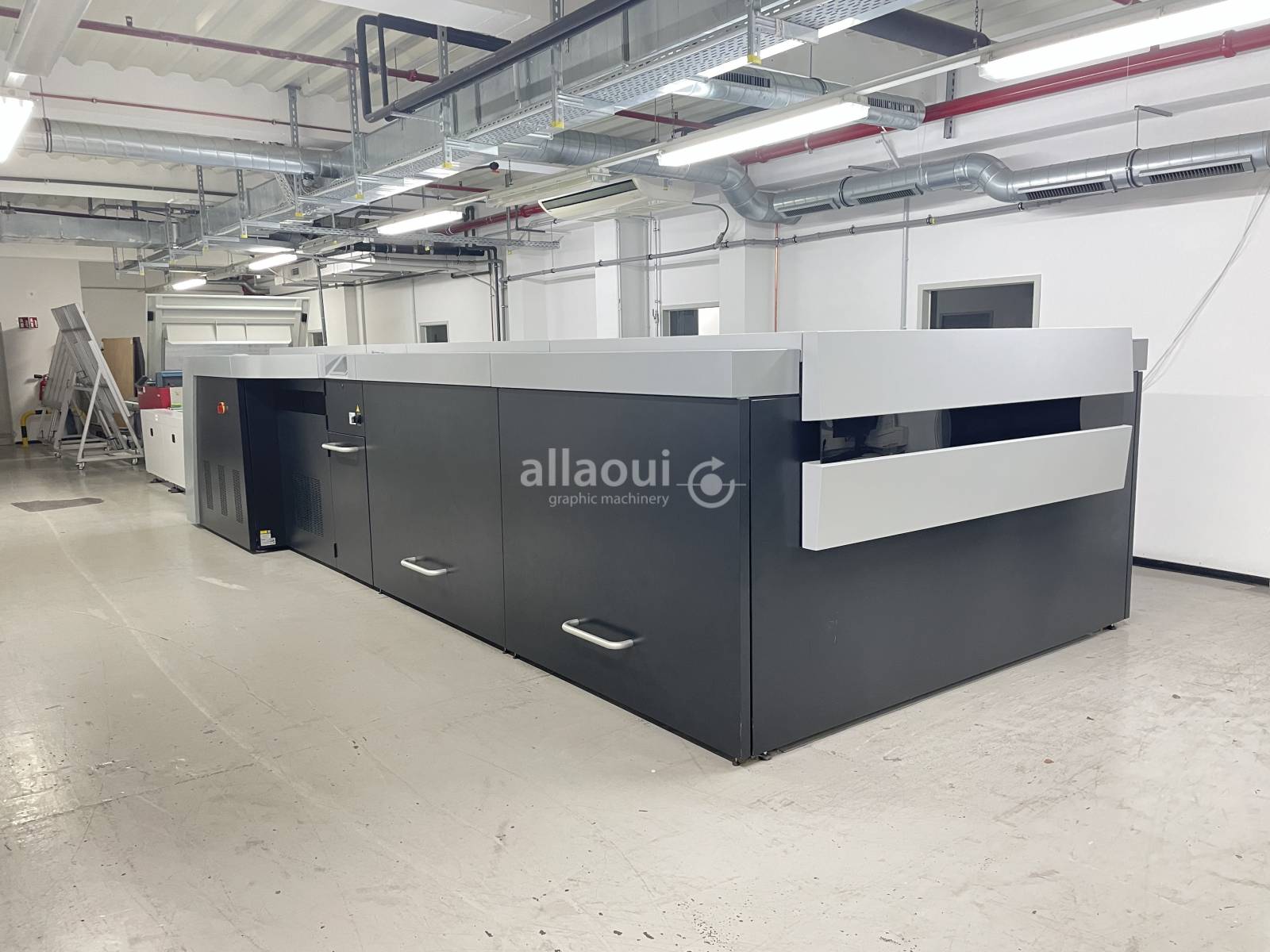

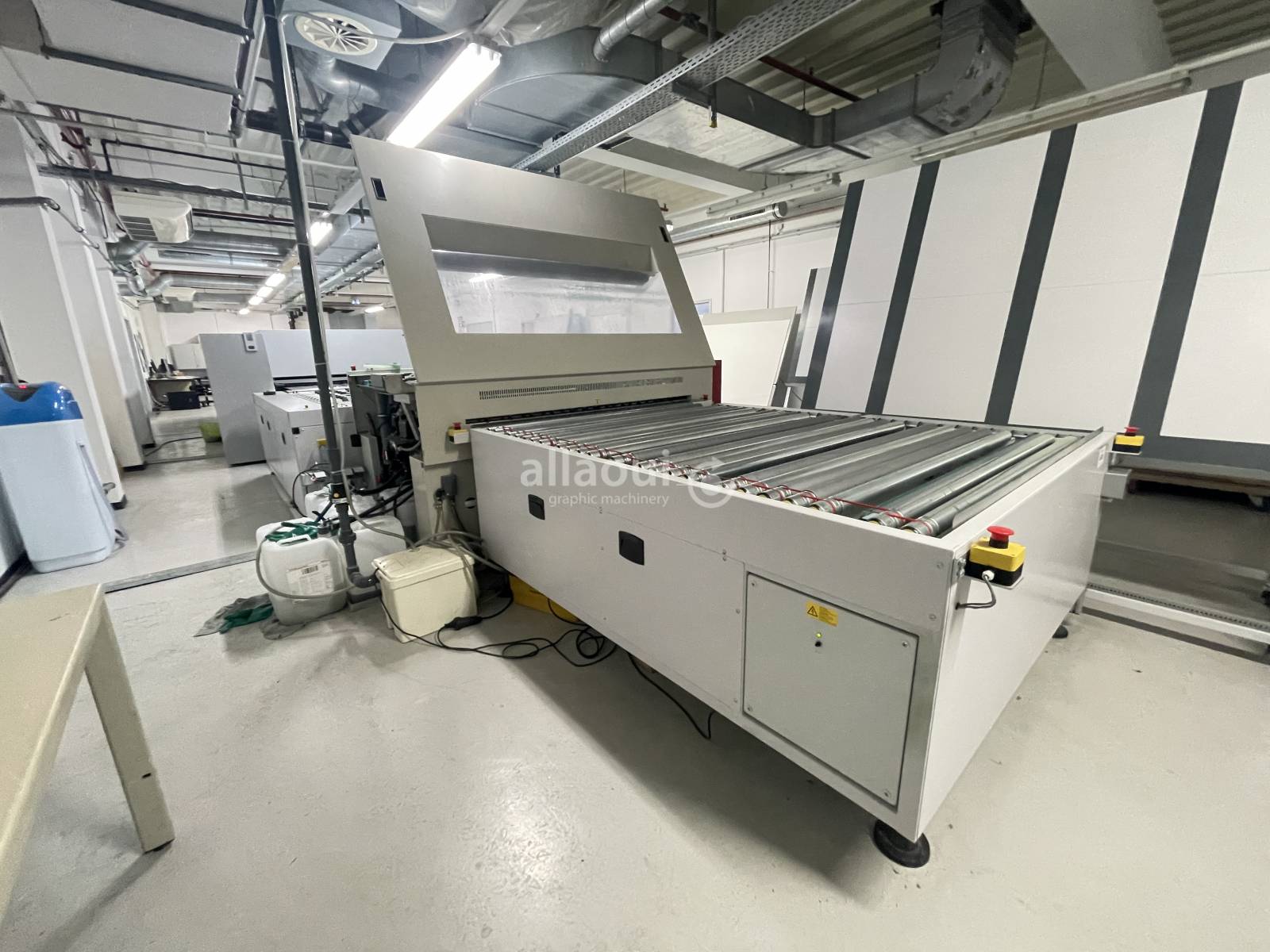

The Heidelberg Suprasetter 190 is a fully automated VLF platesetter equipped with Auto Pallet Loader, inline punching system, turning table, Agfa Elantrix 150 HX processor, and a stacker for processed plate handling on trolleys. It delivers a continuous, high-volume CTP workflow designed for large-format production environments.

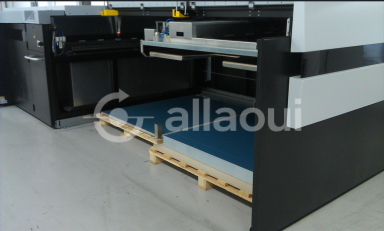

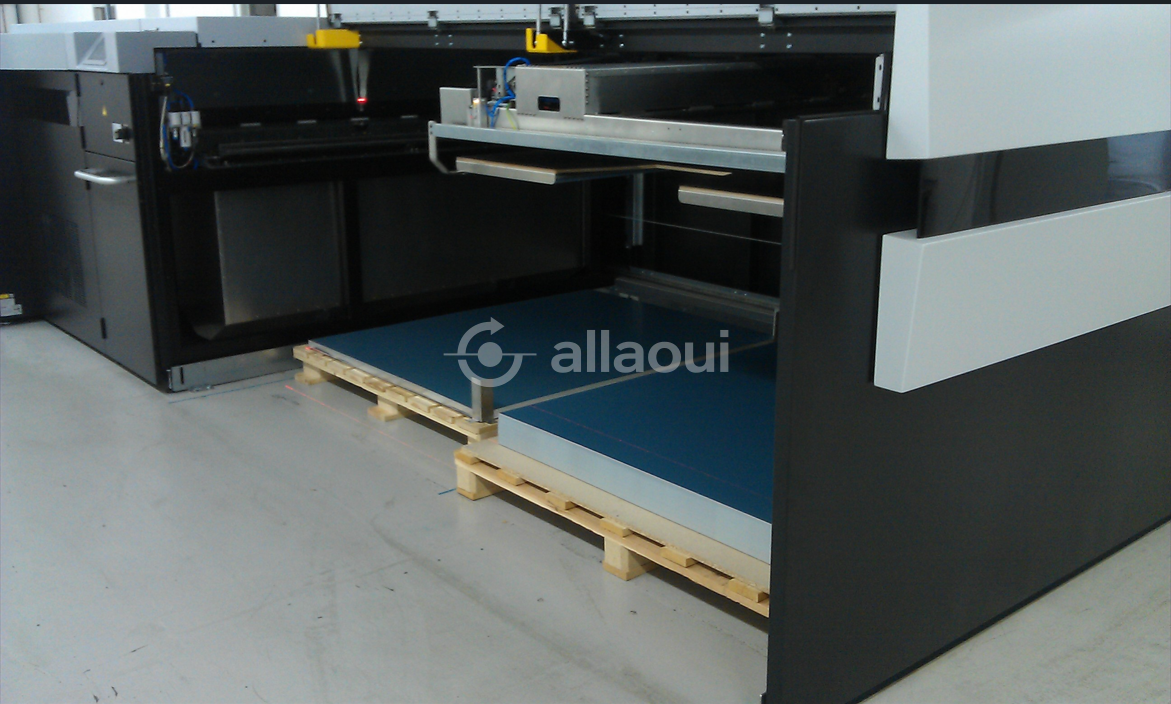

Loader
Type: Auto Pallet Loader
Automatic unloading system
Capacity: 2x 600 Plates/Pallet
Plate thickness: 0,24 - 0,40 mm
Interleaf removal
Auto Pallet Loader
Imagesetter
Type: Suprasetter 190
Number of laser heads: 6
Automatic temperature compensation
Accuracy: 830 nm (+/- 25 μm)
Inline plate punching system
Laser type: Class 1
Technical Details
Size max.: 1,425 x 1,915 mm
Size min.: 500 x 650 mm
Plate thickness: 0,24 - 0,4 mm
Resolution: 2.400 or 2.540 dpi
Productivity (single head): up to 25 plates/h
Width: 3400 mm
Depth: 3380 mm
Height: 1560 mm
Die cutter: Includes: Punch configuration with rectangular and U-shaped punch head for KBA or MAN printing presses
