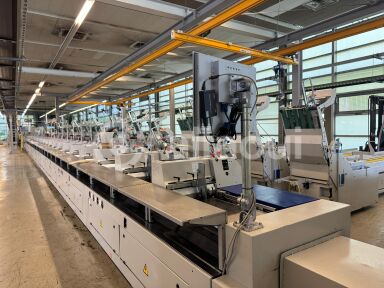

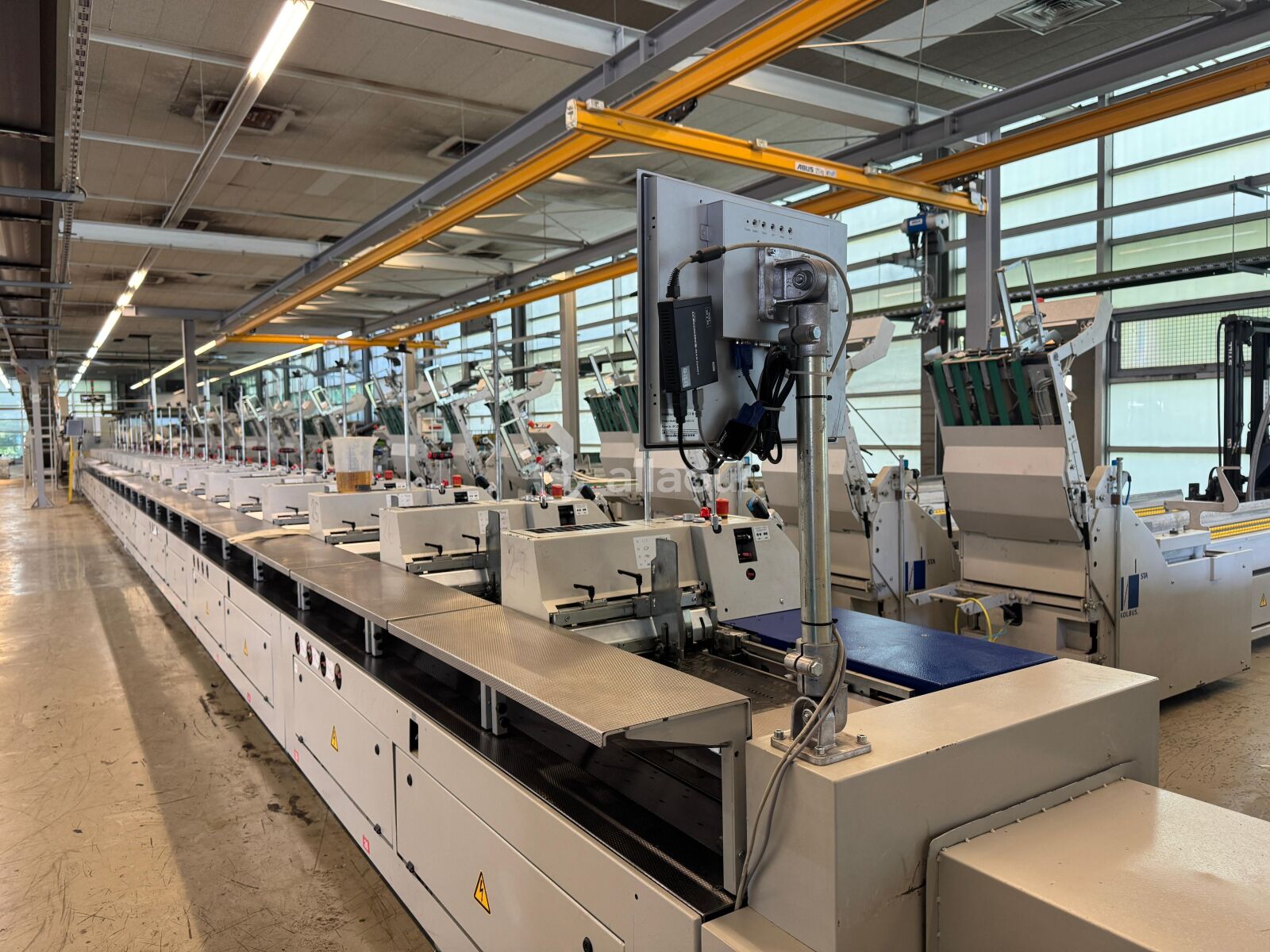

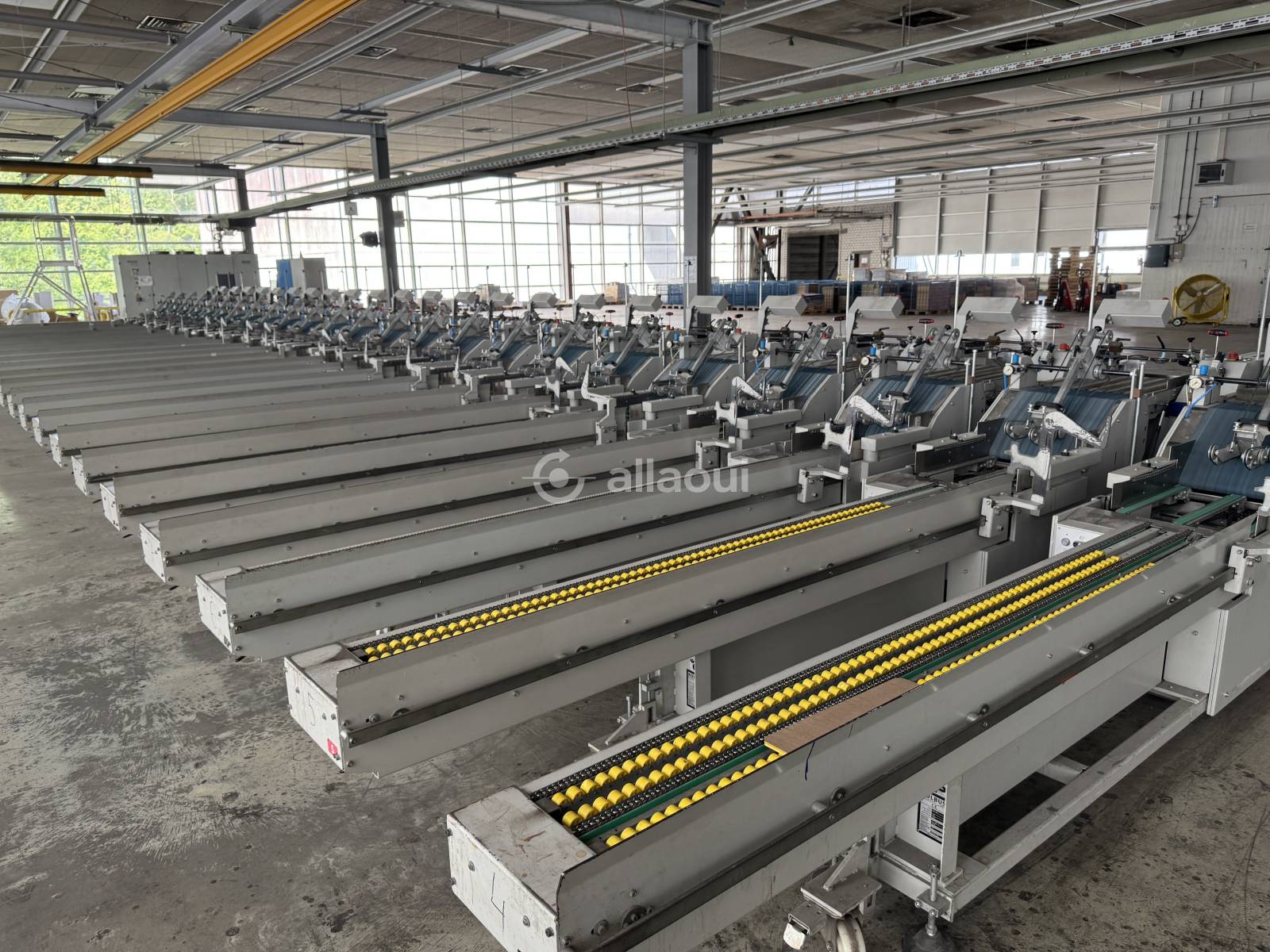

آلات تجميع

• نوع: ZU 841.B
• تجميع: 24x
• عام: 0325170
• Hand feeding station
• ملقم كتب : Solema Fastbook
• ATC (automatic sheet thickness control)
• optoelectronic signature recognition system
• extended jogger element
• Reject Unit: AS 841

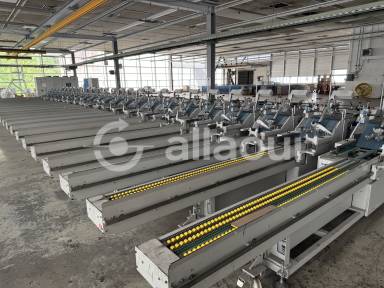

• Streamfeeder: 24x Kolbus STA 840
• Crane System: Yes
• Aircenter
• Touchscreen

مواصفات فنية

• Size max: 320 x 510 mm
• Size min: 105 x 105 mm
• Pile height max: 250 mm
• Mechanical speed max: 12,000 cycles/h

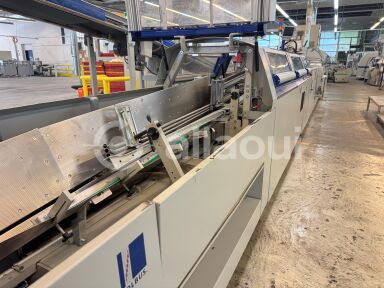

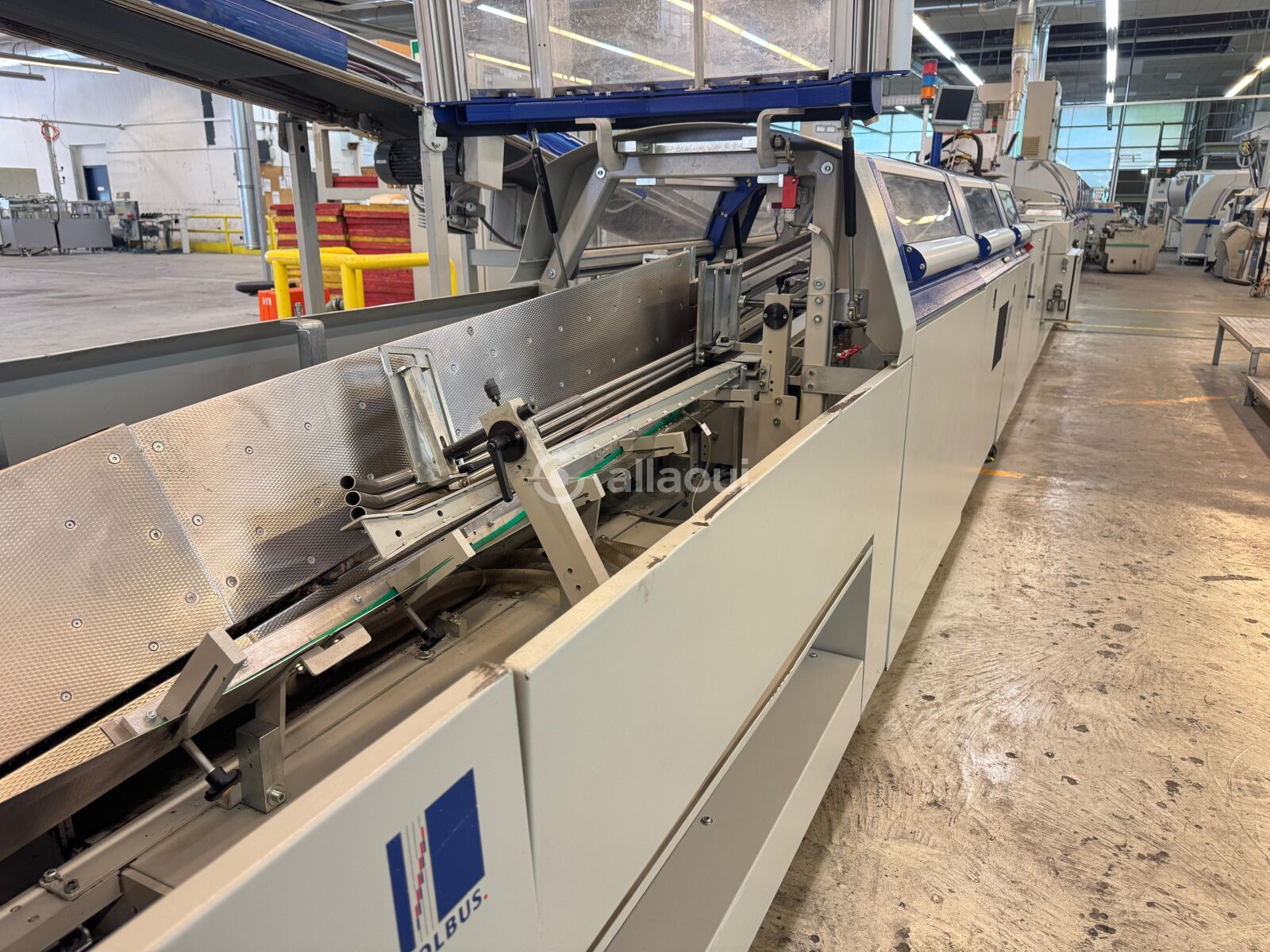

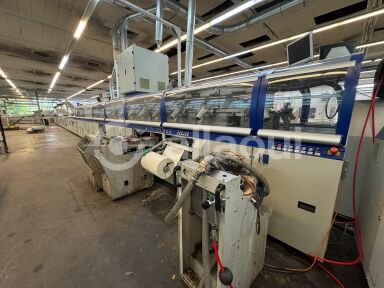

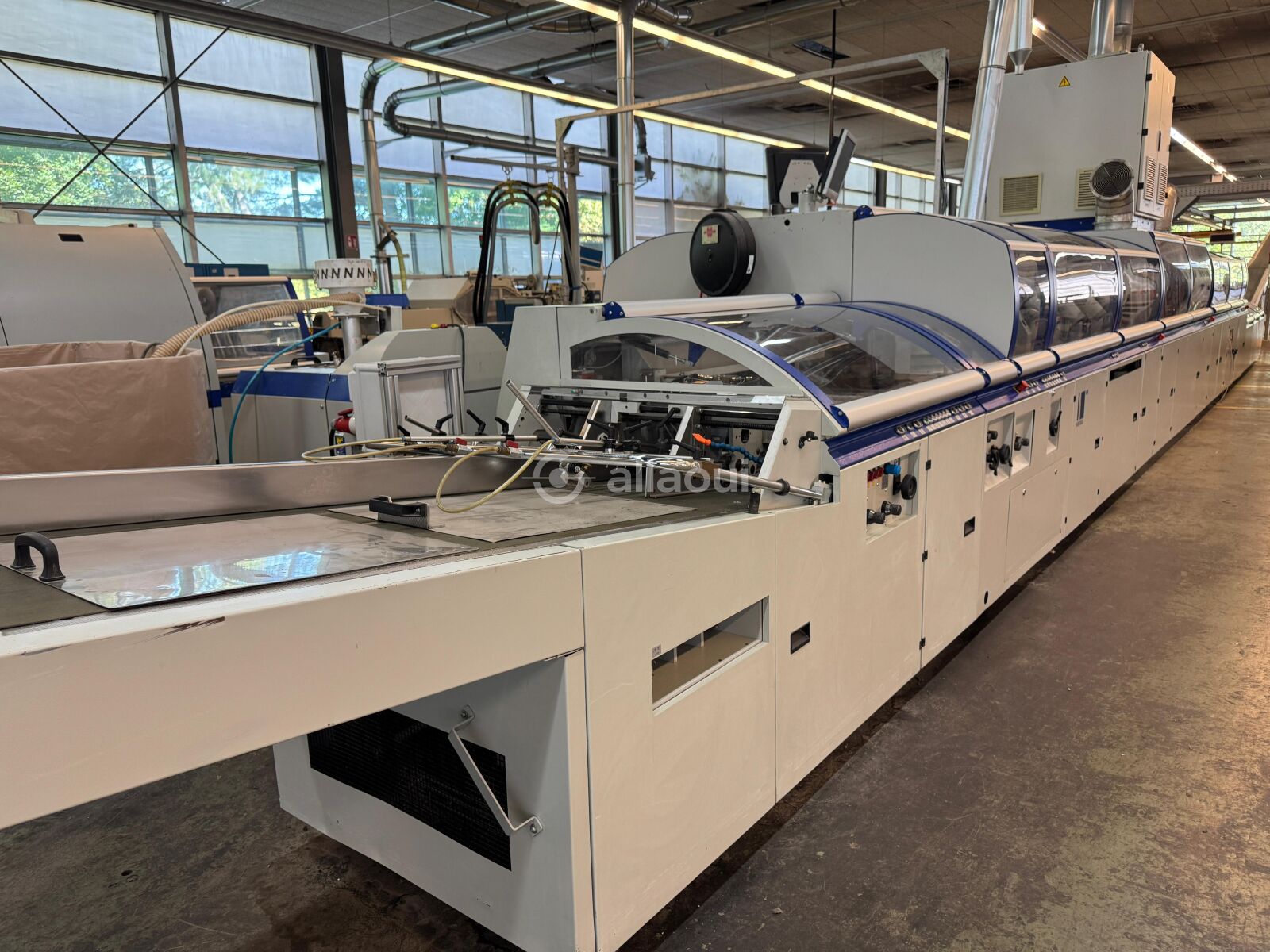

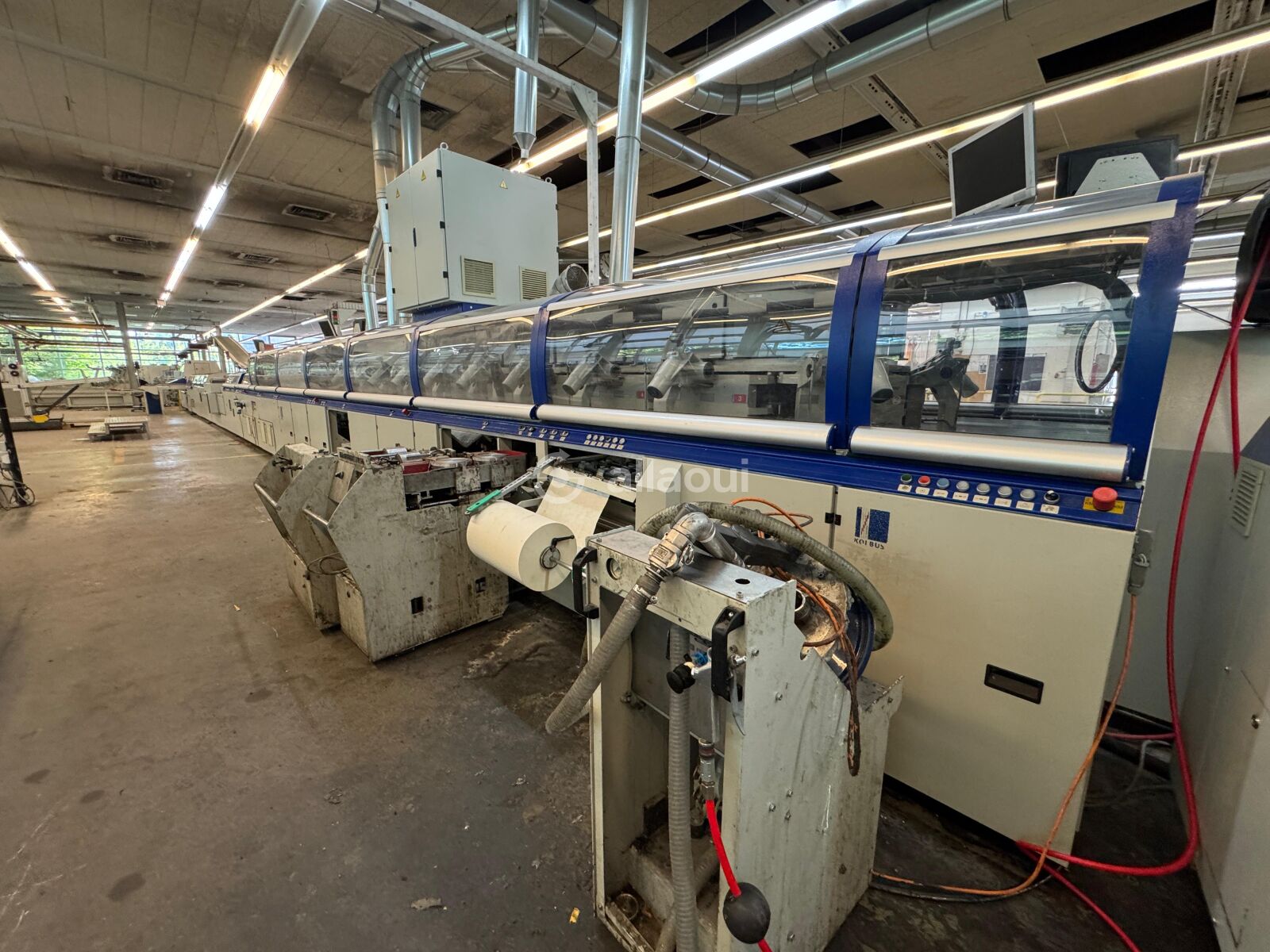

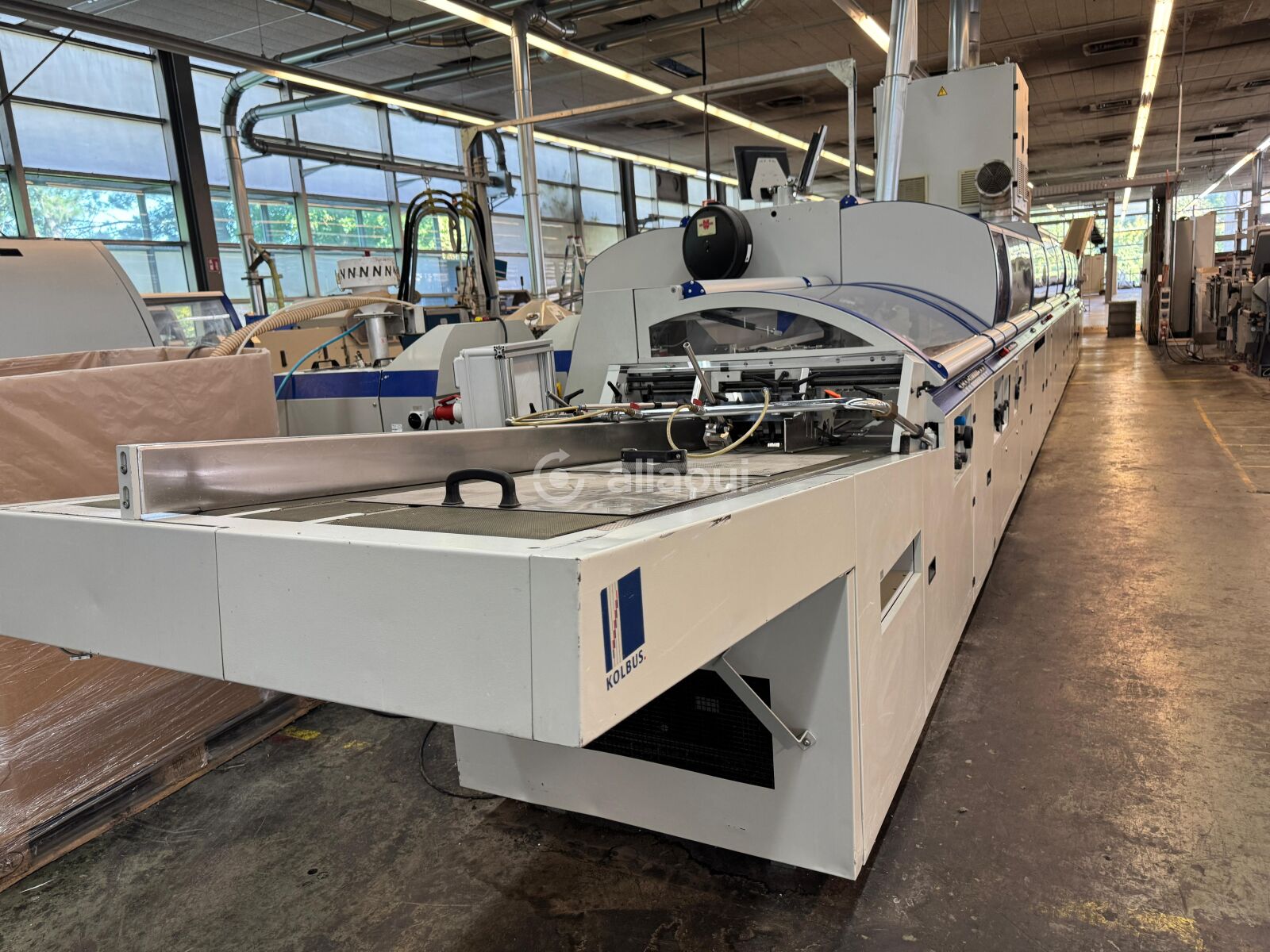

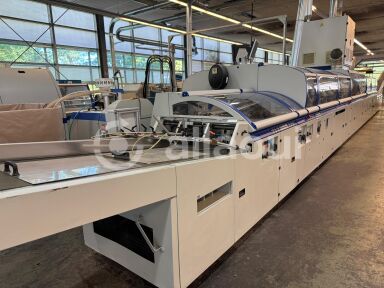

جهاز تجليد تجاري

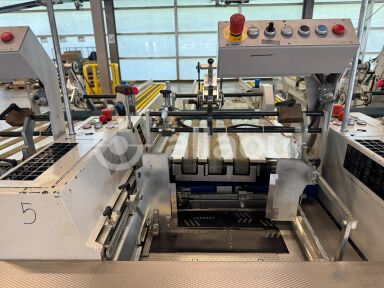

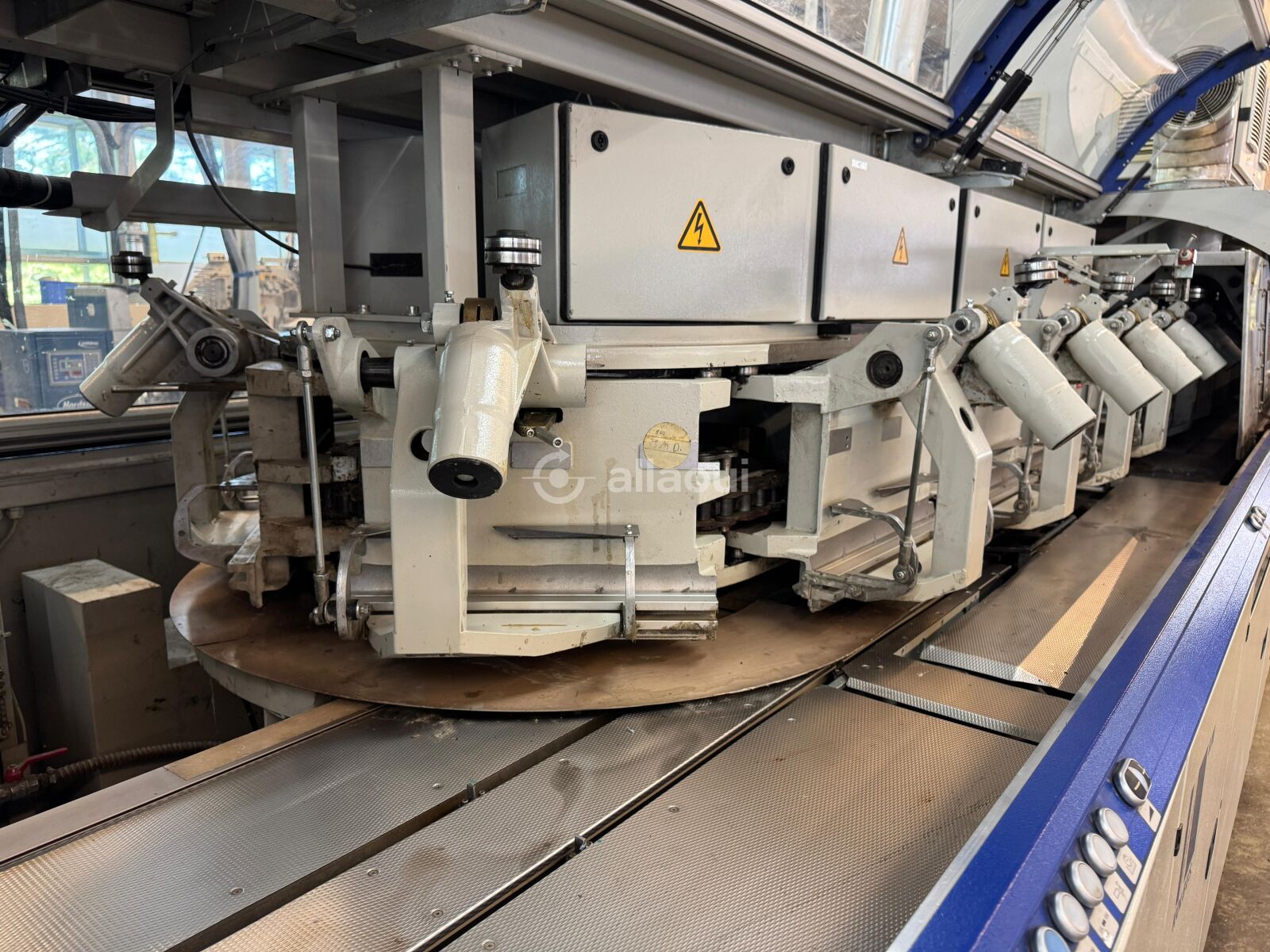

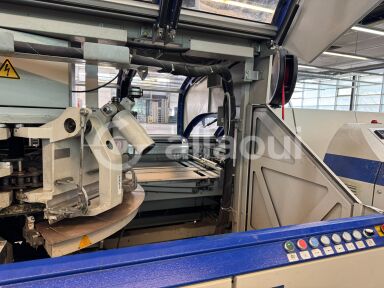

• نوع: Kolbus KM 411.B

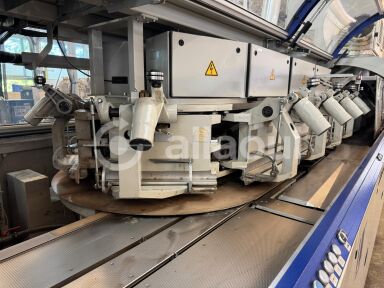

• Number of clamps: 30x
• Endsheet: VA 422
• Milling station
• 2. Milling station

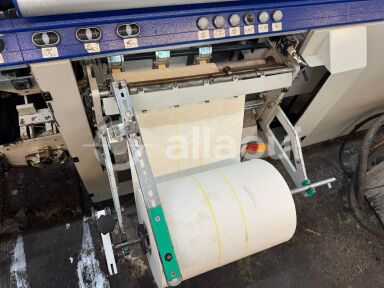

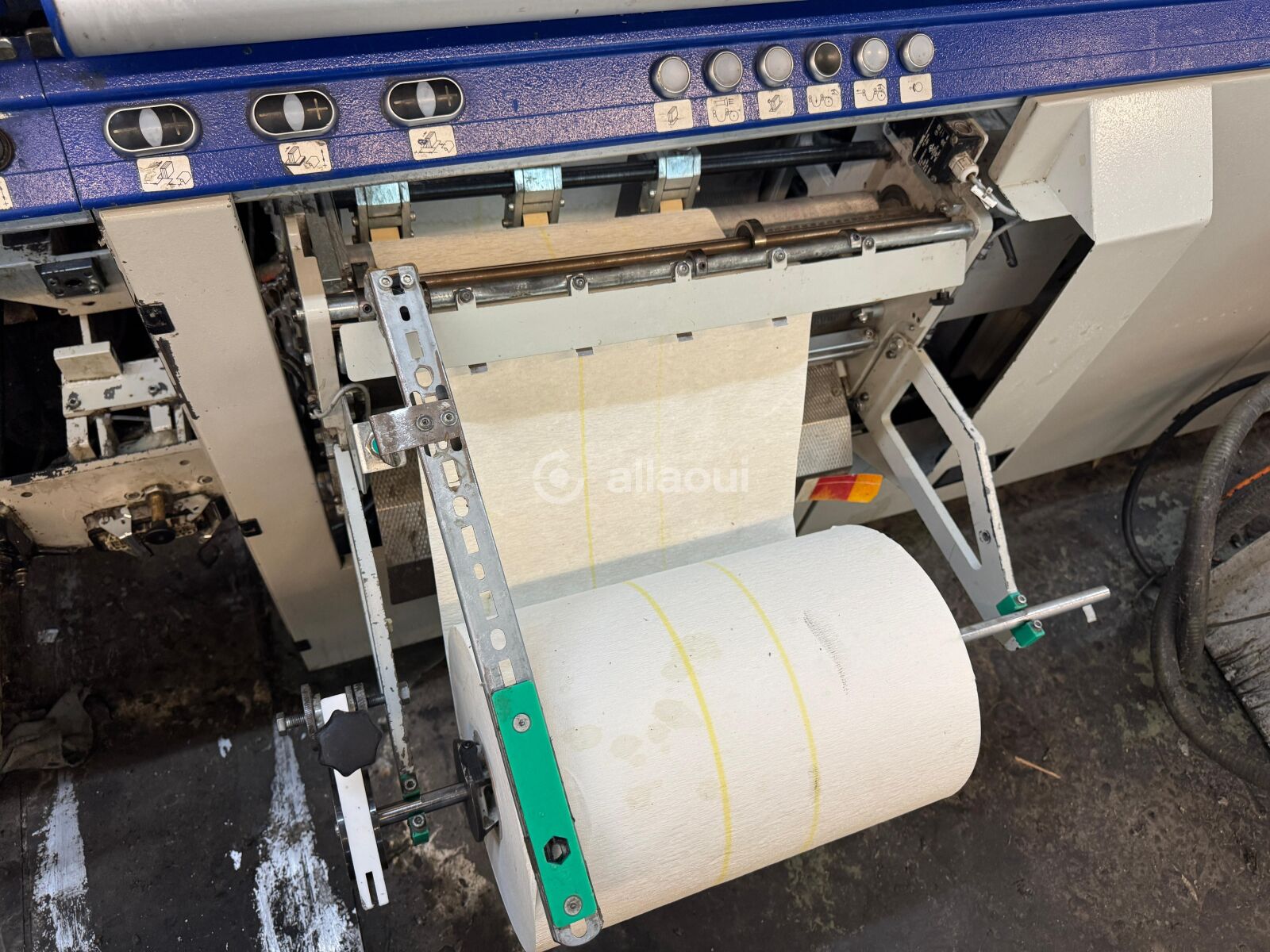

• Gauzing
• rill station for 4 times rill
• Cover feeder: Stream Cover Feeder
• Nipping and Pressing station
• 2nd Nipping and Pressing station
• lay down device
• High Frequncy Drying: Yes

Spine Gluing

• Base for 2 Spine Gluing Units
• Infrared intermediate Drying between both bases

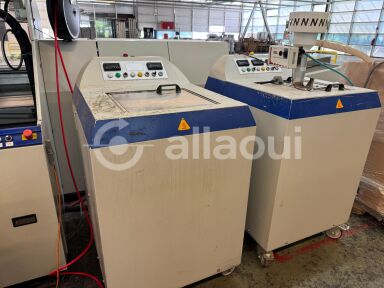

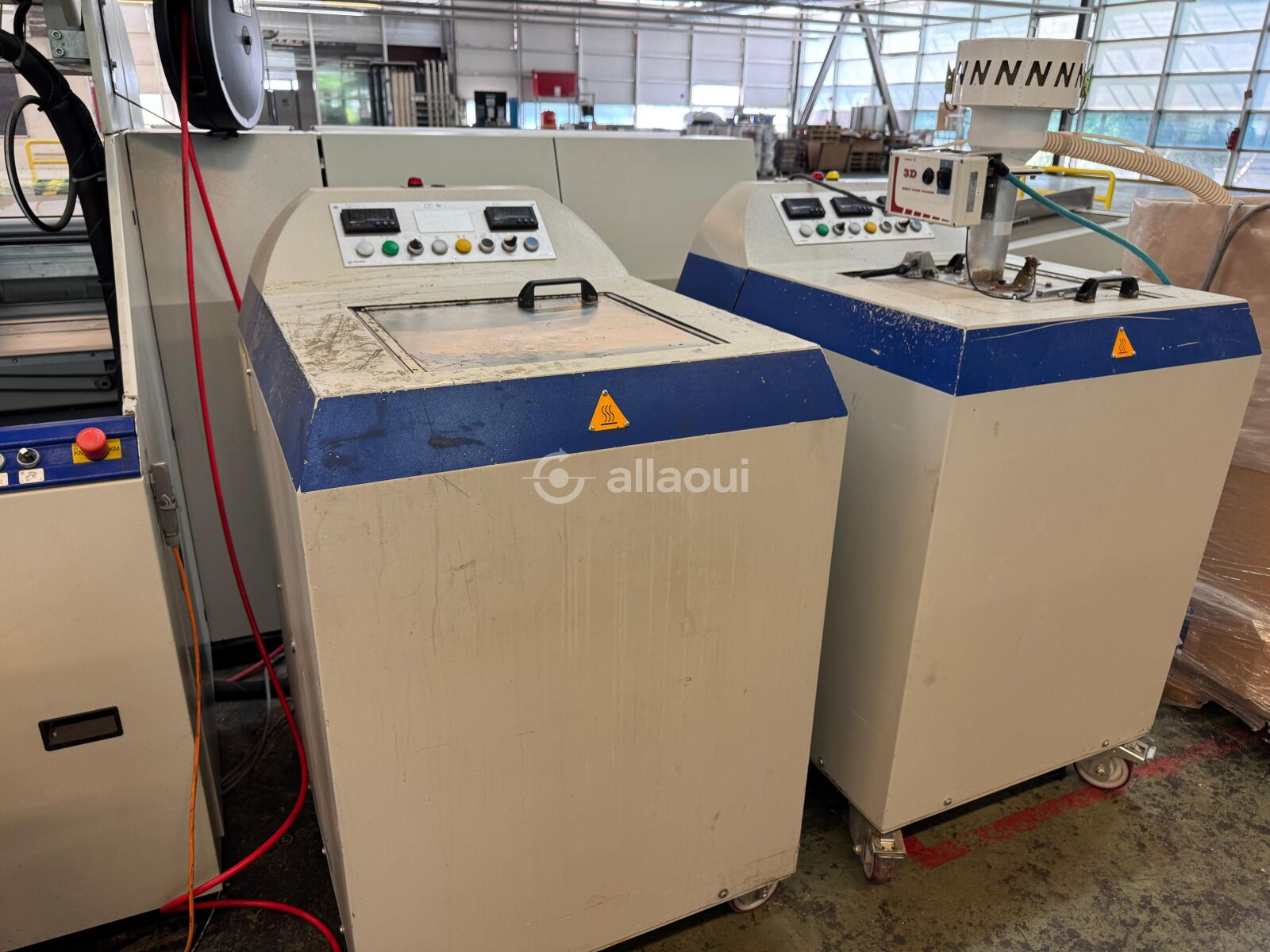

• Hotmelt: 2x Hotmelt Spine Unit with 2x Premelter
• Cold Glue: 2x Cold Glue Spine Unit
• PUR: 2x PUR Spine Gluing Unit with 1x Premelter

Side Gluing

• Hotmelt: 1x Hotmelt Side Glue with Premelter
• Cold Glue: 1x Cold Glue Side Glue
• PUR: 1x PUR Side Glue (no Premelter)

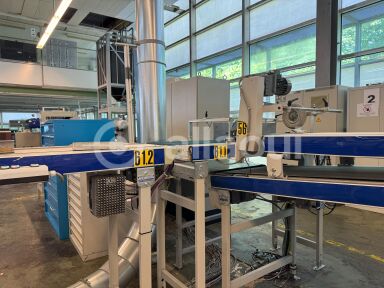

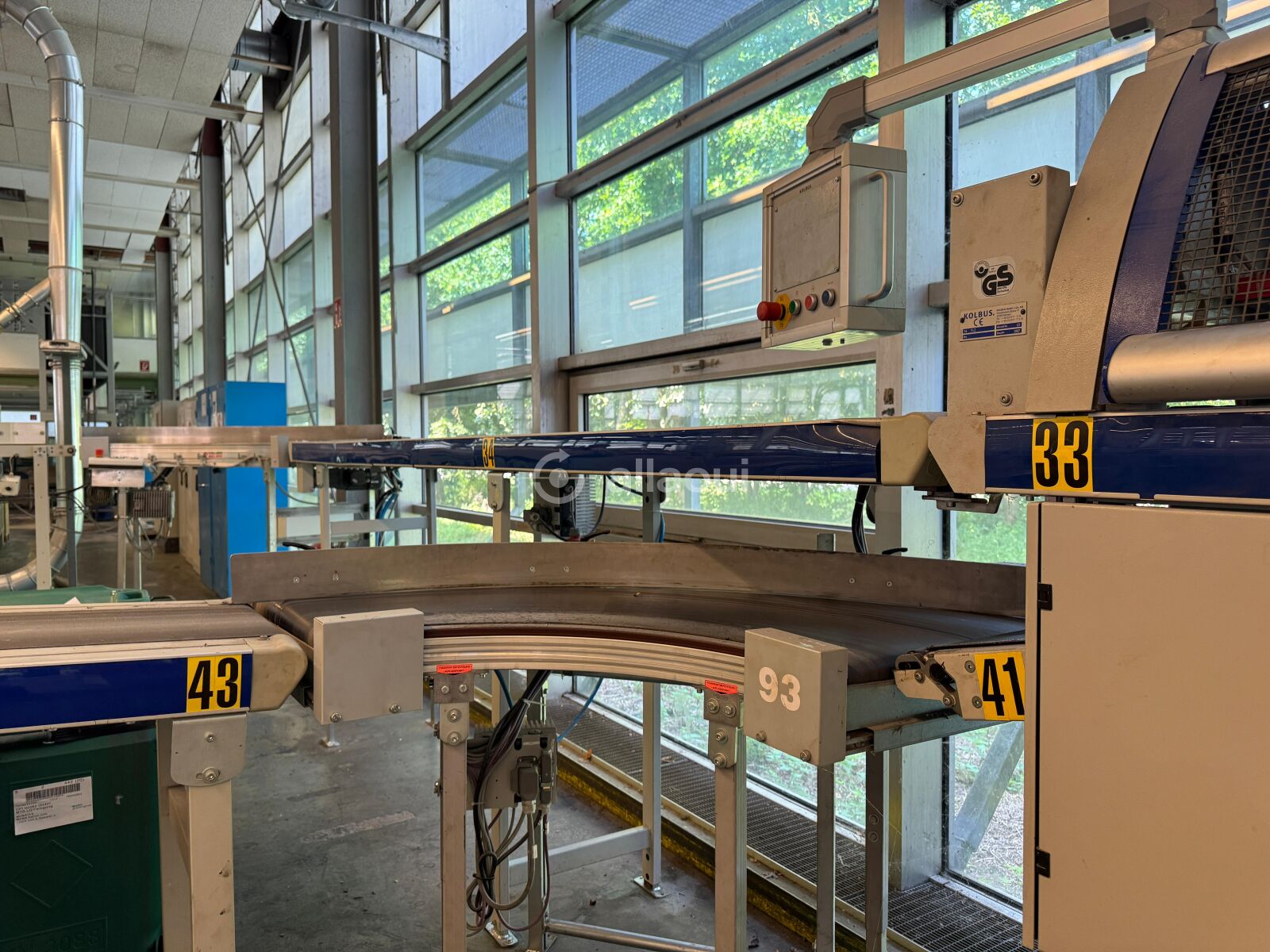

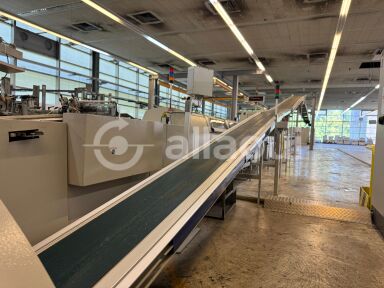

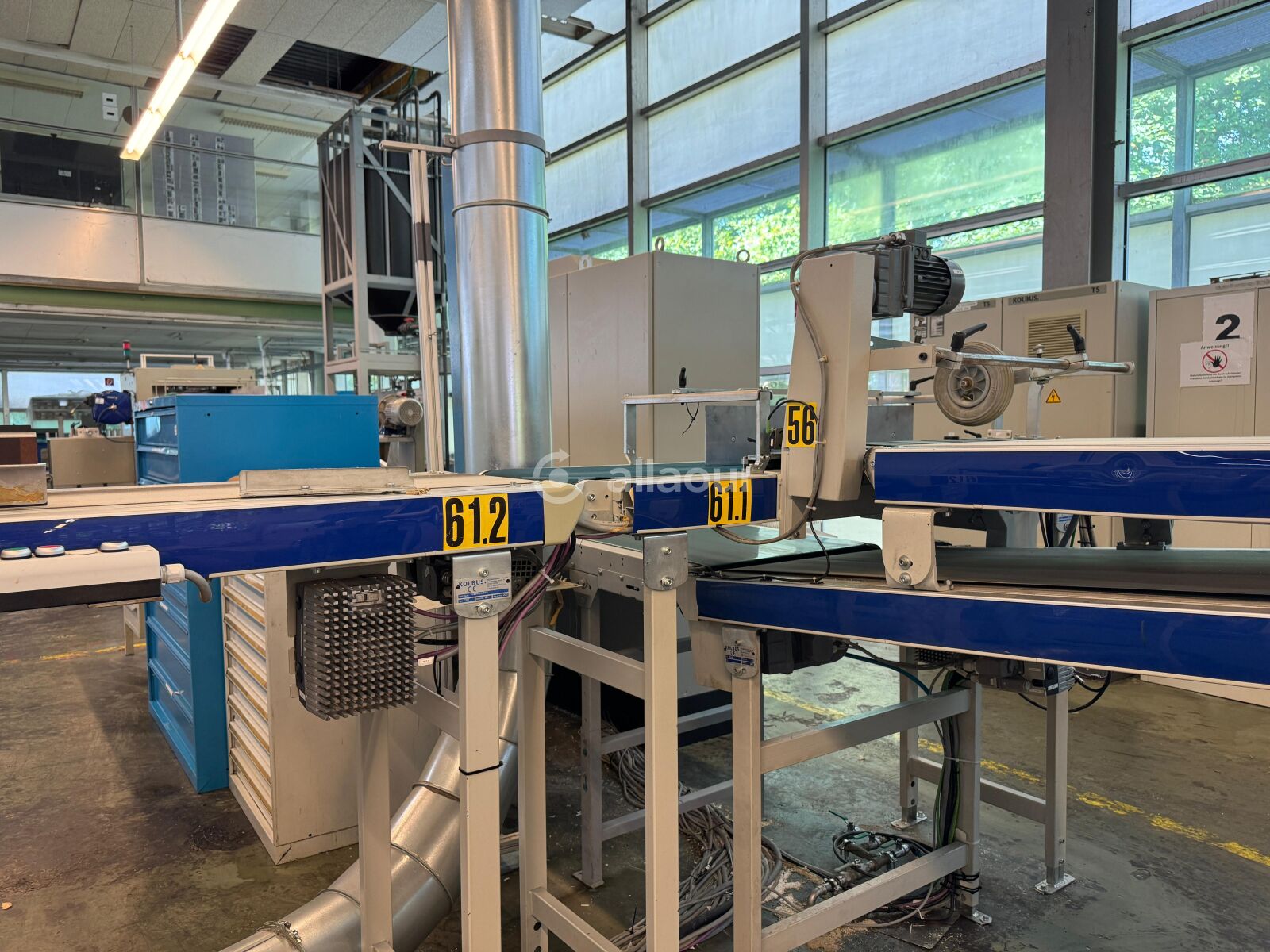

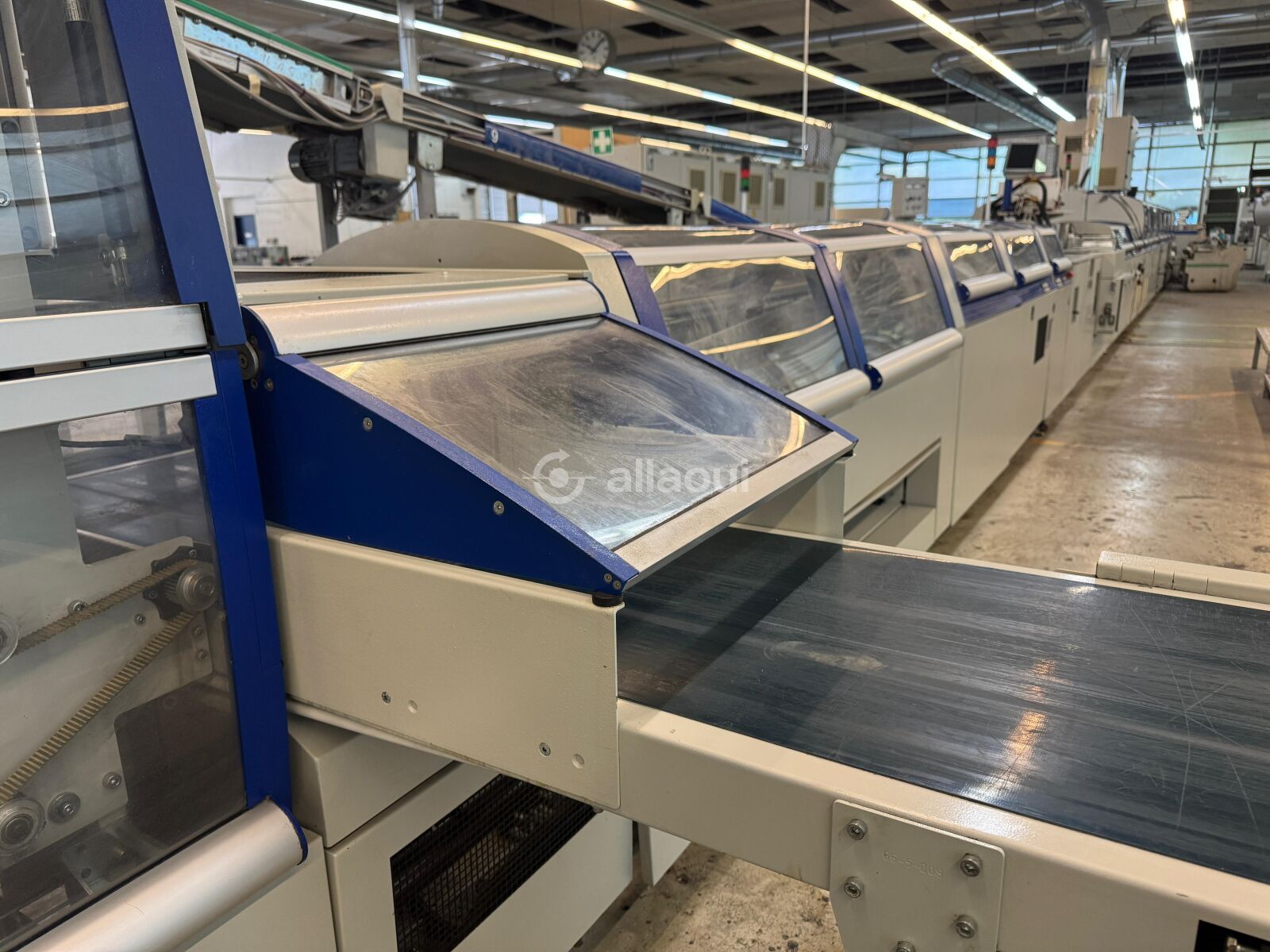

Drying Conveyor

• conveyor belts
• length of the drying conveyor: around 100m

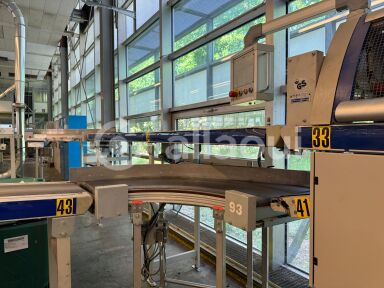

• Conveyor deviation Type: Kolbus TS.ZD

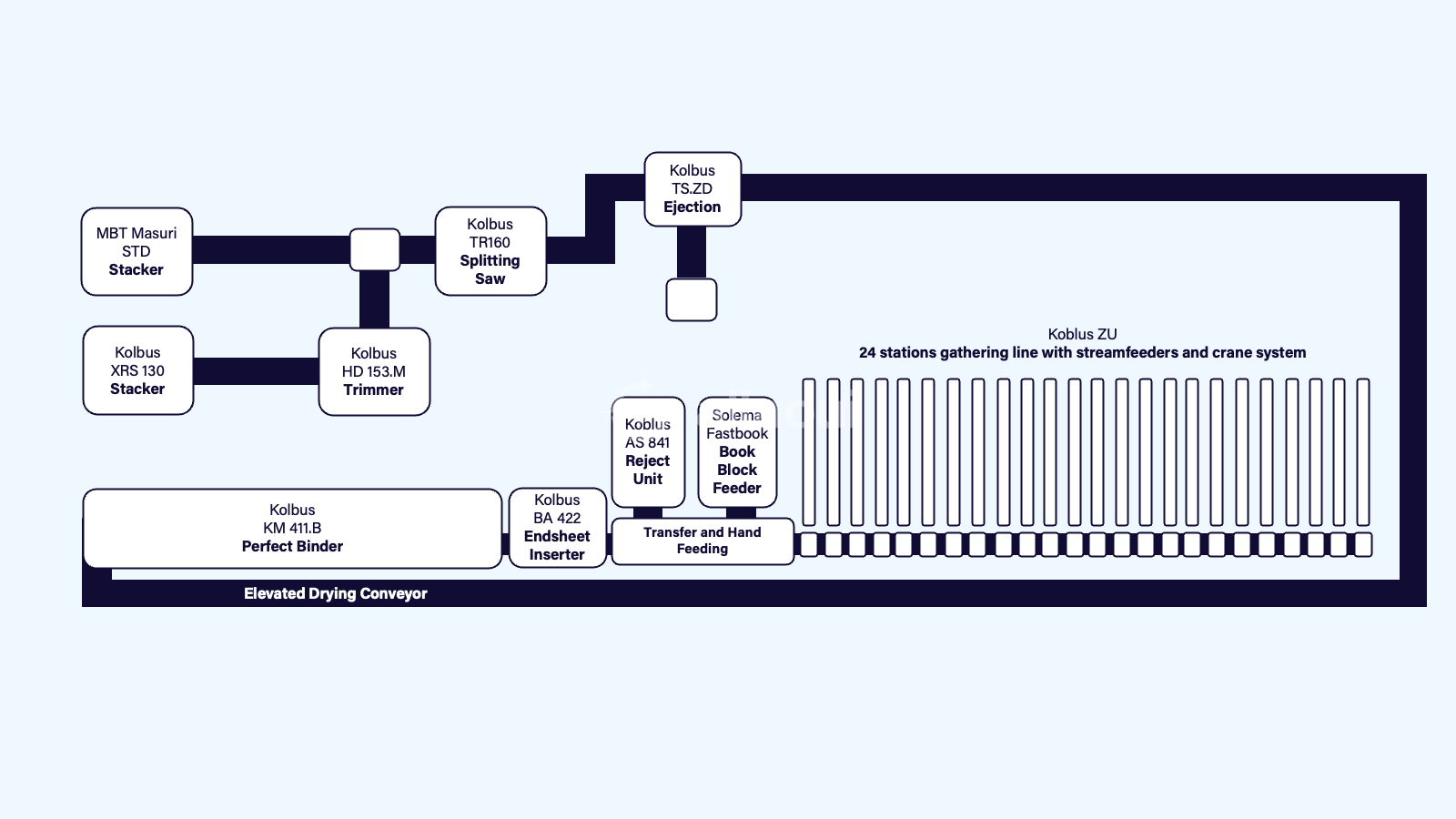

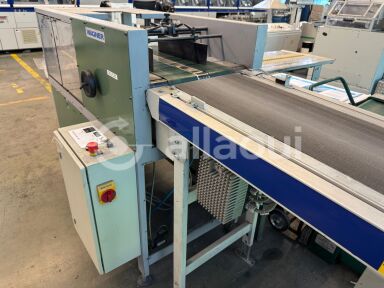

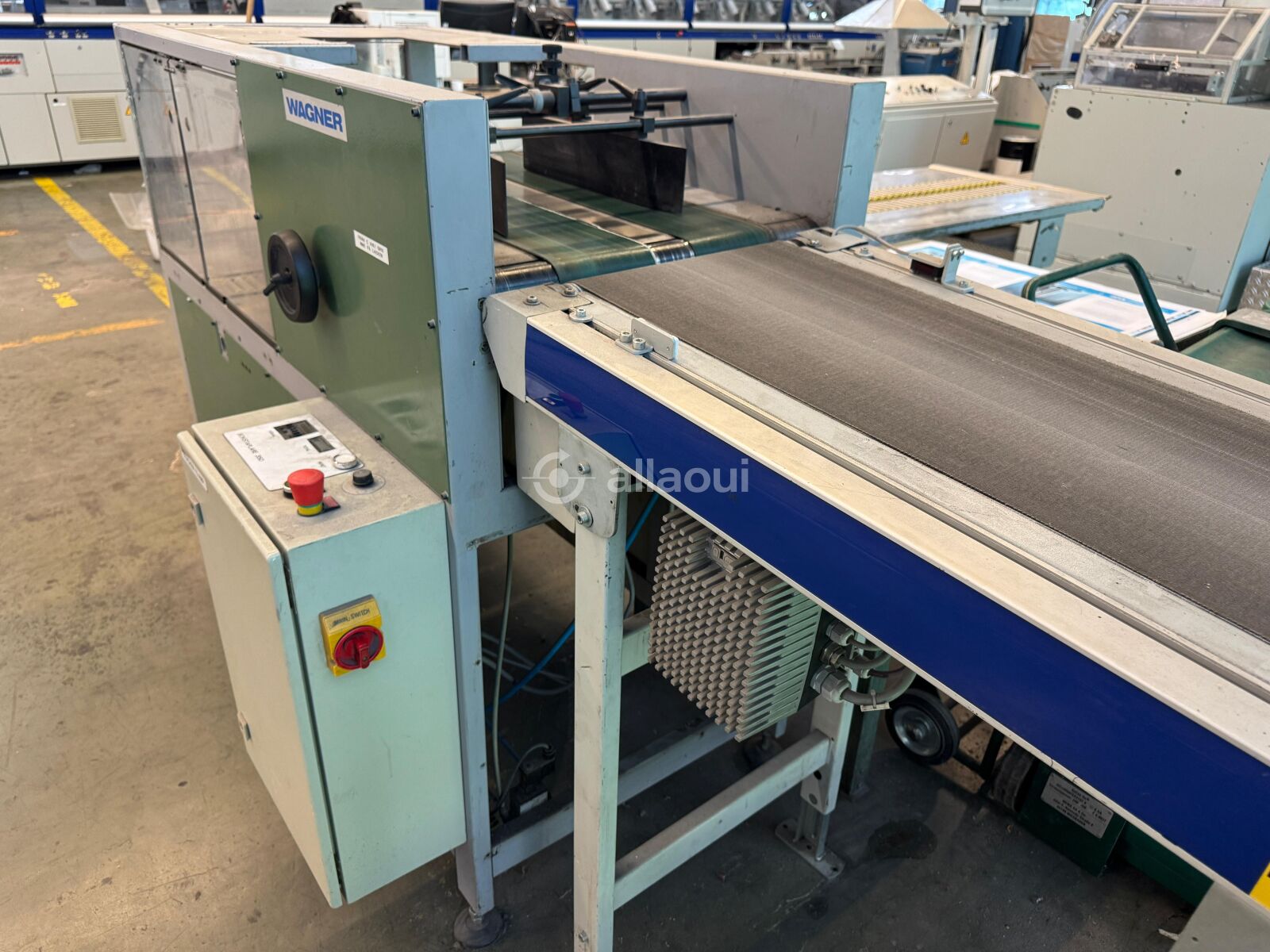

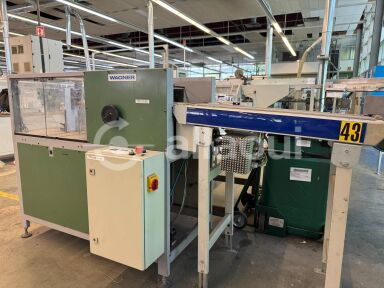

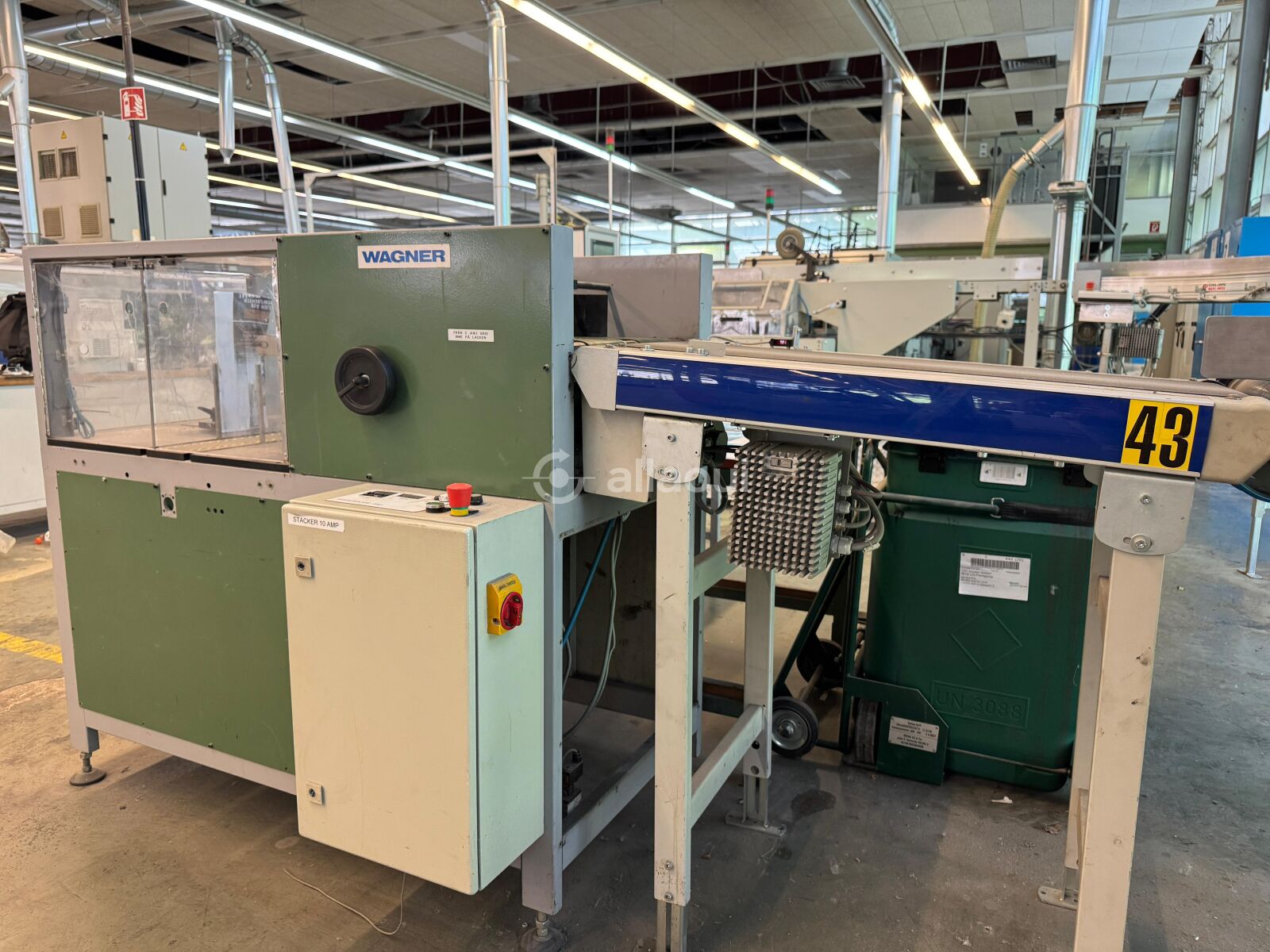

• Conveyor deviation routes: To the left: Wagner Stacker (2003) ; Straight: Kolbus TR 160 Splitting Saw

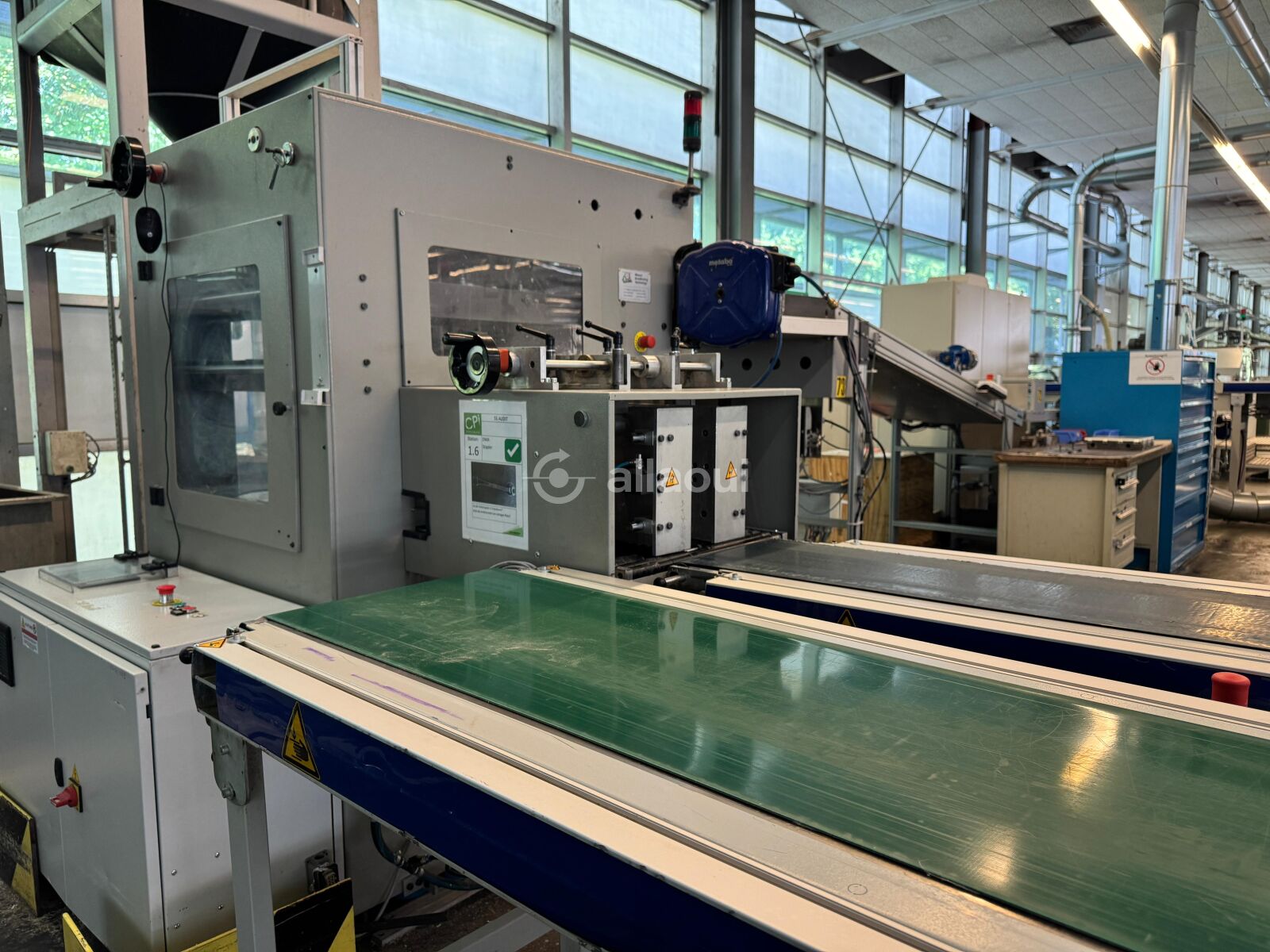

قص نصفي

• نوع: Kolbus TR 160
• عام: 2003
• Conveyor deviation after splitting saw
• Conveyor deviation routes: to the left: Kolbus HD 153.M Three knife trimmer; Straight: MBT Masuri STD Stacker

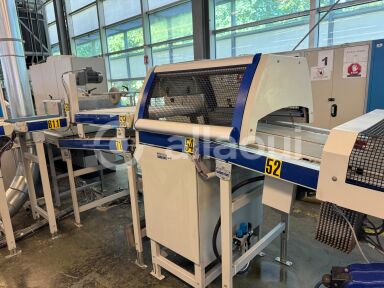

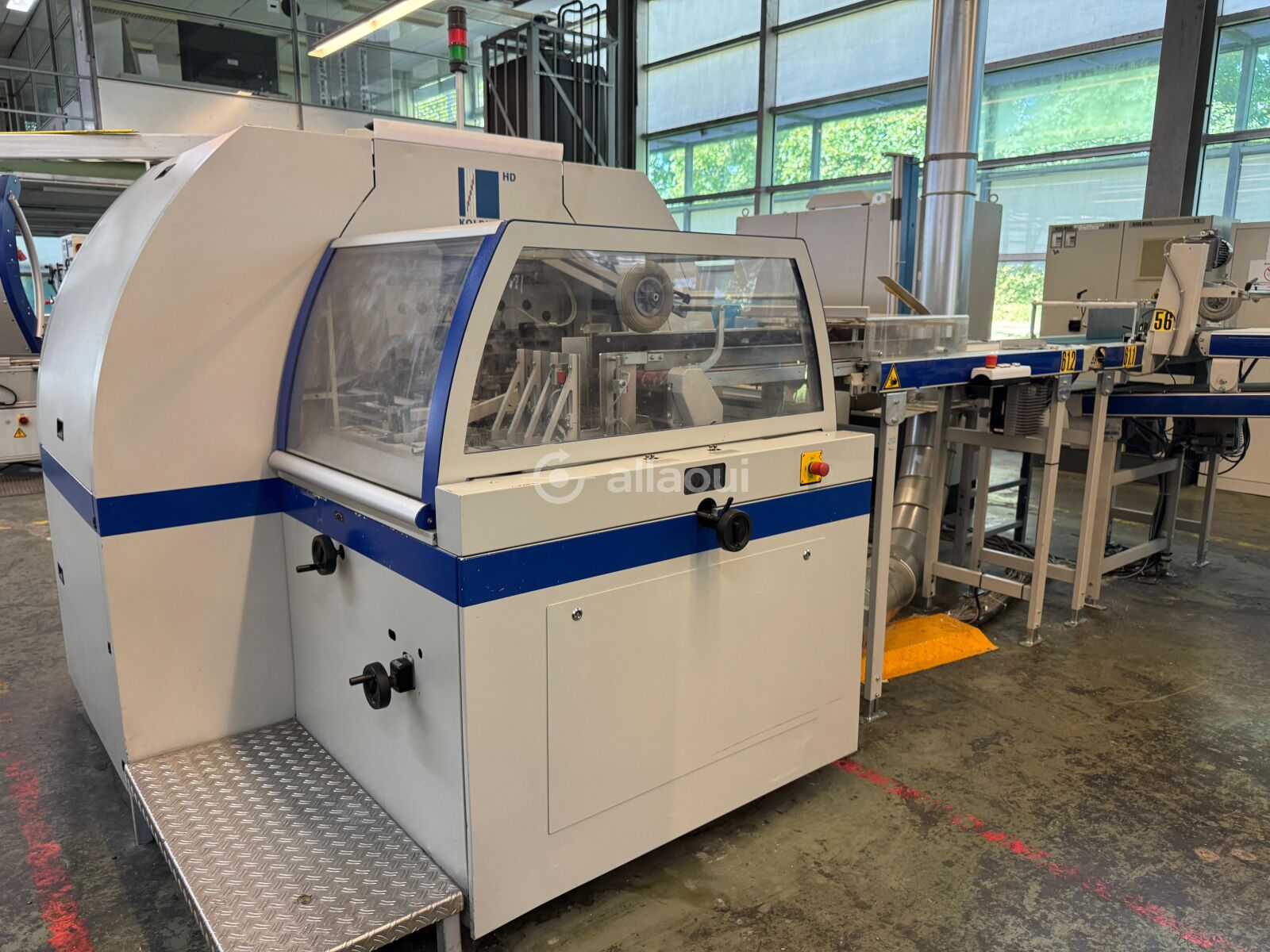

مقص ثلاثي السكاكين

• نوع: Kolbus HD 153.M
• عام: 2011
• Control panel: Copilotsystem with "Touchscreen"

مواصفات فنية

• Size max (cutted)): 300 x 420 x 80 mm
• Size min (cutted): 100 x 120 x 1,5 mm
• Size max (uncutted): 310 x 430 x 80 mm
• Mechanical speed max: 6,600 cuts/h

منظم

• نوع: Kolbus XRS 130 after Three-Knife-Trimmer Kolbus HD 153.M
• عام: 0325170

Delivery and Peripherals

• Blocking Unit: Kolbus VB 120

• Mechanical Speed: 12,000 cycles/h
• Book thickness: 70 mm
• Max Block format range (width x height x thickness): 320 x 510 x 70 mm
• Min. Block format range (width x height x thickness): 100 x 105 x 3 mm
