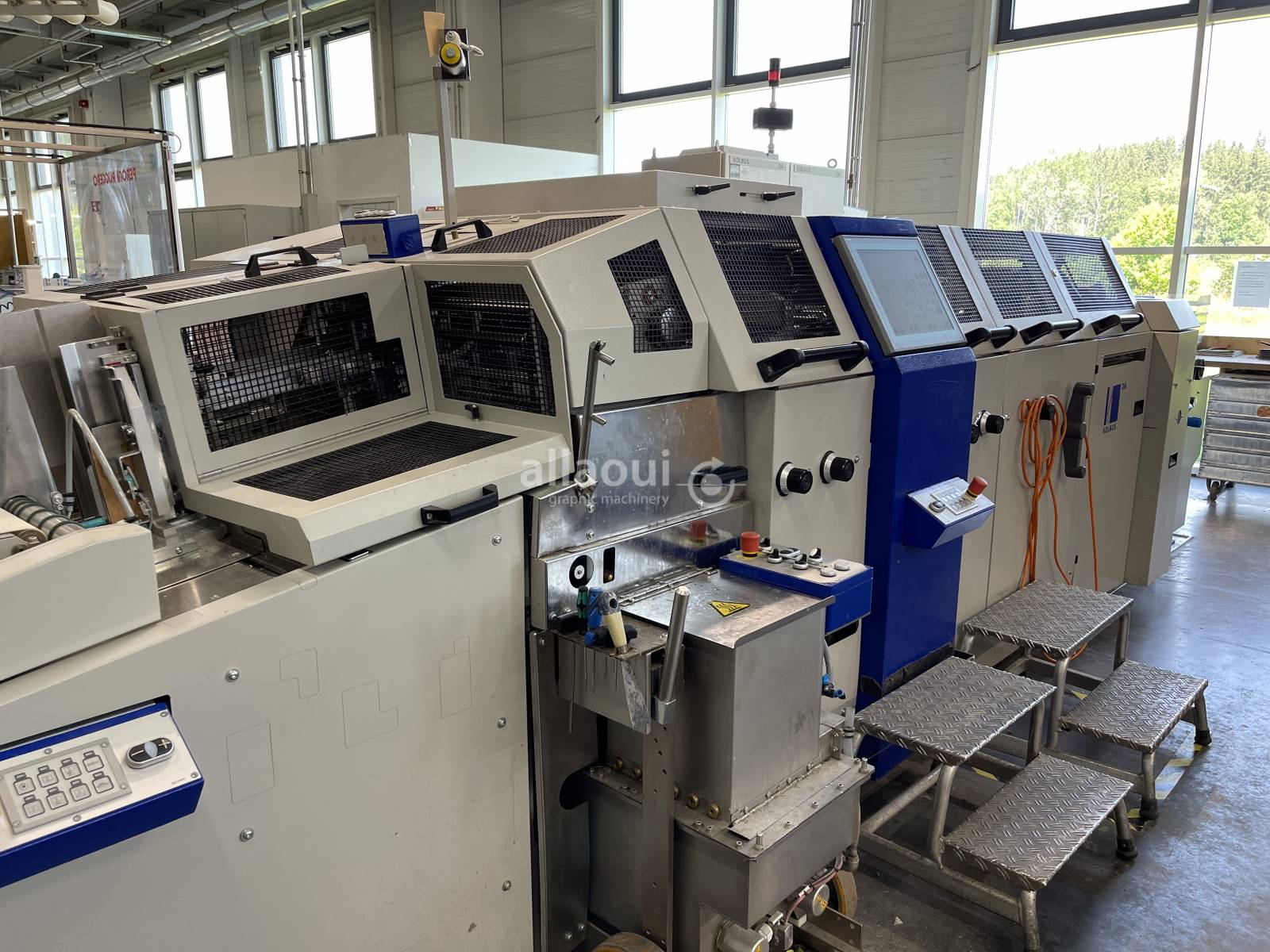

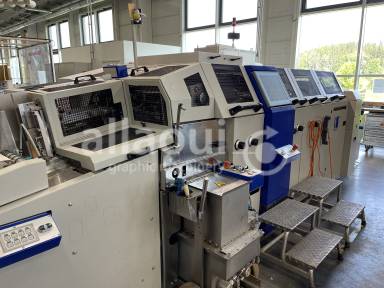

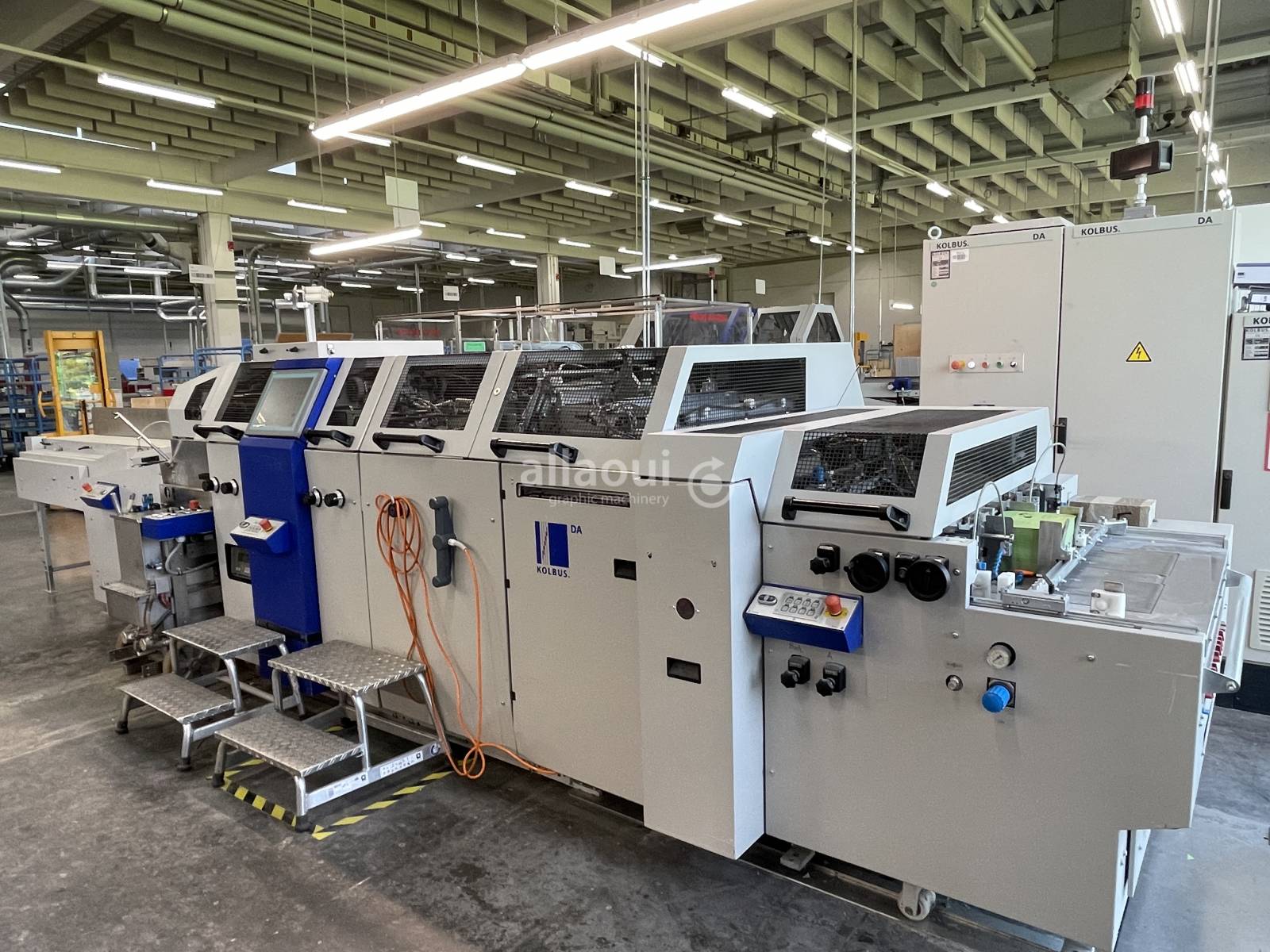

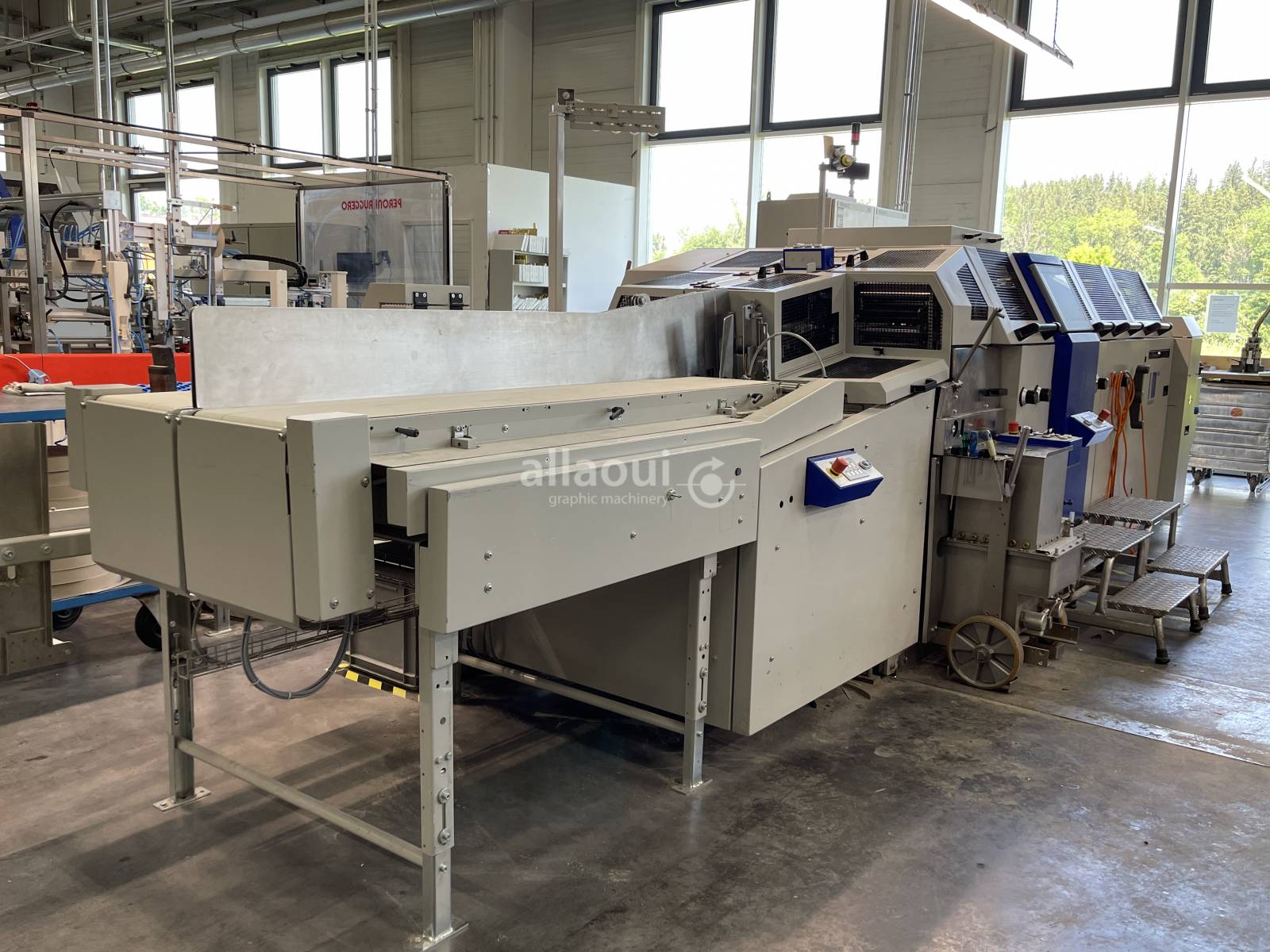

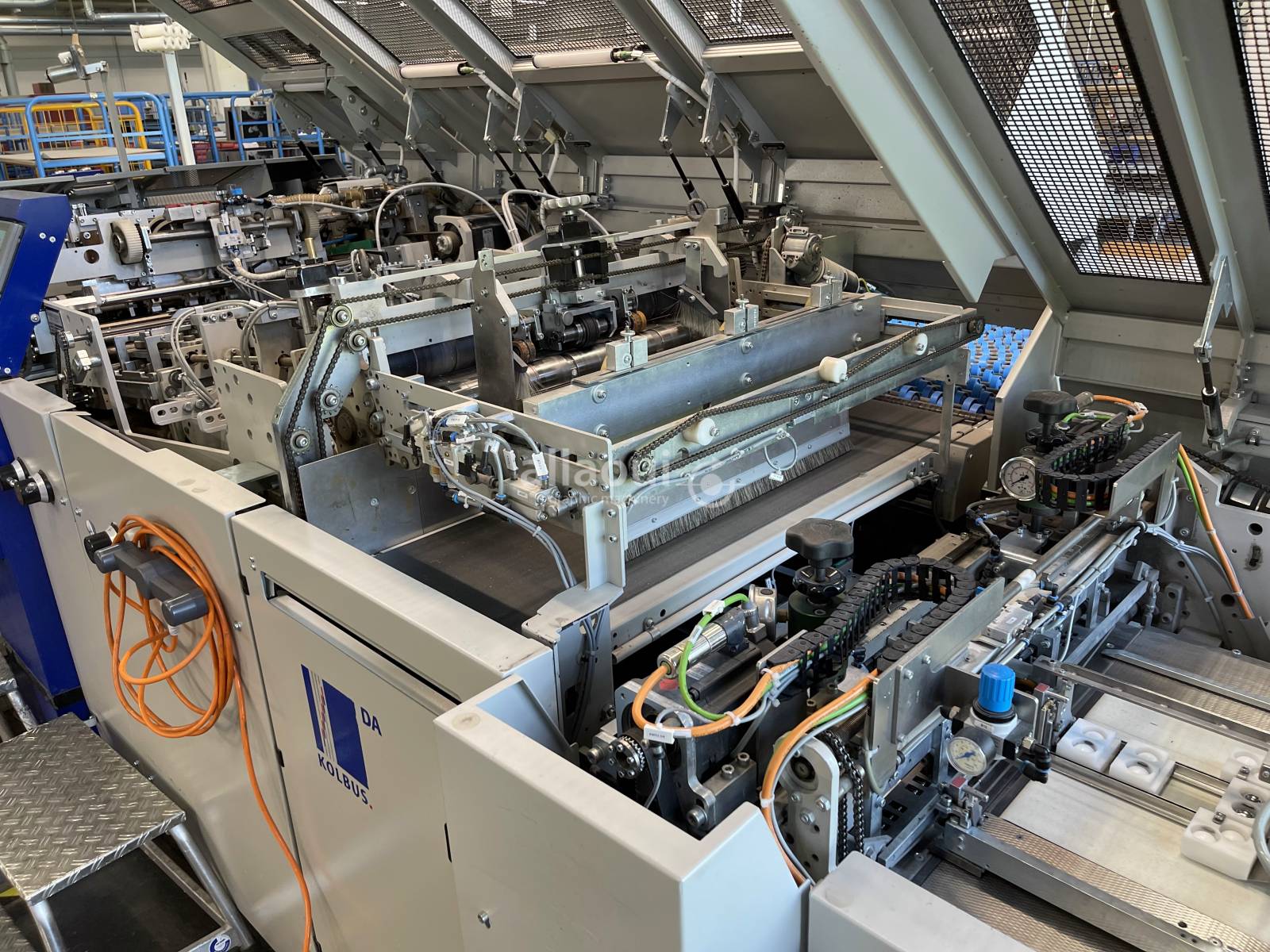

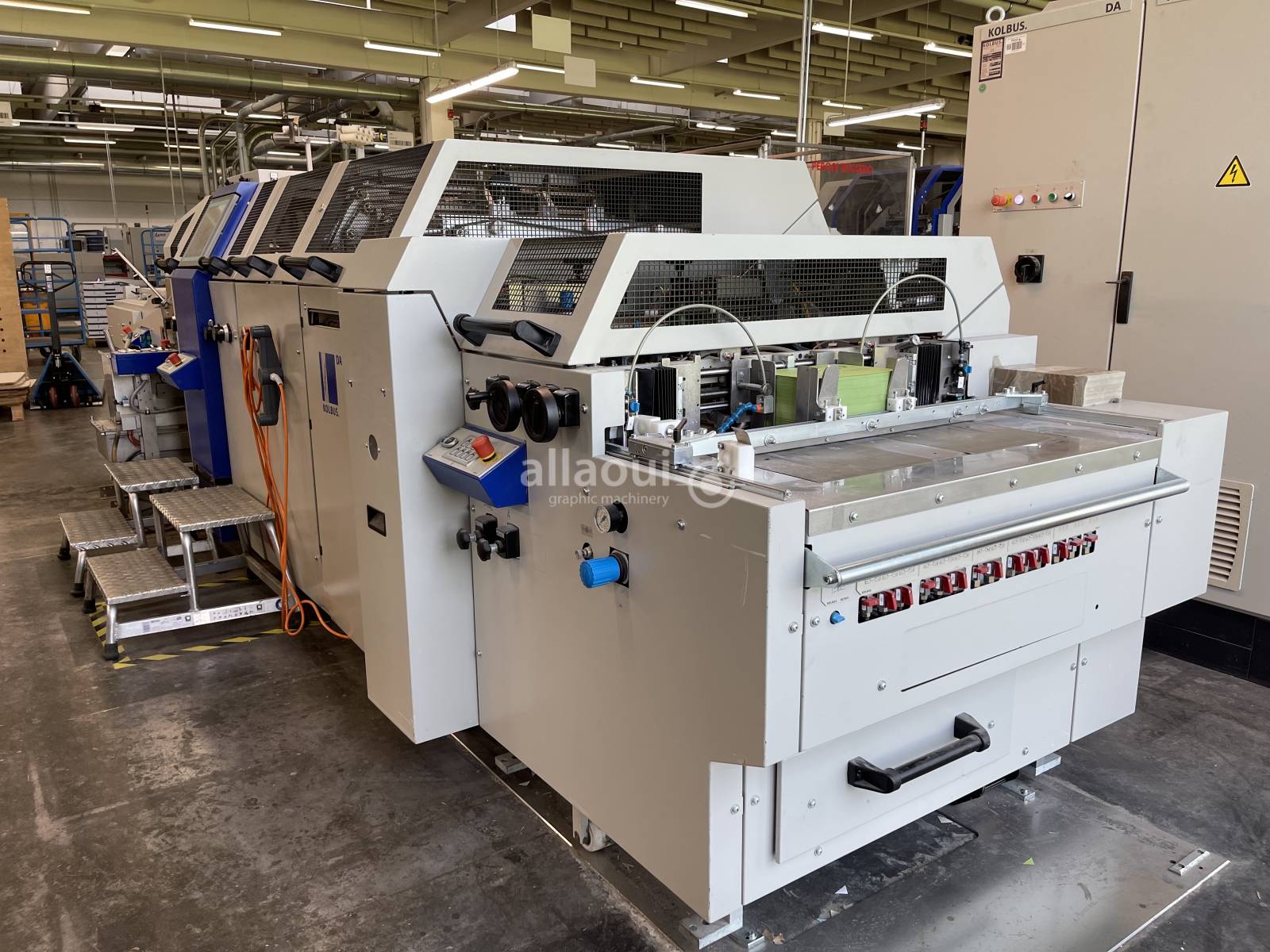

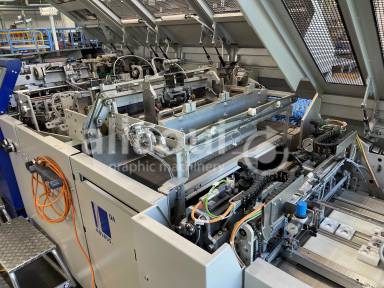

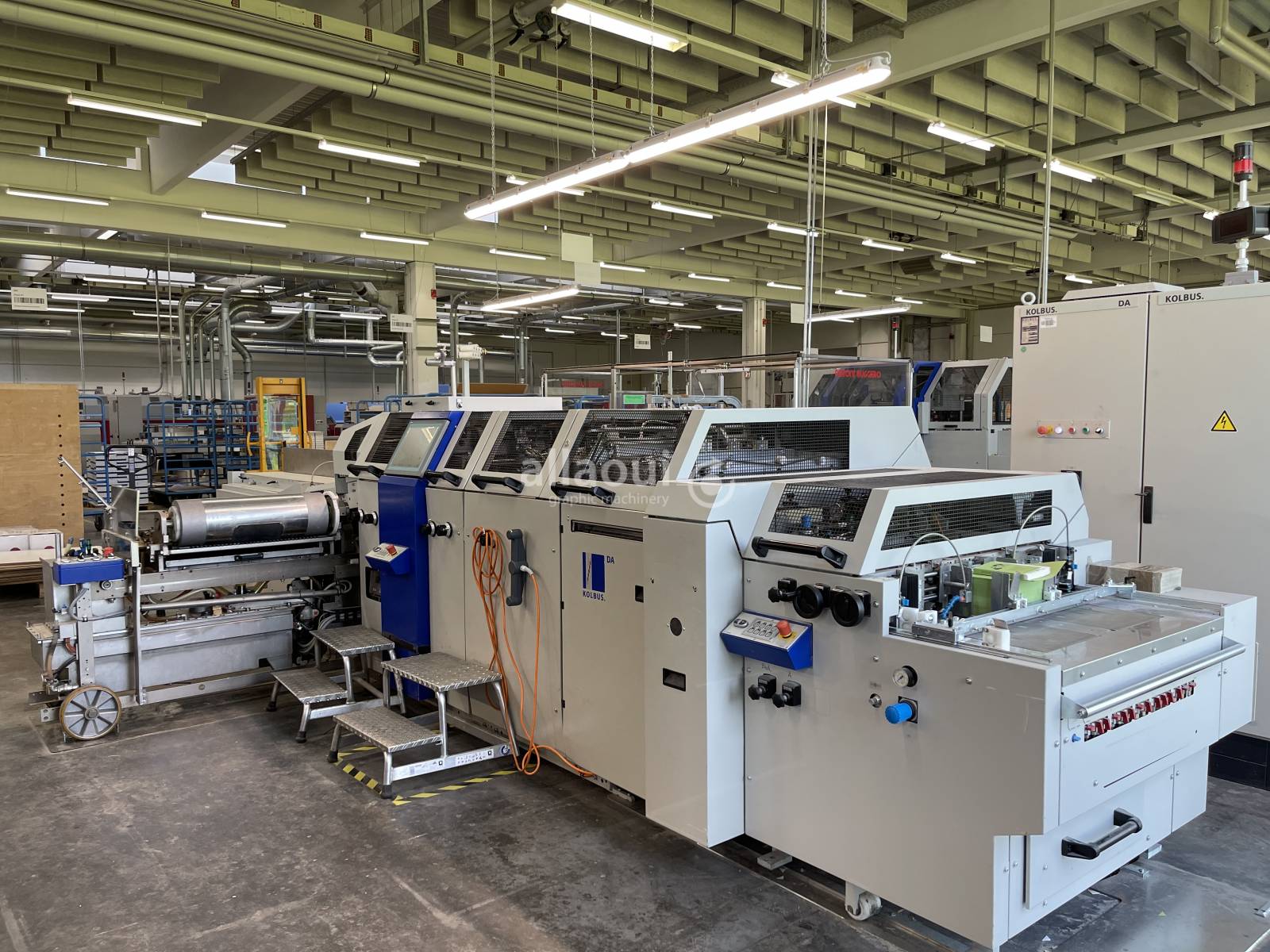

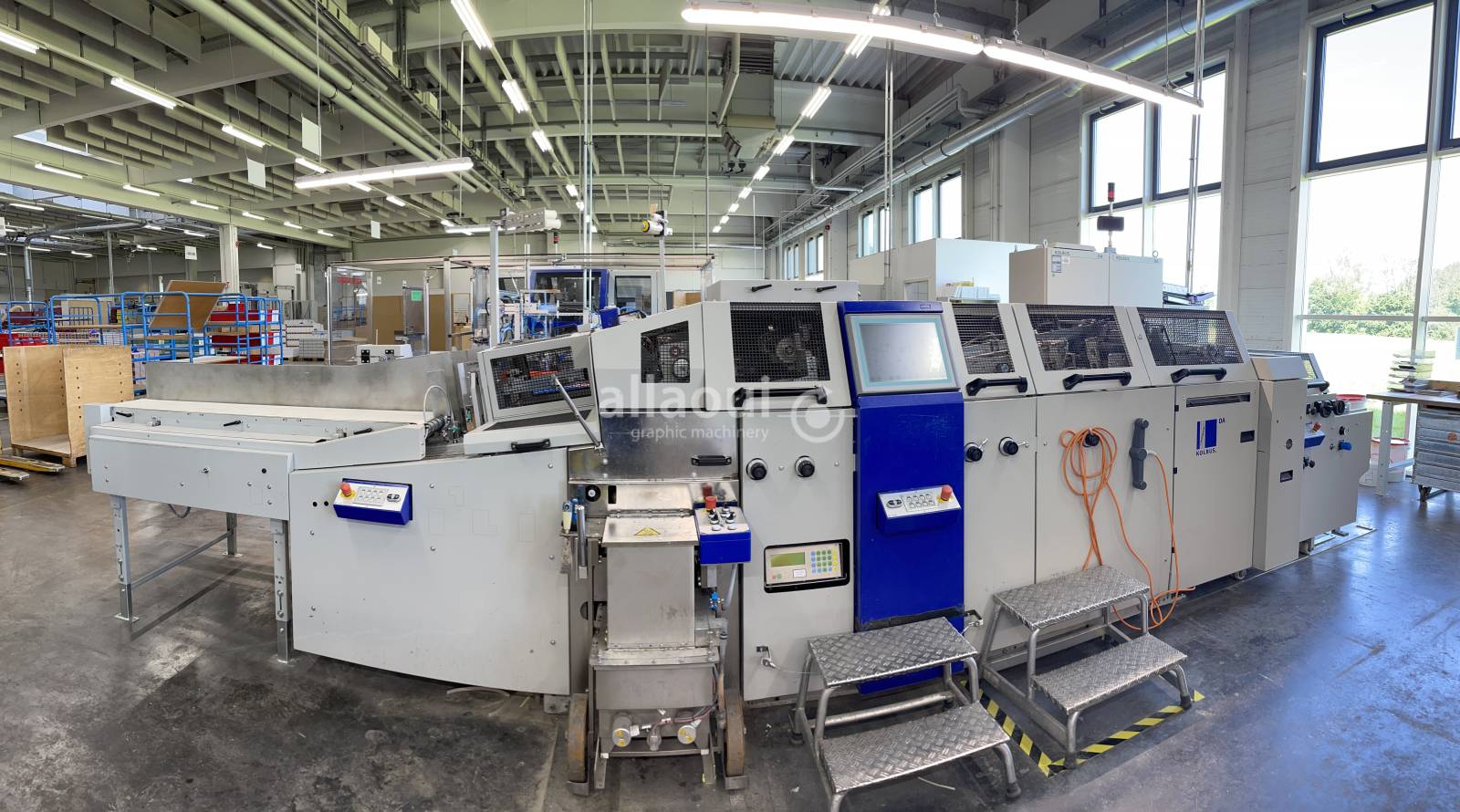

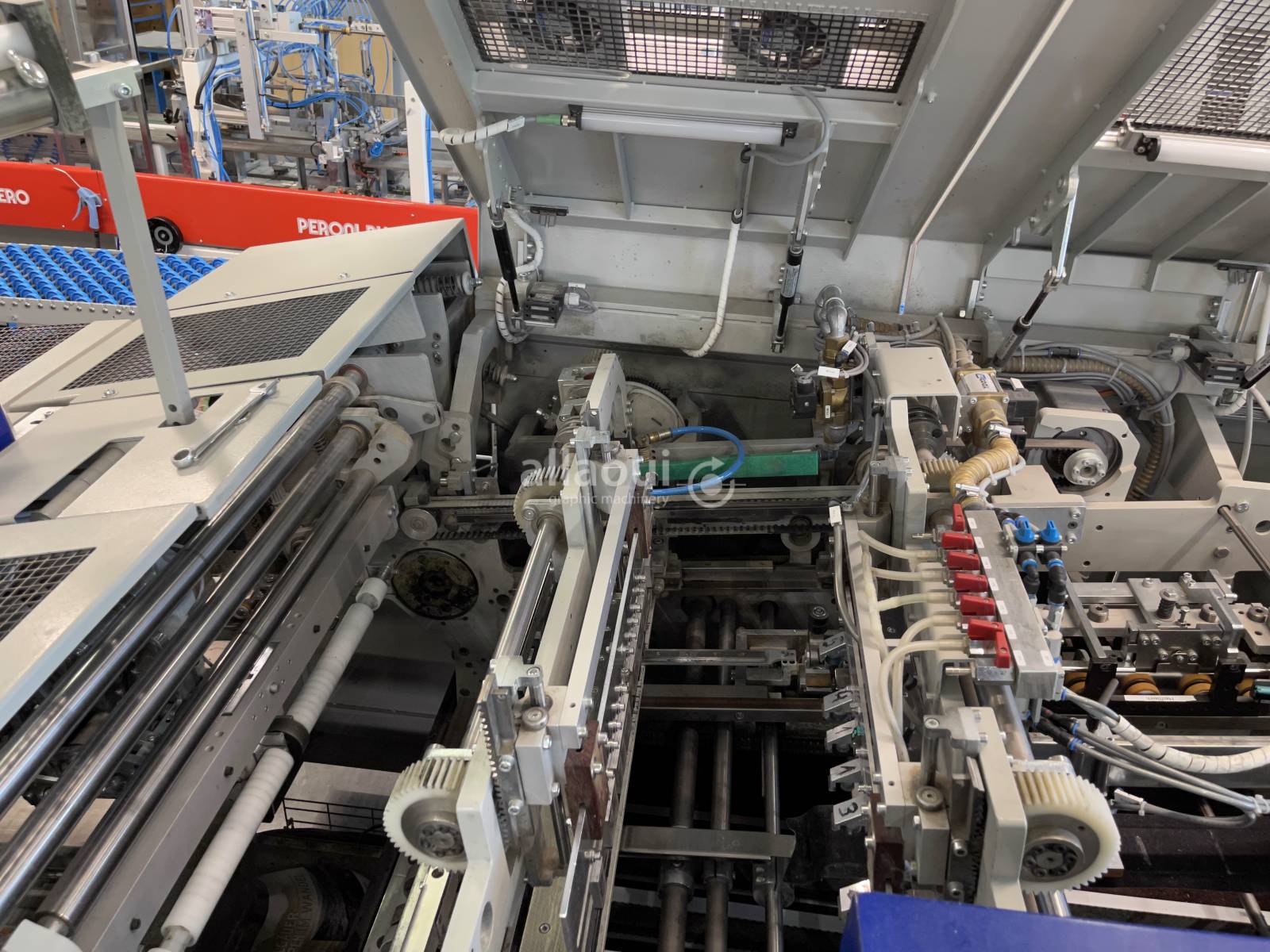

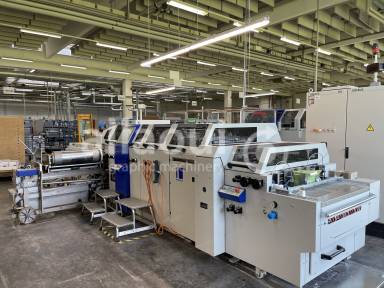

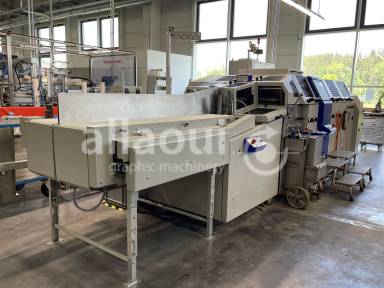

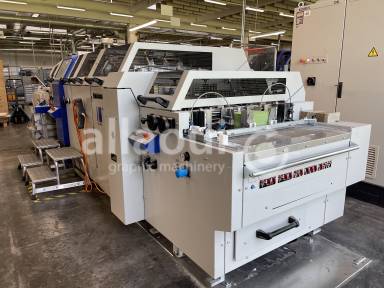

Used Kolbus DA 270

Case Production machine for sale

Reference VY94383

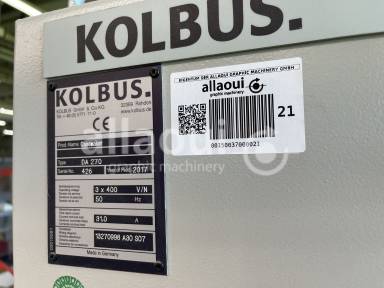

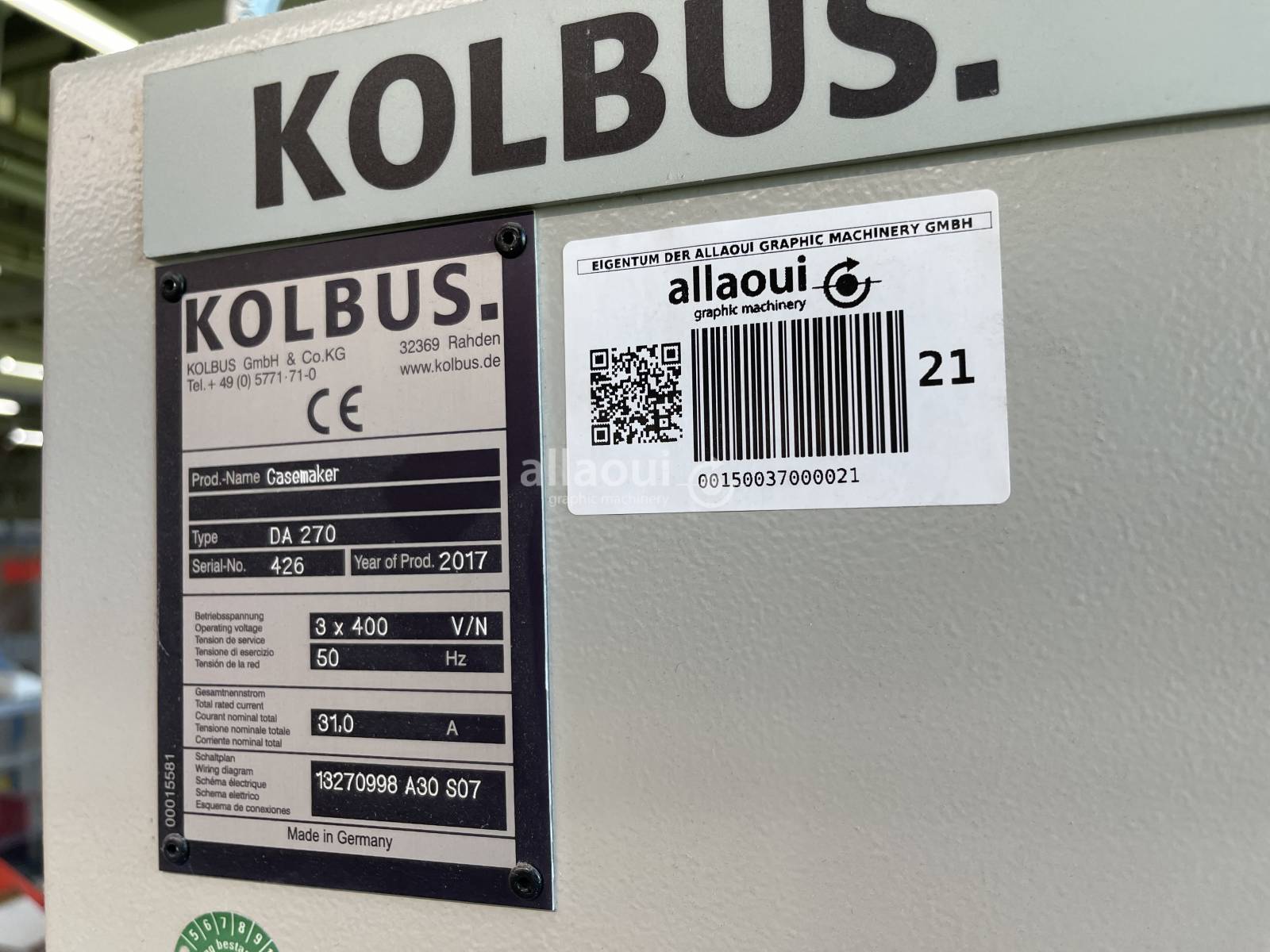

Manufacturer Kolbus
Type DA 270
Year 2017
Impressions 10 MM
Status in production
Get Price Quotation

Description

The casemaker for fully automatic production of book cases, files, display cards, calendar backs or game boards.
The DA 270 is a versatile machine for a wide range of applications. The machine with its non-stop case feeder is ergonomic and operator-friendly, so that it can be easily operated by one person.

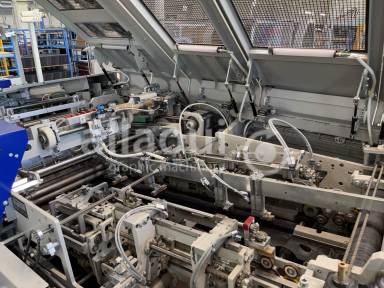

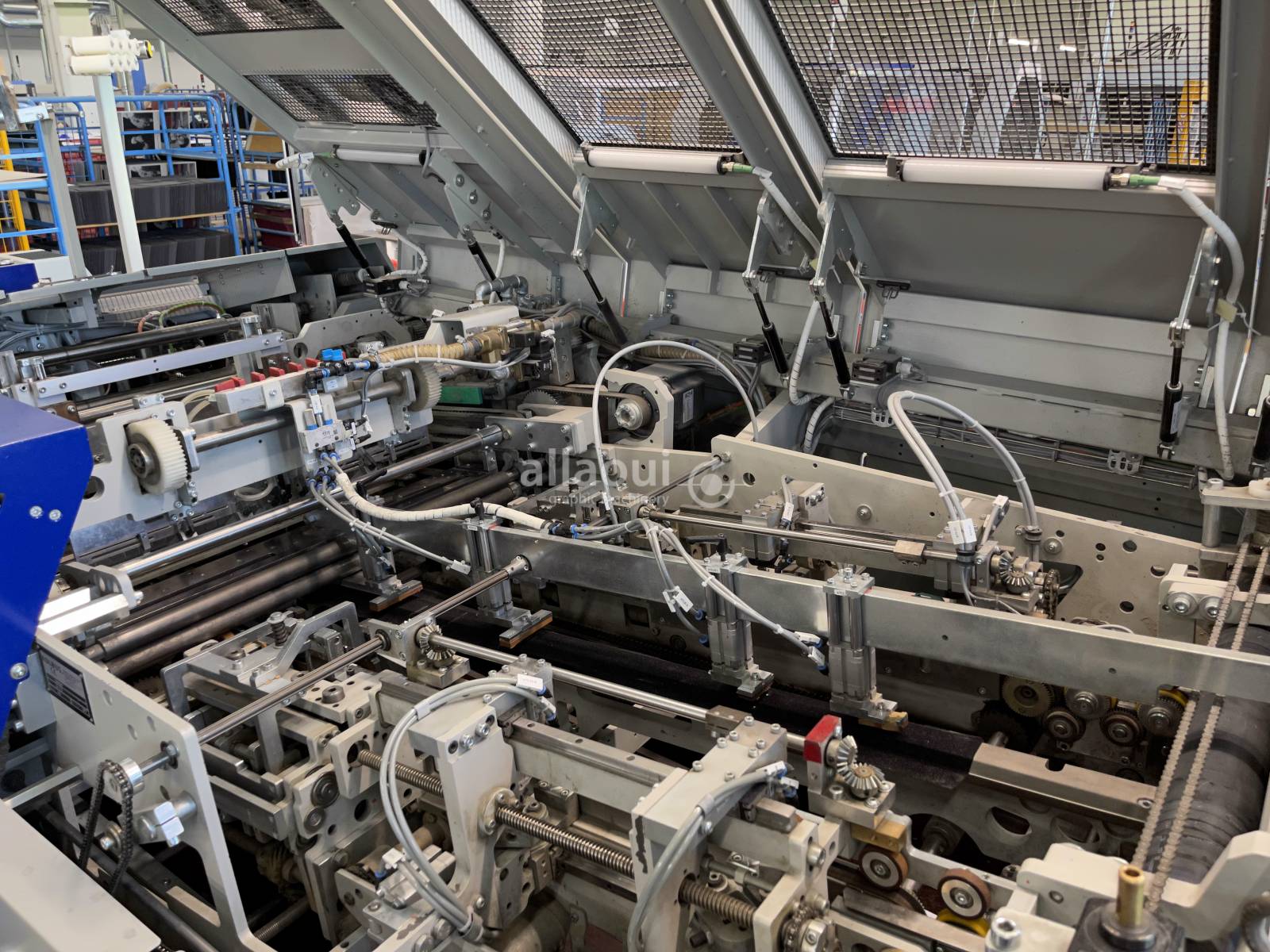

Equipment

  • Copilot System with touchscreen
  • Board prestacking conveyor (1.700mm)

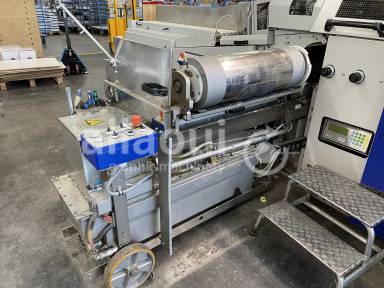

  • Cloth feeder for non-stop operation with pile magazine
  • Miss cloth control during the separation process
  • Counter stacker delivery with following roller conveyor

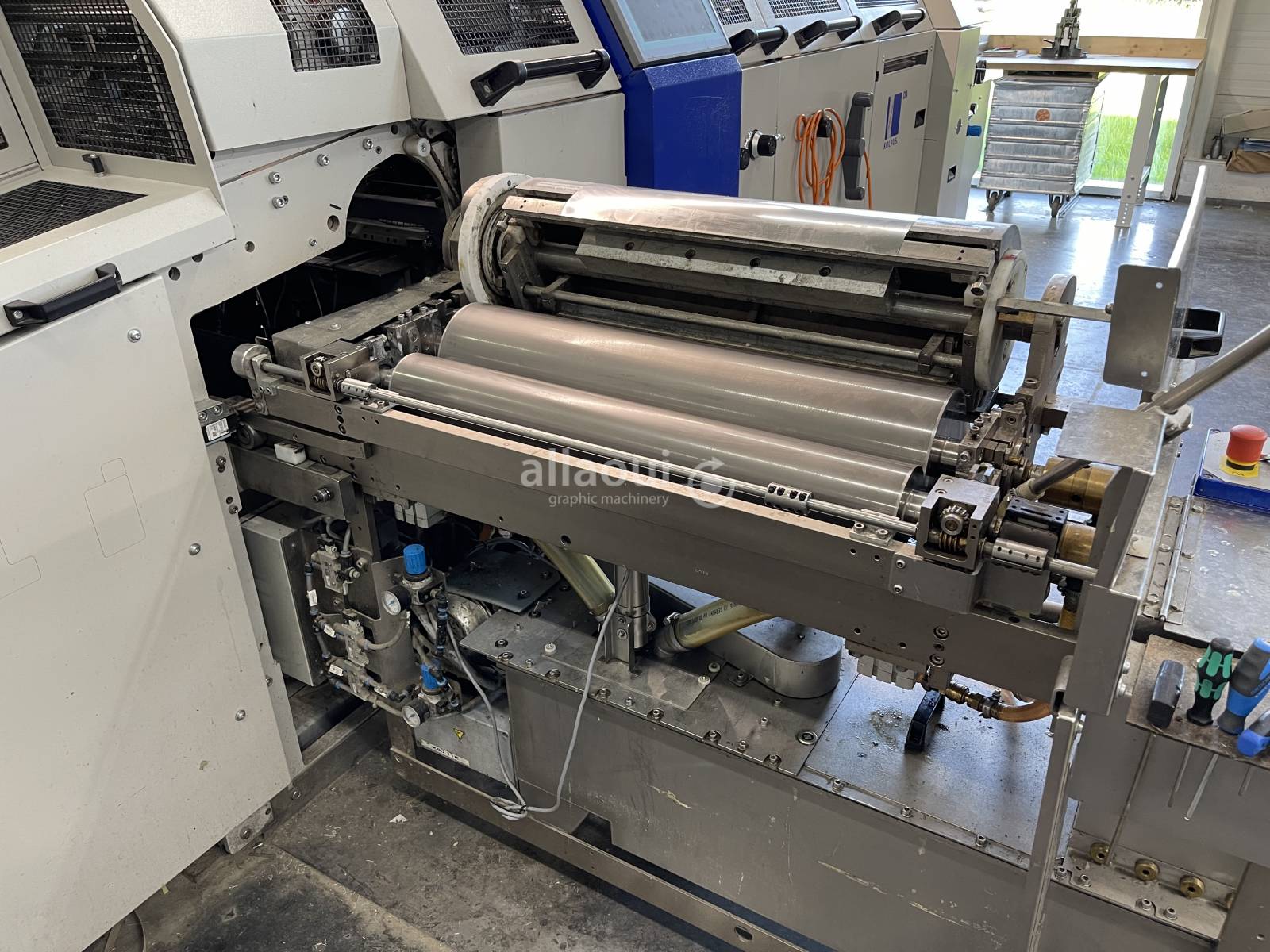

  • Cloth cylinder with grippers and exchangeable plates for rubber pad
  • Centre strip pressing device (head/tail)
  • Pressing roller device for crease-free connection of the cover material with boards and spine strip
  • Programmable automatic setting, motorized adjustment, fault indication
  • Device for processing centre strip rolls

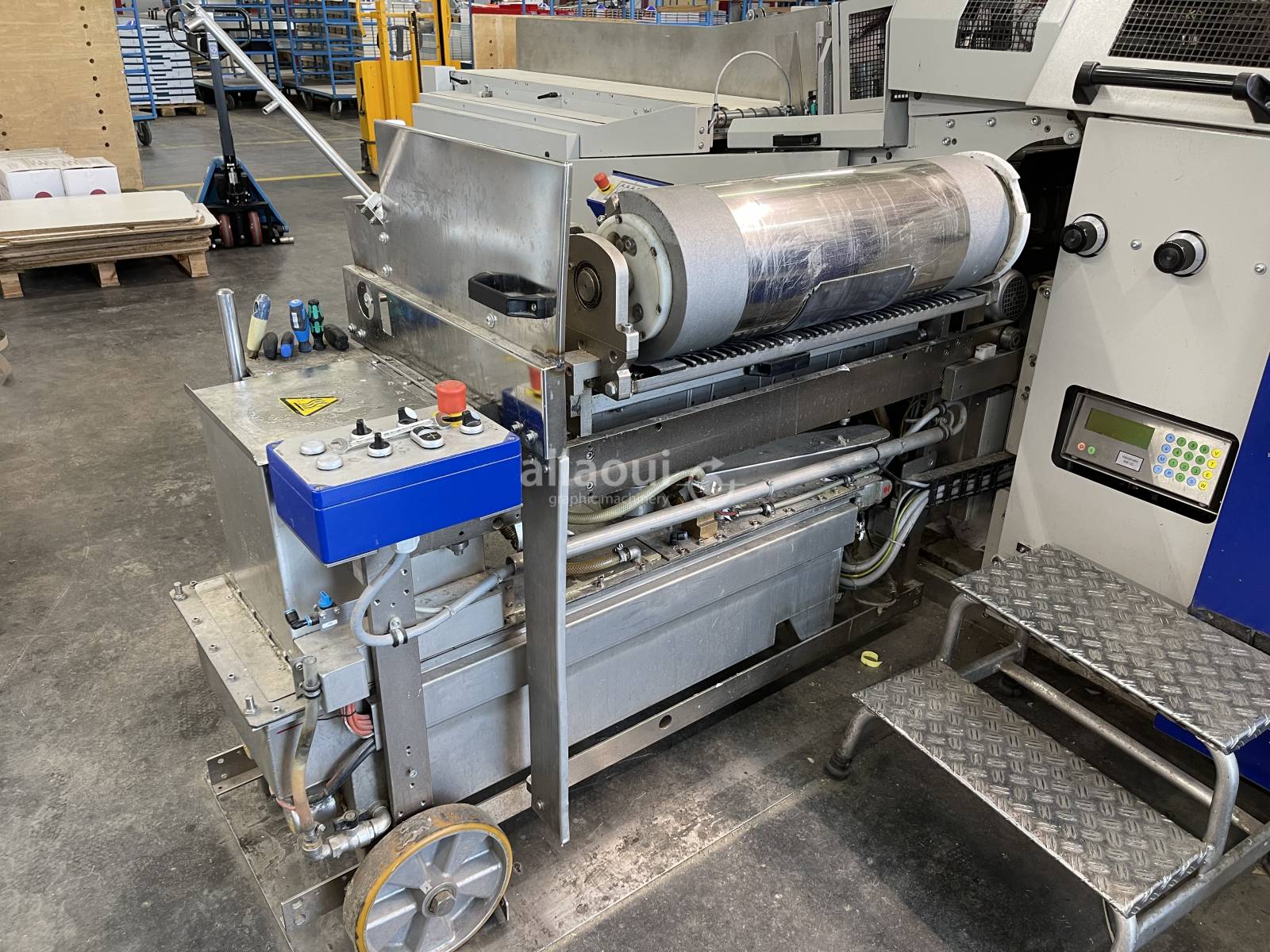

  • Processing hotmelt
  • with board centre strip magazine
  • Device for producing padded cases
  • Device for small format
  • Special equipment for the processing of thin boards
  • Viscositycontrol
  • Corner punch
  • Center strip infeed for spine strip made of roll material
  • Chopper for the center strip waste
  • Integrated cloth corner cutter incl. equipment for manufacturing cases with round corners (tools required)
  • Device & Tools for Radius 6 mm
  • Device & Tools for Radius 8 mm
  • Device & Tools for Radius 10 mm
  • Safety standard according to CE directives and specifications

Technical Details

  • Case size min: 160 x 100 mm
  • Case size max : 670 x 390 mm
  • Cloth width: 170 - 708 mm
  • Cloth height: 130 - 428 mm
  • Board thickness: 1 - 4 mm
  • Board centre strip thickness: 1 - 4 mm
  • Centre strip roll thickness: 0.2 - 0.6 mm
  • Centre strip roll width: 6 - 90 mm
  • Mechanical speed max: 65 cycles/min

Current data

  • Compressed air requirement: 40
  • Factory line pressure: 6 bar
  • Machine dimensions: 6,200 x 3,000 x 2,200 mm
