• Delivery: on vibrating jogger 76x105
• P- Device for one-pass R/V lamination

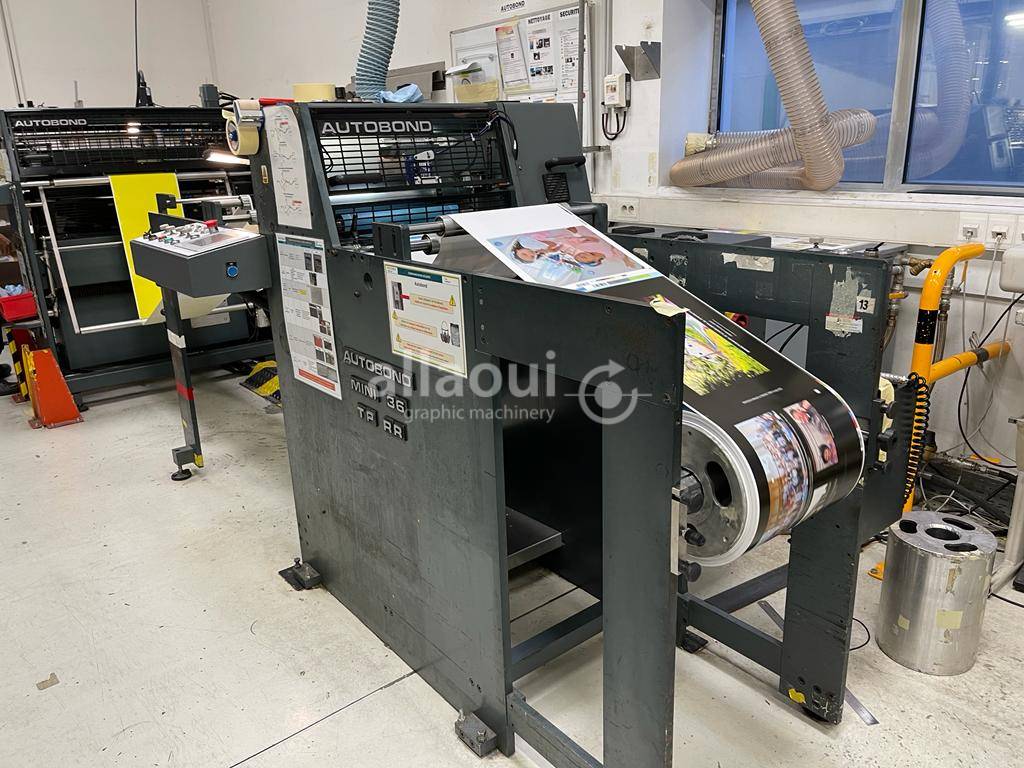

• RR- Unwinder + Rewinder on standard cores

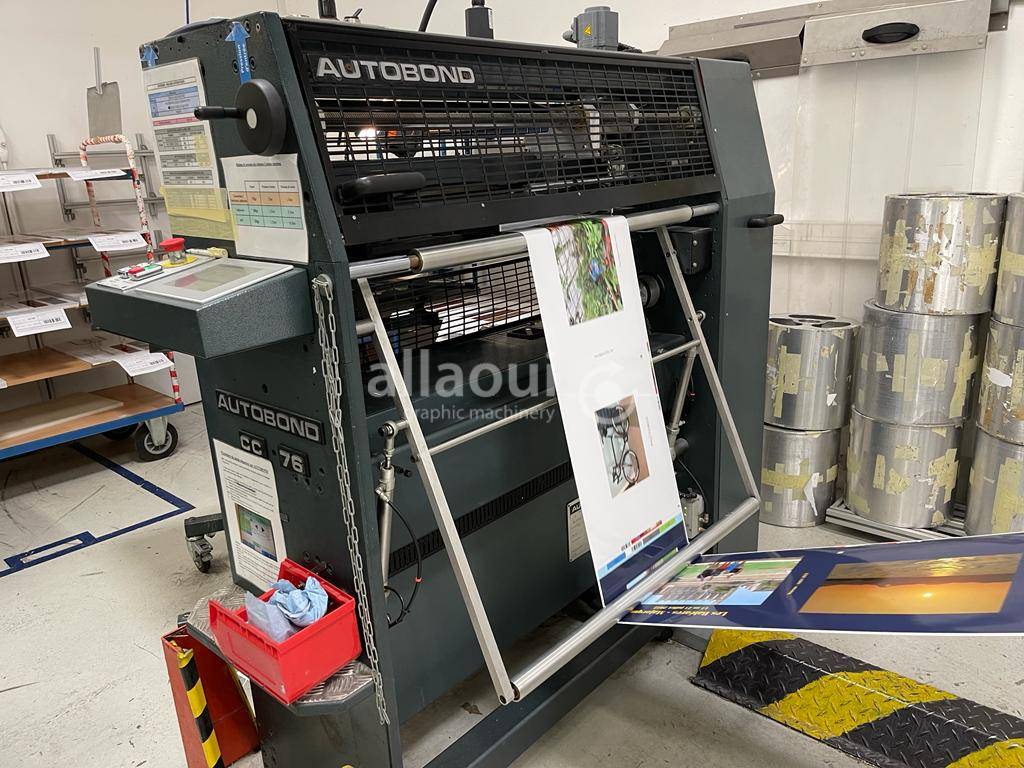

• CC76- Automatic knife CC 76

System

• Chrome mirror film cylinder (Ø 150 mm)
• Hydrogenated nithryl pressure roller (Ø 150 mm)
• Adjustable pneumatic laminating pressure (6T max)
• Film tension controlled by pneumatic clutch
• Temperature control by water circulation: 40L/min - 140°C max

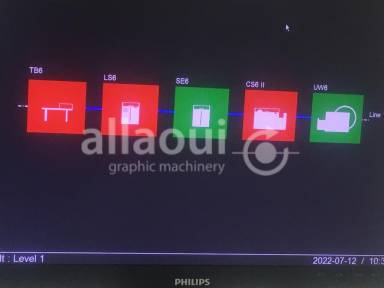

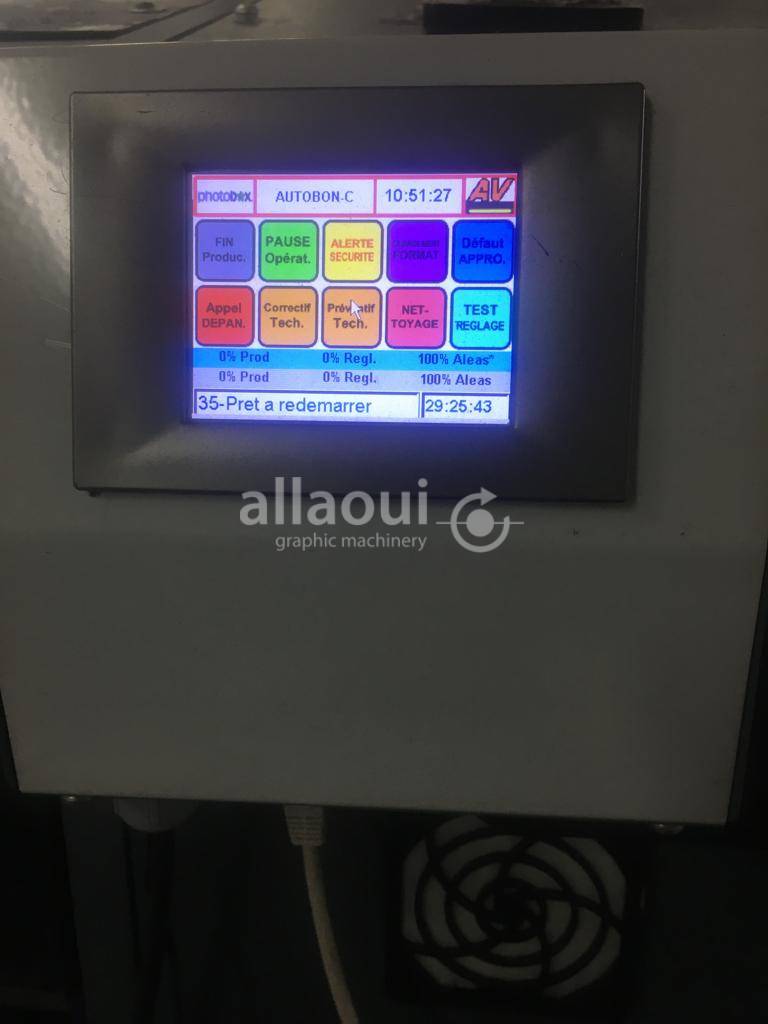

• LENZ HMI controllers with remote diagnosis
• Pre and post lamination lighting
• Paper de-oiling device before lamination
• External lubricators
• Recto film reel mounted on expanding mandrel (Ø 76 mm)
• Verso film reel mounted on expanding mandrel (Ø 76 mm)

• Size max: 360 mm
• Mechanical speed max: 45 m/min
• Sheet weight: 170 - 300 gr.
• Maximum length of the sheet for cutting: 830 mm
